■ RAPID DRYER [ RD-405P ]

It is a device to maintain the ultra low moisture in short time to control the internal moisture automatically on dehumidifying box when the door open

■ Product Features

1) Maintain the moisture on Micro Dry

- keep the sustainable moisture less than 10%Rh

2) Low moisture less than 3%Rh within 10min under 30% humidity (connected SMS-320SU)

- Dehumidifying system functioning over the set humidity after measuring internal humidity

- Maintenance humidity management regulation(under Rh10%)

- Emission the inside moisture air to input the dry air

3) Available installation by site worker

- Easy installation by site worker /td>

- Installation to upgrade the Micro Dry using the system magnetic function type

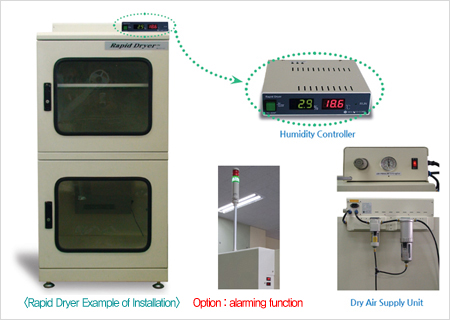

■ Rapid Dryer Descriptions

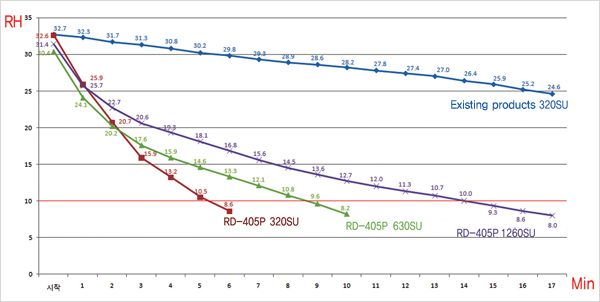

■ Effect of RD-405P on MICRO DRY product(reaching time less than Rh 10%)

※ the above test is the average result of 3 times test but can be different depending on Dry unit function, inflow rate of moisture, and season

Details
Comment
Đăng ký nhận thông tin về sản phẩm

■ Rapid Dry Specification

Product specification		RD-205P	RD-305P	RD-405P
MICRO DRY capacity		N2 or Air cotroll	200 ~ 400 ℓ	600~1200 ℓ
input Air q’ty		2 kg / ㎠	4 ~ 6 kg / ㎠
Humidity Controller	Dimension(mm)	184(L) x 100%(W) x 45(H)
	Weight	1.1 kg
	Power	DC 5V 1A(Additional input of controller power)
	function	temperature·humidity display
		humidity monitoring and control
Dry Air Supply	Dimension(mm)	550(L)x150(W)x183(H)	230(L) x 500(W) x 100(H)
	Weight	5 kg	8.7 kg
	Power	DC 5V 1A(Additional input of controller power)
	function	Air pressure display
		Air control complied by humidity set
		N2 Air control dry air production, supply
		supply control depending on humidity set
OPTION		buzzer alarm function when surged up humidity dat(10%) (warning lamp : red lamp on alarming/ green lamp on normal humidity
