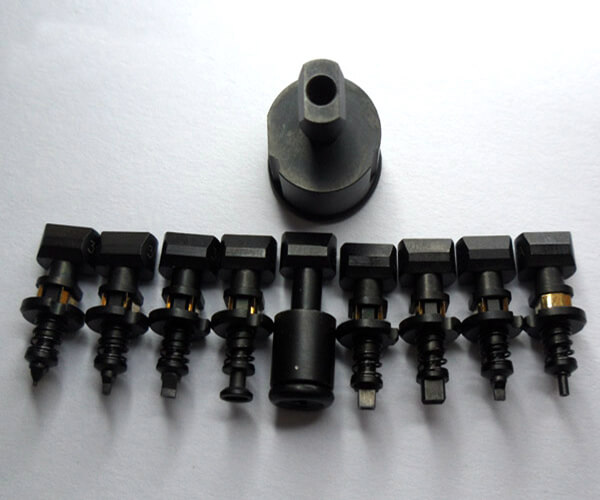

Yamaha Nozzle ( Vòi gắp, đầu gắp linh kiện SMD hãng Yamaha)
Yamaha Nozzle ( Vòi gắp, đầu gắp linh kiện SMD hãng Yamaha)
- Details
- Comment
- Đăng ký nhận thông tin về sản phẩm
YG100R NOZZLE
PART No.
NAME
Specification
Material
Remark
0603
0.35X0.65
CERAMIC
0603
KGS-M7710-A1X
211A
0.7×0.8(X)
CERAMIC
1005
KGS-M7720-A1X
212A
1.0×1.7(X)
CERAMIC
1608
KGS-M7730-01X
213A
Ø4.0/3.0×2.0
METAL
IC
KHY-M7710-A1X
214A
Ø8.0
O-ring
IC
KHY-M7720-A1X
215A
Ø13.0
O-ring
IC
KHY-M7740-A0X
216A
3.0×2.0
METAL
MELF
KHY-M7750-A0X
219A
Ø1.2/Ø0.7
CERAMIC
1608
KHY-M7760-A0X
211F(71F)
0.7×0.8(X)
CERAMIC
1005
KHY-M7770-A0X
212F(72F)
1.0×1.7(X)
CERAMIC
1608
KHY-M7770-A0X
213F(73F)
Ø4.0/3.0×2.0
METAL
IC
219F
Ø1.2/Ø0.7
CERAMIC
1608
YG200, YG300 NOZZLE
PART No.
NAME
Specification
Material
Remark
0603
0.35×0.65
CERAMIC
0603
KGT-M7710-A0
201A
0.7×0.8 (X)
CERAMIC
1005
KGT-M7720-A0
202A
1.0×1.7 (X)
CERAMIC
1608
KGT-M7730-A0
203A
Φ4.0/3.0×2.0
METAL
IC
KGT-M7760-A0
206A
3.0×2.0
METAL
MELF
KGT-M7790-A0
209A
Φ1.2/Φ0.7
CERAMIC
1608
KV8-M71N1-A0
201F(71F)
0.7×0.8 (X)
CERAMIC
1005
KV8-M71N2-A0
202F(72F)
1.0×1.7 (X)
CERAMIC
1608
KV8-M71N2-A0
203F(73F)
Φ4.0/3.0×2.0
METAL
IC
KV8-M71N9-A0
209F(79F)
Φ1.2/Φ0.7
CERAMIC
1608
YS12, YS12F, YS12P, YS24 NOZZLE
PART No.
NAME
Specification
Material
Remark
KHY-M77A0-A0X
310A
0.25×0.35(O)
CERAMIC
0402
KHY-M7710-A0X
311A
0.35×0.75(ㅁ)
CERAMIC
0603
KHY-M7720-A0X
312A
1.2×0.45(ㅁ)
CERAMIC
1005
KHY-M7730-A0X
313A
1.3*2.0(王)
CERAMIC
2012
KHY-M7710-A1X
301A
0.7×0.8(X)
CERAMIC
1005
KHY-M7720-A1X
302A
1.0×1.7
CERAMIC
1608
KHY-M7740-A0X
303A/314A
Ø4.0/3.0×2.0
METAL
IC
KHY-M7750-A0X
304A/315A
Ø8.0
O-ring
SOP, QFP
KHY-M7760-A0X
305A/316A
Ø15.0
O-ring
SOP, QFP
KHY-M7770-A0X
306A/317A
3.0×2.0
METAL
MELF
309A
Ø1.2/Ø0.7
CERAMIC
1608
YSM40 NOZZLE
PART No.
NAME
Specification
Material
Remark
KLF-M87A0-A0
510A
0.25×0.35(○)
CERAMIC
0402
KLF-M8710-A0
511A
0.35×0.75(□)
CERAMIC
0603
KLF-M8720-A0
512A
1.2×0.45(□)
CERAMIC
1005
KLF-M8730-A1
513A
1.3×2.0(王)
CERAMIC
2012
KLF-M7710-A0
501A
0.8×0.7(×)
CERAMIC
1005
KLF-M7720-A0
502A
1.0×1.7(×)
CERAMIC
1608
KLF-M8740-A0
503A/514A
Φ4.0/3.0×2.0
METAL
KLF-M8750-A0
504A/515A
Φ8.0
O-ring
Nozzle List for YRM20
Nozzle type View Typical Components Parts No./Parts name Type 8103A 0402 Chip KMX-M7713-A0 NOZZLE 8103A ASSY. Type 8104A 0603 Chip KMX-M7714-A0 NOZZLE 8104A ASSY. Type 8105A 1005 Chip KMX-M7715-A0 NOZZLE 8105A ASSY. Type 8106A 1608 Chip KMX-M7716-A0 NOZZLE 8106A ASSY. Type 8107A 2012 Chip KMX-M7717-A0 NOZZLE 8107A ASSY. Type 8108A 3216 to 3225 Chip KMX-M7718-A0 NOZZLE 8108A ASSY. Type 8109A 3.2 x 3.2mm to 7.2 x 7.2mm components KMX-M7719-A0 NOZZLE 8109A ASSY.
Nozzle type View Typical Components Parts No./Parts name Type 8110R 7.2 x 7.2mm to 12 x 12mm components KMX-M7720-A0 NOZZLE 8110R ASSY. Type 8004H 0603 to 1005 Chip KMX-M7723-A0 NOZZLE 8004H ASSY. Type 8006H 1608 to 2012 Chip KMX-M7724-A0 NOZZLE 8006H ASSY. Type 8011H 12 x 12mm to 32 x 32mm components KMX-M7725-A0 NOZZLE 8011H ASSY. Type 8012H 32 x 32mm to 45 x45mm components KMX-M7726-A0 NOZZLE 8012H ASSY. Nozzle List for YSM10 and YSM20/YSM20R
Nozzle type View Typical Components Parts No./Parts name Type301A 0603 to 1005 Chip KHN-M7710-A4 NOZZLE 301A ASSY. Type302A 1608 to 3126 Chip KHN-M7720-A3 NOZZLE 302A ASSY. Type311A 0603 Chip KHY-M7710-A4 NOZZLE 311A ASSY. Type312A 1005 to 1608 Chip KHY-M7720-A3 NOZZLE 312A ASSY. Type313A 2012 to 3225 Chip KHY-M7730-A2 NOZZLE 313A ASSY. Type3010A /Type3110A 0402 Chip KHY-M77A0-A0 NOZZLE 310A ASSY. Nozzle type View Typical Components Parts No./Parts name Type303A /Type314A 4532 to 7343 Chip or SOP KHY-M7740-A0 NOZZLE 303A/314A AS. Type304A /Type315A QFP KHY-M7750-A0 NOZZLE 304A/315A AS. Type307A /Type318A 32 x 32mm to 45 x 45mm components KHY-M7780-A0 NOZZLE 307A/318A AS. Nozzle List for YSM40R RS head unit
Nozzle type View Typical Components Parts No./Parts name Type7202A 0402 Chip KMB-M7720-A0 NOZZLE, 7202A ASSY Type7203A 0603 Chip KMB-M7730-A0 NOZZLE, 7203A ASSY Type7204A 1005 Chip KMB-M7740-A0 NOZZLE, 7204A ASSY Type7205A 1608 Chip KMB-M7750-A0 NOZZLE, 7205A ASSY Type7206A 2012 Chip KMB-M7760-A0 NOZZLE, 7206A ASSY Nozzle type View Typical Components Parts No./Parts name Type7207A 3216 to 3225 Chip KMB-M7770-A0 NOZZLE, 7207A ASSY Type7208A SOP etc. KMB-M7780-A1 NOZZLE, 7208A ASSY Nozzle List for YSM40R MU head unit
Nozzle type View Typical Components Parts No./Parts name Type500A/510A 0402 Chip KLF-M87A0-A0 NOZZLE, 500A/510A ASSY. Type501A 0603 to 1005 Chip KLF-M7710-A0 NOZZLE, 501A ASSY. Type502A 1608 to 3216 Chip KLF-M7720-A1 NOZZLE, 502A ASSY. Type503A/514A SOP KLF-M8740-A0 NOZZLE, 503A/514A ASSY. Type511A 0603 Chip KLF-M8710-A1 NOZZLE, 511A ASSY. Type512A 1005 to 1608 Chip KLF-M8720-A1 NOZZLE, 512A ASSY Type513A 2012 to 3225 Chip KLF-M8730-A1 NOZZLE, 513A ASSY. Nozzle type View Typical Components Parts No./Parts name Type504A/515A QFP, PLCC KLF-M8750-A0 NOZZLE, 504A/515A ASSY. Type507A/518A 32 x 32 mm or larger components KLF-M8750-A0 NOZZLE, 507A/518A ASSY. Type506A/517A Cylindrical component KLF-M8770-A0 NOZZLE, 506A/517A ASSY.
