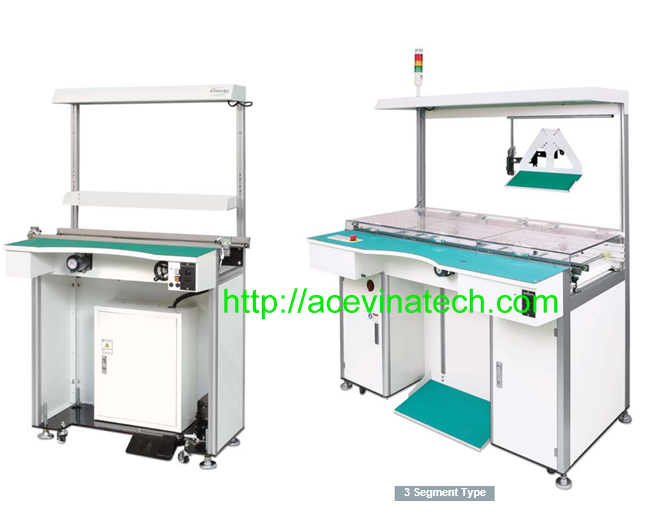

INSPECTION CONVEYOR

Document:

Updating..

This unit is used to inspect the PCBs manually in the production line.

Features						Options
SMEMA Interface							Touch screen
Stable design with double plate structure							Buzzer, LED tower light
PLC control							Auto width adjustment
Pass / Work mode available							Cooling Fan
Adjustable PCB position							ESD safety cover
Adjustable Conveyor speed							Added segment for holding lots of PCBs
Maximized ESD working space							Preset counter function
Eye-protectable high efficient fluorescent light							Magnifying glass
Parts hanger is furnished

Model	Max. PCB		Min. PCB		Dimension			Power	Weight
KIC-900S	330	250	50	50	900	510	1560	100 VA	80
KIC-900Y	440	330	50	50	900	590	1560	100 VA	90
KIC-900L	530	380	50	50	900	640	1560	100 VA	100
KIC-900X	530	460	50	50	900	710	1560	100 VA	110
KIC-900XX	610	460	50	50	900	770	1560	100 VA	120
