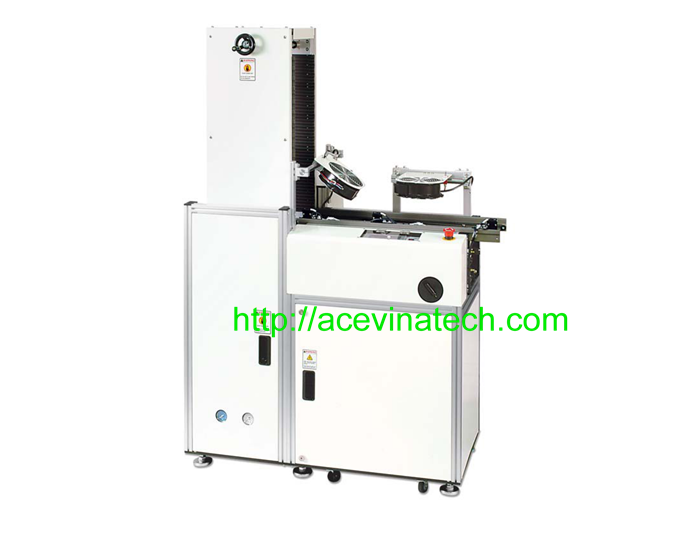

RACK BUFFER

Document:

Updating..

This unit is used to store the PCBs inside the built-in Rack to buffer the tact time between previous and next process.

Features								Options
SMEMA Interface									Touch screen
Able to use as Stacker for waiting and supply									Auto width adjustment
Total PCB storage : 50 PCBs									Cooling Fan
Easy operation by user-friendly operation panel									The types of Magazine in/out are
Decreased noise while Magazine moves up/down								slide way for for/rev
PCB pushing guide
Buzzer, LED tower light

Model	Max. PCB		Min. PCB		Dimension				Power	Air	Weight
KRB-900S	330	250	50	50	1030	800	1670		700 VA	4~6	190
KRB-900Y	440	330	50	50	1290	880	1670		700 VA	4~6	210
KRB-900L	530	380	50	50	1450	990	1670		700 VA	4~6	230
KRB-900X	530	460	50	50	1450	1060	1670		700 VA	4~6	240
KRB-900XX	610	460	50	50	1450	1120	1670		700 VA	4~6	250
