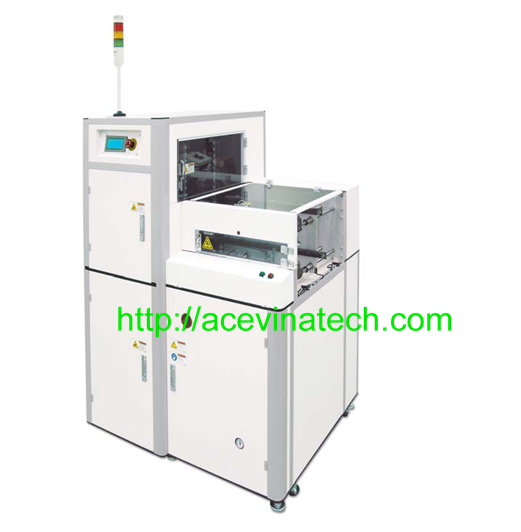

SPI / AOI NG Buffer
Document:
Updating..
This unit is located after SPI/AOI process to store NG PCB in the Rack while transferring Good PCB to the next machine in FIFO or LIFO way.
- Details
- Comment
- Đăng ký nhận thông tin về sản phẩm
Features
- SMEMA Interface
- Touch Screen
- PCB Anti-touch operation - No Stress on PCB (Operated by Special Magnetic Roller)
- Output Conveyor Two-way(upper&lower conveyor) type : upper conveyor for NG PCB
- PCB loading Q'ty : 10 pcs ( Pitch : 31mm )
- After inspection of NG PCB, the Operator can change it to Good PCB
- RS232C Communication with SPI/AOI
- PCB transfer in FIFO / LIFO available
- ESD Cover at Rack part Buzzer, LED tower light
Options- Auto width adjustment
- 15 or 20 PCB loading capacity ESD cover for buffer conveyor
Model
Max. PCB
Min. PCB
Dimension
Power
Air
Weight
KGNB-700S
330
250
50
50
800
750
1500
700 VA
4~6
220
KGNB-700Y
440
330
50
50
1060
830
1500
700 VA
4~6
230
KGNB-700L
530
380
50
50
1220
880
1500
700 VA
4~6
240
KGNB-700X
530
460
50
50
1220
950
1500
700 VA
4~6
250
KGNB-700XX
610
460
50
50
1220
1100
1500
700 VA
4~6
260
