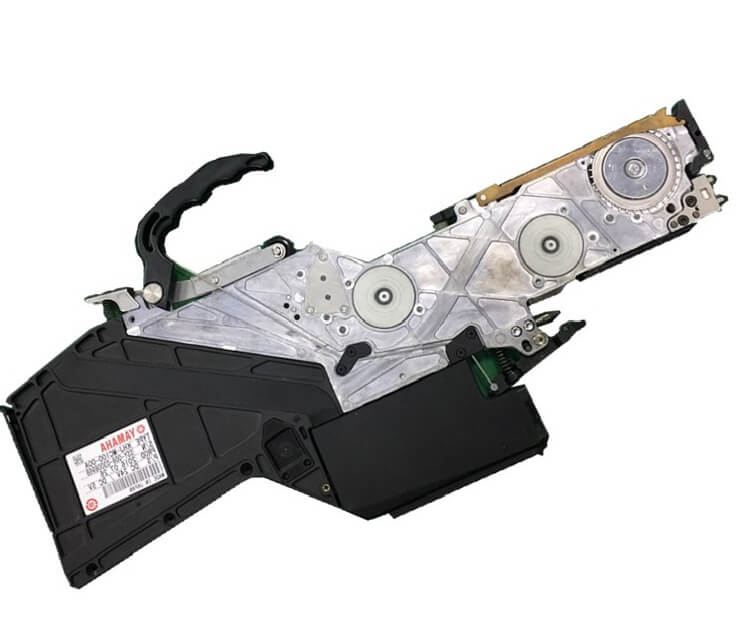

Yamaha SS feeder parts ( SSY feeder parts )

YAMAHA SS FEEDER 8MM PART LIST

KHJ-MC101-01 BODY,FEEDER

KHJ-MC101-02 BODY,FEEDER

KHJ-MC101-03 BODY,FEEDER

KHJ-MC110-00 MOTOR,FEED

KHJ-MC102-00 COVER,FEEDER SIDE 1

KHJ-MC10C-00 SEAL,MAIN LABEL

KHJ-MC10E-00 SCREW,FLAT HEXLOBE

KHJ-MC134-00 GEAR,IDLE F1

KHJ-MC135-00 GEAR,IDLE F2

KHJ-MC136-01 GEAR,IDLE F3

KHJ-MC137-00 GEAR,IDLE F4

KHJ-MC138-00 GEAR,DRIVEN

KHJ-MC139-00 SHAFT,IDLE GEAR 1

KHJ-MC13C-00 PLATE,PUSHER GEAR

KHJ-MC13D-00 SPRING,PUSHER PLATE

KHJ-MC13F-00 SCREW,STAD

KHJ-MC161-01 BOX,TOP TAPE

KHJ-MC161-02 BOX,TOP TAPE

KHJ-MC162-01 COVER,TOP TAPE BOX

KHJ-MC162-02 COVER,TOP TAPE BOX

KHJ-MC162-03 COVER,TOP TAPE BOX

KHJ-MC166-00 BLOCK,P/O TOOTH 1

KHJ-MC166-01 BLOCK,P/O TOOTH 1

KHJ-MC166-02 BLOCK,P/O TOOTH 1

KHJ-MC16F-00 SCREW,FLAT HEAD TAP.

KHJ-MC16J-00 SCREW,FLAT HEAD

KHJ-MC16U-00 TAIL COVER ASSY.

KHJ-MC106-00 PLATE,UNDER

90166-02JA03 SCREW,PAN HEAD

91317-03006 BOLT HEX.SOCKET HEAD

91317-03008 BOLT HEX.SOCKET HEAD

91312-03010 BOLT HEX.SOCKET HEAD

98707-03006 SCREW,FLAT HEAD

KHJ-MC16W-00 PLATE,P/O TOOTH 1

90112-2AJ006 BOLT HEX.SOCKET HEAD

KHJ-MC10C-00 SEAL,MAIN LABEL

KHJ-MC131-00 SPROCKET ASSY.

KHJ-MC13A-00 SHIM,SPROCKET

KHJ-MC13B-00 BUSH,SPROCKET

KHJ-MC13E-00 BOLT,EXTRA LOW HEAD

KHJ-MC141-02 TAPE GUIDE ASSY.

KHJ-MC144-00 LEVER,TAPE GUIDE R

KHJ-MC145-00 LEVER,TAPE GUIDE F

KHJ-MC146-02 SPRING,TAPE GUIDE R

KHJ-MC147-02 SPRING,TAPE GUIDE F

KHJ-MC15A-00 SHAFT 112

KHJ-MC165-00 MAGNET,TAIL

KHJ-MC167-00 COVER,MENBRANE

KHJ-MC1A4-00 COVER,ABS

KHJ-MC1AA-00 SWITCH,OPERATION

KHJ-M4664-00 ABS BOARD ASSY.

KHJ-MC1A5-00 DUMMY SPLICE SENS.

KHJ-MC1A5-10 SPLICE SENS.8MM

KHJ-MC1AB-00 SCREW,PAN HEAD TAP.

90115-02J003 BOLT HEX.SOCKET HEAD

92A08-03303 SET SCREW M3X3

KHJ-MC10E-00 SCREW,FLAT HEXLOBE 5

KHJ-MC110-10 MOTOR,PEEL

KHJ-MC139-00 SHAFT,IDLE GEAR 1

KHJ-MC13F-00 SCREW,STAD

KHJ-MC151-00 GEAR,IDLE P1

KHJ-MC152-00 GEAR,IDLE P2

KHJ-MC153-00 GEAR,IDLE P3

KHJ-MC156-00 ROLLER,P/O 1

 KHJ-MC156-01 ROLLER,P/O 1

KHJ-MC156-02 ROLLER,P/O 1

KHJ-MC159-00 COVER,IDLE GEAR 2

KHJ-MC154-00 GEAR,IDLE P4

KHJ-MC155-00 GEAR,IDLE P5

KHJ-MC158-00 COVER,IDLE GEAR 1

KHJ-MC16B-00 SHAFT,P/O LEVER 2

KHJ-MC16E-00 SPRING,P/O LEVER

KHJ-MC16H-00 SCREW,PAN HEAD TAP.

KHJ-MC16V-00 P/O LEVER ASSY.

KHJ-MC16V-01 P/O LEVER ASSY.

KHJ-MC16V-02 P/O LEVER ASSY.

KHJ-MC1A1-00 BOX,EL

KHJ-MC1A2-00 COVER,BOX EL

KHJ-MC1A3-00 COVER,CABLE

KHJ-MC1A3-01 COVER,CABLE

KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T

KHJ-MC1A9-00 CONNECTOR,BOARD

KHJ-MC1AC-00 INSULATION SHEET

KHJ-M4488-00 FEEDER BOARD ASSY.

90166-02JA08 SCREW PAN H.:M2.5X8

91317-03006 BOLT HEX.SOCKET HEAD

92A08-03303 SET SCREW M3X3

KHJ-MC103-02 BLOCK,FRONT

KHJ-MC104-00 RAIL,UNDER

KHJ-MC105-00 PIN,TAIL

KHJ-MC10F-00 SCREW,FLAT HEAD

KHJ-MC10M-00 BOLT,HEX. S/H

KHJ-MC139-00 SHAFT,IDLE GEAR 1

KHJ-MC16J-00 SCREW,FLAT HEAD

KHJ-MC181-00 HANDLE

KHJ-MC182-00 TENSION,WIRE 1

KHJ-MC183-00 SPACER,TENSION 1

KHJ-MC184-00 SPACER,TENSION 2

KHJ-MC185-00 PIN,HANDLE

KHJ-MC186-00 WIRE,UNCLAMP

KHJ-MC187-00 SPRING,TENSION

KHJ-MC189-00 PIN,CLAMP

KHJ-MC189-01 PIN,CLAMP

KHJ-MC18A-00 SPRING,CLAMP

KHJ-MC18B-00 COVER,WIRE 1

KHJ-MC18C-00 COVER,WIRE 2

KHJ-MC18F-00 CIRCLIP (E)

KHJ-MC18H-00 CLAMP LEVER ASSY.

91312-03008 BOLT HEX.SOCKET HEAD

92A08-03305 SCREW,SET

98702-03006 SCREW FLAT HEAD

99480-03010 PIN,PARALLEL

98702-03006 SCREW FLAT HEAD

99480-03010 PIN,PARALLEL

KHJ-MC10S-00 PIN,LOCATE 1

KHJ-MC10T-00 PIN,LOCATE

JKHJ-MC101-T1 BODY,FEEDER

JKHJ-MC1A3-01 COVER,CABLE

KHJ-MC10D-00 PLUG,BODY

KHJ-MC10R-00 COVER,TAPE ROAD

YAMAHA SS FEEDER 12MM/16 MM PART LIST

KHJ-MC201-00 BODY,FEEDER

KHJ-MC202-00 COVER,FEEDER SIDE 1

KHJ-MC20C-00 SEAL,MAIN LABEL

KHJ-MC10E-00 SCREW,FLAT HEXLOBE

KHJ-MC210-00 MOTOR, FEED

KHJ-MC134-00 GEAR,IDLE F1

KHJ-MC135-00 GEAR,IDLE F2

KHJ-MC136-01 GEAR,IDLE F3

KHJ-MC137-00 GEAR,IDLE F4

KHJ-MC238-00 GEAR,DRIVEN

KHJ-MC239-00 SHAFT,IDLE GEAR 1

KHJ-MC23B-00 BUSH,SPROCKET

KHJ-MC23C-00 PLATE,PUSHER GEAR

KHJ-MC13D-00 SPRING,PUSHER PLATE

KHJ-MC13F-00 SCREW,STAD

KHJ-MC13P-00 SPACER,F3

KHJ-MC23G-000 SHAFT,GEAR DRIVEN

KHJ-MC206-00 PLATE,UNDER

KHJ-MC261-00 BOX,TOP TAPE

KHJ-MC262-00 COVER,TOP TAPE BOX

KHJ-MC165-00 MAGNET,TAIL

KHJ-MC266-00 BLOCK,P/O TOOTH 1

KHJ-MC16J-00 SCREW,FLAT HEAD

KHJ-MC26L-00 PLATE,GUIDE 1

KHJ-MC26M-00 PLATE,GUIDE 2

KHJ-MC26N-00 PLUNGER

KHJ-MC46T-00 BOLT HEX.S/H LOW

KHJ-MC26U-00 TAIL COVER ASSY.

90166-02JA03 SCREW,PAN HEAD

98707-03006 SCREW,FLAT HEAD

99480-03010 PIN,PARALLEL

KHJ-MC20C-00 SEAL,MAIN LABEL 1

KHJ-MC132-00 SPROCKET

KHJ-MC23A-00 SHIM,SPROCKET

KHJ-MC23E-00 BOLT HEX.S/H LOW

KHJ-MC241-00 TAPE GUIDE ASSY.

KHJ-MC244-00 LEVER,TAPE GUIDE R

KHJ-MC245-00 LEVER,TAPE GUIDE F

KHJ-MC146-00 SPRING,TAPE GUIDE R

KHJ-MC247-00 SPRING,TAPE GUIDE F

KHJ-MC167-00 COVER,MENBRANE

KHJ-MC16J-00 SCREW,FLAT HEAD

KHJ-MC26K-00 COVER,MENBRANE 2

KHJ-MC1A5-00 DUMMY SPLICE SENS.

KHJ-MC1AA-00 SWITCH,OPERATION

KHJ-MC24D-00 PLATE,GUIDE 12

KHJ-MC1AB-00 SCREW,PAN HEAD TAP.

 98707-03006 SCREW,FLAT HEAD

92A08-03303 SET SCREW M3X3

99480-04022 PIN,PARALLEL

KHJ-MC10E-00 SCREW,FLAT HEXLOBE

KHJ-MC210-10 MOTOR, PEEL

KHJ-MC13F-00 SCREW,STAD

KHJ-MC251-00 GEAR,IDLE P1

KHJ-MC252-00 GEAR,IDLE P2

KHJ-MC253-00 GEAR,IDLE P3

KHJ-MC254-00 GEAR,IDLE P4

KHJ-MC256-00 ROLLER,PEEL OFF 1

KHJ-MC258-00 COVER,IDLE GEAR 1

KHJ-MC259-00 COVER,IDLE GEAR 2

KHJ-MC25A-00 SUB-ROLLER,1

KHJ-MC25B-00 SHAFT,IDLE GEAR P3

KHJ-MC25C-00 SHAFT,IDLE GEAR P4

KHJ-MC25D-00 SHAFT,ROLLER 1

KHJ-MC25E-00 COVER,IDLE GEAR 3

KHJ-MC26E-00 SPRING,P/O LEVER

KHJ-MC16H-00 SCREW,PAN HEAD TAP.

KHJ-MC26V-00 P/O LEVER ASSY.

KHJ-MC1A1-00 BOX,EL

KHJ-MC1A2-00 COVER,BOX EL

KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T

KHJ-MC1A9-00 CONNECTOR,BOARD

KHJ-M4488-00 FEEDER BOARD ASSY

90115-2AJ008 BOLT HEX.SOCKET HEAD

90166-02JA03 SCREW,PAN HEAD

90166-02JA08 SCREW PAN H.:M2.5X8

91317-03006 BOLT HEX.SOCKET HEAD

92A08-03303 SET SCREW M3X3

99480-05018 PIN,PARALLEL

KHJ-MC103-01 BLOCK,FRONT

KHJ-MC104-00 RAIL,UNDER

KHJ-MC105-00 PIN,TAIL

KHJ-MC10F-00 SCREW,FLAT HEAD

KHJ-MC16J-00 SCREW,FLAT HEAD

KHJ-MC281-00 HANDLE

KHJ-MC182-00 TENSION,WIRE 1

KHJ-MC183-00 SPACER,TENSION 1

KHJ-MC184-00 SPACER,TENSION 2

KHJ-MC286-00 WIRE,UNCLAMP

KHJ-MC187-00 SPRING,TENSION

KHJ-MC289-00 PIN,CLAMP

KHJ-MC18A-00 SPRING,CLAMP

KHJ-MC28B-00 COVER,WIRE 1

KHJ-MC18F-00 CIRCLIP (E)

KHJ-MC28H-00 CLAMP LEVER ASSY.

90440-01J030 CIRCLIP(E)

91317-03008 BOLT HEX.SOCKET HEAD

92A08-03303 SET SCREW M3X3

99480-03010 PIN,PARALLEL

99480-04018 PIN,PARALLEL

99480-05012 PIN,PARALLEL

YAMAHA SS FEEDER 24 MM PARTS

KHJ-MC401-00 BODY,FEEDER 1

 KHJ-MC202-00 COVER,FEEDER SIDE 1 1

 KHJ-MC40C-00 SEAL,MAIN LABEL 1

 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11

 KHJ-MC210-00 MOTOR, FEED 1

 KHJ-MC134-00 GEAR,IDLE F1 1

 KHJ-MC135-00 GEAR,IDLE F2 1

 KHJ-MC136-01 GEAR,IDLE F3 1

 KHJ-MC137-00 GEAR,IDLE F4 1

 KHJ-MC238-00 GEAR,DRIVEN 1

 KHJ-MC239-00 SHAFT,IDLE GEAR 1 3

 KHJ-MC43B-00 BUSH,SPROCKET 1

 KHJ-MC23C-00 PLATE,PUSHER GEAR 1

 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

 KHJ-MC13F-00 SCREW,STAD 4

 KHJ-MC43G-00 SHAFT,GEAR DRIVEN 1

 KHJ-MC13P-00 SPACER,F3 1

 KHJ-MC461-00 BOX,TOP TAPE 1

 KHJ-MC262-00 COVER,TOP TAPE BOX 1

 KHJ-MC165-00 MAGNET,TAIL 1

 KHJ-MC466-00 BLOCK,P/O TOOTH 1 1

 KHJ-MC16J-00 SCREW,FLAT HEAD 11

 KHJ-MC46T-00 BOLT HEX.S/H LOW 4

 KHJ-MC46U-00 TAIL COVER ASSY. 1

 KHJ-MC406-00 PLATE,UNDER 1

 90166-02JA03 SCREW,PAN HEAD 2

 98707-03006 SCREW,FLAT HEAD

KHJ-MC40C-00 SEAL,MAIN LABEL 1

 KHJ-MC132-00 SPROCKET 1

 KHJ-MC23A-00 SHIM,SPROCKET 1

 KHJ-MC43E-00 BOLT HEX.S/H LOW 1

 KHJ-MC441-00 TAPE GUIDE ASSY. 1

 KHJ-MC244-00 LEVER,TAPE GUIDE R 1

 KHJ-MC445-00 LEVER,TAPE GUIDE F 1

 KHJ-MC146-00 SPRING,TAPE GUIDE R 1

 KHJ-MC247-00 SPRING,TAPE GUIDE F 1

 KHJ-MC167-00 COVER,MENBRANE 1

 KHJ-MC16J-00 SCREW,FLAT HEAD 11

 KHJ-MC26K-00 COVER,MENBRANE 2 1

 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1

 KHJ-MC1AA-00 SWITCH,OPERATION 1

 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2

 92A08-03303 SET SCREW M3X3 5

 99480-04030 PIN,PARALLEL

KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11

 KHJ-MC210-10 MOTOR, PEEL 1

 KHJ-MC13F-00 SCREW,STAD 4

 KHJ-MC251-00 GEAR,IDLE P1 1

 KHJ-MC252-00 GEAR,IDLE P2 1

 KHJ-MC253-00 GEAR,IDLE P3 1

 KHJ-MC254-00 GEAR,IDLE P4 1

 KHJ-MC256-00 ROLLER,PEEL OFF 1 1

 KHJ-MC258-00 COVER,IDLE GEAR 1 1

 KHJ-MC259-00 COVER,IDLE GEAR 2 1

 KHJ-MC45A-00 SUB-ROLLER,1 1

 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1

 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1

 KHJ-MC45D-00 SHAFT,ROLLER 1 1

 KHJ-MC25E-00 COVER,IDLE GEAR 3 1

 KHJ-MC26E-00 SPRING,P/O LEVER 1

 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3

 KHJ-MC46V-00 P/O LEVER ASSY. 1

 KHJ-MC1A1-00 BOX,EL 1

 KHJ-MC1A2-00 COVER,BOX EL 1

 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3

 KHJ-MC1A9-00 CONNECTOR,BOARD 1

 KHJ-M4488-00 FEEDER BOARD ASSY 1

 90115-2AJ008 BOLT HEX.SOCKET HEAD 2

 90166-02JA03 SCREW,PAN HEAD 2

 90166-02JA08 SCREW PAN H.:M2.5X8 2

 91317-03006 BOLT HEX.SOCKET HEAD 3

 92A08-03303 SET SCREW M3X3 5

 99480-05025 PIN,PARALLEL

KHJ-MC103-01 BLOCK,FRONT 1

 KHJ-MC104-00 RAIL,UNDER 1

 KHJ-MC105-00 PIN,TAIL 1

 KHJ-MC10F-00 SCREW,FLAT HEAD 2

 KHJ-MC53N-00 PIN,DOWEL 1

 KHJ-MC16J-00 SCREW,FLAT HEAD 11

 KHJ-MC281-00 HANDLE 1

 KHJ-MC182-00 TENSION,WIRE 1 1

 KHJ-MC183-00 SPACER,TENSION 1 1

 KHJ-MC184-00 SPACER,TENSION 2

 KHJ-MC286-00 WIRE,UNCLAMP 1

 KHJ-MC187-00 SPRING,TENSION 1

 KHJ-MC289-00 PIN,CLAMP 1

 KHJ-MC18A-00 SPRING,CLAMP 1

 KHJ-MC28B-00 COVER,WIRE 1 1

 KHJ-MC18F-00 CIRCLIP (E) 1

 KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1

 KHJ-MC28H-00 CLAMP LEVER ASSY. 1

 90189-05J056 NUT,HEXAGON 1

 90440-01J030 CIRCLIP(E) 1

 91317-03008 BOLT HEX.SOCKET HEAD 4

 91317-05012 BOLT HEX.SOCKET HEAD 1

 92A08-03303 SET SCREW M3X3 5

 99480-03010 PIN,PARALLEL 2

 99480-04018 PIN,PARALLEL 1

 99480-05012 PIN,PARALLEL

YAMAHA SS FEEDER 32MM PARTS

KHJ-MC501-00 BODY,FEEDER 1

 KHJ-MC502-00 COVER,FEEDER 1

 KHJ-MC106-00 PLATE,UNDER 1

 KHJ-MC206-00 PLATE,UNDER 1

 KHJ-MC50C-00 SEAL,MAIN LABEL 1

 KHJ-MC510-00 MOTOR, FEED 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC534-00 GEAR,IDLE F1 1

 KHJ-MC535-00 GEAR,IDLE F2 1

 KHJ-MC53R-00 GEAR,IDLE F3-1 1

 KHJ-MC53S-00 GEAR,IDLE F3-2 1

 KHJ-MC537-00 GEAR,IDLE F4 1

 KHJ-MC538-00 GEAR,DRIVEN 1

 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1

 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1

 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1

 KHJ-MC53L-00 COVER,FEED GEAR 1

 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1

 KHJ-MC53N-00 PIN,DOWEL 1

 KHJ-MC561-00 BOX,TOP TAPE 1

 KHJ-MC562-00 COVER,TOP TAPE BOX 1

 KHJ-MC165-00 MAGNET,TAIL 1

 KHJ-MC566-00 BLOCK,P/O TOOTH 1 1

 KHJ-MC46T-00 BOLT HEX.S/H LOW 2

 KHJ-MC56U-00 TAIL COVER ASSY. 1

 90166-02JA03 SCREW,PAN HEAD 1

 90115-2AJ008 BOLT HEX.SOCKET HEAD 3

 91312-03012 BOLT,HEX.SOCKET HEAD 2

 91312-03022 BOLT,HEX.SOCKET HEAD 5

 91312-03030 BOLT,HEX.SOCKET HEAD 1

 91317-03020 BOLT HEX.SOCKET HEAD 6

 91317-03030 BOLT HEX.SOCKET HEAD 1

 98707-03006 SCREW,FLAT HEAD 4

 99480-03010 PIN,PARALLEL

KHJ-MC50C-000 SEAL,MAIN LABEL 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC53B-00 BUSH,SPROCKET 1

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 KHJ-MC541-00 TAPE GUIDE ASSY. 1

 KHJ-MC244-00 LEVER,TAPE GUIDE R 1

 KHJ-MC545-00 LEVER,TAPE GUIDE F 1

 KHJ-MC146-00 SPRING,TAPE GUIDE R 1

 KHJ-MC247-00 SPRING,TAPE GUIDE F 1

 KHJ-MC54E-00 SHAFT,LEVER 1

 KHJ-MC167-00 COVER,MENBRANE 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC26K-00 COVER,MENBRANE 2 1

 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1

 KHJ-MC1AA-00 SWITCH,OPERATION 1

 90990-54J003 SCREW,PAN HEAD TAP. 2

 92A08-03303 SET SCREW M3X3 2

 99480-04028 PIN,PARALLEL 1

 90K41-000770 SEAL,HIGH TEMP.

KHJ-MC10E-00 SCREW,FLAT HEXLOBE 1

 KHJ-MC210-10 MOTOR, PEEL 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC251-00 GEAR,IDLE P1 1

 KHJ-MC252-00 GEAR,IDLE P2 1

 KHJ-MC253-00 GEAR,IDLE P3 1

 KHJ-MC254-00 GEAR,IDLE P4 1

 KHJ-MC556-00 ROLLER,PEEL OFF 1 1

 KHJ-MC258-00 COVER,IDLE GEAR 1 1

 KHJ-MC55A-00 SUB-ROLLER,1 1

 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1

 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1

 KHJ-MC55D-00 SHAFT,ROLLER 1 1

 KHJ-MC25E-00 COVER,IDLE GEAR 3 1

 KHJ-MC26E-00 SPRING,P/O LEVER 1

 90990-54J004 SCREW,PAN HEAD TAP. 3

 KHJ-MC56V-00 P/O LEVER ASSY. 1

 KHJ-M4488-00 FEEDER BOARD ASSY 1

 KHJ-MC1A1-00 BOX,EL 1

 KHJ-MC1A2-00 COVER,BOX EL 1

 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3

 KHJ-MC1A9-00 CONNECTOR,BOARD 1

 90166-02JA03 SCREW,PAN HEAD 1

 90166-02JA08 SCREW PAN H.:M2.5X8 2

 90115-2AJ008 BOLT HEX.SOCKET HEAD 2

 91317-03006 BOLT HEX.SOCKET HEAD 3

 92A08-03303 SET SCREW M3X3 1

 99480-05030 PIN,PARALLEL

KHJ-MC103-01 BLOCK,FRONT 1

 KHJ-MC104-00 RAIL,UNDER 1

 KHJ-MC105-00 PIN,TAIL 1

 KHJ-MC10F-00 SCREW,FLAT HEAD 2

 KHJ-MC53N-00 PIN,DOWEL 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC281-00 HANDLE 1

 KHJ-MC182-00 TENSION,WIRE 1 1

 KHJ-MC183-00 SPACER,TENSION 1 1

 KHJ-MC184-00 SPACER,TENSION 2 1

 KHJ-MC286-00 WIRE,UNCLAMP 1

 KHJ-MC187-00 SPRING,TENSION 1

 KHJ-MC289-00 PIN,CLAMP 1

 KHJ-MC18A-00 SPRING,CLAMP 1

 KHJ-MC28B-00 COVER,WIRE 1 1

 KHJ-MC58G-00 SHAFT,HANDLE SUPPORT 1

 KHJ-MC28H-00 CLAMP LEVER ASSY. 1

 90990-14J001 CIRCLIP (E) 1

 90189-05J056 NUT,HEXAGON 1

 90440-01J030 CIRCLIP(E) 1

 91317-03008 BOLT HEX.SOCKET HEAD 4

 91317-05016 BOLT HEX.SOCKET HEAD 1

 92A08-03303 SET SCREW M3X3 1

 92A08-03305 SCREW,SET 1

 99480-03010 PIN,PARALLEL 2

 99480-04018 PIN,PARALLEL 1

 99480-05014 PIN,PARALLEL

YAMAHA SS FEEDER 44MM PARTS

KHJ-MC501-00 BODY,FEEDER 1

 KHJ-MC502-00 COVER,FEEDER 1

 KHJ-MC106-00 PLATE,UNDER 1

 KHJ-MC206-00 PLATE,UNDER 1

 KHJ-MC60C-00 SEAL,MAIN LABEL 1

 KHJ-MC60K-003 SPACER,44A 1

 KHJ-MC60L-003 SPACER,44B 1

 KHJ-MC510-000 MOTOR, FEED 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC534-00 GEAR,IDLE F1 1

 KHJ-MC535-00 GEAR,IDLE F2 1

 KHJ-MC53R-00 GEAR,IDLE F3-1 1

 KHJ-MC53S-00 GEAR,IDLE F3-2 1

 KHJ-MC537-00 GEAR,IDLE F4 1

 KHJ-MC638-00 GEAR,DRIVEN 1

 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1

 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1

 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1

 KHJ-MC53L-00 COVER,FEED GEAR 1

 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1

 KHJ-MC53N-00 PIN,DOWEL 2

 KHJ-MC561-00 BOX,TOP TAPE 1

 KHJ-MC562-00 COVER,TOP TAPE BOX 1

 KHJ-MC165-00 MAGNET,TAIL 1

 KHJ-MC666-00 BLOCK,P/O TOOTH 1 1

 KHJ-MC46T-00 BOLT HEX.S/H LOW 2

 KHJ-MC66R-003 SPACER,44C 1

 KHJ-MC66S-003 SPACER,44D 1

 KHJ-MC66U-00 TAIL COVER ASSY. 1

 KHJ-MC60J-000 PIN,PARALLEL 16

 90166-02JA03 SCREW,PAN HEAD 1

 90115-2AJ008 BOLT HEX.SOCKET HEAD 3

 91312-03025 BOLT,HEX.SOCKET HEAD 2

 91312-03035 BOLT,HEX.SOCKET HEAD 5

 91312-03040 BOLT,HEX.SOCKET HEAD 1

 91317-03035 BOLT HEX.SOCKET HEAD 6

 91317-03040 BOLT HEX.SOCKET HEAD 1

 98707-03006 SCREW,FLAT HEAD

KHJ-MC60C-000 SEAL,MAIN LABEL 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC53B-00 BUSH,SPROCKET 1

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 KHJ-MC541-00 TAPE GUIDE ASSY. 1

 KHJ-MC244-00 LEVER,TAPE GUIDE R 1

 KHJ-MC645-00 LEVER,TAPE GUIDE F 1

 KHJ-MC146-00 SPRING,TAPE GUIDE R 1

 KHJ-MC247-00 SPRING,TAPE GUIDE F 1

 KHJ-MC64E-00 SHAFT,LEVER 1

 KHJ-MC64F-00 BASE,LEVER R 1

 KHJ-MC167-00 COVER,MENBRANE 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC26K-00 COVER,MENBRANE 2 1

 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1

 KHJ-MC1AA-00 SWITCH,OPERATION 1

 90990-54J003 SCREW,PAN HEAD TAP. 2

 92A08-03303 SET SCREW M3X3 2

 99480-04040 PIN,PARALLEL 1

 90K41-000770 SEAL,HIGH TEMP

KHJ-MC10E-00 SCREW,FLAT HEXLOBE 1

 KHJ-MC210-10 MOTOR, PEEL 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC251-00 GEAR,IDLE P1 1

 KHJ-MC252-00 GEAR,IDLE P2 1

 KHJ-MC253-00 GEAR,IDLE P3 1

 KHJ-MC254-00 GEAR,IDLE P4 1

 KHJ-MC656-00 ROLLER,PEEL OFF 1 1

 KHJ-MC258-00 COVER,IDLE GEAR 1 1

 KHJ-MC65A-00 SUB-ROLLER,1 1

 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1

 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1

 KHJ-MC65D-00 SHAFT,ROLLER 1 1

 KHJ-MC25E-00 COVER,IDLE GEAR 3 1

 KHJ-MC26E-00 SPRING,P/O LEVER 1

 90990-54J004 SCREW,PAN HEAD TAP. 3

 KHJ-MC66V-00 P/O LEVER ASSY. 1

 KHJ-MC66B-001 SHAFT,P/O LEVER 2 1

 KHJ-M4488-00 FEEDER BOARD ASSY 1

 KHJ-MC1A1-00 BOX,EL 1

 KHJ-MC1A2-00 COVER,BOX EL 1

 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3

 KHJ-MC1A9-00 CONNECTOR,BOARD 1

 90166-02JA03 SCREW,PAN HEAD 1

 90166-02JA08 SCREW PAN H.:M2.5X8 2

 90115-2AJ008 BOLT HEX.SOCKET HEAD 2

 91317-03006 BOLT HEX.SOCKET HEAD 3

 92A08-03303 SET SCREW M3X3

KHJ-MC103-01 BLOCK,FRONT 1

 KHJ-MC104-00 RAIL,UNDER 1

 KHJ-MC105-00 PIN,TAIL 1

 KHJ-MC10F-00 SCREW,FLAT HEAD 2

 KHJ-MC53N-00 PIN,DOWEL 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC281-00 HANDLE 1

 KHJ-MC182-00 TENSION,WIRE 1 1

 KHJ-MC183-00 SPACER,TENSION 1 1

 KHJ-MC184-00 SPACER,TENSION 2 1

 KHJ-MC286-00 WIRE,UNCLAMP 1

 KHJ-MC187-00 SPRING,TENSION 1

 KHJ-MC289-00 PIN,CLAMP 1

 KHJ-MC18A-00 SPRING,CLAMP 1

 KHJ-MC28B-00 COVER,WIRE 1 1

 KHJ-MC68G-00 SHAFT,HANDLE SUPPORT 1

 KHJ-MC28H-00 CLAMP LEVER ASSY. 1

 90990-14J001 CIRCLIP (E) 1

 90189-05J056 NUT,HEXAGON 1

 90440-01J030 CIRCLIP(E) 1

 91317-03008 BOLT HEX.SOCKET HEAD 4

 91317-05030 BOLT HEX.SOCKET HEAD 1

 92A08-03303 SET SCREW M3X3 1

 92A08-03305 SCREW,SET 1

 99480-03010 PIN,PARALLEL 10

 99480-04018 PIN,PARALLEL 1

 99480-05014 PIN,PARALLEL

YAMAHA SS FEEDER 56MM PARTS

KHJ-MC501-00 BODY,FEEDER 1

 KHJ-MC502-00 COVER,FEEDER 1

 KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

 KHJ-MC70C-00 SEAL,MAIN LABEL 1

 KHJ-MC70K-003 SPACER,56A 1

 KHJ-MC70L-003 SPACER,56B 1

 KHJ-MC510-000 MOTOR, FEED 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC534-00 GEAR,IDLE F1 1

 KHJ-MC535-00 GEAR,IDLE F2 1

 KHJ-MC53R-00 GEAR,IDLE F3-1 1

 KHJ-MC53S-00 GEAR,IDLE F3-2 1

 KHJ-MC537-00 GEAR,IDLE F4 1

 KHJ-MC738-00 GEAR,DRIVEN 1

 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1

 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1

 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1

 KHJ-MC53L-00 COVER,FEED GEAR 1

 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1

 KHJ-MC53N-00 PIN,DOWEL 1

 KHJ-MC561-00 BOX,TOP TAPE 1

 KHJ-MC562-00 COVER,TOP TAPE BOX 1

 KHJ-MC165-00 MAGNET,TAIL 1

 KHJ-MC766-00 BLOCK,P/O TOOTH 1 1

 KHJ-MC46T-00 BOLT HEX.S/H LOW 2

 KHJ-MC76R-003 SPACER,44C 1

 KHJ-MC76S-003 SPACER,44D 1

 KHJ-MC76U-00 TAIL COVER ASSY. 1

 KHJ-MC60J-000 PIN,PARALLEL 16

 90166-02JA03 SCREW,PAN HEAD 1

 90115-2AJ008 BOLT HEX.SOCKET HEAD 3

 91312-03035 BOLT,HEX.SOCKET HEAD 2

 91312-03045 BOLT,HEX.SOCKET HEAD 5

 91312-03055 BOLT,HEX.SOCKET HEAD 1

 91317-03045 BOLT HEX.SOCKET HEAD 6

 91317-03055 BOLT HEX.SOCKET HEAD 1

 98707-03006 SCREW,FLAT HEAD

KHJ-MC70C-000 SEAL,MAIN LABEL 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC53B-00 BUSH,SPROCKET 1

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 KHJ-MC741-00 TAPE GUIDE ASSY. 1

 KHJ-MC244-00 LEVER,TAPE GUIDE R 1

 KHJ-MC745-00 LEVER,TAPE GUIDE F 1

 KHJ-MC146-00 SPRING,TAPE GUIDE R 1

 KHJ-MC247-00 SPRING,TAPE GUIDE F 1

 KHJ-MC64E-00 SHAFT,LEVER 1

 KHJ-MC74E-00 SHAFT,LEVER 1

 KHJ-MC74F-00 BASE,LEVER R 1

 KHJ-MC167-00 COVER,MENBRANE 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC26K-00 COVER,MENBRANE 2 1

 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1

 KHJ-MC1AA-00 SWITCH,OPERATION 1

 90990-54J003 SCREW,PAN HEAD TAP. 2

 92A08-03303 SET SCREW M3X3 2

90K41-000770 SEAL,HIGH TEMP.

KHJ-MC10E-00 SCREW,FLAT HEXLOBE 1

 KHJ-MC210-10 MOTOR, PEEL 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC251-00 GEAR,IDLE P1 1

 KHJ-MC252-00 GEAR,IDLE P2 1

 KHJ-MC253-00 GEAR,IDLE P3 1

 KHJ-MC254-00 GEAR,IDLE P4 1

 KHJ-MC756-00 ROLLER,PEEL OFF 1 1

 KHJ-MC769-00 ROLLER,P/O 2 1

 KHJ-MC258-00 COVER,IDLE GEAR 1 1

 KHJ-MC75A-00 SUB-ROLLER,1 1

 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1

 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1

 KHJ-MC75D-00 SHAFT,ROLLER 1 1

 KHJ-MC25E-00 COVER,IDLE GEAR 3 1

 KHJ-MC26E-00 SPRING,P/O LEVER 1

 90990-54J004 SCREW,PAN HEAD TAP. 3

 KHJ-MC76V-00 P/O LEVER ASSY. 1

 KHJ-MC76B-00 SHAFT,P/O LEVER 2 1

 KHJ-M4488-00 FEEDER BOARD ASSY 1

 KHJ-MC1A1-00 BOX,EL 1

 KHJ-MC1A2-00 COVER,BOX EL 1

 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3

 KHJ-MC1A9-00 CONNECTOR,BOARD 1

 90166-02JA03 SCREW,PAN HEAD 1

 90166-02JA08 SCREW PAN H.:M2.5X8 2

 90115-2AJ008 BOLT HEX.SOCKET HEAD 2

 91317-03006 BOLT HEX.SOCKET HEAD 3

 92A08-03303 SET SCREW M3X3

KHJ-MC103-01 BLOCK,FRONT 1

 KHJ-MC104-00 RAIL,UNDER 1

 KHJ-MC105-00 PIN,TAIL 1

 KHJ-MC10F-00 SCREW,FLAT HEAD 2

KHJ-MC53N-00 PIN,DOWEL 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC281-00 HANDLE 1

 KHJ-MC182-00 TENSION,WIRE 1 1

 KHJ-MC183-00 SPACER,TENSION 1 1

 KHJ-MC184-00 SPACER,TENSION 2 1

 KHJ-MC286-00 WIRE,UNCLAMP 1

 KHJ-MC187-00 SPRING,TENSION 1

 KHJ-MC289-00 PIN,CLAMP 1

 KHJ-MC18A-00 SPRING,CLAMP 1

 KHJ-MC28B-00 COVER,WIRE 1 1

 KHJ-MC78G-00 SHAFT,HANDLE SUPPORT 1

 KHJ-MC28H-00 CLAMP LEVER ASSY. 1

 90990-14J001 CIRCLIP (E) 1

 90189-05J056 NUT,HEXAGON 1

 90440-01J030 CIRCLIP(E) 1

 91317-03008 BOLT HEX.SOCKET HEAD 4

 91317-05040 BOLT HEX.SOCKET HEAD 1

 92A08-03303 SET SCREW M3X3 1

 92A08-03305 SCREW,SET 1

 99480-03010 PIN,PARALLEL 10

 99480-04018 PIN,PARALLEL 1

 99480-05014 PIN,PARALLEL

YAMAHA SS FEEDER 72MM PARTS

KHJ-MC501-00 BODY,FEEDER 1

 KHJ-MC502-00 COVER,FEEDER 1

 KHJ-MC106-00 PLATE,UNDER 1

 KHJ-MC206-00 PLATE,UNDER 1

 KHJ-MC80C-00 SEAL,MAIN LABEL 1

 KHJ-MC80K-003 SPACER,74A 1

 KHJ-MC80L-003 SPACER,74B 1

 KHJ-MC510-000 MOTOR, FEED 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC534-00 GEAR,IDLE F1 1

 KHJ-MC535-00 GEAR,IDLE F2 1

 KHJ-MC53R-00 GEAR,IDLE F3-1 1

 KHJ-MC53S-00 GEAR,IDLE F3-2 1

 KHJ-MC537-00 GEAR,IDLE F4 1

 KHJ-MC838-00 GEAR,DRIVEN 1

 KHJ-MC13D-00 SPRING,PUSHER PLATE 3

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC53H-00 SHAFT,IDLE GEAR F2 1

 KHJ-MC53J-00 SHAFT,IDLE GEAR F3 1

 KHJ-MC53K-00 SHAFT,IDLE GEAR F4 1

 KHJ-MC53L-00 COVER,FEED GEAR 1

 KHJ-MC53M-00 SUB-BUSH,SPROCKET 1

 KHJ-MC53N-00 PIN,DOWEL 2

 KHJ-MC561-00 BOX,TOP TAPE 1

 KHJ-MC562-00 COVER,TOP TAPE BOX 1

 KHJ-MC165-00 MAGNET,TAIL 1

 KHJ-MC866-00 BLOCK,P/O TOOTH 1 1

 KHJ-MC46T-00 BOLT HEX.S/H LOW 2

 KHJ-MC86R-00 SPACER,734C 1

 KHJ-MC86S-003 SPACER,74D 1

 KHJ-MC86U-00 TAIL COVER ASSY. 1

 KHJ-MC60J-000 PIN,PARALLEL 16

 90166-02JA03 SCREW,PAN HEAD 1

 90990-01J046 BOLT,HEX.SOCKET HEAD 1

 90115-2AJ008 BOLT HEX.SOCKET HEAD 3

 91312-03050 BOLT,HEX.SOCKET HEAD 2

 91312-03060 BOLT,HEX.SOCKET HEAD 5

 91312-03070 BOLT,HEX.SOCKET HEAD 1

 91317-03065 BOLT HEX.SOCKET HEAD 6

 98707-03006 SCREW,FLAT HEAD

KHJ-MC80C-000 SEAL,MAIN LABEL 1

 KHJ-MC532-00 SPROCKET 1

 KHJ-MC53B-00 BUSH,SPROCKET 1

 KHJ-MC53E-00 BOLT HEX.S/H LOW 1

 KHJ-MC841-00 TAPE GUIDE ASSY. 1

 KHJ-MC244-00 LEVER,TAPE GUIDE R 1

 KHJ-MC845-00 LEVER,TAPE GUIDE F 1

 KHJ-MC146-00 SPRING,TAPE GUIDE R 1

 KHJ-MC247-00 SPRING,TAPE GUIDE F 1

 KHJ-MC84A-00 SHAFT,LEVER 1

 KHJ-MC84E-00 SHAFT,LEVER 1

 KHJ-MC84F-00 BASE,LEVER R 1

 KHJ-MC167-00 COVER,MENBRANE 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC26K-00 COVER,MENBRANE 2 1

 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1

 KHJ-MC1AA-00 SWITCH,OPERATION 1

 90990-54J003 SCREW,PAN HEAD TAP. 2

 92A08-03303 SET SCREW M3X3 2

 90K41-000770 SEAL,HIGH TEMP

KHJ-MC10E-00 SCREW,FLAT HEXLOBE 1

 KHJ-MC210-10 MOTOR, PEEL 1

 90990-08J021 SCREW,STAD 2

 KHJ-MC251-00 GEAR,IDLE P1 1

 KHJ-MC252-00 GEAR,IDLE P2 1

 KHJ-MC253-00 GEAR,IDLE P3 1

 KHJ-MC254-00 GEAR,IDLE P4 1

 KHJ-MC756-00 ROLLER,PEEL OFF 1 1

 KHJ-MC769-00 ROLLER,P/O 2 1

 KHJ-MC258-00 COVER,IDLE GEAR 1 1

 KHJ-MC85A-00 SUB-ROLLER,1 1

 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1

 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1

 KHJ-MC85D-00 SHAFT,ROLLER 1 1

 KHJ-MC25E-00 COVER,IDLE GEAR 3 1

 KHJ-MC26E-00 SPRING,P/O LEVER 1

 90990-54J004 SCREW,PAN HEAD TAP. 3

 KHJ-MC86V-00 P/O LEVER ASSY. 1

 KHJ-MC86B-00 SHAFT,P/O LEVER 2 1

 KHJ-M4488-00 FEEDER BOARD ASSY 1

 KHJ-MC1A1-00 BOX,EL 1

 KHJ-MC1A2-00 COVER,BOX EL 1

 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3

 KHJ-MC1A9-00 CONNECTOR,BOARD 1

 90166-02JA03 SCREW,PAN HEAD 1

 90166-02JA08 SCREW PAN H.:M2.5X8 2

 90115-2AJ008 BOLT HEX.SOCKET HEAD 2

 91317-03006 BOLT HEX.SOCKET HEAD 3

 92A08-03303 SET SCREW M3X3

KHJ-MC103-01 BLOCK,FRONT 1

 KHJ-MC104-00 RAIL,UNDER 1

 KHJ-MC105-00 PIN,TAIL 1

 KHJ-MC10F-00 SCREW,FLAT HEAD 2

 KHJ-MC53N-00 PIN,DOWEL 1

 90990-09J008 SCREW,FLAT HEAD 2

 KHJ-MC281-00 HANDLE 1

 KHJ-MC182-00 TENSION,WIRE 1 1

 KHJ-MC183-00 SPACER,TENSION 1 1

 KHJ-MC184-00 SPACER,TENSION 2 1

 KHJ-MC286-00 WIRE,UNCLAMP 1

 KHJ-MC187-00 SPRING,TENSION 1

 KHJ-MC289-00 PIN,CLAMP 1

 KHJ-MC18A-00 SPRING,CLAMP 1

 KHJ-MC28B-00 COVER,WIRE 1 1

 KHJ-MC88G-00 SHAFT,HANDLE SUPPORT 1

 KHJ-MC28H-00 CLAMP LEVER ASSY. 1

 90990-14J001 CIRCLIP (E) 1

 90189-05J056 NUT,HEXAGON 1

 90440-01J030 CIRCLIP(E) 1

 91317-03008 BOLT HEX.SOCKET HEAD 4

 91317-05055 BOLT HEX.SOCKET HEAD 1

 92A08-03303 SET SCREW M3X3 1

 92A08-03305 SCREW,SET 1

 99480-03010 PIN,PARALLEL 10

 99480-04018 PIN,PARALLEL 1

 99480-05014 PIN,PARALLEL
