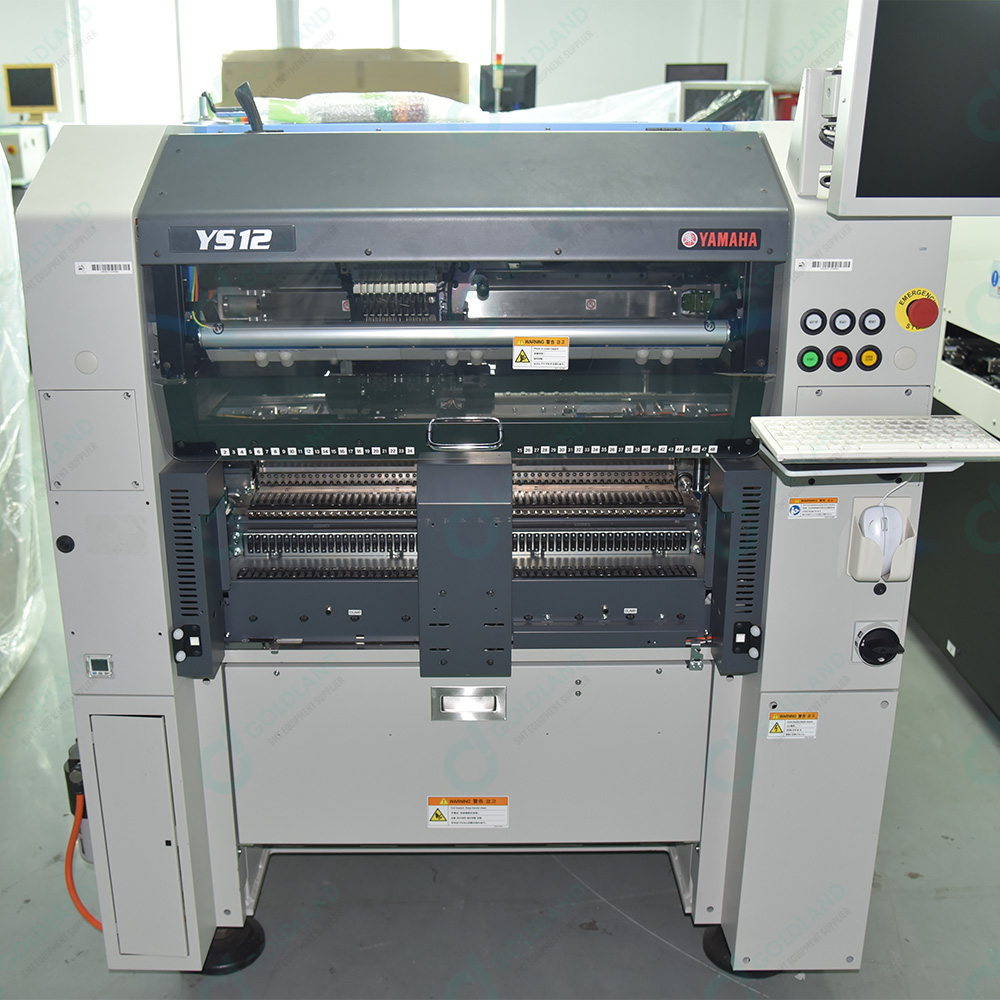

Yamaha YS12, YG12 pick and place machine part

 Yamaha YS12, YG12 part list

Base ( Old )

KGA-M1180-00 LEVELING BOLT ASSY 4

 KHY-M1118-00 PLATE 18 1

 KHY-M1121-00 PLATE 21 1

 KHY-M1122-00 PLATE 22 1

 KHY-M1115-00 PLATE 15 1

 97602-03306 SCREW,PAN HEAD W/W 2

 90990-11J003 SCREW,PAN HEAD W/W 18

 KHY-M1114-00 PLATE 14(I/O) 1

 98902-03006 SCREW BINDING HEAD 11

 KHY-M1338-00 BRKT.MAIN SWITCH 1

 KHY-M1336-00 BRKT.REAR LEFT 1

 KHY-M1336-01 BRKT.REAR LEFT 1 (2008/6/18) ME60048 NG

 90990-23J004 GROMMET 1

 KHY-M1337-00 BRKT. REAR RIGHT 1

 KHW-M8597-00 BRACKET,GAUGE 1

 KV7-M1125-00 PLATE,CLAMP 1

 KGS-M1371-00 BRACKET,FIX 8

 KHY-M1163-00 BRACKET 2,FAN 1

 KHY-M1162-00 BRACKET,FAN 1

 KHY-M1162-01 BRACKET,FAN 1 (2009/1/6) MEY0102 NG

 KHY-M1131-10 PLATE 31 1

 Delete (2009/1/6) MEY0102

 KHY-M1131-00 PLATE 31 1

 Delete (2009/1/6) MEY0102

 KHY-M1132-00 PLATE 32 2

 Delete (2009/1/6) MEY0102

 KHY-M1119-00 PLATE 19 1 for YG12

 KHY-M1151-00 PLATE SIDE 1 1

 KHY-M1152-00 PLATE SIDE 2 1

 KHY-M1152-10 PLATE SIDE 2 1 for UPS

 KHW-M1155-10 BRACKET,UPS 1 for UPS

 KHW-M1157-00 BRACKET 2,UPS 1 for UPS

 KHW-M1158-00 PLATE,UPS 1 for UPS

 KHW-M1160-00 COVER,HARNESS 1 for UPS

 KHY-M1160-00 BRACKET 3,UPS 1 for UPS

 KV7-M1515-00 PLATE,RUBBER 1 for UPS

 KHY-M11F1-00 STAY C/R,R 1

 KHY-M11F2-00 STAY C/R,L 1

 KHW-M1124-00 COVER,PU MOTOR UNDER 1

 KHY-M11E1-10 SHAFT,MARK 3

 KHY-M11E1-A0 BASE MARK ASSY 3 (2008/12/19) MEY0073 OK

 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10

 92990-05200 WASHER PLAIN 12

 90990-12J001 SCREW BIN.HEAD W/W 2

 90990-12J004 SCREW BIN.HEAD W/W 37

 97602-05310 SCREW,PAN HEAD W/W 12

 KHY-M1126-00 COVER, UP AXIS 2 (2009/6/23) MF60192

 92012-05010 BOLT BUTTON HEAD 4 (2009/6/23) MF60192

Base (New)

KGA-M1180-00 LEVELING BOLT ASSY 4

 KHY-M1118-00 PLATE 18 1

 KHY-M1121-00 PLATE 21 1

 KHY-M1122-00 PLATE 22 1

 KHY-M1115-00 PLATE 15 1

 97602-03306 SCREW,PAN HEAD W/W 2

 90990-11J003 SCREW,PAN HEAD W/W 18

 KHY-M1114-00 PLATE 14(I/O) 1

 98902-03006 SCREW BINDING HEAD 11

 KKS-M1338-01 BRKT.MAIN SWITCH 1 (2011/11/9) MH90018 NG

 KKS-M1336-01 BRKT.REAR LEFT 1 (2011/11/9) MH90018 NG

 90990-23J004 GROMMET 1

 KKS-M1337-01 BRKT. REAR RIGHT 1 (2011/11/9) MH90018 NG

 KHW-M8597-00 BRACKET,GAUGE 1

 KV7-M1125-00 PLATE,CLAMP 1

 KGS-M1371-00 BRACKET,FIX 8

 KHY-M1163-00 BRACKET 2,FAN 1

 KHY-M1162-01 BRACKET,FAN 1 (2009/1/6) MEY0102 NG

 KHY-M1119-00 PLATE 19 1 for YG12

 KHY-M1152-01 PLATE SIDE 2 1 (2008/12/15) MEY0029 NG

 KHY-M1151-01 PLATE SIDE 1 1 (2008/12/15) MEY0029 NG

 KHY-M1151-10 PLATE SIDE 1 1 for UPS (2009/8/27) MF80086 NG

 KJJ-M1155-00 BRACKET,UPS 1 for UPS (2009/8/27) MF80086 NG

 KHW-M1157-00 BRACKET 2,UPS 1 for UPS

 KHW-M1158-00 PLATE,UPS 1 for UPS

 KHW-M1160-00 COVER,HARNESS 1 for UPS

 KHW-M1161-00 BRACKET 3,UPS 1 for UPS (2009/8/27) MF80086 NG

 KV7-M1515-00 PLATE,RUBBER 1 for UPS

 KHY-M11F1-00 STAY C/R,R 1

 KHY-M11F2-00 STAY C/R,L 1

 KHW-M1124-00 COVER,PU MOTOR UNDER 1

 KHY-M11E1-A0 BASE MARK ASSY 3 (2008/12/19) MEY0073 OK

 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10

 92990-05200 WASHER PLAIN 12

 91312-04006 BOLT HEX.SOCKET HEAD 8

 90990-12J007 SCREW BIN.HEAD W/W 37 (2010/6/17) MG60052 OK

 97602-05310 SCREW,PAN HEAD W/W 12

 KHY-M1126-00 COVER, UP AXIS 2 (2009/6/23) MF60192

 92012-05010 BOLT BUTTON HEAD 4 (2009/6/23) MF60192

 90172-00J050 WASHER ,EXTL. TOOTHED 6 (2011/11/9) MH90018

 92902-04200 WASHER PLAIN 5

 91312-05014 BOLT HEX.SOCKET HEAD 8

 92902-05200 WASHER PLAIN 8

Sub Assy

KG7-M8501-00 AIR FILTER 1

 KG7-M8501-01 AIR FILTER 1 (2014/1/20) MKY0030 OK

 KG7-M8502-00 MIST FILTER 1

 KG7-M8502-01 MIST FILTER 1 (2014/1/20) MKY0030 OK

 KG7-M8503-00 MODULE ADAPTER 1

 KHY-M1125-01 PLATE 25 1

 KKE-M1125-01 PLATE 25 1 (2010/8/16) MG30043 NG

 KG7-M8512-00 JOINT 1

 90990-42J006 JOINT 1 (2008/6/17) ME30112 OK

 KG7-M8513-00 JOINT 1

 90990-42J008 JOINT 1 (2008/6/17) ME30112 OK

 $SL12-03 JOINT 4

 KH5-M8501-00 EXHAUST VALVE 1

 KHY-M8501-00 EXHAUST VALVE 1 (2010/8/16) MG30043 NG

 $KM-22 MUFFLER 1

 KHM-M1397-00 BRACKET,FDD 3 1

 90K41-000540 LABEL,ALERT 1

 91312-06012 BOLT HEX.SOCKET HEAD 2 M6X12

 91312-06012 BOLT HEX.SOCKET HEAD 1 M6X12 (2010/8/16) MG30043

 92902-06200 WASHER PLAIN 2

 92902-06200 WASHER PLAIN 1 (2010/8/16) MG30043

 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10

 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8

 KHY-M1111-00 PLATE 11 1

 KHY-M8504-00 REGULATOR 1

 $SLY10-03 JOINT 1

 $TL4-02 JOINT 1

 $KM-31 MUFFLER 1

 90990-12J004 SCREW BIN.HEAD W/W 5

 KHY-M1123-00 PLATE 23 1

 KHY-M8582-00 VALVE 1

 $SL8-01 JOINT 2

 $TL8-01 JOINT 2 (2009/7/28) MF60237 OK

 $KM-11 MUFFLER 2

 91312-03030 BOLT HEX.SOCKET HEAD 4 M3X30

 KHY-M1127-00 COVER,VALVE 1

 KHY-M1339-00 BRKT.FL 1

 KKS-M1339-01 BRKT.FL 1 (2011/11/9) MH90018 NG

 KHY-M8596-00 PRESSURE GAUGE 1 for YS, YG

 KG2-M669R-11 HNS,BUZZER 1

 KV7-M8583-00 OPTION MANIFOLD ASSY 1

 KM7-M8584-00 MANIFOLD 1

 91317-03025 BOLT HEX.SOCKET HEAD 2 M3X25

 KG7-M8501-40 FILTER ELEMENT 1

 KG7-M8502-40 MIST FILTER ELEMENT 1

KHY-M11B0-00 AIR TAG 1 for YS

KGA-M11B0-10 AIR TAG 1 for YG (2011/9/21) MH90033 OK

 KHW-M8596-00 PRESURE GAUGE 1 for YG

 KHW-M8582-40 VALVE 1

 KHY-M1129-00 PLATE 25-1 1 (2010/8/16) MG30043 NG

 91312-04005 BOLT HEX.SOCKET HEAD 4 (2010/8/16) MG30043 NG

 98902-04006 SCREW BINDING HEAD 4 (2010/8/16) MG30043 NG

 KHY-M8850-00 PADLOCK ASSY 1

 92990-05200 WASHER PLAIN 2 (2011/11/9) MH90018

 90172-00J050 WASHER ,EXTL. TOOTHED 2 (2011/11/9) MH90018

KG7-M8501-50X BOWL SET (AD300) 1 Polycarbonate (2011/12/7) MHY0008

KG7-M8501-60X BOWL SET 1 Nylon (2014/1/20) MKY0030 OK

KG7-M8501-50X BOWL SET (AD300) 1 Polycarbonate (2011/12/7) MHY0008

KG7-M8501-60X BOWL SET 1 Nylon (2014/1/20) MKY0030 OK

Top Cover YS12 (Old)

KHY-M1301-00 COVER 1 1

 KHY-M1301-01 COVER 1 1 (2008/6/18) ME60048 NG

 KHY-M1302-00 COVER 2 1

 KHY-M1302-01 COVER 2 1 (2008/6/18) ME60048 NG

 KHY-M1303-00 COVER 3 1

 KHY-M1303-01 COVER 3 1 (2008/6/18) ME60048 NG

 KHY-M1303-02 COVER 3 1 (2009/1/29) MF10115 NG

KHY-M1304-00 COVER 4 1

KHY-M1304-10 COVER 4 1 FR Operation

KHY-M1304-01 COVER 4 1 (2008/6/18) ME60048 NG

KHY-M1304-11 COVER 4 1 (2008/6/18) ME60048 NG

 KHY-M1306-00 COVER 6 1

 KHN-M1306-10 COVER 6-1 1

 KJJ-M130B-00 COVER 6-1 1 (2008/10/30) ME00104 OK

 KHY-M13A5-00 COVER A5 1

 KHY-M13A5-01 COVER A5 1 (2008/6/18) ME60048 NG

 KHY-M13A5-02 COVER A5 1 Front S.T.D (2009/1/28) MF10077 NG

 KHY-M13A6-00 COVER A6 1

 KHY-M13A6-01 COVER A6 1 (2008/6/18) ME60048 NG

 KHY-M13A6-02 COVER A6 1 Front S.T.D (2009/1/28) MF10077 NG

KHY-M13A7-01 COVER A7 4

 KHY-M13A7-02 COVER A7 4 (2009/1/28) MF10077 NG

 KGA-M1318-00 COVER 18 2

 KHY-M1331-01 BRKT.31,SIDE COVER 2

 KHY-M1331-02 BRKT.31,SIDE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1331-03 BRKT.31,SIDE COVER 2 (2009/1/28) MF10077 OK

 KHY-M1334-00 BRKT.1,GATE COVER 2

 KHY-M1334-01 BRKT.1,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1335-00 BRKT.2,GATE COVER 2

 KHY-M1335-01 BRKT.2,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1356-00 PLATE 1,JOINT 1

 KHY-M1357-00 PLATE 2,JOINT 1

 KHY-M1358-00 PLATE 3,JOINT 1

 KHY-M1359-00 PLATE 4,JOINT 1

 KHY-M13M1-00 PLATE M1 1

 KHY-M13M2-00 PLATE M2 1

 KHY-M13M3-00 PLATE,KEYBOARD 1 FR Operation

 K46-M1374-10 HINGE 2 4

 K46-M1374-11 HINGE 2 4 (2009/7/13) MF70096 OK

 K46-M1374-12 HINGE 2 4 (2013/2/13) MK20039 OK

 KM0-M1332-01 BRACKET MAGNET 4

 KV5-M1130-00 CATCH MG. 4

 90990-23J024 GROMMET 10

 90990-23J023 GROMMET 2

 90K41-000380 LABEL,ALERT 2

 90K41-000350 LABEL,ALERT 2

 90K43-200370 LABEL,ANTISTATIC 1

 KJV-M1316-00 COVER 16 1 Cover Rear H=370mm

 KJV-M1317-00 BRACKET,COVER 16 1 Cover Rear M4x3

 KJV-M1318-00 COVER 18 1 Cover Rear

 KJV-M1319-00 BRACKET,COVER 18 1 Cover Rear

 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6

 91312-04010 BOLT HEX.SOCKET HEAD 36 M4X10

 98902-03005 SCREW BINDING HEAD 8 M3X5

 98902-04010 SCREW BINDING HEAD 12 M4X10

 92902-04200 WASHER PLAIN 48

 92990-04400 WASHER PLAIN 48

 90990-12J001 SCREW BIN.HEAD W/W 74

 K16-90101-06 BOLT:TP-M4X6 10

 KHY-M13A5-10 COVER A5 1 Rear S.T.D (2009/1/28) MF10077

 KHY-M13A6-10 COVER A6 1 Rear S.T.D (2009/1/28) MF10077

 KKE-M1329-00 COVER 29 2 (2010/7/19) H014662

 98902-03008 SCREW BINDING HEAD 6

 KKJ-M1316-00 COVER 16 1

 KKJ-M1317-00 BRACKET,COVER 16 2

 90990-46J001 BOLT, THIN HEAD 6

 KKJ-M1310-00 COVER REAR ASSY. 1

Top Cover YS12 (New)

KHY-M1301-02 COVER 1 1 (2009/1/28) MF10055 NG

 KHY-M1302-02 COVER 2 1 (2009/1/21) MF10060 OK

 KHY-M1303-02 COVER 3 1 (2009/1/29) MF10115 NG

KHY-M1304-02 COVER 4 1 (2009/1/28) MF10067 NG

KHY-M1304-12 COVER 4 1 FR Operation (2009/1/29) MF10108 NG

 KHY-M1306-00 COVER 6 1

 KJJ-M130B-00 COVER 6-1 1 (2008/10/30) ME00104 OK

 KHY-M13A5-02 COVER A5 1 Front S.T.D (2009/1/28) MF10077 NG

 KHY-M13A6-02 COVER A6 1 Front S.T.D (2009/1/28) MF10077 NG

 KHY-M13A7-02 COVER A7 4 (2009/1/28) MF10077 NG

 KGA-M1318-00 COVER 18 2

 KHY-M1331-03 BRKT.31,SIDE COVER 2 (2009/1/28) MF10077 OK

 KHY-M1334-01 BRKT.1,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1335-01 BRKT.2,GATE COVER 2 (2008/6/9) ME60067 NG

KHY-M1356-00 PLATE 1,JOINT 1

 KHY-M1357-00 PLATE 2,JOINT 1

 KHY-M1358-00 PLATE 3,JOINT 1

 KHY-M1359-00 PLATE 4,JOINT 1

 KHY-M13M1-A0 PLATE M1 ASSY 1 (2010/2/23) MG20109 OK

 KHY-M13M2-A0 PLATE M2 ASSY 1 (2010/2/23) MG20109 OK

 KHY-M13M3-A0 PLATE M3 ASSY 1 FR Operation (2010/3/18) MG20087 OK

 K46-M1374-11 HINGE 2 4 (2009/7/13) MF70096 OK

 KM0-M1332-01 BRACKET MAGNET 4

 KV5-M1130-00 CATCH MG. 4

 90990-23J024 GROMMET 10

 90990-23J023 GROMMET 2

 90K41-000380 LABEL,ALERT 2

 90K41-000350 LABEL,ALERT 2

 90K43-200370 LABEL,ANTISTATIC 1

 Delete (2008/7/2) ME70010

 KJV-M1316-01 COVER 16 1 Cover Rear H=293mm (2009/7/3) MF60283 NG

 KJV-M1317-01 BRACKET,COVER 16 1 Cover Rear M4x5 (2009/7/3) MF60283 NG

 KJV-M1376-00 COVER TOP R 1 Cover Rear (2009/7/3) MF60283 NG

 KHY-M1319-00 BRACKET,L COVER 18 1 Cover Rear (2008/9/2) ME80171 NG

91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6

 91312-04010 BOLT HEX.SOCKET HEAD 36 M4X10

 98902-03005 SCREW BINDING HEAD 8 M3X5

 98902-04010 SCREW BINDING HEAD 12 M4X10

 92902-04200 WASHER PLAIN 48

 92990-04400 WASHER PLAIN 48

 90990-12J001 SCREW BIN.HEAD W/W 74

 KHY-M13A5-10 COVER A5 1 Rear S.T.D (2009/1/28) MF10077

 KHY-M13A6-10 COVER A6 1 Rear S.T.D (2009/1/28) MF10077

 KKE-M1329-00 COVER 29 2 (2010/7/19) H014662

 98902-03008 SCREW BINDING HEAD 6

 KKJ-M1316-00 COVER 16 1

 KKJ-M1317-00 BRACKET,COVER 16 2

 90990-46J001 BOLT, THIN HEAD 6

 KKJ-M1310-00 COVER REAR ASSY. 1

 KJV-M1378-00 COVER CENTER R 1 (2009/7/3) MF60283

 KHU-M1117-00 PULL 1 (2009/7/3) MF60283

 90990-12J005 SCREW BIN.HEAD W/W 10

 KHY-M139D-A0 COVER CAP ASSY 3

 90990-12J006 SCREW BIN.HEAD W/W 10

 KHY-M1318-00 BRACKET,R COVER 18 1 (2008/9/2) ME80171 NG

 KJV-M1310-01 COVER REAR ASSY 1 (2009/7/3) MF60283

90990-41J134 COLLAR 4 (2013/6/10) MK30113

Top Cover YG12 (Old)

KHY-M1301-00 COVER 1 1

 KHY-M1301-01 COVER 1 1 (2008/6/18) ME60048 NG

 KJV-M1302-00 COVER 2 1

 KJV-M1302-01 COVER 2 1 (2008/6/18) ME60048 NG

 KHY-M1303-00 COVER 3 1

 KHY-M1303-01 COVER 3 1 (2008/6/18) ME60048 NG

 KHY-M1303-02 COVER 3 1 (2009/1/29) MF10067 NG

 KHY-M1304-00 COVER 4 1

 KHY-M1304-01 COVER 4 1 (2008/6/18) ME60048 NG

 KJV-M1306-00 COVER 6 1

 KHN-M1306-10 COVER 6-1 1

 KJJ-M1306-10 COVER 6-1 1 (2008/10/30) ME00104 OK

 KJV-M13A5-00 COVER A5 1

 KJV-M13A5-01 COVER A5 1 (2008/6/18) ME60048 NG

 KJV-M13A5-02 COVER A5 1 (2009/5/29) MF50147 NG

 KJV-M13A6-00 COVER A6 1

 KJV-M13A6-01 COVER A6 1 (2008/6/18) ME60048 NG

 KJV-M13A6-02 COVER A6 1 (2009/5/29) MF50147 NG

 KJV-M13A7-01 COVER A7 4

 KJV-M13A7-02 COVER A7 4 (2009/5/29) MF50147 NG

 KGA-M1318-00 COVER 18 1

 KHY-M1331-01 BRKT.31,SIDE COVER 2

 KHY-M1331-02 BRKT.31,SIDE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1331-03 BRKT.31,SIDE COVER 2 (2009/1/28) MF10077 OK

 KHY-M1334-00 BRKT.1,GATE COVER 2

 KHY-M1334-01 BRKT.1,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1335-00 BRKT.2,GATE COVER 2

 KHY-M1335-01 BRKT.2,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1356-00 PLATE 1,JOINT 1

 KHY-M1357-00 PLATE 2,JOINT 1

 KHY-M1358-00 PLATE 3,JOINT 1

 KHY-M1359-00 PLATE 4,JOINT 1

 KHY-M13M1-00 PLATE M1 1

 KHY-M13M2-00 PLATE M2 1

 K46-M1374-10 HINGE 2 4

 K46-M1374-11 HINGE 2 4 (2009/7/13) MF70096 OK

 KM0-M1332-01 BRACKET MAGNET 4

 KV5-M1130-00 CATCH MG. 4

 90990-23J024 GROMMET 10

 90990-23J023 GROMMET 2

 90K41-000380 LABEL,ALERT 2

 90K41-000350 LABEL,ALERT 2

 90K43-200370 LABEL,ANTISTATIC 1

 KJV-M1316-00 COVER 16 1 Cover Rear

 KJV-M1317-00 BRACKET,COVER 16 1 Cover Rear

 KJV-M1318-00 COVER 18 1 Cover Rear

 KJV-M1319-00 BRACKET,COVER 18 1 Cover Rear

 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6

 91312-04010 BOLT HEX.SOCKET HEAD 36 M4X10

 98902-03005 SCREW BINDING HEAD 8 M3X5

 98902-04010 SCREW BINDING HEAD 12 M4X10

 92902-04200 WASHER PLAIN 48

 92990-04400 WASHER PLAIN 48

 90990-12J001 SCREW BIN.HEAD W/W 70

 K16-90101-06 BOLT:TP-M4X6 10

 KJV-M1329-00 COVER 29 2 (2010/7/19) H014662

 98902-03008 SCREW BINDING HEAD 6

 KKJ-M1316-00 COVER 16 1

 KKJ-M1317-00 BRACKET,COVER 16 2

 90990-46J001 BOLT, THIN HEAD 6

KKJ-M1310-00 COVER REAR ASSY. 1

Top Cover YG12 (New)

KHY-M1301-02 COVER 1 1 (2009/1/28) MF10055 NG

 KJV-M1302-02 COVER 2 1 (2009/1/21) MF10060 OK

 KHY-M1303-02 COVER 3 1 (2009/1/29) MF10115 NG

 KHY-M1304-02 COVER 4 1 (2009/1/28) MF10067 NG

KJV-M1306-00 COVER 6 1

 KJJ-M130B-00 COVER 6-1 1 (2008/10/30) ME00104 OK

 KJV-M13A5-02 COVER A5 1 (2009/5/29) MF50147 NG

 KJV-M13A6-02 COVER A6 1 (2009/5/29) MF50147 NG

 KJV-M13A7-02 COVER A7 4 (2009/5/29) MF50147 NG

 KGA-M1318-00 COVER 18 1

 KHY-M1331-03 BRKT.31,SIDE COVER 2 (2009/1/28) MF10077 OK

KHY-M1334-01 BRKT.1,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1335-01 BRKT.2,GATE COVER 2 (2008/6/9) ME60067 NG

 KHY-M1356-00 PLATE 1,JOINT 1

 KHY-M1357-00 PLATE 2,JOINT 1

 KHY-M1358-00 PLATE 3,JOINT 1

 KHY-M1359-00 PLATE 4,JOINT 1

 KHY-M13M1-A0 PLATE M1 ASSY 1 (2010/2/23) MG20109 OK

 KHY-M13M2-A0 PLATE M2 ASSY 1 (2010/2/23) MG20109 OK

 K46-M1374-11 HINGE 2 4 (2009/7/13) MF70096 OK

 KM0-M1332-01 BRACKET MAGNET 4

 KV5-M1130-00 CATCH MG. 4

 90990-23J024 GROMMET 10

 90990-23J023 GROMMET 2

 90K41-000380 LABEL,ALERT 2

 90K41-000350 LABEL,ALERT 2

 90K43-200370 LABEL,ANTISTATIC 1

 Delete (2008/7/2) ME70010

 KJV-M1316-01 COVER 16 1 Cover Rear (2009/7/3) MF60283 NG

 KJV-M1317-01 BRACKET,COVER 16 1 Cover Rear (2009/7/3) MF60283 NG

 KJV-M1376-00 COVER TOP,R 1 Cover Rear (2009/7/3) MF60283 NG

 KHY-M1319-00 BRACKET L,COVER18 1 Cover Rear (2008/9/2) ME80171 NG

 91312-04010 BOLT HEX.SOCKET HEAD 36 M4X10

 98902-03005 SCREW BINDING HEAD 8 M3X5

 98902-04010 SCREW BINDING HEAD 12 M4X10

 92902-04200 WASHER PLAIN 48

 92990-04400 WASHER PLAIN 48

 90990-12J001 SCREW BIN.HEAD W/W 70

 KJV-M1329-00 COVER 29 2 (2010/7/19) H014662

 98902-03008 SCREW BINDING HEAD 6

 KKJ-M1316-00 COVER 16 1

 KKJ-M1317-00 BRACKET,COVER 16 2

 90990-46J001 BOLT, THIN HEAD 6

 KKJ-M1310-00 COVER REAR ASSY. 1

 KJV-M1378-00 COVER CENTER,R 1 (2009/7/3) MF60283

 KHU-M1117-00 PULL1 1 (2009/7/3) MF60283

 KHY-M1318-00 BRACKET R,COVER18 1 (2008/9/2) ME80171

 90990-12J006 SCREW BIN.HEAD W/W 10

 KHY-M139D-A0 COVER CAP ASSY 3

 KJV-M1310-01 COVER REAR ASSY 1

90990-41J134 COLLAR 4 (2013/6/10) MK30113

Acryl Door YS12 (Before Feb. 2009) / YG12 (Before Jun. 2009)

KHY-M1309-A0 1 for YS

KJV-M1309-A0 1 for YG

KHY-M1309-00 1 for YS

KJV-M1309-00 1 for YG

 KHY-M130A-01 1

 KHY-M1340-00 1

 KHY-M1341-00 1

 KHY-M1342-00 2

 KHY-M1343-00 2

 KV7-M1349-00 2

 KH2-M1324-00 2

 KM0-M1331-01 4

 KGS-M1348-00 4

 KM0-M1346-00 8

 KL0-M1373-01 2

 KL0-M1374-00 2

 KJJ-M1348-00 4

 KGS-M1360-00 8

 K16-90101-06 30

 K16-90101-10 12

 91312-04006 8 M4X6

 91312-04008 16 M4X8

 91312-05014 4 M5X14

 92902-04200 6

 92902-04600 2

 92902-06600 4

 KHY-M1309-B0 1

 KHY-M1309-10 1

 KHY-M130A-11 1

 KHY-M1340-10 1

 KHY-M1341-10 1

 KV2-M1351-00 2

 90K43-200370 1

KHY-M13D6-00 1 for YS

KJV-M13D6-00 1 for YG

 KW7-M13D7-01 1

 90K41-000420 2

 90K41-000360 2

Acryl Door YS12 (After Feb. 2009)/YG12 (After Jun. 2009)

KHY-M1309-A1 COVER 9 ASSY. 1 (2008/12/2) MEX0091 OK

 KHY-M1309-01 COVER 9-1 1 (2008/12/2) MEX0091 NG

 KHY-M130A-02 COVER 9-2 1 (2008/12/2) MEX0091 NG

 KHY-M1340-01 BRKT.1,COVER 9 1 (2008/12/2) MEX0091 NG

 KHY-M1341-01 BRKT.2,COVER 9 1 (2008/12/2) MEX0091 NG

 Delete (2008/12/2) MEX0091

 KHY-M1343-01 BRKT.4 COVER 9 2 (2008/12/2) MEX0091 NG

 KV7-M1349-00 PLATE 2,NUT 2

 KH2-M1324-01 GRIP 2 (2008/12/2) MEX0091 NG

 KM0-M1331-01 BRACKET GAS DAMPER 4

 KGS-M1348-00 GAS SPRING 4

 90990-31J006 BOLT,SHOULDER 4

 KL0-M1373-01 BRACKET 1 SCHMEASAL 2

 KL0-M1374-00 PLATE 1 SCHMESAL 2

 KJJ-M1348-00 STOPPER 65 4

 KGS-M1360-00 BOLT 8

 90990-46J001 BOLT,THIN HEAD 14

 90990-46J003 BOLT,THIN HEAD 6

 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6

 91312-04008 BOLT HEX.SOCKET HEAD 16 M4X8

 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14

 92902-04200 WASHER PLAIN 6

 95302-04600 NUT HEXAGON 2

 95302-06600 NUT HEXAGON 4

 KHY-M1309-B1 COVER 9 ASSY. 1 for YS (2008/12/2) MEX0093 OK

 KHY-M1309-B2 COVER 9 ASSY. 1 for YS (2011/6/9) MH40046 NG

 KHY-M1309-01 COVER 9-1 1 (2008/12/2) MEX0093 NG

 KHY-M130A-12 COVER 9-2 1 (2008/12/2) MEX0093 NG

 KHY-M1340-11 BRKT.1,COVER 9 1 11-ĭ5 (2008/12/2) MEX0093 NG

 KHY-M1340-12 BRKT.1,COVER 9 1 9-ĭ5 (2011/6/9) MH40046 NG

 KHY-M1341-11 BRKT.2,COVER 9 1 11-ĭ5 (2008/12/2) MEX0093 NG

 KHY-M1341-12 BRKT.2,COVER 9 1 9-ĭ5 (2011/6/9) MH40046 NG

 KV7-M1349-00 PLATE 2,NUT 2

 90K43-200370 LABEL,ANTISTATIC 1

 KHY-M13D6-00 SEAL 1 (YS12) 1

 KW7-M13D7-01 SEAL 2(YAMAHA) 1

 90K41-000420 LABEL,ALERT 2

 90K41-000360 LABEL,ALERT 2

KV2-M1351-00 PLATE 2,NUT 2 (2008/12/2) MEX0093

Base/Conveyor/CE Cover

KHU-M1117-00 PULL 2

 KHY-M1310-00 COVER 10 1

 KHY-M1310-01 COVER 10 1 Fig.1 (2008/6/4) ME60018 OK

 KHY-M132A-00 COVER 10-1 1 (2009/1/6) MEY0102 NG

KHY-M1311-A0 COVER 11 ASSY 1 Fig.1

 KHY-M132D-A0 COVER 11-1 ASSY 1 Fig.4

 KHY-M1311-A1 COVER 11 ASSY 1 (2010/8/16) MG30043 NG

 KHY-M1311-00 COVER 11 1

 KHY-M1311-01 COVER 11 1 Fig.1 (2008/6/4) ME60018 OK

 KHY-M132D-00 COVER 11-1 1 Fig.4 (2009/1/6) MEY0102 NG

 KHY-M1311-03 COVER 11 1 (2010/8/16) MG30043 NG

 KHY-M130E-00 DOOR,COVER 11 1

 KHY-M130E-01 DOOR,COVER 11 1 (2010/8/16) MG30043 NG

 KGJ-M1350-00 SPACER,MINI LATCH 1

 KGJ-M1351-01 PLATE,MINI LATCH 1

 KW3-M1349-00 MINI LATCH 1

 90990-12J006 SCREW BIND HEAD W/W 18

 KHY-M1312-00 COVER 12 2

 KHY-M1313-00 COVER 13 1

 KHY-M1313-01 COVER 13 1 Fig.3 (2008/6/4) ME60018 OK

 KHY-M132B-00 COVER 13-1 1 (2009/1/6) MEY0102 NG

 KHY-M1315-00 COVER 15 1

 KHY-M1315-01 COVER 15 1 Fig.3 (2008/6/4) ME60018 OK

 KHY-M132C-00 COVER 15-1 1 (2009/1/6) MEY0102 NG

 KHY-M131A-00 BRKT.1,COVER 12 2

 KHY-M131B-00 BRKT.2,COVER 12 2

 KHY-M1164-00 COVER,FAN 1

KHY-M13F1-00 CE COVER F1 2 for YS

KJV-M13F1-00 CE COVER F1 2 for YG

KHY-M13F1-01 CE COVER F1 2 for YS (2008/6/3) ME50234 OK

KJV-M13F1-00 CE COVER F1 2 for YG

KHY-M13F2-00 CE COVER F2 2 for YS

KJV-M13F2-00 CE COVER F2 2 for YG

KHY-M13F2-01 CE COVER F2 2 for YS (2008/6/3) ME50234 OK

KJV-M13F2-00 CE COVER F2 2 for YG

 KHY-M13F3-00 CE COVER F3 2

 KHY-M13F4-00 CE COVER F4 2

 KHY-M13F5-00 CE COVER F5 2

 KHY-M1372-00 COVER 72,CON. 2

 KHY-M1372-01 COVER 72,CON. 2 (2008/12/26) MEY0132 OK

 KHY-M1371-00 COVER 71,CON. 4

 KHY-M1373-00 COVER 73,CON. 4

 98902-04006 SCREW BINDING HEAD 14

 90172-00J040 WASHER,EXTL.TOOTHED 14

 KHY-M1376-00 COVER 76,CON. 2

KHY-M1377-01 COVER 77,CON. 2 for YS

KJV-M1377-01 COVER 77,CON. 2 for YG

 KHY-M1378-00 PLATE 78,CON. 2

 KHY-M1332-00 BRKT.32,CON.COVER 2

 90990-12J001 SCREW BIN.HEAD W/W 8

 90990-12J004 SCREW BIN.HEAD W/W 6

 90K41-000712 PARTS, 1-13 2

 90990-12J007 SCREW BIN.HEAD W/W 4

 90990-41J134 COLLAR 4 (2013/6/10) MK30113

Feeder Holder YS 60

KHY-M3401-01 PLATE,FEEDER 60 1

 KHY-M3405-00 STAND 1 1

 KHY-M3405-S0 STAND 1/2 SET 1 (2010/4/5) MG30148 OK

 KHY-M3406-00 STAND 2 1

 delete (2010/4/5) MG30148

 KHY-M340C-01 PLATE,FRONT 2

 KHY-M371R-00 RAIL GUIDE 12P 5

 KHY-M340F-00 BRACKET,BOARD 2

 KHY-M4476-15 FDR.CTRL.BOARD ASSY 2

 KHY-M4476-16 FDR.CTRL.BOARD ASSY 2 without pnp Changer (2008/12/27) MEY0101 NG

 KHY-M37E1-00 LIGHT GUIDE 4

KHY-M37E1-10 LIGHT GUIDE,L 2

 KHY-M37E1-20 LIGHT GUIDE,R 2

 KHY-M340G-00 SHAFT GUIDE 2

 KHY-M340H-01 PLATE,INDICATOR 1

 KHY-M349J-00 LABEL,FEEDER POSI. 1 1-30

 Delete (2008/12/27) MEY0111

 KHY-M349J-10 LABEL,FEEDER POSI. 1 31-60

 Delete (2008/12/27) MEY0111

 KHY-M349J-20 LABEL,FEEDER POSI. 1 101-130

 KHY-M349J-40 LABEL,INDICATOR 1 (2008/12/27) MEY0111 OK

 KHY-M349J-30 LABEL,FEEDER POSI. 1 131-160

 Delete (2008/12/27) MEY0111

 KHY-M379K-00 LABEL,LED POSI. 2

 KHY-M379K-01 LABEL,LED POSI. 2 (2008/12/27) MEY0111 OK

 KHY-M340J-00 PLATE,CONNECTOR 1

KHY-M66TE-00 HNS,F.CTRL - FDR. 60

 KHY-M372M-00 SCREW,STAD 120

 KHY-M340K-01 BRACKET,MANIFOLD 1 Fig 1

 KHY-M340K-02 BRACKET,MANIFOLD 1 Fig 2 (2010/4/7) MG30164 NG

 KHY-M340K-03 BRACKET,MANIFOLD 1 (2011/8/22) MH60104 NG

 KHY-M372R-00 GUIDE,FEEDER UNDER 5

 KHY-M372P-00 SUPPORT,LEVER 60

 KHY-M372S-01 SPRING,SUPPORT 60

 KHY-M372T-00 BRKT.,SUPPORT 2 7

 Delete (2008/12/26) MEY0099

 KHY-M342T-00 BRKT.,SUPPORT 3 1

 Delete (2008/12/26) MEY0099

KHY-M340L-01 COVER,PLATE 1

 Delete (2008/12/26) MEY0099

 KHY-M340N-01 COVER,BOARD 2

 KHY-M3411-00 MANIFOLD 1

 Delete (2010/4/7) MG30164

 K40-M8598-00 PLUG 1 1

 Delete (2010/4/7) MG30164

 $TSH8-01 JOINT 1

Delete (2010/4/7) MG30164

 $TSS4-01 JOINT 6

 Delete (2010/4/7) MG30164

 KHY-M34J1-00 BLOCK,FEEDER POSI. 2

 KHY-M3430-10 LABEL,FEEDER 60-12P 1 1-60

 KHY-M3430-20 LABEL,FEEDER 60-12P 1 101-160

 99480-06020 PIN,PARALLEL 4

 99480-06012 PIN,PARALLEL 6

 99480-06012 PIN,PARALLEL 4 (2008/10/9) ME00028

 99480-04012 PIN,PARALLEL 4

 99480-04012 PIN,PARALLEL 2 (2008/10/9) ME00028

 91312-08020 BOLT HEX.SOCKET HEAD 6 M8X20

 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20

 91312-06018 BOLT HEX.SOCKET HEAD 4 M6X18

 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16

 91312-06012 BOLT HEX.SOCKET HEAD 18 M6X12

 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10

 Delete (2008/10/9) ME00028

 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8

 91312-04008 BOLT HEX.SOCKET HEAD 12 M4X8 (2008/10/9) ME00028

 91312-03018 BOLT HEX.SOCKET HEAD 16 M3X18

 91312-03018 BOLT HEX.SOCKET HEAD 32 M3X18 (2008/10/9) ME00028

 91312-03016 BOLT HEX.SOCKET HEAD 12 M3X16

91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10

91312-03006 BOLT HEX.SOCKET HEAD 12 M3X6

 91312-03006 BOLT HEX.SOCKET HEAD 20 M3X6 (2008/10/9) ME00028

 98702-03006 SCREW FLAT HEAD 90

 98902-03006 SCREW BINDING HEAD 16

 98902-03004 SCREW BINDING HEAD 32

 92902-06200 WASHER PLAIN 4

 92902-08600 WASHER PLAIN 6

 $NK-3N NYLON CLIP 4

 $NK-3N NYLON CLIP 10 (2008/10/9) ME00028

 90990-11J003 SCREW,PAN HEAD W/W 4

 90990-11J003 SCREW,PAN HEAD W/W 10 (2008/10/9) ME00028

 KHY-M340U-00 PLATE,COVER 1 1

 Delete (2008/12/26) MEY0099

 KHY-M340V-00 PLATE,COVER 2 1

 Delete (2008/12/26) MEY0099

 KHY-M6187-00 FAN MOTOR ASSY 4

 KHY-M379L-00 LABEL,LED 2

 KV8-M3758-00 SEAL(DUMP) 2

 90990-42J047 JOINT 2 (2010/4/7) MG30164

Feeder Holder YG 60

KJV-M3401-A0 FEEDER PLATE ASSY.60 1

 KJV-M3401-00 PLATE,FEEDER 60 1

 KJV-M3401-01 PLATE,FEEDER 60 1 (2010/1/8) MG10013 OK

 $BF4BU JOINT 60

 KJV-M3407-A0 JOINT ASSY 60

 KJV-M3402-00 GUIDE 1,TAPE 1

 KJV-M3403-00 GUIDE 2,TAPE 1

 KJV-M3403-01 GUIDE 2,TAPE 1 (2010/1/8) MG10012 NG

 KJV-M3404-00 GUIDE 3,TAPE 1

 KJV-M3405-00 STAND,1 1

 KJV-M3406-00 STAND,2 1

KJV-M3408-01 BRACKET,VALVE 1 Height 37mm (2010/5/25) MG50094 NG

KJV-M3408-00 BRACKET,VALVE 1 Height 33mm

 KJV-M3409-00 COVER,VALVE 1

 KJV-M3409-01 COVER,VALVE 1 (2010/2/10) MG20030 OK

 KJV-M3410-00 VALVE ASSY,60-F 1

 KJV-M3417-00 GUIDE,4 2

 KHY-M3411-00 MANIFOLD 1

 K40-M8598-00 PLUG 1 1

 $TSH8-01 JOINT 1

 $TSS4-01 JOINT 6

 KHY-M3430-10 LABEL,FEEDER 60-12P 1

 KGS-M3E10-00 GUIDE TAPE BRACKET,R 1

 KJV-M3411-00 GUIDE TAPE BRACKET,R 1 (2010/1/8) MG10012 NG

 KGS-M3E11-00 GUIDE TAPE BRACKET,L 1

 KJV-M3412-00 GUIDE TAPE BRACKET,L 1 (2010/1/8) MG10012 NG

 91312-03006 BOLT HEX.SOCKET HEAD 6 M3X6

 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8

 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10

 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20

 91312-06010 BOLT HEX.SOCKET HEAD 4 M6X10

 91312-06022 BOLT HEX.SOCKET HEAD 4 M6X22

 91312-08020 BOLT HEX.SOCKET HEAD 6 M8X20

 90990-12J001 SCREW BIN.HEAD W/W 12

 92902-04200 WASHER PLAIN 10

 92902-06200 WASHER PLAIN 4

 92902-08600 WASHER PLAIN 6

 90172-00J040 WASHER EXTL.TOOTHED 10

 KGA-M37P0-00 VALVE KIT 24 (Spare)

 KHY-M3410-00 MANIFOLD ASSY 1 1

 92012-04010 BOLT .BUTTON HEAD 4 (2011/6//29) MH30128 OK

Feeder Holder YS 24

KJH-M3401-01 PLATE, FEEDER 12-24 1

 KKJ-M3405-01 STAND 1 1

 KKJ-M3406-01 STAND 2 1

 KJH-M340F-02 BRACKET, BOARD 1

 KJH-M340H-02 PLATE, INDICATOR 1

 KJH-M340J-00 PLATE, CONNECTOR 1

KJH-M340K-02 BRACKET 1, MANIFOLD 1 L, R

KJH-M340K-11 BRACKET 2, MANIFOLD 1 R-With Tape Cutter

 KJH-M340N-02 COVER, BOARD 1

 KHY-M34J1-00 BLOCK, FEEDER POSI. 2

 KHY-M371A-01 PLATE, FRONT 1

 KHY-M371B-00 SHAFT GUIDE 1

 KHY-M371R-00 RAIL GUIDE 12P 2

 KHY-M372M-00 SCREW, STAD 48

 KHY-M372P-00 SUPPORT, LEVER 24

 KHY-M372R-00 GUIDE, FEEDER UNDER 2

 KHY-M372S-01 SPRING, SUPPORT 24

 KHY-M349J-40 LABEL, INDICATOR 1

 KHY-M379K-01 LABEL, LED POSI. 1

 KHY-M37E1-00 LIGHT GUIDE 3

 KHY-M4476-06 FDR. CTRL. BOARD ASSY 1

 KHY-M6187-00 FAN MOTOR ASSY 2

 KHY-M66TE-00 HNS, F. CTRL - FDR. 24

 KV8-M3758-00 SEAL DUMP 1

 KJH-M340M-00 COVER PLATE 1 non Tape Cutter MFY0118-2009/12/24

 90990-12J001 SCREW, BIN HEAD W/W 3 non Tape Cutter

 99480-06012 PIN, PARALLEL 8

 99480-06020 PIN, PARALLEL 4

 91312-03006 BOLT HEX. SOCKET HEAD 4

 91312-03010 BOLT HEX. SOCKET HEAD 2

 91312-03016 BOLT HEX. SOCKET HEAD 6

 91312-03018 BOLT HEX. SOCKET HEAD 14

 91312-04006 BOLT HEX. SOCKET HEAD 4

 91312-04008 BOLT HEX. SOCKET HEAD 10

 91312-06012 BOLT HEX. SOCKET HEAD 9

 91312-06016 BOLT HEX. SOCKET HEAD 4

 91312-06018 BOLT HEX. SOCKET HEAD 8

 91312-06020 BOLT HEX. SOCKET HEAD 4

 91312-08030 BOLT HEX. SOCKET HEAD 6

 98702-03006 SCREW, FLAT HEAD 36

 98902-03006 SCREW, BINDING HEAD 6

 92902-06200 WASHER, PLAIN 4

 92902-04600 WASHER, PLAIN 4

 92902-08600 WASHER, PLAIN 6

 KHY-M379L-00 LABEL, LED 1

 KHY-M3430-00 LABEL, FEEDER 24-12P 1

 91312-08060 BOLT HEX. SOCKET HEAD 2

 99480-04012 PIN, PARALLEL 1

 KKJ-M3405-S0 STAND, 1/2 SET 1

 98902-03004 SCREW, BINDING HEAD 16

 KHY-M3T0X-40 STAY, FIX SLOPE 12X24 1 With Tape Cutter

 90990-42J047 JOINT 1

 $USD6-4 JOINT 1

 $USD8-6 JOINT 1

 98902-04008 SCREW, BINDING HEAD 16

Reel Holder

KHY-M3S00-00 REEL HOLDER 60 ASSY

 KHY-M3S07-01 TRIM 2

 KHY-M3S08-00 UNDER COVER 1

 KHY-M3S09-00 SHAFT,ROLLER 4

 KHY-M3R10-01 REEL PUT ASSY 30

 KHY-M3R10-02 REEL PUT 12 (2008/12/27) MEY0121 OK

 KHY-M3R14-00 COLLAR 4 ĭ

 KHY-M3R14-01 COLLAR 4 ĭ

(2011/3/10) MGY0030 NG

 KHY-M3S14-10 WASHER 29

 KHW-M1385-00 SPACER 11 ĭ (2009/1/13) MEY0139 OK

 KHY-M3R14-11 WASHER 11 ĭ (2011/3/10) MGY0030 NG

 KHY-M3R15-00 ROLLER 98

 KHY-M3S15-00 ROLLER 2 2

 KHY-M3R16-00 PARTITION 15

 KHY-M3R22-00 GUIDE,PARTITION 7

 KHY-M3S22-00 GUIDE 2,PARTITION 1

 KHY-M3R23-00 COLLAR,PARTITION 29

 KHY-M3S23-00 COLLAR 2,PARTITION 1

 KHY-M3S21-00 FRAME,REEL HOL. 1 for YS12

 KHY-M3S20-S1 RH FRAME SUB ASSY 1 (2008/12/26) MEY0107

 KHY-M373C-10 CHAIN ASSY 1

 KHY-M374C-00 CASTER 4

 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12

 91312-06010 BOLT HEX.SOCKET HEAD 16 M6X10

 91312-04008 BOLT,HEX.SOCKET HEAD 4 M4X8

 91312-03014 BOLT,HEX.SOCKET HEAD 16 M3X14

 91312-03005 BOLT HEX.SOCKET HEAD 12 M3X5

 92902-04600 WASHER PLAIN 4

 92902-03200 WASHER PLAIN 8

 90990-12J001 SCREW BIN.HEAD W/W 1

 90172-00J040 WASHER,EXTL.TOOTHED 1

 91312-04006 BOLT HEX.SOCKET HEAD 10 for YG12,M4X6

 91312-04010 BOLT HEX.SOCKET HEAD 4 for YG12,M4X10

 91312-05010 BOLT HEX.SOCKET HEAD 20 for YG12,M5X10

 KJV-M3S21-00 FRAME 1,REEL HOL. 1 for YG12

 KJV-M3S22-00 FRAME 2,REEL HOL. 2 for YG12

 KJV-M3S23-00 FRAME 3,REEL HOL. 2 for YG12

 KJV-M3S24-00 STAY,REEL HOL. 2 for YG12

 KJV-M3S24-01 STAY,REEL HOL. 2 (2010/1/20) MG10078 NG

 KJV-M3S25-00 GUIDE,REEL HOL. 2 for YG12

 KJV-M3S26-00 GUIDE 1,TAPE 1 for YG12

 KHY-M3R01-00 SIDE PLATE,R 1

 KHY-M3R02-00 SIDE PLATE,L 1

 KHY-M3S06-02 STOPPER PLATE 1 No47 3 set

 KHY-M3S06-03 STOPPER PLATE 1 No47 2 set l=395 (2009/10/14) MF00041 NG

 KHY-M3S06-04 STOPPER PLATE 1 Chenge pich l=398 (2011/3/10) MGY0030 NG

 KHY-M3S20-00 RH. FRAME ASSY 1 (2008/12/26) MEY0107

KM0-M3741-00 CASTER 63 2

 KHY-M3S0A-00 STAY,SHAFT 3 (2008/7/9) ME50235

 KHY-M3S0A-01 STAY,SHAFT 2 (2009/10/14)

Feeder Floating Detection YS 60

KHY-M3901-00 BRACKET SENSOR 2 4

 KHY-M3910-00 BRACKET SENSOR 1 4

 KGS-M3906-00 BRACKET 6 4

 KHY-M3951-00 PLATE SENSOR 4

 KHY-M3952-00 PLATE SENSOR 2

 KHY-M3953-00 BRACKET SENSOR 3 2

 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14

 91312-04010 BOLT HEX.SOCKET HEAD 16 M4X10

 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10

 98902-03006 SCREW BINDING HEAD 8 for FES(24)

 92902-05200 WASHER PLAIN 8

 92902-04200 WASHER PLAIN 12

 92902-03200 WASHER PLAIN 8

 90112-02J006 BOLT HEX.SOCKET HEAD 8

 KG2-M3903-10 SEAL LASER 4

 KHY-M3791-00 COVER,HNS 2 for FES(24)

 KHY-M3792-00 COVER,HNS 2 for FES(24)

 KHY-M652Y-00 SENSOR,FEE.FLT.ASSY 2

 KHY-M652Y-10 SENSOR,FES1 FLT.ASSY 2

Feeder Floating Detection YG 60

KJV-M3901-00 BRACKET SENSOR 1 1

 KJV-M3902-00 BRACKET SENSOR 2 1

 KJV-M3910-00 BRACKET SENSOR 3 2

 KJV-M3910-01 BRACKET SENSOR 3 2 (2010/9/10) MG90018 OK

 KJV-M3953-00 BRACKET SENSOR 4 2

 KHY-M3951-00 PLATE SENSOR 2

 KGS-M3906-00 BRACKET 6 2

 KHY-M3952-00 PLATE SENSOR 2

91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14

 91312-04010 BOLT HEX.SOCKET HEAD 16 M4X10

 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10

 90112-02J006 BOLT HEX.SOCKET HEAD 4

 92902-05200 WASHER PLAIN 4

 92902-04200 WASHER PLAIN 12

 92902-03200 WASHER PLAIN 4

 KG2-M3903-10 SEAL LASER 2

 KHY-M652Y-00 SENSOR,FEE.FLT.ASSY 2

Feeder Floating Detection 24

KJJ-M3790-00 COVER, HNS 2

 KJJ-M3790-10 COVER, HNS 2

 KHY-M3901-00 BRACKET SENSOR 2 4

 KHY-M3910-00 BRACKET SENSOR 1 4

 KGS-M3906-00 BRACKET 6 4

 KHY-M3951-00 PLATE SENSOR 4

 KHY-M652Y-00 SENSOR, FEE. FLT. ASSY 2

 91312-03010 BOLT HEX. SOCKET HEAD 8

 91312-04010 BOLT HEX. SOCKET HEAD 24

 92902-03200 WASHER, PLAIN 8

 92902-04200 WASHER, PLAIN 16

 KG2-M3903-10 SEAL, LASER 4

 92902-05200 WASHER, PLAIN 8

 91312-05014 BOLT HEX. SOCKET HEAD 8

 98902-03006 SCREW, BINDING HEAD 8

 KHY-M3791-00 COVER, HNS 2

 90112-02J005 BOLT HEX. SOCKET HEAD 4

KHY-M652Y-10 SENSOR, FES:1. FLT. ASSY 2

X-axis

KGT-M221A-A0 COVER,DUCT ASSY. 1

 KHY-M221A-A0 COVER,DUCT ASSY. 1 (2008/12/7) MEY0066 OK

 KGT-M2266-10 PLATE,NUT 1

 KGT-M2268-00 BRACKET 1,TAPE 1

 KHY-M2268-00 BRACKET 1,TAPE 1 (2008/12/7) MEY0066 OK

 KHN-M22F8-00 WASHER,SWR08 16

 KHW-M2269-00 BRACKET 2,TAPE 1

 KHY-M2269-00 BRACKET 2,TAPE 1 (2008/12/7) MEY0066 OK

 KHY-M220A-00 TAPE ,X DUCT 1

 KHY-M220B-00 TAPE 2,X DUCT 1

 KHY-M220C-00 TAPE 3,X DUCT 1

 KHY-M2213-S0 PLATE X AXIS SET 1

 KHY-M2236-00 STAY,DUCT 1

 KHY-M2237-00 BRACKET,HEAD SERVO 1

 KHY-M2238-00 BRACKET 2

 KHY-M2238-01 BRACKET,L 1 (2008/12/3) MEX0134 OK

 KHY-M223A-00 FRAME,HEAD SERVO 1

 KHY-M223B-00 STAY,1 1

 KHY-M223D-01 PLATE,FAN MOTOR 1

 KHY-M223F-00 STAY,R HNS. 1

 KHY-M223G-00 STAY,L HNS. 1

 KHY-M223H-00 STAY,R HNS. 1

 KHY-M223R-00 STAY,HNS. 3

 KHY-M2251-00 BRACKET,CONNECTOR 1

 KHY-M2252-01 STOPPER 1 for shipment

 KHY-M2252-02 STOPPER 1 (2009/2/12) MF20037 OK

 KHY-M2265-00 JOINT 1

 KHY-M2266-00 PLATE,NUT 1

 KHY-M2267-00 GUIDE,X AXIS 1

 KHY-M226A-00 COVER,CABLE 1

 Delete (2009/1/27) MF10084

 KHY-M226B-00 COVER BACK,X AXIS 1

 KHY-M226B-01 COVER BACK,X AXIS 1 (2009/1/27) MF10084 NG

 KHY-M227G-00 COVER,B.S. 1

 KHY-M2282-00 DOG.ORIGIN 1

 KHY-M2283-00 DOG,SECOND LIMIT 2

 KHY-M2284-00 BRACKET,SENSOR 1

 KHY-M22C5-00 COVER UNDER,X AXIS 1

 KHY-M652W-00 SENSOR, XORG ASSY 1

 KHY-M652X-00 SENSOR, XOT ASSY 1

 KV7-M2231-00 SPACER R,NUT 4

 $UL10 JOINT 1

 90990-01J011 BOLT HEX.SOCKET HEAD 4

 90990-01J032 BOLT HEX.SOCKET HEAD 8

 90990-11J003 SCREW,PAN HEAD W/W 6

 97602-03006 SCREW,PAN HEAD W/W 4 M3X6

 97602-03108 SCREW,PAN HEAD W/W 4 M3X8 (2010/3/26) MG30157 OK

 91312-03025 BOLT HEX.SOCKET HEAD 8 M3X25

 91312-04006 BOLT HEX.SOCKET HEAD 19 M4X6

 91312-04008 BOLT HEX.SOCKET HEAD 26 M4X8

 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20

 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10

 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12

 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18

 91312-08025 BOLT HEX.SOCKET HEAD 16 M8X25

 92902-04200 WASHER PLAIN 3

 97602-03105 SCREW,PAN HEAD W/W 21

 98902-03006 SCREW BINDING HEAD 4

 98902-04006 SCREW BINDING HEAD 4

 KHY-M223V-00 COVER,PCB 1

 KHY-M223T-00 BRACKET 2 1

 KHY-M223S-00 BRACKET 1 1

 90122-04J008 BOLT BUTTON HEAD 4

 KHY-M2239-00 BRACKET,R 1 (2008/12/3) MEX0134 OK

 KHN-M220F-02 CAMERA SELECTOR 1

 KHN-M220F-05 CAMERA SELECTOR 1 (2010/1/19) MFY0149 OK

KHN-M220F-06 CAMERA SELECTOR 1 (2011/3/29) MH30127 OK

X-axis-Sub Assy

KHY-M2211-00 FRAME R, X AXIS 1

 KHY-M2240-00 SLEEVE,BRG. 1

 KHN-M2241-00 HOLDER,MOTOR X 1

 KHY-M2242-00 HOLDER,BRG. 1

 KHY-M2271-00 BALL SCREW 1

 KHY-M2276-S0 X-AXIS GUIDE SET 1

 KHN-M2221-00 SUPPORT UNIT 1

 KHN-M2261-A0 HOLDER,HEAD R ASSY. 1

 KHY-M224H-00 DAMPER 2

 KHN-M224D-00 SPACER 1

 KHN-M2248-00 SPACER 2

 KHN-M22F4-00 WASHER,SWR04 16

 KHN-M22F6-00 WASHER,SWR06 8

 KHN-M224J-00 COLLAR A 4

 KHN-M224K-00 COLLAR B 4

 KGS-M2628-00 LOCK NUT 1

 KG2-M9173-00 LOCK NUT 1

 KM0-M2220-00 COUPLING,X-AXIS 1

 KHY-M220D-00 TAPE, X-AXIS 2

 90K63-511403 AC SERVO MOTOR 1

 90990-26J008 BEARING 1

 91312-04014 BOLT HEX.SOCKET HEAD 44 M4X14

 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25

 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16

 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18

 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20

 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X25

 92A08-04304 SET SCREW M4X4 2

 99480-06018 PIN,PARALLEL 2

Y-axis

KHY-M264A-00 HOLDER SET,Y AXIS 2

 KHY-M264L-00 SPACER,BRG.SET 2

 KHY-M2671-00 BALL SCREW 2

 KHY-M2676-S0 GUIDE SET,Y AXIS 1

 KHY-M2666-00 HOLDER,NUT Y AXIS 2

 KHY-M2678-00 GUIDE,CABLE Y AXIS 1

 KHY-M2648-00 DAMPER 2

 KHY-M260A-00 TAPE, Y AXIS 1

 KHY-M260B-00 TAPE,Y DUCT 1

 KHY-M260C-00 TAPE 2, Y DUCT 1

 KHY-M260D-00 TAPE 3, Y DUCT 1

 KHY-M652A-00 SENSOR,Y ORG ASSY 1

 KHY-M652F-00 SENSOR,Y OT ASSY 1

 KHY-M2682-00 DOG,ORIGIN 1

 KHY-M2683-00 DOG,SECOND LIMIT 2

 KHY-M2691-00 BRACKET,SENSOR 1

 KHY-M2695-00 BRACKET GUIDE,Y AXIS 1

 KHY-M2669-00 BRACKET,HARNESS 2

 KHW-M224A-A0 SUPPORT UNIT 2

 KHY-M224A-A0 SUPPORT UNIT 2 (2010/7/14) MG50155 OK

 KHW-M2654-00 PLATE , DAMPER 2

 KHN-M224J-00 COLLAR A 4

 KHN-M224K-00 COLLAR B 4

 90990-26J008 BEARING 2

 KGS-M2256-00 GRIP 1

 KHN-M22F5-00 WASHER,SWR05 16

 KHN-M2651-00 NYLOCK BOLT (M12X45) 22

 KV7-M2651-00 DAMPER,STOPPER 2

 KV7-M2266-00 PLATE,NUT 2

 KG2-M9173-00 LOCK NUT 2

 KM0-M2220-00 COUPLING,X-AXIS 2

 90K63-611F04 AC SERVO MOTOR 2

 KHW-M2656-00 SPACER 4

 90990-41J180 COLLAR 4 (2014/7/11) ML60128 OK

 90201-124G9 WASHER,PLAIN 22

 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6

 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8

 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25

 91312-05010 BOLT HEX.SOCKET HEAD 14 M5X10

 91312-05016 BOLT HEX.SOCKET HEAD 60 M5X16

 91312-05018 BOLT HEX.SOCKET HEAD 8 M5X18

 91312-06018 BOLT HEX.SOCKET HEAD 8 M6X18

 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20

 91312-06035 BOLT HEX,SOCKET HEAD 8 M6X35

 92902-05600 WASHER PLAIN 10

 92902-05200 WASHER PLAIN 4

 98502-03004 SCREW,PAN HEAD 4

 90990-01J032 BOLT HEX.SOCKET HEAD 8

 90990-21J001 PIN 6

 99480-05010 PIN,PARALLEL 2

 92A08-04305 SET SCREW M4X5 2

 KHY-M2657-00 BRACKET 1,HARNESS 1

 KHY-M2658-00 PLATE,FIX Y AXIS 1

 KHY-M2658-01 PLATE,FIX Y AXIS 1 (2009/2/12) MF20047 OK

 90990-41J100 COLLAR 2

KHY-M2671-A0 Y AXIS B.S.SUB ASSY 2 (2014/10/30) ML00154

Y-axis (BS Cover/Frame/Grease)

KHY-M26C1-00 COVER TOP,BALL SCREW 1 12 holes M4x6

 KHY-M26C1-01 COVER TOP,BALL SCREW 1 9 holes M5x8 (2011/4/19) MH40007 NG

 KHY-M26C2-00 COVER1,BALL SCREW 2 H=31mm

 KHY-M26C2-01 COVER1,BALL SCREW 2 H=35mm (2008/11/19) MEX0027 NG

KHY-M26C3-00 COVER2,BALL SCREW 1

 KHY-M26C4-00 COVER3,BALL SCREW 1

 KHY-M26C5-00 HEX. POST 6

 KHY-M26C6-00 BRKT. 2R,COVER Y 1

 KHY-M26C6-01 BRKT. 2R,COVER Y 1 (2011/4/19) MH40007 NG

KHY-M26C7-00 BRKT. 2L,COVER Y 1

 KHY-M26C7-01 BRKT. 2L,COVER Y 1 (2011/4/19) MH40007 NG

 KHY-M26C8-00 COVER TOP L,BS 1 12 holes M4x6

 KHY-M26C8-01 COVER TOP L,BS 1 9 holes M5x8 (2011/4/19) MH40007 NG

 KHY-M2655-00 BRKT. COVER Y AXIS 2

 KHY-M2655-01 BRKT. COVER Y AXIS 2 (2011/4/19) MH40007 NG

 91312-04006 BOLT HEX.SOCKET HEAD 20 M4X6

 Delete (2011/4/19) MH40007 NG

 91312-05008 BOLT HEX.SOCKET HEAD 26 M5X8

 91312-05008 BOLT HEX.SOCKET HEAD 30 M5X8 (2011/4/19) MH40007 OK

 91312-06010 BOLT HEX.SOCKET HEAD 20 M6X10

 92902-04200 WASHER PLAIN 31

 92902-04200 WASHER PLAIN 11 (2011/4/19) MH40007 OK

 92902-05200 WASHER PLAIN 14

 92902-05200 WASHER PLAIN 24 (2011/4/19) MH40007 OK

 90172-00J050 WASHER,EXTL.TOOTHED 8

 KHY-M26F1-00 FRAME 1 1

 KHY-M26F1-01 FRAME 1 1 (2008/12/12) MEY0048 NG

 KHY-M26F2-00 FRAME 2 1

 KHY-M26F2-01 FRAME 2 1 (2008/12/12) MEY0048 NG

 KHY-M26F4-01 DUCT,HARNESS 1

 KHY-M2694-01 BRACKET 1,GUIDE 1

 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8

 92902-06200 WASHER PLAIN 16

 90172-00J040 WASHER,EXTL.TOOTHED 11

 90172-00J060 WASHER,EXTL.TOOTHED 16

 KHY-M266A-00 PLATE,PIPE R 1

 KHY-M266A-01 PLATE,PIPE 2 (2010/3/26) MG30119 OK

 KHY-M266B-00 PLATE,PIPE L 1

Delete (2010/3/26) MG30119

 KHY-M266C-00 BLOCK,JOINT 2

 KHY-M266D-00 JOINT 2

 KHY-M266E-00 JOINT 2

KHN-M22AD-00 GREASE NIPPLE 2

Body Head / Vision

KHY-M7103-00 PLATE,HEAD 1

 KHY-M7117-00 STOPPER 1

 KHY-M7118-00 PLATE,STOPPER 1

 KHY-M7141-00 STAY,HANDLE 1

 KHY-M71C1-00 BRACKET,RIGHT 1

 KHY-M71C2-00 BRACKET,LEFT 1

 KHY-M71C3-00 STAY,EJECTOR 1

 KHY-M71C3-01 STAY,EJECTOR 1 (2009/2/26) MF20098 OK

 KHY-M71C5-00 BRACKET,CABLE 1

 KHY-M71C5-01 BRACKET,CABLE 1 (2010/1/8) MFY0063 OK

 KGS-M2256-00 GRIP 1

 90990-41J123 COLLAR 5

 99480-04010 PIN PARALLEL: 4X10 6

 99480-06014 PIN,PARALLEL 4

 $NK-3N NYLON CLIP 11

 90990-11J003 SCREW,PAN HEAD W/W 11

 92012-05014 BOLT BUTTON HEAD 2 M5X14

 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6

 91312-04008 BOLT HEX.SOCKET HEAD 20 M4X8

 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20

 KHY-M71B0-L0 VISION ATTACHMENT L 1

 KHY-M71C7-00 STAY,LEFT 1

 KHY-M71C8-00 COVER,CAMERA L 1

 KHY-M71C8-01 COVER,CAMERA L 1 (2009/12/17) MFY0065 OK

 KHY-M66K3-00 HNS,FID1 CAMERA 1

 KHY-M71B0-R0 VISION ATTACHMENT R 1

 KHY-M71B1-00 HOLDER,CAMERA 2

 KHY-M71B2-00 SATY,FID.LIGHT 2

 KHN-M7210-01 CCD CAMERA 2

 KHY-M7211-00 LENS FID. 2

 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 2

 KHY-M71C6-00 COVER,CAMERA R 1

 KHY-M71C6-01 COVER,CAMERA R 1 (2009/12/17) MFY0065 OK

 KV7-M7165-00 SEAL DON'T TOUCH 2

 90563-04J100 SPACER BOLT 2

 $NK-2N NYLON CLIP 5

 92902-03200 WASHER PLAIN 5

 91312-03006 BOLT HEX.SOCKET HEAD 5 M3X6

 91312-03016 BOLT HEX.SOCKET HEAD 4 M3X16

 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25

 KHY-M66K3-10 HNS,FID2 CAMERA 1

 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45

 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14

 KHY-M7109-00 TAPE PLATE 1

 90563-04150 SPACER BOLT 1
