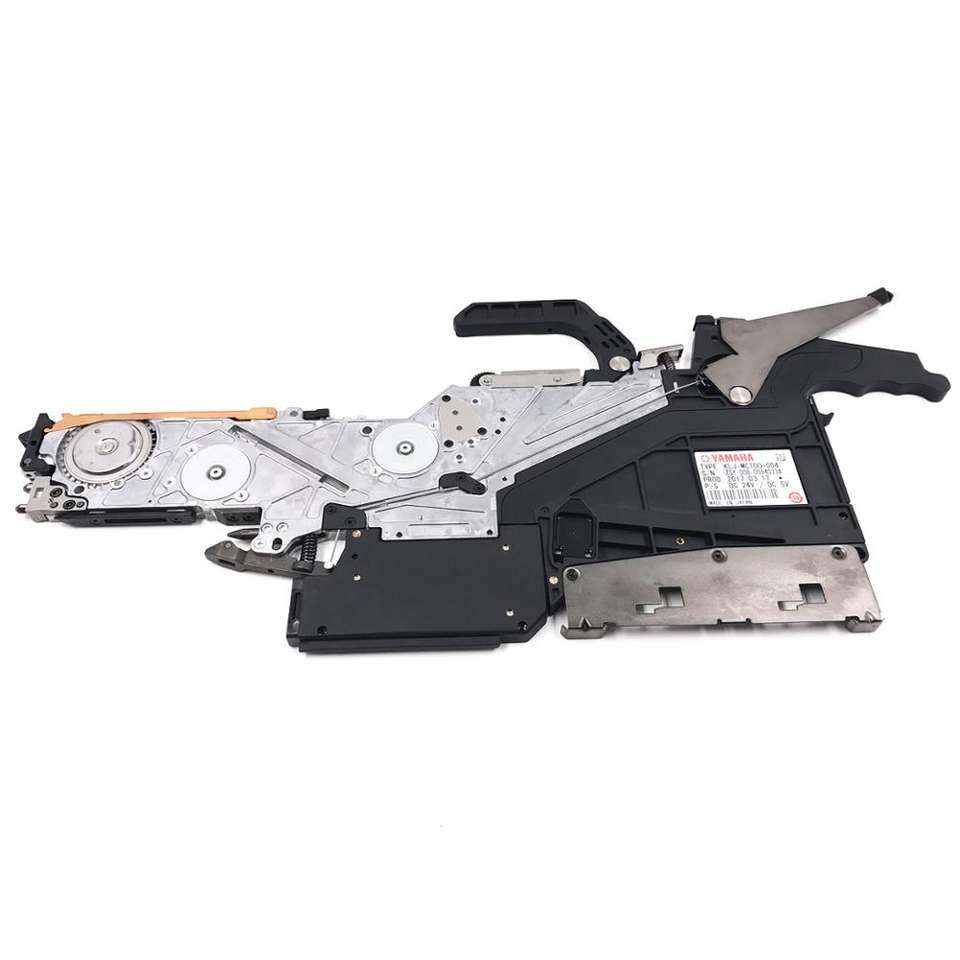

YAMAHA ZS feeder parts ( ZSY feeder parts)

ZS Feeder Electric-powered feeder parts

ZSY-008-A (8mm)

Guide/ Level

KLJ-MC10Y-00 SCREW,PAN HEAD 1

_ *deleted 1 MJX0097 2012/12/06 -

KHJ-MC104-00 RAIL,UNDER 1

KHJ-MC10F-00 SCREW,FLAT HEAD 2

KLJ-MC10C-00 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC10C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MC141-00 TAPE GUIDE 1 SUS

KLJ-MC141-01 TAPE GUIDE 1 Phosphor Bronze : MM20232 2015/03/25 OK

KHJ-MC144-00 LEVER, TAPE GUIDE R 1

KLJ-MC145-00 LEVER,TAPE GUIDE F 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KHJ-MC147-02 SPRING,TAPE GUIDE F 1

KLJ-MC14Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT HEX.SOCKET HEAD 2

KHJ-MC15A-00 SHAFT 112 2

KLJ-MC162-00 COVER,TOP TAPE BOX 1

KLJ-MC162-00 COVER,TOP TAPE BOX 1 notch added : MLY0072 2015/01/07 OK

KLJ-MC163-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC163-00 COVER,TAIL 1

KHJ-MC16V-02 P/O LEVER ASSY. 1

KHJ-MC16B-00 SHAFT,P/O LEVER 2 1

KHJ-MC16E-00 SPRING,P/O LEVER 1

KLJ-MC1F2-00 WAVE WASHER T.C. 1

90990-09J008 SCREW,FLAT HEAD 7

KLJ-MC181-00 HANDLE 1 discontinued

KLJ-MC181-01 HANDLE 1 MK40111 2013/05/08 OK

91317-03016 BOLT,HEX.SOCKET HEAD 1

KHJ-MC185-00 PIN,HANDLE 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW, SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

KLJ-MD901-00 REEL HOOK,8MM 1 <OP> 15 inch reel applicable : MK90051 2013/09/27

KLJ-MC14A-00 TAPE GUIDE,W8P1 1 <OP> 1mm pitch 2012/10/16

KLJ-MC14B-00 TAPE GUIDE,W8P4 1 <OP> 4mm pitch 2012/10/09

KLJ-MC14B-10 TAPE GUIDE,W8P4 1 <OP> <Note-2> 2017/06/15

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

90990-01J042 BOLT,HEX. S/H 2 M3*L7.5

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 1 T0.01 <Note-1>

KHJ-MC10A-000 SHIM,PLATE UNDER 2 1 T0.05 <Note-1>

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KLJ-MC1C1-00 PLATE,SPRING ASSY. 1 FigA

KLJ-MC1C1-01 PLATE,SPRING 1 FigB : ML10122 2014/03/11 OK

KLJ-MC1C1-02 SPRING PLATE ASSY. 1 shape change : MR50061 2018/06/15 OK

KHJ-MC1C3-00 SCREW 2

KLJ-MC1F3-00 BRKT.,REEL HOLDER 1

KLJ-MC1F3-00 BRKT.,REEL HOLDER 1 ribs added : MJ80110 2013/03/05 OK

90990-09J008 SCREW,FLAT HEAD 7

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC189-01 PIN,CLAMP 1

KHJ-MC18J-00 SCREW,FLAT HEAD 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC18C-00 COVER,WIRE 2 1

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1 painted urethane color - Black

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1 <Note-2> H025542 2018/09/19 OK

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

98707-03006 SCREW,FLAT HEAD 2

92A08-03306 SCREW,SET 1

KLJ-MC1C1-B0 SPRING PLATE ASSY. 1 <OP> non-magnetic type 2018/06/15 –

Gear / Sprocket

KLJ-MC102-00 COVER,FEEDER SIDE 1 1

KLJ-MC131-00 SPROCKET ASSY. 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC1E1-00 GEAR,IDLE F1 ASSY. 1

KLU-MC1E1-00 GEAR,IDLE F1 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC1E2-00 GEAR,IDLE F2 ASSY. 1

KLU-MC1E2-00 GEAR,IDLE F2 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1

KLU-MC1E3-00 GEAR,IDLE F3 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1

KLU-MC1E4-00 GEAR,IDLE F4 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC138-00 GEAR,DRIVEN 1

KLJ-MC138-01 GEAR,DRIVEN 1 MJ90005 2012/11/08 OK

KHJ-MC13A-00 SHIM,SPROCKET 1

KLJ-MC1E6-00 BEARING 1

KLJ-MC1E7-00 COVER,BEARING 1

KLJ-MC1E8-00 FRANGE,WASHER 1

KLJ-MC1E9-00 WAVE WASHER,D.G. 1

KLJ-MC13P-00 SPACER,F3 1

KHJ-MC151-00 GEAR,IDLE P1 1

KHJ-MC151-02 GEAR,IDLE P1 1 MK90088 2013/09/27 OK

KLJ-MC152-00 GEAR,IDLE P2 1

KLJ-MC153-00 GEAR,IDLE P3 1

KHJ-MC154-00 GEAR,IDLE P4 1

KHJ-MC155-00 GEAR,IDLE P5 1

KHJ-MC156-02 ROLLER, P/O 1 1

KHJ-MC158-00 COVER,IDLE GEAR 1 1

KHJ-MC159-00 COVER,IDLE GEAR 2 1

KHJ-MC166-02 BLOCK,P/O TOOTH 1 1

90112-2AJ006 BOLT,HEX.SOCKET HEAD 2

KHJ-MC169-02 ROLLER, P/O 2 1

KHJ-MC16A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 1

90990-09J008 SCREW, FLAT HEAD 17

KLJ-MC1AN-00 COVER,BOX EL ASSY. 1

KLJ-MC1A2-00 COVER,BOX EL 1

KLJ-MC1AP-00 TAPE,EL COVER 1

90115-02J003 BOLT,HEX.SOCKET HEAD 3

Electric

KLJ-MC110-00 MOTOR,FEED 1

KLJ-MC110-00 MOTOR,FEED 1 <Note-4> H025542 2018/09/19 OK

KLJ-MC120-00 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC1A3-00 COVER,CABLE 1

KLJ-MC1A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC1A5-10 SPLICE SENS. 8MM 1 <Note-2>

90990-08J020 SCREW, PAN HEAD 2

KHJ-MC1AC-00 INSULATION SHEET 1

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-01 ABS BOARD ASSY. 1

KLJ-M4488-00 FEEDER BOARD ASSY. 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

90115-02J003 BOLT,HEX.SOCKET HEAD 2

Box

KLJ-MC16Y-00 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC161-00 BOX,TOP TAPE 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC16Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC16Y-00 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC161-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC161-00 BOX,TOP TAPE 1 not for sale -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC10C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW, PAN HEAD 4

98502-03006 SCREW, PAN HEAD 3 [Q'ty] reduced : MM40071 2015/04/14 -

KHJ-MC11T-00 BOLT,LOCK S/H 1 Pre-coated : MM40071 2015/04/14 OK

98707-03006 SCREW,FLAT HEAD 1

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-2T6-A ( 12/16mm)

Guide / Lever

KHJ-MC104-00 RAIL,UNDER 1

KHJ-MC10F-00 SCREW,FLAT HEAD 2

KLJ-MC20C-00 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC20C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KHJ-MC24J-04 TAPE GUIDE ASSY. 12 1 <Note-2>

KHJ-MC24J-05 TAPE GUIDE ASSY. 12 1 <Note-2> H025412 2018/07/12 OK

KHJ-MC241-05 TAPE GUIDE ASSY. 16 1 <Note-3>

KHJ-MC241-06 TAPE GUIDE ASSY. 16 1 <Note-3> H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

KLJ-MC245-00 LEVER F 1216 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KHJ-MC247-01 SPRING,TAPE GUIDE F 1

KLJ-MC14Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KHJ-MC24D-00 GUIDE 12 1 <Note-4> see page [2-2].

KLJ-MC262-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC262-00 COVER 12/24,T.T.B. 1

KLJ-MC263-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC263-00 COVER 1216,TAIL 1

KHJ-MC26L-01 GUIDE,CHANGE 1 1

KHJ-MC26M-01 GUIDE,CHANGE 2 1

KHJ-MC26N-00 PLUNGER 1 <Note-5>

KHJ-MC26V-00 P/O LEVER ASSY. 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 7

KLJ-MC281-00 HANDLE W 1 discontinued

KLJ-MC281-01 HANDLE W 1 MK40111 2013/05/08 OK

91317-04010 BOLT,HEX.SOCKET HEAD 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

99480-03010 PIN,PARALLEL 1

90990-18J041 PIN,PARALLEL 1 material change : MS20083 2019/03/05 OK

99480-04022 PIN,PARALLEL 2

99480-05012 PIN,PARALLEL 1

99480-05018 PIN,PARALLEL 1

98707-03006 SCREW,FLAT HEAD 2 <Note-4> see page [2-2].

92A08-03303 SCREW, SET 3 M3*L3

92A08-03306 SCREW, SET 1 M3*L6

KLJ-MD902-00 REEL HOOK,1216 1 <OP> 15 inch reel applicable : MK90051 2013/09/27

KHJ-MC2CS-00 SPRING PLATE ASSY.12 1 <OP> magnet type : MS40036 2019/05/14

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC206-00 PLATE,UNDER 1

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 2 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 2 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1 ribs added : MJ90180 2012/10/22 OK

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-00 COVER W,WIRE 2 1 discontinued

KLJ-MC28C-01 COVER W,WIRE 2 1 MK50075 2013/06/12 OK

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

98707-03006 SCREW,FLAT HEAD 2

92A08-03306 SCREW,SET 1

Gear / Sprocket

KLJ-MC202-00 COVER 12/24,F.S. 1

KLJ-MC131-00 SPROCKET ASSY. 1

91312-03018 BOLT,HEX.SOCKET HEAD 1

KLJ-MC2E1-00 GEAR,IDLE F1 ASSY. 1

KLJ-MC2E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1

KLJ-MC238-00 GEAR 1216,DRIVEN 1

KLJ-MC2ET-00 DRIVEN GEAR ASSY. 1 ML90021 2014/09/15 OK

KLJ-MC23G-00 SHAFT 12/24,D.G. 1

_ *deleted 1 ML90021 2014/09/15 -

KLJ-MC23A-00 SHIM 12/24,SPROCKET 1

KLJ-MC2EH-00 BEARING 6-10 3

_ *deleted 3 ML90021 2014/09/15 -

KLJ-MC2E8-00 FRANGE 12/24,WASHER 1

_ *deleted 1 ML90021 2014/09/15 -

KLJ-MC2E9-00 WAVE WASHER,D.G. 6-8 1

_ *deleted 1 ML90021 2014/09/15 -

KLJ-MC13P-00 SPACER,F3 1

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC256-00 ROLLER, PEEL OFF 1 1 press-fit to [22]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KHJ-MC259-00 COVER,IDLE GEAR 2 1

KHJ-MC25A-00 SUB-ROLLER,1 2

KHJ-MC25E-00 COVER,IDLE GEAR 3 1

90115-2AJ008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC266-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX. S/H LOW 1

KHJ-MC269-00 ROLLER,P/O 2 1 press-fit to [22]

KHJ-MC26A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 1

90990-09J008 SCREW,FLAT HEAD 16

KLJ-MC1A2-00 COVER,BOX EL 1

Electric

KLJ-MC210-00 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC2A4-00 COVER 12/24,ABS 1

90115-02J003 BOLT,HEX.SOCKET HEAD 2

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-11 ABS BOARD ASSY. 1

KLJ-M4488-00 FEEDER BOARD ASSY. 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

Box

KLJ-MC26Y-00 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC261-00 BOX 1216,TOP TAPE 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC26Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC26Y-00 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC261-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC261-00 BOX 1216,TOP TAPE 1 not for sale -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC20C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW, PAN HEAD 5

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-024-A (24mm)

Guide / Lever

KHJ-MC104-00 RAIL,UNDER 1

KHJ-MC10F-00 SCREW,FLAT HEAD 2

KLJ-MC40C-00 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC40C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KHJ-MC441-05 TAPE GUIDE ASSY. 1

KHJ-MC441-06 TAPE GUIDE ASSY. 24 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

KLJ-MC445-00 LEVER F 24MM 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KHJ-MC247-01 SPRING,TAPE GUIDE F 1

KLJ-MC14Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MC462-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC262-00 COVER 12/24,T.T.B. 1

KLJ-MC463-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC463-00 COVER 24MM TAIL 1

KHJ-MC46V-00 P/O LEVER ASSY. 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 7

KLJ-MC281-00 HANDLE W 1 discontinued

KLJ-MC281-01 HANDLE W 1 MK40111 2013/05/08 OK

91317-04010 BOLT,HEX.SOCKET HEAD 1

KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

91317-05012 BOLT,HEX.SOCKET HEAD 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

99480-04030 PIN,PARALLEL 2

99480-05012 PIN,PARALLEL 1

99480-05026 PIN,PARALLEL 1

90990-18J030 PIN,PARALLEL 1 registration correction : MK50057 2013/05/15 OK

92A08-03303 SCREW, SET 3 M3*L3

92A08-03306 SCREW, SET 1 M3*L6

KLJ-MD903-00 REEL HOOK,24MM 1 <OP> 15 inch reel applicable : MK90051 2013/09/27

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

90990-01J042 BOLT,HEX. S/H 2

91317-03008 BOLT,HEX.SOCKET HEAD 2 standardized 2013/05/27 OK

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC406-00 PLATE,UNDER 1

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 2 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 2 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1 ribs added : MJ90180 2012/10/22 OK

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-00 COVER W,WIRE 2 1 discontinued

KLJ-MC28C-01 COVER W,WIRE 2 1 MK50075 2013/06/12 OK

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

98707-03006 SCREW,FLAT HEAD 2

92A08-03306 SCREW,SET 1

Gear / Sprocket

KLJ-MC202-00 COVER 12/24,F.S. 1

KLJ-MC131-00 SPROCKET ASSY. 1

91312-03018 BOLT,HEX.SOCKET HEAD 1

KLJ-MC2E1-00 GEAR,IDLE F1 ASSY. 1

KLJ-MC2E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1

KLJ-MC438-00 GEAR 24MM,DRIVEN 1

KLJ-MC4ET-00 DRIVEN GEAR ASSY. 1 ML90021 2014/09/15 OK

KLJ-MC23G-00 SHAFT 12/24,D.G. 1

_ *deleted 1 ML90021 2014/09/15 OK

KLJ-MC23A-00 SHIM 12/24,SPROCKET 1

KLJ-MC4EK-00 COLLAR 24MM,D.G. 1

_ *deleted 1 ML90021 2014/09/15 OK

KLJ-MC2EH-00 BEARING 6-10 3

_ *deleted 3 ML90021 2014/09/15 OK

KLJ-MC2E8-00 FRANGE 12/24,WASHER 1

_ *deleted 1 ML90021 2014/09/15 OK

KLJ-MC2E9-00 WAVE WASHER,D.G. 6-8 1

_ *deleted 1 ML90021 2014/09/15 OK

KLJ-MC13P-00 SPACER,F3 1

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC256-00 ROLLER, PEEL OFF 1 1 press-fit to [23]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KHJ-MC259-00 COVER,IDLE GEAR 2 1

KHJ-MC45A-00 SUB-ROLLER,1 2 discontinued

KHJ-MC45A-00 ROLLER,SUB 1 2 MK10117 2013/01/31 OK

KHJ-MC25E-00 COVER,IDLE GEAR 3 1

90115-2AJ008 BOLT HEX. SOCKET HEAD 2

KHJ-MC466-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

KHJ-MC269-00 ROLLER,P/O 2 1 press-fit to [23]

KHJ-MC46A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 1

90990-09J008 SCREW,FLAT HEAD 16

KLJ-MC1A2-00 COVER,BOX EL 1

Electric

KLJ-MC210-00 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC2A4-00 COVER 12/24,ABS 1

90115-02J003 BOLT HEX.SOCKET HEAD 2

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-11 ABS BOARD ASSY. 1

KLJ-M4488-00 FEEDER BOARD ASSY. 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

Box

KLJ-MC46Y-00 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC461-00 BOX 24MM,TOP TAPE 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC46Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC46Y-00 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC461-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC461-00 BOX 24MM,TOP TAPE 1 not for sale -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC40C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW, PAN HEAD 5

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-032-A (32mm)

Guide / Lever

99480-03010 PIN,PARALLEL 3

90990-18J041 PIN,PARALLEL 3 material change : MS20083 2019/03/05 OK

KHJ-MC104-00 RAIL,UNDER 1

KLJ-MC50C-00 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC50C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MC541-00 TAPE GUIDE ASSY. 1

KLJ-MC541-01 TAPE GUIDE ASSY. 32 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

99480-04028 PIN,PARALLEL 1

KLJ-MC545-00 LEVER,TAPE GUIDE F 1

KHJ-MC54E-00 SHAFT,LEVER 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KLJ-MC547-00 SPRING,TAPE GUIDE F 1

KLJ-MC54Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MC562-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC562-00 COVER, TOP TAPE BOX 1

91317-03020 BOLT,HEX.SOCKET HEAD 6

91317-03030 BOLT,HEX.SOCKET HEAD 1

KLJ-MC563-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC563-00 COVER,TAIL 1

KLJ-MC575-00 PIN,TAIL COVER 1

KHJ-MC56V-00 P/O LEVER ASSY. 1

99480-05030 PIN, PARALLEL 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 2

KLJ-MC281-00 HANDLE W 1 discontinued

KLJ-MC281-01 HANDLE W 1 MK40111 2013/05/08 OK

KHJ-MC58G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

91317-05016 BOLT,HEX.SOCKET HEAD 1

91317-04012 BOLT,HEX.SOCKET HEAD 1

99480-05014 PIN, PARALLEL 1

KLJ-MC5F4-00 PLATE,SUPPORT 1

98902-03005 SCREW, BINDING HEAD 2

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW, SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

KLJ-MD904-00 REEL HOOK,32MM 1 <OP> 15 inch reel applicable : MK90051 2013/09/27

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

98707-03006 SCREW,FLAT HEAD 4

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 3 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 3 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1 ribs added : MJ90180 2012/10/22 OK

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-00 COVER W,WIRE 2 1 discontinued

KLJ-MC28C-01 COVER W,WIRE 2 1 MK50075 2013/06/12 OK

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

92A08-03306 SCREW,SET 1

Gear / Sprocket

KLJ-MC502-00 COVER,FEEDER 1

9480-03010 PIN,PARALLEL 5

0990-18J041 PIN,PARALLEL 5 material change : MS20083 2019/03/05 OK

1312-03022 BOLT,HEX.SOCKET HEAD 6

1312-03012 BOLT,HEX.SOCKET HEAD 2

KLJ-MC5ED-00 SPROCKET ASSY. L 1

KLJ-MC53G-00 SHAFT,GEAR DRIVEN 1

KLJ-MC53G-00 SHAFT,GEAR DRIVEN 1 screw depth increased : MRX0061 2018/12/24 OK

KLJ-MC2EH-00 BEARING 6-10 2

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 2

KLJ-MC5EE-00 SPROCKET ASSY. R 1

KHJ-MC13E-01 SCREW,SLIM HEAD 2

KLJ-MC13E-00 SCREW,SLIM HEAD 2 length extended : MRX0061 2018/12/24 OK

KHJ-MC534-01 GEAR,IDLE F1 1

KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC53L-00 COVER,FEED GEAR 1

KLJ-MC53Y-00 COVER,FEED GEAR 2 1

0169-02JA04 SCREW, BINDING HEAD 2

KLJ-MC5E9-00 WAVE WASHER,D.G. 1

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC556-00 ROLLER, PEEL OFF 1 1 press-fit to [23]

KHJ-MC55A-00 SUB-ROLLER 1 2

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KLJ-MC55E-00 COVER,IDLE GEAR 3 1

KLJ-MC566-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

KHJ-MC569-00 ROLLER,P/O 2 1 press-fit to [23]

KHJ-MC56A-00 SHAFT,P/O LEVER 1 1

0440-01J030 CIRCLIP 1

0990-09J008 SCREW,FLAT HEAD 4

KLJ-MC5A2-00 COVER,BOX EL 1

8902-03005 SCREW, BINDING HEAD 2

0115-2AJ008 BOLT HEX.SOCKET HEAD 4

Electric

KHJ-MC510-01 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC5A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-20 ABS BOARD ASSY. 1

KHJ-M4664-21 ABS BOARD ASSY 1 MK00034 2013/12/09 OK

KLJ-M4488-00 FEEDER BOARD ASSY. 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box

KLJ-MC56Y-00 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC561-00 BOX,TOP TAPE 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC56Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC561-01 BOX,TOP TAPE 1 not for sale -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC50C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW, PAN HEAD 4

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-044-A (44mm)

Guide / Lever'

KHJ-MC60J-00 PIN,PARALLEL 3

KHJ-MC104-00 RAIL,UNDER 1

KLJ-MC60C-S0 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC60C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MC641-00 TAPE GUIDE ASSY. 1

KLJ-MC641-01 TAPE GUIDE ASSY. 44 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

99480-04040 PIN,PARALLEL 1

KLJ-MC645-00 LEVER,TAPE GUIDE F 1

KHJ-MC64E-00 SHAFT,LEVER 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KLJ-MC547-00 SPRING,TAPE GUIDE F 1

KHJ-MC64F-00 BASE,LEVER R 1

KLJ-MC54Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MC662-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC562-00 COVER, TOP TAPE BOX 1

90990-01J076 BOLT,HEX.S/H 6

91317-03040 BOLT,HEX.SOCKET HEAD 1

KLJ-MC663-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC663-00 COVER,TAIL 1

KLJ-MC675-00 PIN,TAIL COVER 1

KHJ-MC66V-00 P/O LEVER ASSY. 1

KHJ-MC66B-00 SHAFT,P/O LEVER 2 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 2

KLJ-MC281-01 HANDLE W 1

KHJ-MC68G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

91317-05030 BOLT,HEX.SOCKET HEAD 1

91317-04012 BOLT,HEX.SOCKET HEAD 1

99480-05014 PIN, PARALLEL 1

98902-03005 SCREW,BINDING HEAD 2

KLJ-MC5F4-00 PLATE,SUPPORT 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW, SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

98707-03006 SCREW,FLAT HEAD 4

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 3 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 3 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-01 COVER W,WIRE 2 1

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

92A08-03306 SCREW,SET 1

Spacer / Sprocket-R

KLJ-MC502-00 COVER,FEEDER 1

KLJ-MC60K-00 SPACER,44A 1

KLJ-MC60L-00 SPACER,44B 1

91312-03035 BOLT,HEX.SOCKET HEAD 6

91312-03025 BOLT,HEX.SOCKET HEAD 2

KHJ-MC60J-00 PIN,PARALLEL 13

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KLJ-MC5EE-00 SPROCKET ASSY. R 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KLJ-MC5E9-00 WAVE WASHER, D.G. 1

KLJ-MC66R-00 SPACER,44C 1

KLJ-MC66S-00 SPACER,44D 1

KHJ-MC669-00 ROLLER,P/O 2 1 press-fit to [15]

KHJ-MC65A-00 SUB-ROLLER,1 1 press-fit to [14]

KHJ-MC66A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 1

90990-09J008 SCREW,FLAT HEAD 3

KLJ-MC5A2-00 COVER,BOX EL 1

98902-03005 SCREW,BINDING HEAD 2

Gear / Sprocket-L

J-MC5ED-00 SPROCKET ASSY. L 1

KLJ-MC63G-00 SHAFT,GEAR DRIVEN 1

KLJ-MC63G-00 SHAFT,GEAR DRIVEN 1 screw depth increased : MRX0061 2018/12/24 OK

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KHJ-MC534-01 GEAR,IDLE F1 1

KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC53L-00 COVER,FEED GEAR 1

KLJ-MC53Y-00 COVER,FEED GEAR 2 1

90169-02JA04 SCREW BINDING HEAD 2

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC656-00 ROLLER,PEEL OFF 1 1 press-fit to [17]

KHJ-MC65A-00 SUB-ROLLER,1 1 press-fit to [16]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KLJ-MC55E-00 COVER,IDLE GEAR 3 1

KLJ-MC666-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

90990-09J008 SCREW,FLAT HEAD 1

90115-2AJ008 BOLT HEX.SOCKET HEAD 4

Electric

KHJ-MC510-01 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC5A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-21 ABS BOARD ASSY 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 -

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MN50027 2016/06/16 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC66Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC561-01 BOX,TOP TAPE 1 not for sale -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC60C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW,PAN HEAD 4

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-056-A (56mm)

Guide / Lever

KHJ-MC60J-00 PIN,PARALLEL 3

KHJ-MC104-00 RAIL,UNDER 1

KLJ-MC70C-S0 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC70C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MC741-00 TAPE GUIDE ASSY. 1

KLJ-MC741-01 TAPE GUIDE ASSY. 56 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

KHJ-MC64E-00 SHAFT,LEVER 1

KLJ-MC745-00 LEVER,TAPE GUIDE F 1

KHJ-MC74E-00 SHAFT,LEVER 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KLJ-MC547-00 SPRING,TAPE GUIDE F 1

KHJ-MC74F-00 BASE,LEVER R 1

KLJ-MC54Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MC762-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC562-00 COVER, TOP TAPE BOX 1

90990-01J077 BOLT,HEX.S/H 6

90990-01J078 BOLT,HEX.S/H 1

KLJ-MC763-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC763-00 COVER,TAIL 1

KLJ-MC775-00 PIN,TAIL COVER 1

KHJ-MC76V-00 P/O LEVER ASSY. 1

KHJ-MC76B-00 SHAFT,P/O LEVER 2 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW, FLAT HEAD 2

KLJ-MC281-01 HANDLE W 1

KHJ-MC78G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

91317-05040 BOLT,HEX.SOCKET HEAD 1

91317-04012 BOLT,HEX.SOCKET HEAD 1

99480-05014 PIN, PARALLEL 1

98902-03005 SCREW, BINDING HEAD 2

KLJ-MC5F4-00 PLATE,SUPPORT 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW, PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW, SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

98707-03006 SCREW,FLAT HEAD 4

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 3 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 3 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-01 COVER W,WIRE 2 1

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

92A08-03306 SCREW, SET 1

Spacer / Sprocket-R

KLJ-MC502-00 COVER,FEEDER 1

KLJ-MC70K-00 SPACER,56A 1

KLJ-MC70L-00 SPACER,56B 1

91312-03045 BOLT,HEX.SOCKET HEAD 6

91312-03035 BOLT,HEX.SOCKET HEAD 2

KHJ-MC60J-00 PIN,PARALLEL 13

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KLJ-MC5EE-00 SPROCKET ASSY. R 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KLJ-MC5E9-00 WAVE WASHER, D.G. 1

KLJ-MC76R-00 SPACER,56C 1

KLJ-MC76S-00 SPACER,56D 1

KHJ-MC769-00 ROLLER,P/O 2 2 press-fit to [15]

KHJ-MC75A-00 SUB-ROLLER 1 1 press-fit to [14]

KHJ-MC76A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 1

90990-09J008 SCREW,FLAT HEAD 3

KLJ-MC5A2-00 COVER,BOX EL 1

98902-03005 SCREW,BINDING HEAD 2

Gear / Sprocket-L

KLJ-MC5ED-00 SPROCKET ASSY. L 1

KLJ-MC73G-00 SHAFT,GEAR DRIVEN 1

KLJ-MC73G-00 SHAFT,GEAR DRIVEN 1 screw depth increased : MRX0061 2018/12/24 OK

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KHJ-MC534-01 GEAR,IDLE F1 1

KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC53L-00 COVER,FEED GEAR 1

KLJ-MC53Y-00 COVER,FEED GEAR 2 1

90169-02JA04 SCREW BINDING HEAD 2

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC756-00 ROLLER,PEEL OFF 1 1 press-fit to [17]

KHJ-MC75A-00 SUB-ROLLER 1 1 press-fit to [16,18]

KHJ-MC769-00 ROLLER,P/O 2 1 press-fit to [17]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KLJ-MC55E-00 COVER,IDLE GEAR 3 1

KLJ-MC766-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

90990-09J008 SCREW,FLAT HEAD 1

90115-2AJ008 BOLT HEX.SOCKET HEAD 4

Electric

KHJ-MC510-01 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC5A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-21 ABS BOARD ASSY 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 -

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MN50027 2016/06/16 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC76Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC561-01 BOX,TOP TAPE 1 not for sale 2015/11/11 -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC70C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW,PAN HEAD 4

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-072-A (72mm)

Guide / Lever

KHJ-MC60J-00 PIN,PARALLEL 3

KHJ-MC104-00 RAIL,UNDER 1

KLJ-MC80C-S0 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC80C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MC841-00 TAPE GUIDE ASSY. 1

KLJ-MC841-01 TAPE GUIDE ASSY. 72 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

KHJ-MC84A-00 SHAFT,LEVER 1

KLJ-MC845-00 LEVER,TAPE GUIDE F 1

KHJ-MC84E-00 SHAFT,LEVER 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KLJ-MC547-00 SPRING,TAPE GUIDE F 1

KHJ-MC84F-00 BASE,LEVER R 1

KLJ-MC54Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MC862-S0 PARTS,BOX COVER 1 <Note-1> MP90052 2017/09/28 -

KLJ-MC562-00 COVER, TOP TAPE BOX 1

91317-03060 BOLT,HEX.SOCKET HEAD 6

90990-01J046 BOLT,HEX.SOCKET HEAD 1

KLJ-MC863-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC863-00 COVER,TAIL 1

KLJ-MC875-00 PIN,TAIL COVER 1

KLJ-MC86V-00 P/O LEVER ASSY. 1

KHJ-MC86B-00 SHAFT,P/O LEVER 2 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 2

KLJ-MC281-01 HANDLE W 1

KLJ-MC88G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

91317-05055 BOLT,HEX.SOCKET HEAD 1

KLJ-MC88M-00 STAY,HANDLE 1

KLJ-MC88N-00 BAR,HANDLE 1

90990-01J059 BOLT,HEX.SOCKET HEAD 1

91317-05025 BOLT,HEX.SOCKET HEAD 1

91312-04010 BOLT,HEX.SOCKET HEAD 2

91317-04012 BOLT,HEX.SOCKET HEAD 1

99480-05014 PIN, PARALLEL 1

98902-03005 SCREW,BINDING HEAD 2

KLJ-MC5F4-00 PLATE,SUPPORT 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW, SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

KLJ-MC80X-00 SPACER,PLATE UNDER 1

98707-03006 SCREW,FLAT HEAD 4

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 3 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 3 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-01 COVER W,WIRE 2 1

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

92A08-03306 SCREW, SET 1

Spacer / Sprocket-R

KLJ-MC502-00 COVER,FEEDER 1

KLJ-MC80K-00 SPACER,72A 1

KLJ-MC80L-00 SPACER,72B 1

91312-03060 BOLT HEX.SOCKET HEAD 6

91312-03050 BOLT HEX.SOCKET HEAD 2

KHJ-MC60J-00 PIN,PARALLEL 13

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KLJ-MC5EE-00 SPROCKET ASSY. R 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KLJ-MC5E9-00 WAVE WASHER, D.G. 1

KLJ-MC86R-00 SPACER,72C 1

KLJ-MC86S-00 SPACER,72D 1

KHJ-MC769-00 ROLLER,P/O 2 2 press-fit to [15]

KHJ-MC85A-00 SUB-ROLLER,1 1 press-fit to [14]

KLJ-MC86A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 2

90990-09J008 SCREW,FLAT HEAD 3

KLJ-MC5A2-00 COVER,BOX EL 1

98902-03005 SCREW,BINDING HEAD 2

Gear / Sprocket-L

KLJ-MC5ED-00 SPROCKET ASSY. L 1

KLJ-MC83G-00 SHAFT,GEAR DRIVEN 1

KLJ-MC83G-00 SHAFT,GEAR DRIVEN 1 screw depth increased : MRX0061 2018/12/24 OK

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KHJ-MC534-01 GEAR,IDLE F1 1

KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC53L-00 COVER,FEED GEAR 1

KLJ-MC53Y-00 COVER,FEED GEAR 2 1

90169-02JA04 SCREW, BINDING HEAD 2

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC756-00 ROLLER,PEEL OFF 1 1 press-fit to [17]

KHJ-MC85A-00 SUB-ROLLER,1 1 press-fit to [16,18]

KHJ-MC769-00 ROLLER,P/O 2 1 press-fit to [17]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KLJ-MC55E-00 COVER,IDLE GEAR 3 1

KLJ-MC866-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

90990-09J008 SCREW,FLAT HEAD 1

90115-2AJ008 BOLT,HEX.SOCKET HEAD 4

Electric

KHJ-MC510-01 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC5A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-21 ABS BOARD ASSY 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 -

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MN50027 2016/06/16 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC86Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC561-01 BOX,TOP TAPE 1 not for sale 2015/11/11 -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC80C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW,PAN HEAD 4

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-088-A (88mm)

Guide / Lever

KHJ-MC60J-00 PIN,PARALLEL 3

KHJ-MC104-00 RAIL,UNDER 1

KLJ-MC90C-S0 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MC90C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MC941-00 TAPE GUIDE ASSY. 1

KLJ-MC941-01 TAPE GUIDE ASSY. 88 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

KHJ-MC94A-00 SHAFT,LEVER 1

KLJ-MC945-00 LEVER,TAPE GUIDE F 1

KHJ-MC94E-00 SHAFT,LEVER 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KLJ-MC547-00 SPRING,TAPE GUIDE F 1

KHJ-MC94F-00 BASE,LEVER R 2

KLJ-MC54Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MC962-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC562-00 COVER, TOP TAPE BOX 1

90990-01J080 BOLT,HEX.S/H 6

90990-01J082 BOLT,HEX.S/H 1

KLJ-MC963-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MC963-00 COVER,TAIL 1

KHJ-MC975-00 PIN,TAIL COVER 1

KLJ-MC96V-00 P/O LEVER ASSY. 1

KHJ-MC96B-00 SHAFT,P/O LEVER 2 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 2

KLJ-MC281-01 HANDLE W 1

KLJ-MC98G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

90990-01J086 BOLT,HEX.S/H 1

KLJ-MC88M-00 STAY,HANDLE 1

KLJ-MC98N-00 BAR,HANDLE 1

90990-01J059 BOLT,HEX.SOCKET HEAD 1

91317-05025 BOLT HEX.SOCKET HEAD 1

91312-04010 BOLT,HEX.SOCKET HEAD 2

91317-04012 BOLT HEX.SOCKET HEAD 1

99480-05014 PIN, PARALLEL 1

98902-03005 SCREW,BINDING HEAD 2

KLJ-MC5F4-00 PLATE,SUPPORT 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW,SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

KLJ-MC80X-00 SPACER,PLATE UNDER 1

98707-03006 SCREW,FLAT HEAD 4

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 3 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 3 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-01 COVER W,WIRE 2 1

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

92A08-03306 SCREW, SET 1

Spacer / Sprocket-R

KLJ-MC502-00 COVER,FEEDER 1

KLJ-MC90K-00 SPACER,88A 1

KLJ-MC90L-00 SPACER,88B 1

KHJ-MC9B2-00 BOLT,HEX.SOCKET HEAD 6

KHJ-MC9B1-00 BOLT,HEX.SOCKET HEAD 2

KHJ-MC60J-00 PIN,PARALLEL 13

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KLJ-MC5EE-00 SPROCKET ASSY. R 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KLJ-MC5E9-00 WAVE WASHER, D.G. 1

KLJ-MC96R-00 SPACER,88C 1

KLJ-MC96S-00 SPACER,88D 1

KHJ-MC769-00 ROLLER,P/O 2 2 press-fit to [15]

KHJ-MC95A-00 SUB-ROLLER 1 1 press-fit to [14]

KHJ-MC96A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 2

90990-09J008 SCREW,FLAT HEAD 3

KLJ-MC5A2-00 COVER,BOX EL 1

98902-03005 SCREW,BINDING HEAD 2

Gear / Sprocket-L

KLJ-MC5ED-00 SPROCKET ASSY. L 1

KLJ-MC93G-00 SHAFT,GEAR DRIVEN 1

KLJ-MC93G-00 SHAFT,GEAR DRIVEN 1 screw depth increased : MRX0061 2018/12/24 OK

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KHJ-MC534-01 GEAR,IDLE F1 1

KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC53L-00 COVER,FEED GEAR 1

KLJ-MC53Y-00 COVER,FEED GEAR 2 1

90169-02JA04 SCREW BINDING HEAD 2

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC756-00 ROLLER,PEEL OFF 1 1 press-fit to [17]

KHJ-MC95A-00 SUB-ROLLER 1 1 press-fit to [16,18]

KHJ-MC769-00 ROLLER,P/O 2 1 press-fit to [17]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KLJ-MC55E-00 COVER,IDLE GEAR 3 1

KLJ-MC966-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

90990-09J008 SCREW,FLAT HEAD 1

90115-2AJ008 BOLT HEX.SOCKET HEAD 4

Electric

KHJ-MC510-01 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC5A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-21 ABS BOARD ASSY 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 -

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MN50027 2016/06/16 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD W/W 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box KLJ-MC56Y-01 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC96Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC561-01 BOX,TOP TAPE 1 not for sale 2015/11/11 -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MC90C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW,PAN HEAD 4

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-104-A ( 104mm)

Guide / Lever

KHJ-MC60J-00 PIN,PARALLEL 3

KHJ-MC104-00 RAIL,UNDER 1

KLJ-MCA0C-S0 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MCA0C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MCA41-00 TAPE GUIDE ASSY. 1

KLJ-MCA41-01 TAPE GUIDE ASSY. 104 1 H025412 2018/07/12 OK

KHJ-MC244-00 LEVER,TAPE GUIDE R 1

KLJ-MCA4A-00 SHAFT,LEVER 1

KLJ-MCA45-00 LEVER,TAPE GUIDE F 1

KLJ-MCA4E-00 SHAFT,LEVER 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KLJ-MC547-00 SPRING,TAPE GUIDE F 1

KLJ-MCA4F-00 BASE,LEVER R 2

KLJ-MC54Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KLJ-MCA62-S0 PARTS,BOX COVER 1 <Note-1> MP90025 2017/09/28 -

KLJ-MC562-00 COVER, TOP TAPE BOX 1

90990-01J083 BOLT,HEX.S/H 6

90990-01J085 BOLT,HEX.S/H 1

KLJ-MCA63-S0 PARTS,TAIL COVER 1 <Note-1> MM60163 2015/07/10 -

KLJ-MCA63-00 COVER,TAIL 1

KLJ-MCA75-00 PIN,TAIL COVER 1

KLJ-MCA6V-00 P/O LEVER ASSY. 1

KLJ-MCA6B-00 SHAFT,P/O LEVER 2 1

KHJ-MC26E-00 SPRING,P/O LEVER 1

90990-09J008 SCREW,FLAT HEAD 2

KLJ-MC281-01 HANDLE W 1

KLJ-MCA8G-00 SHAFT,HANDLE SUPPORT 1

KHJ-MC53N-00 PIN,DOWEL 1

91317-05090 BOLT HEX.SOCKET HEAD 1

KLJ-MC88M-00 STAY,HANDLE 1

KLJ-MCA8N-00 BAR,HANDLE 1

90990-01J059 BOLT,HEX.SOCKET HEAD 1

91317-05025 BOLT HEX.SOCKET HEAD 1

91312-04010 BOLT,HEX.SOCKET HEAD 2

91317-04012 BOLT HEX.SOCKET HEAD 1

99480-05014 PIN, PARALLEL 1

98902-03005 SCREW,BINDING HEAD 2

KLJ-MC5F4-00 PLATE,SUPPORT 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW,SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

91317-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC206-00 PLATE,UNDER 1

KLJ-MC80X-00 SPACER,PLATE UNDER 1

98707-03006 SCREW,FLAT HEAD 4

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 3 T0.01 <Note-2>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 3 T0.05 <Note-2>

KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1

90990-09J008 SCREW,FLAT HEAD 11

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC289-00 PIN,CLAMP 1

90440-01J030 CIRCLIP 1

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC28C-01 COVER W,WIRE 2 1

KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

92A08-03306 SCREW, SET 1

Spacer / Sprocket-R

KLJ-MC502-00 COVER,FEEDER 1

KLJ-MCA0K-00 SPACER,104A 1

KLJ-MCA0L-00 SPACER,104B 1

90990-01J084 BOLT,HEX.S/H 6

90990-01J081 BOLT,HEX.S/H 2

KHJ-MC60J-00 PIN,PARALLEL 13

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KLJ-MC5EE-00 SPROCKET ASSY. R 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KLJ-MC5E9-00 WAVE WASHER, D.G. 1

KLJ-MCA6R-00 SPACER,104C 1

KLJ-MCA6S-00 SPACER,104D 1

KHJ-MC769-00 ROLLER,P/O 2 2 press-fit to [15]

KLJ-MCA5A-00 SUB-ROLLER 1 1 press-fit to [14]

KLJ-MCA6A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 2

90990-09J008 SCREW,FLAT HEAD 3

KLJ-MC5A2-00 COVER,BOX EL 1

98902-03005 SCREW,BINDING HEAD 2

Gear / Sprocket-L

KLJ-MC5ED-00 SPROCKET ASSY. L 1

KLJ-MCA3G-00 SHAFT,GEAR DRIVEN 1

KLJ-MCA3G-00 SHAFT,GEAR DRIVEN 1 screw depth increased : MRX0061 2018/12/24 OK

KLJ-MC2EH-00 BEARING 6-10 1

KLJ-MC53U-00 COLLAR,DRIVEN GEAR 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC13E-00 SCREW,SLIM HEAD 1 length extended : MRX0061 2018/12/24 OK

KHJ-MC534-01 GEAR,IDLE F1 1

KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1

KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1

KLJ-MC53L-00 COVER,FEED GEAR 1

KLJ-MC53Y-00 COVER,FEED GEAR 2 1

90169-02JA04 SCREW BINDING HEAD 2

KHJ-MC251-00 GEAR,IDLE P1 1

KHJ-MC252-00 GEAR,IDLE P2 1

KHJ-MC253-00 GEAR,IDLE P3 1

KHJ-MC254-00 GEAR,IDLE P4 1

KHJ-MC756-00 ROLLER,PEEL OFF 1 1 press-fit to [17]

KLJ-MCA5A-00 SUB-ROLLER 1 1 press-fit to [16,18]

KHJ-MC769-00 ROLLER,P/O 2 1 press-fit to [17]

KHJ-MC258-01 COVER,IDLE GEAR 1 1

KLJ-MC55E-00 COVER,IDLE GEAR 3 1

KLJ-MCA66-00 BLOCK,P/O TOOTH 1 1

KHJ-MC46T-00 BOLT HEX.S/H LOW 2

90990-09J008 SCREW,FLAT HEAD 1

90115-2AJ008 BOLT HEX.SOCKET HEAD 4

Electric

KHJ-MC510-01 MOTOR,FEED 1

KHJ-MC210-11 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC5A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>

KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-21 ABS BOARD ASSY 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MM60052 2015/11/27 -

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-3> MN50027 2016/06/16 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-3> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1

_ *deleted 1 ML30105 2014/07/28 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 ML30105 2014/07/28 -

KLJ-MCA6Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> ML30105 2014/07/28 OK

KLJ-MC56Y-01 TOP TAPE BOX COMP. 1 ML30105 2014/07/28 OK

KLJ-MC561-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC561-01 BOX,TOP TAPE 1 not for sale 2015/11/11 -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MCA0C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> ML30105 2014/07/28 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW,PAN HEAD 4

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –

ZSY-004-A (4mm)

Guide / Lever

90990-01J042 BOLT,HEX.S/H 1

KHJ-MC104-00 RAIL,UNDER 1

KHJ-MC10F-00 SCREW,FLAT HEAD 2

KLJ-MCN0C-00 SEAL,MAIN LABEL 1 <Note-1>

KLJ-MCN0C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added : MP50061 2017/06/12 OK

KLJ-MCNEM-00 BLOCK 1

KLJ-MCNEN-00 GUIDE,SPROCKET 1

KHJ-MC1C3-00 SCREW 4

KLJ-MCN41-00 TAPE GUIDE,4MM 1

KLJ-MCN41-00 TAPE GUIDE,4MM 1 shape change : MLY0007 2016/01/07 OK

KHJ-MC144-00 LEVER,TAPE GUIDE R 1

KLJ-MC145-00 LEVER,TAPE GUIDE F 1

KHJ-MC146-02 SPRING,TAPE GUIDE R 1

KHJ-MC147-02 SPRING,TAPE GUIDE F 1

KLJ-MC14Y-00 PLATE,STOPPER 1

KLJ-MC1H1-00 COLLOR,STOPPER R 1

91312-03006 BOLT,HEX.SOCKET HEAD 2

KHJ-MC15A-00 SHAFT 112 2

KLJ-MC162-00 COVER,TOP TAPE BOX 1

KLJ-MC162-00 COVER,TOP TAPE BOX 1 notch added : MLY0072 2015/01/07 OK

KLJ-MCB63-S0 PARTS,TAIL COVER 1 <Note-1> MN20014 2016/02/29 -

KLJ-MC163-00 COVER,TAIL 1

KLJ-MCN6V-00 P/O LEVER ASSY. 1

KHJ-MC16B-00 SHAFT,P/O LEVER 2 1

KHJ-MC16E-00 SPRING,P/O LEVER 1

KLJ-MC1F2-00 WAVE WASHER T.C. 1

KLJ-MCNF6-00 SLOPE,TOP TAPE 1

91312-03004 BOLT,HEX.SOCKET HEAD 1

KLJ-MCNF7-00 COVER,SLOPE 1

90990-09J008 SCREW,FLAT HEAD 12

KLJ-MC181-01 HANDLE 1

91317-03016 BOLT,HEX.SOCKET HEAD 1

KHJ-MC185-00 PIN,HANDLE 1

KHJ-MC1A9-00 CONNECTOR,BOARD 1

90166-02JA06 SCREW,PAN HEAD 2

KLJ-MC1AM-00 SHIELD,CONNECTOR 1

92A08-03306 SCREW, SET 1 M3*L6

92A08-03303 SCREW, SET 3 M3*L3

Clamp / Block

KLJ-MC10W-00 FRONT BLOCK ASSY. 1

90990-01J042 BOLT,HEX.S/H 2

KHJ-MC105-00 PIN,TAIL 1

91312-03008 BOLT,HEX.SOCKET HEAD 2

KHJ-MC106-00 PLATE,UNDER 1

KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>

KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>

KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>

KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>

KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>

KHJ-MC109-00 SHIM,PLATE UNDER 1 1 T0.01 <Note-1>

KHJ-MC10A-00 SHIM,PLATE UNDER 2 1 T0.05 <Note-1>

KHJ-MC139-00 SHAFT,IDLE GEAR 1 1

KLJ-MC1F3-00 BRKT.,REEL HOLDER 1

90990-09J008 SCREW,FLAT HEAD 7

KHJ-MC183-00 SPACER,TENSION 1 1

KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

KLJ-MC186-00 WIRE,UNCLAMP 1

KHJ-MC187-00 SPRING,TENSION 1

KLJ-MC18H-00 CLAMP LEVER ASSY. 1

KHJ-MC189-01 PIN,CLAMP 1

KHJ-MC18J-00 SCREW,FLAT HEAD 1

KHJ-MC18A-00 SPRING,CLAMP 1

KLJ-MC18B-00 COVER,WIRE 1 1

KLJ-MC18C-00 COVER,WIRE 2 1

KLJ-MCN8K-00 LEVER,UNCLAMP ASSY. 1 painted urethane color - White

KLJ-MCN8K-00 LEVER,UNCLAMP ASSY. 1 <Note-2> H025542 2018/09/19 OK

KLJ-MC18L-00 PIN,LEVER UNCLAMP 1

90990-14J001 CIRCLIP 2

98707-03006 SCREW,FLAT HEAD 2

92A08-03306 SCREW,SET 1

Gear / Sprocket

KLJ-MC102-00 COVER,FEEDER SIDE 1 1

KLJ-MCN31-00 SPROCKET ASSY. 1

KHJ-MC13E-01 SCREW,SLIM HEAD 1

KLJ-MC1E1-00 GEAR,IDLE F1 ASSY. 1

KLU-MC1E1-00 GEAR,IDLE F1 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC1E2-00 GEAR,IDLE F2 ASSY. 1

KLU-MC1E2-00 GEAR,IDLE F2 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1

KLU-MC1E3-00 GEAR,IDLE F3 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1

KLU-MC1E4-00 GEAR,IDLE F4 ASSY. 1 <Note-1> H025542 2018/09/19 OK

KLJ-MC138-01 GEAR,DRIVEN 1

KHJ-MC13A-00 SHIM,SPROCKET 1

KLJ-MC1E6-00 BEARING 1

KLJ-MC1E7-00 COVER,BEARING 1

KLJ-MC1E8-00 FRANGE,WASHER 1

KLJ-MC1E9-00 WAVE WASHER D.G. 1

KLJ-MC13P-00 SPACER,F3 1

KHJ-MC151-02 GEAR,IDLE P1 1

KLJ-MC152-00 GEAR,IDLE P2 1

KLJ-MC153-00 GEAR,IDLE P3 1

KHJ-MC154-00 GEAR,IDLE P4 1

KHJ-MC155-00 GEAR,IDLE P5 1

KLJ-MCN56-00 ROLLER,P/O 1 1

KHJ-MC158-00 COVER,IDLE GEAR 1 1

KHJ-MC159-00 COVER,IDLE GEAR 2 1

KLJ-MCNF8-A0 BLOCK TOOTH 1 ASSY. 1

90112-2AJ005 BOLT HEX.SOCKET HEAD 2

KLJ-MCN69-00 ROLLER,P/O 2 1

KHJ-MC16A-00 SHAFT,P/O LEVER 1 1

90440-01J030 CIRCLIP 1

90990-09J008 SCREW,FLAT HEAD 17

KLJ-MC1AN-00 COVER,BOX EL ASSY. 1

KLJ-MC1A2-00 COVER,BOX EL 1

KLJ-MC1AP-00 TAPE,EL COVER 1

90115-02J003 BOLT HEX.SOCKET HEAD 3

Electric

KLJ-MC110-00 MOTOR,FEED 1

KLJ-MC110-00 MOTOR,FEED 1 <Note-2> H025542 2018/09/19 OK

KLJ-MC120-00 MOTOR,PEEL 1

90990-08J021 SCREW,STAD 4

90166-02JA03 SCREW,PAN HEAD 2

KLJ-MC167-00 COVER,MENBRANE 1

KLJ-MC1A3-00 COVER,CABLE 1

KLJ-MC1A4-00 COVER,ABS 1

KLJ-MC1A5-00 DUMMY SPLICE SENS. 1

90990-08J020 SCREW, PAN HEAD 2

KHJ-MC1AC-00 INSULATION SHEET 1

KLJ-MC1AL-00 SW,LIMIT 1

KLJ-MC1AJ-00 NUT,PLATE 1

KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1

KHJ-M4664-01 ABS BOARD ASSY 1

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-1> MM60052 2015/11/27 -

KLJ-M4488-A0 PARTS,FEEDER BOARD 1 <Note-1> MN50027 2016/06/16 OK

KLJ-MC1CE-00 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 -

90166-12JA06 SCREW,PAN HEAD 3

90115-02J003 BOLT HEX.SOCKET HEAD 2

Box

KLJ-MC16Y-00 TOP TAPE BOX COMP. 1

_ *deleted 1 MN20014 2016/02/29 -

KLJ-MC161-A0 TOP TAPE BOX ASSY. 1

_ *deleted 1 MN20014 2016/02/29 -

KHJ-MC165-00 MAGNET,TAIL 1

_ *deleted 1 MN20014 2016/02/29 -

KLJ-MCB6Y-S0 PARTS,TOP TAPE BOX 1 <Note-1> MN20014 2016/02/29 OK

KLJ-MC16Y-00 TOP TAPE BOX COMP. 1 MN20014 2016/02/29 OK

KLJ-MC161-A0 TOP TAPE BOX ASSY. 1 not for sale : MM80133 2015/11/11 -

KLJ-MC161-00 BOX,TOP TAPE 1 not for sale -

KLJ-MC164-00 CAP,TOP TAPE BOX 1 <Note-2> MM80133 2015/11/11 OK

KHJ-MC165-00 MAGNET,TAIL 1 assembled at factory -

KLJ-MCN0C-S0 SEAL,MAIN LABEL 1 <Note-1> [QR code] added 2017/06/12 OK

KLJ-MC1AA-00 SWITCH,OPERATION 1 <Note-3> MN20014 2015/02/29 OK

KLJ-MC1A1-00 BOX,EL 1

98502-03006 SCREW,PAN HEAD 4

98502-03006 SCREW,PAN HEAD 3 [Q'ty] reduced : MS50060 2019/06/05 -

KHJ-MC11T-00 BOLT,LOCK S/H 1 Pre-coated : MS50060 2019/06/05 OK

98707-03006 SCREW,FLAT HEAD 1

KLJ-M86B0-00 ADHESIVE 1 <OP> AronAlpha Extra2000 2g 2015/12/09 –
