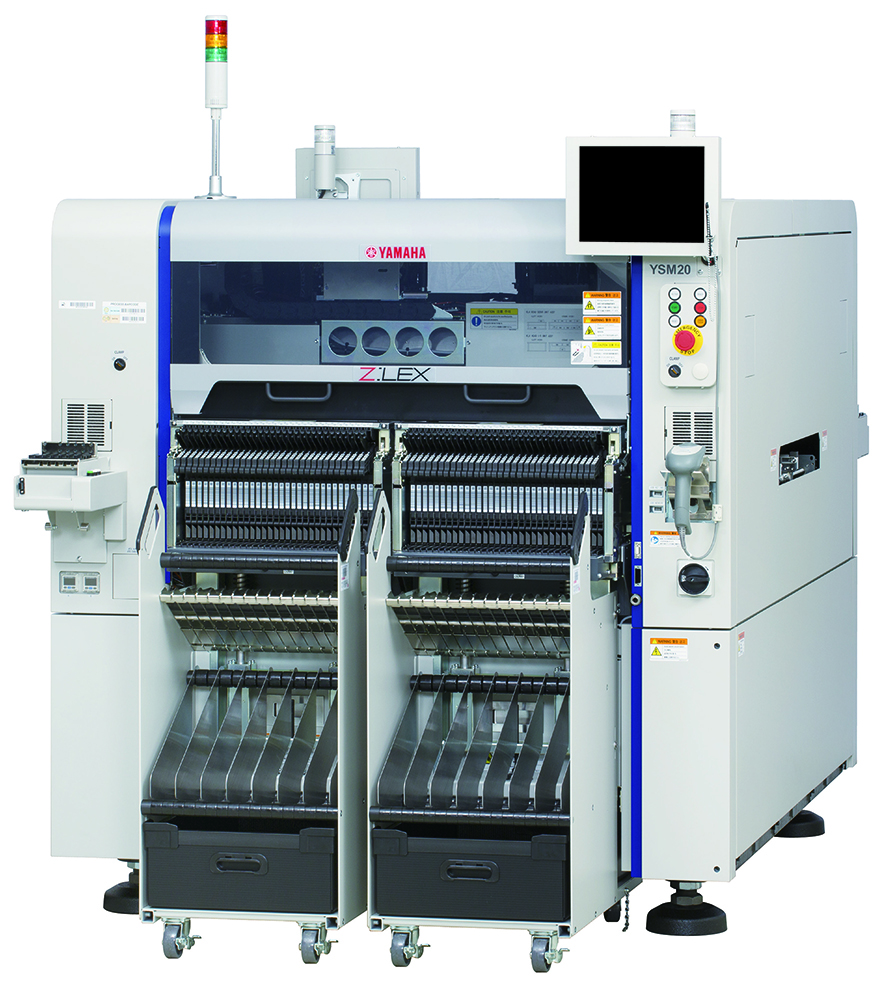

Yamaha YSM20 pick and placement machine part

YAMAHA YSM20 hight-efficiency modular part list

Base

$NK-3N NYLON CLIP 2

 90990-11J003 SCREW, PAN HEAD W/W 13

 90K41-001450 LABEL,CAUTION 1

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 14

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 22

 91312-06012 BOLT HEX,SOCKET HEAD 4

 KKE-M111M-00 PLATE,CLAMP 1

 KLW-M111L-00 BRKT.,POWER SUPPLY 1 1

 KLW-M1125-00 PLATE,25 1

 KLW-M1126-00 PLATE,26 1

 KLW-M1128-00 PLATE,CONV. 1

 KLW-M112A-00 BASE,BOARD 1

 KLW-M112B-00 COVER,BOARD 1

 KLW-M112C-00 PLATE,BAT. 1

 KLW-M112D-00 HOLDER,BOARD 2

 KLW-M112E-00 PLATE,BASE 1

 KLW-M1133-00 STAY, TRANSFORMER 1

 KLW-M1134-00 BRKT.,TRANS. 1 1

 KLW-M1136-00 PLATE,SIDE INNER 1 2

 KLW-M1137-00 PLATE,SIDE INNER 2 1

 KLW-M1138-00 BRKT.,FAN INSIDE 4

 KLW-M1139-00 BRKT.,SIDE PLATE 3

 KLW-M113D-00 PLATE,BASE 5 2

 KLW-M113F-00 BRKT.,CONNECTOR 2

 KLW-M113M-00 PLATE,FAN 2

 KLW-M113N-00 BRKT,DUCT 4

 KLW-M1336-00 BRKT.,REAR LEFT 1

 KLW-M1337-00 BRKT.,REAR RIGHT 1

 KLW-M1338-00 BRKT.,MAIN SWITCH 1

 KLW-M1339-00 BRKT.,FL 1 YSM20-2

 KLW-M1339-10 BRKT.,FL 1 YSM20-1

 KLW-M133A-00 BRKT.,GATE IN OUT 2

 97602-05310 SCREW PAN HEAD W/WASHER 50

 98702-03006 SCREW,FLAT HEAD 4

Sub-Assy

$FVU8-8 JOINT 1

 $KM-11 MUFFLER 1

 $KM-31 MUFFLER 2

 $SL12-03 JOINT 2

 $SL8-01 JOINT 1

 $SLY10-03 JOINT 2

 $TL4-02 JOINT 2

 $UC4 JOINT 2

 $UC6 JOINT 2

 $UEDW10-8 JOINT 1

 $UP10 JOINT 1

 $UP8 JOINT 2

 $UY10 JOINT 2

 $UY12 JOINT 1

 $UY4 JOINT 2

 $UY6 JOINT 2

 $UY8 JOINT 1

 $UYD10-8 JOINT 1

 $UYD8-6 JOINT 6

 91312-03020 BOLT HEX,SOCKET HEAD 2

 91312-04014 BOLT HEX,SOCKET HEAD 2

 91312-04025 BOLT HEX,SOCKET HEAD 2

 91312-05008 BOLT HEX,SOCKET HEAD 2

 91312-05012 BOLT HEX,SOCKET HEAD 2

 91312-06010 BOLT HEX,SOCKET HEAD 2

 KHY-M8504-01 REGULATOR 2

 KMC-M8504-00 REGULATOR 2 NG MMY0195-2016/1/6

 $UB1065-BK URETHANE TUBE 2 L=250mm

 KLW-M1111-00 PLATE,REG. 1

 KMC-M1111-00 PLATE,REG. 1 NG MMY0195-2016/1/6

 KLW-M1124-00 PLATE,FILTER 1

 KLW-M1127-00 PLATE,EXT.VALVE 1

 KLW-M113P-00 CAP 2

 KLW-M1180-00 LEVELING BOLT ASSY. 6

 KLW-M8501-00 VALVE,EXHAUST 1

 KLW-M8502-00 FILTER ASSY. 1

 KLW-M8502-01 FILTER ASSY. 1 OK MN20144-2016/3/3

KLW-M8582-A0 VALVE ASSY. 1

 92902-06200 WASHER,PLAIN 2

 97602-05310 SCREW PAN HEAD W/WASHER 4

 KLF-M8502-50 FILTER ELEMENT 1

 KLF-M8502-70 MIST FILTER ELEMENT 1

KLW-M8502-61 CASE,AIR FILTER 1 Nylon

Top cover 1

 90990-01J011 BOLT HEX,SOCKET HEAD 2

 90990-01J038 BOLT HEX,SOCKET HEAD 4

 90990-12J001 SCREW, BIN. HEAD W/W 18

 90990-12J006 SCREW, BIN. HEAD W/W 1

 90990-41J048 COLLAR 1

 90K41-001290 LABEL,WARNING 1

 91312-03006 BOLT HEX,SOCKET HEAD 2

 91312-03010 BOLT HEX,SOCKET HEAD 1

 92012-03010 BOLT,BUTTON HEAD 1 OK MN70156-2016/8/9

 91312-04006 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 1

 91312-04012 BOLT HEX,SOCKET HEAD 1

 91312-08035 BOLT HEX,SOCKET HEAD 1

 KH1-M13A9-00 BUSH 1

 KHY-M5126-00 SAFETY SWITCH 1 DS/SL

 KLF-M1318-00 COVER 18 1

 KLF-M13B3-00 SCREW,PLASTIC HEAD 1

 KLF-M6680-30 HNS,ADAPTER USB 2

 KLH-M5126-00 SAFETY DOOR LOCK SW 1 DL

 KLW-M1301-01 COVER 1 1

 KLW-M130B-00 COVER,SW. 1

 KLW-M130C-01 BRKT.,KEYBOARD 1

 KLW-M130D-01 DOOR,COVER 1 1

 KLW-M130G-01 BRKT.,USB 1

 KLW-M131C-00 BRKT.1,CONNECTOR 1

 KLW-M131E-00 PLATE,CONNECTOR 1

 KLW-M1341-00 RAIL R,COVER9 1

 KLW-M135A-00 PLATE,STOPPER 1

 KLW-M135D-00 STAY,MAGNET 1

 KLW-M135F-00 STOPPER 1

 KLW-M135G-01 BRKT.,STOPPER 1

 KLW-M135G-02 BRKT.,STOPPER 1 NG MN10037-2016/1/21

 KLW-M135H-00 BRKT.2,STOPPER 1

 delete MM40202-2015/5/19

 KLW-M137C-00 COVER,PANEL C 1 Fig 1

 KLW-M137C-01 COVER,PANEL C 1 2-3.2x10 NG MM40202-2015/5/19

 KLW-M137C-02 COVER,PANEL C 1 2-4.5x10.5 NG MN10037-2016/1/21

 KLW-M137E-00 COVER,PANEL E 1

 KLW-M1381-00 MOUNT,MONITOR 1

 KLW-M1382-00 BRKT.,MOUNT 1

 KLW-M1383-00 STAY,LCD UNIT 1

 KLW-M1384-00 BRACKET,LCD 1

 KLW-M1385-00 STAY,PAT LIGHT 1

 KLW-M1386-00 BRKT.,PAT LIGHT 1

 KLW-M13D6-00 SEAL 1(YSM20) 1

 KLW-M13NA-00 FILTER,FAN 2 1

 KLW-M13NC-01 COVER 1-2 1

 KLW-M13ND-00 COVER,FAN 2 1

 KLW-M26F9-01 BRKT.1,COVER 1 1

 KLW-M3T0H-00 COUPLER,SOCKET 1

 KLW-M6185-90 FAN MOTOR ASSY 1

 KV5-M1130-00 CATCH MG. 1

 KX0-M418J-00 CUSHION 1

 92902-03200 WASHER,PLAIN 2

 92902-04200 WASHER,PLAIN 3

 92902-08200 WASHER,PLAIN 2

 95602-08100 NUT, U 1

 97602-03106 SCREW PAN HEAD W/WASHER 2

 98902-03006 SCREW BINDING HEAD 2

 90172-00J040 WASHER, EXTL, TOOTHED 2 MN10037-2016/1/21

 91312-04006 BOLT HEX,SOCKET HEAD 2 MN10037-2016/1/21

Top cover 2

90990-01J011 BOLT HEX,SOCKET HEAD 2

 90990-12J001 SCREW, BIN. HEAD W/W 30

 90990-12J006 SCREW, BIN. HEAD W/W 2

 90990-23J006 GROMMET 1

 90990-41J048 COLLAR 1

 91312-03010 BOLT HEX,SOCKET HEAD 1

 92012-03010 BOLT BUTTON HEAD 1 OK MN70156-2016/8/9

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 1

 KGB-M5184-00 SEAL,CLAMP ON/OFF 1

 KGJ-M1350-00 SPACER,MINI LATCH 1

 KGJ-M1351-01 PLATE,MINI LATCH 1

 KKE-M26CE-01 FAN MOTOR 1

 KLW-M3992-00 SWITCH,SELECT 1

 KLW-M1302-00 COVER 2 1

 KLW-M130E-00 DOOR,COVER 2 1

 KLW-M130F-00 BRKT.,CONNECTOR 1

 KLW-M131D-00 BRKT.2,CONNECTOR 1

 KLW-M133B-00 SEAL,BLIND 1

 KLW-M1342-00 RAIL L,COVER9 1

KLW-M135A-00 PLATE,STOPPER 1

 KLW-M135C-00 BRACKET,4 1

 KLW-M135D-00 STAY,MAGNET 1

 KLW-M135E-00 PLATE,RAIL 1

 KLW-M135F-00 STOPPER 1

 KLW-M135G-01 BRKT.,STOPPER 1

 KLW-M135G-020 BRKT.,STOPPER 1 NG MN10037-2016/1/21

 KLW-M1372-00 COVER 72 1

 KLW-M137B-00 COVER,PANEL B 1 Fig 1

 KLW-M137B-01 COVER,PANEL B 1 NG MM40202-2015/5/19

 KLW-M137B-020 COVER,PANEL B 1 NG MN10037-2016/1/21

 KLW-M137D-00 COVER,PANEL D 1

 KLW-M13A7-00 COVER A7 2

 KLW-M13N7-00 BRKT.1,COVER 72 1

 KLW-M13NA-00 FILTER,FAN 2 1

 KLW-M13ND-00 COVER,FAN 2 1

 KLW-M3T0H-00 COUPLER,SOCKET 2

 KV5-M1130-00 CATCH MG. 1

 KW3-M1349-00 MINI LATCH 1

 KHY-M5126-00 SAFETY SWITCH 1

 KX0-M418J-00 CUSHION 1

 90990-01J038 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 2

 92902-04200 WASHER,PLAIN 6

 97602-03106 SCREW PAN HEAD W/WASHER 2

 92902-03200 WASHER,PLAIN 2

 91312-03006 BOLT HEX,SOCKET HEAD 2

 KLW-M135H-00 BRKT.2,STOPPER 1

 90990-12J006 SCREW, BIN. HEAD W/W 1 MLX0017-2014/11/11

 90172-00J040 WASHER, EXTL, TOOTHED 2 MN10037-2016/1/21

 91312-04006 BOLT HEX,SOCKET HEAD 2 MN10037-2016/1/21

 92902-04200 WASHER,PLAIN 2 MN10037-2016/1/21

Top cover 3

90990-01J011 BOLT HEX,SOCKET HEAD 2

 90990-01J038 BOLT HEX,SOCKET HEAD 4

 90990-12J001 SCREW, BIN. HEAD W/W 30

 90990-23J006 GROMMET 1

 90990-12J006 SCREW, BIN. HEAD W/W 3

 90K41-001250 LABEL,WARNING 2

 90990-41J048 COLLAR 1

 91312-03006 BOLT HEX,SOCKET HEAD 2

 91312-03010 BOLT HEX,SOCKET HEAD 1

 92012-03010 BOLT BUTTON HEAD 1 OK MN70156-2016/8/9

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 4

 KGB-M5184-00 SEAL,CLAMP ON/OFF 1

 KGJ-M1350-00 SPACER,MINI LATCH 1

 KGJ-M1351-01 PLATE,MINI LATCH 1

 KHY-M5126-00 SAFETY SWITCH 1

 KKE-M26CE-01 FAN MOTOR 1

 KLW-M1302-00 COVER 2 1

 KLW-M130E-00 DOOR,COVER 2 1

 KLW-M130F-00 BRKT.,CONNECTOR 1

 KLW-M131D-00 BRKT.2,CONNECTOR 1

 KLW-M1342-00 RAIL L,COVER9 1

 KLW-M135A-00 PLATE,STOPPER 1

 KLW-M135C-00 BRACKET,4 1

 KLW-M135D-00 STAY,MAGNET 1

 KLW-M135E-00 PLATE,RAIL 1

 KLW-M135F-00 STOPPER 1

 KLW-M135G-01 BRKT.,STOPPER 1

 KLW-M135G-02 BRKT.,STOPPER 1 NG MN10037-2016/1/21

 KLW-M135H-00 BRKT.2,STOPPER 1

 1 delete MM40202-2015/5/19

 KLW-M1372-00 COVER 72 1

 KLW-M137B-00 COVER,PANEL B 1 Fig 1

 KLW-M137B-01 COVER,PANEL B 1 NG MM40202-2015/5/19

 KLW-M137B-02 COVER,PANEL B 1 NG MN10037-2016/1/21

 KLW-M137D-00 COVER,PANEL D 1

 KLW-M13A7-00 COVER A7 2

 KLW-M13N7-00 BRKT.1,COVER 72 1

 KLW-M13NA-00 FILTER,FAN 2 1

 KLW-M13ND-00 COVER,FAN 2 1

 KLW-M3992-00 SWITCH,SELECT 1

 KLW-M3T0H-00 COUPLER,SOCKET 2

 KV5-M1130-00 CATCH MG. 1

 KW3-M1349-00 MINI LATCH 1

 KX0-M418J-00 CUSHION 1

 91312-04010 BOLT HEX,SOCKET HEAD 1

 91312-04012 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 2

 92902-03200 WASHER,PLAIN 2

 92902-04200 WASHER,PLAIN 5

 97602-03106 SCREW PAN HEAD W/WASHER 2

 90172-00J040 WASHER, EXTL, TOOTHED 2 MN10037-2016/1/21

 91312-04006 BOLT HEX,SOCKET HEAD 2 MN10037-2016/1/21

92902-04200 WASHER,PLAIN 2 MN10037-2016/1/21

Top cover 4

90172-00J030 WASHER, EXTL, TOOTHED 10

 90990-01J011 BOLT HEX,SOCKET HEAD 2

 90990-12J001 SCREW, BIN. HEAD W/W 23

 90990-12J006 SCREW, BIN. HEAD W/W 2

 90990-41J048 COLLAR 1

 91312-03010 BOLT HEX,SOCKET HEAD 1

 92012-03010 BOLT BUTTON HEAD 1 OK MN70156-2016/8/9

 91312-04006 BOLT HEX,SOCKET HEAD 10

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 5

 91312-04012 BOLT HEX,SOCKET HEAD 1

 91312-05006 BOLT HEX,SOCKET HEAD 4

 KH1-M13A9-00 BUSH 1

 KKE-M26CE-01 FAN MOTOR 1

 KLF-M1318-00 COVER 18 1

 KLF-M13B3-00 SCREW,PLASTIC HEAD 1

 KLW-M1304-01 COVER 5

 KLW-M1306-00 COVER 6-1 1

 KLW-M1307-00 COVER 6-2 1

 KLW-M1308-00 COVER 6-3 2

 KLW-M130B-00 COVER,SW. 1

 KLW-M130C-01 BRKT.,KEYBOARD 1

 KLW-M130D-01 DOOR,COVER 1 1

 KLW-M130H-00 PLATE,LIGHT 1

 KLW-M131C-00 BRKT.1,CONNECTOR 1

 KLW-M131E-00 PLATE,CONNECTOR 1

 KLW-M1329-00 COVER 29 2

 KLW-M1341-00 RAIL R,COVER9 1

 KLW-M135A-00 PLATE,STOPPER 1

 KLW-M135B-00 BRACKET,3 1

 KLW-M135D-00 STAY,MAGNET 1

 KLW-M135E-00 PLATE,RAIL 1

 KLW-M135F-00 STOPPER 1

 KLW-M135G-01 BRKT.,STOPPER 1

 KLW-M135G-02 BRKT.,STOPPER 1 NG MN10037-2016/1/21

 KLW-M135K-00 STAY,DAMPER 2

 KLW-M137C-00 COVER,PANEL C 1 Fig 1

 KLW-M137C-01 COVER,PANEL C 1 NG MM40202-2015/5/19

 KLW-M137C-02 COVER,PANEL C 1 NG MN10037-2016/1/21

 KLW-M137E-00 COVER,PANEL E 1

 KLW-M1383-00 STAY,LCD UNIT 1

 KLW-M13NA-00 FILTER,FAN 2 1

KLW-M13ND-00 COVER,FAN 2 1

 KLW-M26F9-01 BRKT.1,COVER 1 1

 KLW-M3T0H-00 COUPLER,SOCKET 1

 KV5-M1130-00 CATCH MG. 1

 KX0-M418J-00 CUSHION 1

 90990-01J038 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 5

 92902-05200 WASHER,PLAIN 3

 97602-03106 SCREW PAN HEAD W/WASHER 2

 98902-03006 SCREW BINDING HEAD 10

 KHY-M5126-00 SAFETY SWITCH 1 DS/SL

 KLH-M5126-00 SAFETY DOOR LOCK SW 1 DL

 KLW-M135H-00 BRKT.2,STOPPER 1

 91312-03006 BOLT HEX,SOCKET HEAD 2

 92902-03200 WASHER,PLAIN 2

 90172-00J040 WASHER, EXTL, TOOTHED 2 MN10037-2016/1/21

Acril Door 1

90172-00J040 WASHER, EXTL, TOOTHED 23

 90990-41J179 COLLAR 4

 90990-46J001 BOLT, THIN HEAD 12

 90990-46J015 BOLT, THIN HEAD 4

 90K41-001250 LABEL,WARNING 1

 90K41-001420 LABEL,WARNING 1

 91312-03005 BOLT HEX,SOCKET HEAD 8

 91312-05006 BOLT HEX,SOCKET HEAD 16

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 28

 92012-05008 BOLT BUTTON HEAD 16

 95702-04500 NUT FLANGE 10

 KKG-M13D8-00 STICKER (1-64) 1 KKG-M13D8-10 (101-164)

 KKX-M13D7-00 SEAL 2(YAMAHA) 1

 KLF-M1392-00 LABEL,WARNING 1

 KLV-M1347-00 PULL 2

 KLW-M1345-00 FRAME3,COVER9 2

 KLW-M1346-00 FRAME4,COVER9 2

 KLW-M1347-00 FRAME5,COVER9 2

 KLW-M1348-00 ROLLER 2

 KLW-M134A-00 BLOCK,FRAME 6

 KLW-M134B-00 PLATE,FRAME 4

 KLW-M134F-00 BRKT.1,ROLLER 1

 KLW-M134G-00 BRKT.2,ROLLER 1

 KLW-M134J-00 BRKT.1,FRAME 6

 KLW-M134K-00 NUT,FRAME M4 12

 KLW-M134L-00 NUT,FRAME M5 64

 KLW-M134M-00 PLATE,WINDOW 1

 KLW-M134P-00 COVER 9-2 1

 KLW-M134R-00 COVER 9-3 1

 KLW-M134R-01 COVER 9-3 1 With projection NG MM50062-2015/8/18

 KLW-M134S-00 COVER 9-4 1

 KLW-M134T-00 COVER 9-5(SS) 1 SSF/FIX

 KLW-M134T-10 COVER 9-5(ZS) 1 ZSF

 KLW-M134U-00 COVER 9-6 2

 KLW-M134V-00 COVER 9-7 1

 KLW-M134V-01 COVER 9-7 1 With notch NG MM50062-2015/8/18

 KLW-M1359-00 BRKT.3,DAMPER 2

 KLW-M135M-00 PLATE,1 1

 KLW-M135P-00 HINGE,SPRING 4

 KLW-M135R-00 PLATE,NUT 4

 KLW-M135S-00 TAPE 1

 KLW-M13D8-00 LABEL (Z:LEX) 1

 97602-04306 SCREW PAN HEAD W/WASHER 2

 98702-03006 SCREW,FLAT HEAD 8

 98702-03008 SCREW,FLAT HEAD 1

 95702-04500 NUT FLANGE 1 MM50062-2015/8/18

 KLW-M13D9-00 STICKER (1-70) 1 KLW-M13D9-10 (101-170)

Acril Door 2

90990-06J002 BOLT,BUTTON HEAD 4

 90990-12J003 SCREW, BIN. HEAD W/W 18

 90990-31J006 BOLT, SHOULDER 4

 90990-46J015 BOLT, THIN HEAD 3

 91312-05006 BOLT HEX,SOCKET HEAD 16

 91312-05008 BOLT HEX,SOCKET HEAD 8

 91312-05010 BOLT HEX,SOCKET HEAD 16

 92012-05008 BOLT BUTTON HEAD 24

 K46-M1374-12 HINGE 2 3

 KGS-M1348-00 GAS,SPRING 2

 KKG-M13D8-10 STICKER 1

 KLF-M3749-00 WASHER 4

 KLF-M374G-00 BOLT,SHOULDER 4

 KLF-M374J-00 GAS DAMPER 2

 KLW-M1343-00 FRAME1,COVER9 2

 KLW-M1344-00 FRAME2,COVER9 2

 KLW-M134A-00 BLOCK,FRAME 4

 KLW-M134B-00 PLATE,FRAME 4

 KLW-M134H-00 HINGE 4

 KLW-M134L-00 NUT,FRAME M5 60

 KLW-M134N-00 COVER 9-1 1

 KLW-M1352-00 PLATE,HINGE 3

 KLW-M1353-00 BRKT.,KEY R 1

 KLW-M1354-00 BRKT.,KEY L 1

 KLW-M1355-00 BRKT.2,FRAME 3

 KLW-M1357-00 BRKT.1,DAMPER 2

 KLW-M1358-00 BRKT.2,DAMPER 2

 KLW-M135R-00 PLATE,NUT 4

KLW-M1309-A0 COVER9 ASSY. 2

Base cover

90990-12J001 SCREW, BIN. HEAD W/W 56

91312-04006 BOLT HEX,SOCKET HEAD 6

 91317-05010 BOLT HEX,SOCKET HEAD 7

 97602-05310 SCREW PAN HEAD W/WASHER 36

 98902-03006 SCREW BINDING HEAD 2

 90K41-001270 LABEL,WARNING 7

 KGA-M11A0-A0 PLATE,SERIAL 1

 KGA-M11A0-B0 BLIND RIVET 4

 KGA-M4187-00 FAN GUARD 119MM 2

 KGS-M6417-00 SEAL,PERIOD 1

 KGS-M6427-00 SEAL.PRODUCTION 1

 KHU-M1117-00 PULL 4

 KHY-M6417-00 SEAL,CE 1

 KKE-M6175-10 FAN MOTOR 2

 KLS-M13B5-00 MAGNET CATCH 1

 KLW-M1310-01 COVER 10 2

 KLW-M1311-00 COVER 11 1

 KLW-M1312-00 COVER 12 2

 KLW-M1313-01 COVER 13 1

 KLW-M1314-00 COVER 14 2

 KLW-M131A-00 BRKT.,COVER 12 2

 KLW-M131B-00 BRKT.,COVER 14 2

 KLW-M132A-00 COVER 10-1 1

 KLW-M132B-00 COVER 13-1 1

 KLW-M132C-00 COVER 15-1 1

 KLW-M132D-00 COVER 11-1 1

 KLW-M1373-01 COVER 73 2

 KLW-M1373-02 COVER 73 4 NG MM50054-2015/5/21

 KLW-M137A-00 COVER,PANEL A 4

 KLW-M13N2-01 BRKT.,REAR FAN 1 1

 KLW-M13N3-00 BRKT.,REAR FAN 2 1

 KLW-M13N8-00 BRKT.1,COVER 51 4

 KLW-M13N9-00 BRKT.2,COVER 51 4

 KLW-M13NB-00 FILTER,REAR FAN 1

 KLW-M13NE-00 BRKT.1,COVER 11 2

 KLW-M13NF-00 BRKT.2,COVER 11 2

 KLW-M13NG-00 BRKT.1,COVER 10 2

 KLW-M13NH-00 BRKT.2,COVER 10 2

 KLW-M13NJ-00 COVER 15-2 1

KLW-M13NM-00 BRKT.,FILTER 1 1

 KLW-M13NN-00 BRKT.,FILTER 2 1

 KLW-M4187-00 GUIDE,FAN 1

 KLW-M6175-00 FAN 150 1

 91312-05010 BOLT HEX,SOCKET HEAD 2 MM50054-2015/5/21

 97602-04306 SCREW PAN HEAD W/WASHER 16 MM50054-2015/5/21

 98902-03008 SCREW BINDING HEAD 8 MM50054-2015/5/21

 K44-M1354-00 MG. CATCH 4 MM50054-2015/5/21

 KLW-M137F-00 PLATE,CENTER 2 MM50054-2015/5/21

 KLW-M137G-00 BAR,CENTER 2 MM50054-2015/5/21

 KLW-M137H-00 BRACKET,CENTER 4 MM50054-2015/5/21

UPS side cover / CE cover

K44-M1354-00 MG. CATCH 2

 KLW-M1361-00 COVER,HARNESS 1

 KLW-M1362-00 BRKT.1,UPS 1

 KLW-M1363-00 BRKT.2,UPS 1

 KLW-M1364-00 BRKT.3,UPS 1

 KLW-M1365-00 BRKT.4,UPS 1

 KLW-M1373-02 COVER 73 1

 KLW-M1375-01 COVER 73-2 1

 KLW-M137F-00 PLATE,CENTER 1

 KLW-M137G-00 BAR,CENTER 1

 KLW-M137H-00 BRACKET,CENTER 2

 KLW-M13N5-00 BRKT.1,COVER 73-2 1

 KLW-M13N8-00 BRKT.1,COVER 51 1

 KLW-M13N9-00 BRKT.2,COVER 51 1

 KLW-M13NP-00 BRKT.2,COVER 73-2 1

 KV7-M1515-00 PLATE, RUBBER 1

 90172-00J040 WASHER, EXTL, TOOTHED 3

 90990-12J001 SCREW, BIN. HEAD W/W 11

 90990-12J004 SCREW, BIN. HEAD W/W 6

 91312-04006 BOLT HEX,SOCKET HEAD 3

 91312-05010 BOLT HEX,SOCKET HEAD 1

 91317-05010 BOLT HEX,SOCKET HEAD 2

 92902-04200 WASHER,PLAIN 3

 97602-04306 SCREW PAN HEAD W/WASHER 8

 97602-05310 SCREW PAN HEAD W/WASHER 4

 98902-03008 SCREW BINDING HEAD 4

 90172-00J050 WASHER, EXTL, TOOTHED 4

 90990-12J001 SCREW, BIN. HEAD W/W 6

 91312-05008 BOLT HEX,SOCKET HEAD 4

 KLW-M13F1-00 COVER,CE F1 1

 KLW-M13F2-00 COVER,CE F2 1

 KLW-M13F4-00 COVER,CE F4 1

 KLW-M13F4-01 COVER,CE F4 1 NG MN60025-2016/6/14

 KLW-M13F5-00 COVER,CE F5 1

 KLW-M13F5-01 COVER,CE F5 1 NG MN60025-2016/6/14

 KLW-M26F8-01 BRKT.2,COVER 2 1

 KLW-M26F9-01 BRKT.1,COVER 1 1

FES32 Bank ( Indicator / Base ) NEW 2016/April

 KHY-M349J-40 LABEL,INDICATOR 1

 KHY-M371R-00 RAIL GUIDE 12P 2

 KHY-M379L-00 LABEL,LED 1

 KHY-M37E1-00 LIGHT GUIDE 4

 KKG-M371A-01 PLATE,FRONT 1

 KKG-M371B-00 SHAFT GUIDE 1

 KKG-M371R-00 RAIL GUIDE 12P 1

 KKG-M373L-00 LABEL,FEEDER 32-12P 2

 KLW-M3701-02 BASE,FES 1

 KLW-M3702-00 BUSH 2

 KLW-M3703-00 PLATE,IND 1 1

 KLW-M3704-01 BRKT.,BOARD 1

 KLW-M370F-02 BLOCK,CONNECTOR 2

 KLW-M370G-00 COVER,CONNECTOR 4

 KLW-M370L-00 PLATE,CONNECTOR L 1

 KLW-M370M-00 PLATE,CONNECTOR R 1

 KLW-M3712-02 COVER,TAPE GUIDE 1

 KLW-M3714-01 PIN,MARK 2

 KLW-M3723-01 PLATE,ARM R 1

 KLW-M3724-01 PLATE,ARM L 1

 KLW-M3741-00 LABEL,LED POSI. 1

 KLW-M37AA-00 FES32 BASE ASSY. 1

 KLW-M37AB-00 INDICATOR ASSY. 1

 KLW-M4476-02 FDR.CTRL.BOARD ASSY 1

 KLW-M66R4-00 HNS,FES.CUNET 1

 KLW-M66R5-00 HNS,FES PWR 1

 90112-2AJ006 BOLT, HEX.SOCKET HEAD 4

 90990-01J039 BOLT HEX,SOCKET HEAD 2

 90990-12J001 SCREW, BIN. HEAD W/W 6

 91312-03010 BOLT HEX,SOCKET HEAD 4

 91312-03018 BOLT HEX,SOCKET HEAD 7

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 2

 91312-06012 BOLT HEX,SOCKET HEAD 6

 92B12-05012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 8

 98702-03006 SCREW,FLAT HEAD 32

 98902-03006 SCREW BINDING HEAD 12

 99480-04010 PIN,PARALLEL 1

 99480-06012 PIN,PARALLEL

FES32 Bank ( Indicator / Base ) OLD

90112-2AJ006 BOLT, HEX.SOCKET HEAD 4

 90990-01J039 BOLT HEX,SOCKET HEAD 2

 90990-12J001 SCREW, BIN. HEAD W/W 6

 91312-03010 BOLT HEX,SOCKET HEAD 4

 91312-03018 BOLT HEX,SOCKET HEAD 7

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 2

 91312-05020 BOLT HEX,SOCKET HEAD 4

 91312-06012 BOLT HEX,SOCKET HEAD 6

 98702-03006 SCREW,FLAT HEAD 28

 98902-03006 SCREW BINDING HEAD 12

 99480-04008 PIN,PARALLEL 4

 KHY-M349J-40 LABEL,INDICATOR 1

 KHY-M371R-00 RAIL GUIDE 12P 2

 KHY-M379L-00 LABEL,LED 1

 KHY-M37E1-00 LIGHT GUIDE 4

 KKG-M371A-01 PLATE,FRONT 1

 KKG-M371B-00 SHAFT GUIDE 1

 KKG-M371R-00 RAIL GUIDE 12P 1

 KKG-M373L-00 LABEL,FEEDER 32-12P 2

 KLW-M3701-01 BASE,FES 1

 KLW-M3702-00 BUSH 2

 KLW-M3703-00 PLATE,IND 1 1

 KLW-M3704-00 BRKT.,BOARD 1

 KLW-M370F-02 BLOCK,CONNECTOR 2

 KLW-M370G-00 COVER,CONNECTOR 4

 KLW-M3711-00 BLOCK,COVER 2

 KLW-M3712-01 COVER,TAPE GUIDE 1

 KLW-M3713-00 HOLDER,PIN 2

 KLW-M3714-00 PIN,MARK 2

 KLW-M3741-00 LABEL,LED POSI. 1

 KLW-M37AA-00 FES32 BASE ASSY. 1

 KLW-M37AB-00 INDICATOR ASSY. 1

 KLW-M37AF-00 BANK COVER ASSY. 1

 99480-04010 PIN,PARALLEL 1

 99480-06012 PIN,PARALLEL 1

 KLW-M66R4-00 HNS,FES.CUNET 1

 KLW-M66R5-00 HNS,FES PWR 1

KLW-M4476-01 FDR.CTRL.BOARD ASSY 1

FES32 Bank (Connector / Cover ) NEW 2016/April

90990-01J065 BOLT HEX,SOCKET HEAD 4

 90990-12J001 SCREW, BIN. HEAD W/W 18

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03020 BOLT HEX,SOCKET HEAD 8

 91312-04006 BOLT HEX,SOCKET HEAD 5

 95302-08700 NUT HEXAGON 4

 98902-03004 SCREW BINDING HEAD 22

 99480-03008 PIN,PARALLEL 2

 KHJ-M668A-00 HNS,RS232C 1 Not included in 28

 KHY-M372M-00 SCREW,STAD 64

 KHY-M372P-00 SUPPORT,LEVER 32

 KHY-M372R-00 GUIDE,FEEDER UNDER 2

 KHY-M372S-01 SPRING,SUPPORT 32

 KHY-M66TE-00 HNS,F.CTRL - FDR. 32 Not included in 26

 KKG-M372B-00 PLATE,CONNECTOR 1

 KKG-M372R-00 GUIDE,FEEDER UNDER 1

 KKG-M373L-00 LABEL,FEEDER 32-12P 1

 KKU-M1138-00 CAM FOLLOWER 4

 KLW-M3705-00 COVER,FR. 1

 KLW-M3707-01 BRKT.,FAN 1

 KLW-M3708-01 COVER,FOLLWER L 1

 KLW-M3709-01 COVER,FOLLWER R 1

 KLW-M370C-01 COVER,BOTTOM 1

 KLW-M370D-00 COVER,BOTTOM 2 1

 KLW-M370H-00 BRKT.,CONNECTOR 1

 KLW-M37AC-00 CONNECTOR ASSY. 1

 KLW-M37AD-00 FR.COVER ASSY. 1

 KLW-M37AE-00 BOTTOM COVER ASSY. 1

 KLW-M6178-00 FAN MOTOR ASSY 2 Not included in 28

 KV8-M3758-00 SEAL DUMP 1

FES32 Bank (Connector / Cover ) OLD

90990-01J065 BOLT HEX,SOCKET HEAD 4

 90990-12J001 SCREW, BIN. HEAD W/W 18

 90990-41J167 COLLAR 4

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03020 BOLT HEX,SOCKET HEAD 8

 91312-04006 BOLT HEX,SOCKET HEAD 5

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04018 BOLT HEX,SOCKET HEAD 4

 92902-06200 WASHER,PLAIN 4

 92902-08200 WASHER,PLAIN 4

 95302-08700 NUT HEXAGON 2

 98902-03004 SCREW BINDING HEAD 22

 99480-03008 PIN,PARALLEL 2

 KHY-M372M-00 SCREW,STAD 64

 KHY-M372P-00 SUPPORT,LEVER 32

 KHY-M372R-00 GUIDE,FEEDER UNDER 2

 KHY-M372S-01 SPRING,SUPPORT 32

 KLW-M6178-00 FAN MOTOR ASSY 2 Not included in 40

 KHY-M66TE-00 HNS,F.CTRL - FDR. 32 Not included in 38

 KKG-M372B-00 PLATE,CONNECTOR 1

 KKG-M372R-00 GUIDE,FEEDER UNDER 1

 KKG-M373L-00 LABEL,FEEDER 32-12P 1

 KKU-M1138-00 CAM FOLLOWER 2

 KLW-M3705-00 COVER,FR. 1

 KLW-M3706-00 BRKT.,COVER 2

 KLW-M3707-01 BRKT.,FAN 1

 KLW-M3708-01 COVER,FOLLWER L 1

 KLW-M3709-01 COVER,FOLLWER R 1

 KLW-M370A-00 ROLLER FOLLWER 2

 KLW-M370B-00 REAMER BOLT 2

 KLW-M370C-01 COVER,BOTTOM 1

 KLW-M370D-00 COVER,BOTTOM 2 1

 KLW-M370H-00 BRKT.,CONNECTOR 1

 KLW-M370J-00 GUIDE,L 1

 KLW-M370K-00 GUIDE,R 1

 KV8-M3758-00 SEAL DUMP 1

 KHJ-M668A-00 HNS,RS232C 1 Not included in 40

 KLW-M37AC-00 CONNECTOR ASSY. 1

 KLW-M37AD-00 FR.COVER ASSY. 1

 KLW-M37AE-00 BOTTOM COVER ASSY. 1

FES32 Bank ( ZSF Type )

90990-01J065 BOLT HEX,SOCKET HEAD 4

 90990-12J001 SCREW, BIN. HEAD W/W 18

 90990-23J031 GROMMET 1

 90990-41J167 COLLAR 4

 91312-03020 BOLT HEX,SOCKET HEAD 8

 91312-04005 BOLT HEX,SOCKET HEAD 3 ZSF Type

 91312-04006 BOLT HEX,SOCKET HEAD 5

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04018 BOLT HEX,SOCKET HEAD 4

 91312-05008 BOLT HEX,SOCKET HEAD 5 ZSF Type

 92902-06200 WASHER,PLAIN 4

 _ 1 Delete MM80089-2015/9/1

 92902-08200 WASHER,PLAIN 4

 _ _ 1 Delete MM80089-2015/9/1

 95302-08700 NUT HEXAGON 2

 95302-08700 NUT HEXAGON 4 MM80089-2015/9/1

 KHJ-M668A-00 HNS,RS232C 1 Not included in Assy

 KHY-M349J-40 LABEL,INDICATOR 1 ZSF Type

 KHY-M372P-00 SUPPORT,LEVER 32

 KHY-M372R-00 GUIDE,FEEDER UNDER 2

 KHY-M372S-01 SPRING,SUPPORT 32

 KLW-M6178-00 FAN MOTOR ASSY 2 Not included in Assy

 KKG-M372R-00 GUIDE,FEEDER UNDER 1

 KKG-M373L-00 LABEL,FEEDER 32-12P 1 ZSF Type

 KKU-M1138-00 CAM FOLLOWER 2

 KKU-M1138-000 CAM FOLLOWER 4 MM80089-2015/9/1

 KLF-M375X-00 GUIDE,FEEDER UNDER 1 ZSF Type

 KLW-M3705-11 COVER,FR. 1 ZSF Type

 KLW-M3706-00 BRKT.,COVER 2

 _ _ 1 Delete MM80089-2015/9/1

 KLW-M3707-01 BRKT.,FAN 1

 KLW-M3708-01 COVER,FOLLWER L 1

 KLW-M3709-01 COVER,FOLLWER R 1

 KLW-M370A-00 ROLLER FOLLWER 3

 _ _ 1 Delete MM80089-2015/9/1

 KLW-M370B-00 REAMER BOLT 3

 _ _ 1 Delete MM80089-2015/9/1

 KLW-M370C-01 COVER,BOTTOM 1

 KLW-M370D-10 COVER,BOTTOM 2 1 ZSF Type

 KLW-M370E-00 COVER,BOTTOM 3 1 ZSF Type

 KLW-M370H-00 BRKT.,CONNECTOR 1

 KLW-M370J-00 GUIDE,L 1

 _ _ 1 Delete MM80089-2015/9/1

 KLW-M370K-00 GUIDE,R 1

 _ _ 1 Delete MM80089-2015/9/1

 KV8-M3758-00 SEAL DUMP 1

 KLF-M375X-50 GUIDE,FEEDER UNDER 2 ZSF Type

 98902-03004 SCREW BINDING HEAD 70

 KLW-M37AD-10 FR.COVER ASSY. 1

KLW-M37AE-10 BOTTOM COVER ASSY. 1

FES32 Carriage (Base / Cover) NEW

90172-00J040 WASHER, EXTL, TOOTHED 1

 90990-28J186 WASHER,PLAIN 8

 90990-41J178 COLLAR 4

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 1

 91312-06012 BOLT HEX,SOCKET HEAD 20

 92902-04200 WASHER,PLAIN 2

 92B12-06012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 18

 92902-04600 WASHER,PLAIN 4

 KHW-M1385-00 SPACER 30

 KHY-M373C-10 CHAIN 1

 90990-01J153 BOLT,HEX.SOCKET HEAD 10 OK MM40182-2015/4/27

 KHY-M374C-00 CASTER 2

 KHY-M3R15-00 ROLLER 67

 KLW-M372T-00 SHAFT,ROLLER 6 2mm gains width NG MM20071-2015/2/26

 KHY-M3R23-00 COLLAR,PARTITION 14

 KHY-M3S15-00 ROLLER 2 2

 KHY-M3R14-11 WASHER 2 2mm gains width MM20071-2015/2/26

 KLW-M3720-11 SIDE COVER ASSY. 1

 KLW-M372A-10 COVER,SIDE R 1

 KLW-M372B-10 COVER,SIDE L 1

 KLW-M372C-01 BRKT.,ADJUST BOLT 1 2mm gains width NG MM20071-2015/2/26

 KLW-M372D-01 FRAME,BASE 1 2mm gains width NG MM20071-2015/2/26

 KLW-M372E-01 COVER,UNDER 1 2mm gains width NG MM20071-2015/2/26

 KLW-M372F-00 PLATE,HANDLE 2

 KLF-M3R10-01 REEL HOLDER 16 2mm gains width NG MM20071-2015/2/26

 KM0-M3741-00 CASTER 63 2

 KV8-M3734-10 BOLT 1

 KV8-M3735-01 BRACKET 1

 92902-06200 WASHER,PLAIN 16

 98907-04006 SCREW BINDING HEAD 4

 91312-06016 BOLT HEX,SOCKET HEAD 16 SMEMA Type MM60090-2015/7/3

 91312-06030 BOLT HEX,SOCKET HEAD 32 SMEMA Type MM60090-2015/7/3

 KHY-M374C-00 CASTER 2 The same as 13

 KLW-M3722-00 BASE SUB ASSY. 1

 KLW-M375A-00 SMEMA BLOCK 1,FES 4 SMEMA Type MM60090-2015/7/3

 KLW-M375B-00 SMEMA BLOCK 2,FES 4 SMEMA Type MM60090-2015/7/3

 KLW-M375C-00 CHAIN 1 SMEMA Type MM60090-2015/7/3

 KM0-M3741-00 CASTER 63 2 The same as 27

 92902-06200 WASHER,PLAIN 16 SMEMA Type MM60090-2015/7/3

FES32 Carriage (Base / Cover) OLD

90172-00J040 WASHER, EXTL, TOOTHED 1

 90990-28J186 WASHER,PLAIN 8

 90990-41J178 COLLAR 4

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 1

 91312-06012 BOLT HEX,SOCKET HEAD 20

 92902-04200 WASHER,PLAIN 2

 92B12-06012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 18

 92902-04600 WASHER,PLAIN 4

 KHW-M1385-00 SPACER 27

 KHY-M373C-10 CHAIN 1

 KHY-M373D-00 BOLT,HEX.SOCKET HEAD 10

 KHY-M374C-00 CASTER 2

 KHY-M3R15-00 ROLLER 67

 KHY-M3R16-00 PARTITION 8

 KHY-M3R23-00 COLLAR,PARTITION 14

 KHY-M3S15-00 ROLLER 2 2

 KKG-M3R09-00 SHAFT,ROLLER 6

 KLF-M3R13-00 COLLAR 3

 KLW-M372A-10 COVER,SIDE R 1

 KLW-M372B-10 COVER,SIDE L 1

 KLW-M372C-00 BRKT.,ADJUST BOLT 1

 KLW-M372D-00 FRAME,BASE 1

 KLW-M372E-00 COVER,UNDER 1

 KLW-M372F-00 PLATE,HANDLE 2

 KLW-M3R10-00 REEL HOLDER 16

 KM0-M3741-00 CASTER 63 2

 KV8-M3734-10 BOLT 1

 KV8-M3735-01 BRACKET 1

 92902-06200 WASHER,PLAIN 16

 98907-04006 SCREW BINDING HEAD 4

 KLW-M3720-10 SIDE COVER ASSY. 1

 KLW-M3722-00 BASE SUB ASSY. 1

 91312-06016 BOLT HEX,SOCKET HEAD 16 SMEMA Type MM60090-2015/7/3

 91312-06030 BOLT HEX,SOCKET HEAD 32 SMEMA Type MM60090-2015/7/3

 92902-06200 WASHER,PLAIN 16 SMEMA Type MM60090-2015/7/3

 KLW-M375C-00 CHAIN 1 SMEMA Type MM60090-2015/7/3

 KHY-M374C-00 CASTER 2 The same as 13

 KLW-M375A-00 SMEMA BLOCK 1,FES 4 SMEMA Type MM60090-2015/7/3

 KLW-M375B-00 SMEMA BLOCK 2,FES 4 SMEMA Type MM60090-2015/7/3

 KM0-M3741-00 CASTER 63 2 The same as 27

FES32 Carriage (Main Frame)

90990-28J142 WASHER,PLAIN 2 ZSF Type

 90990-41J123 COLLAR 4

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05016 BOLT HEX,SOCKET HEAD 18

 91312-05020 BOLT HEX,SOCKET HEAD 4

 KLW-M3723-00 PLATE,ARM R 1

 KLW-M3723-01 PLATE,ARM R 1 NG MM80089-2015/9/1

KLW-M3724-00 PLATE,ARM L 1

 KLW-M3724-01 PLATE,ARM L 1 NG MM80089-2015/9/1

KLW-M3725-00 BRKT.,FIX 1 SSF Type

 KLW-M3725-01 BRKT.,FIX 1 Add each hole OK MN10055-2016/2/10

 KLW-M372G-00 BASE,ARM 1

 KLW-M372G-01 BASE,ARM 1 NG H024197-2017/4/6

 KLW-M372H-00 SHAFT 2

 KLW-M372H-01 SHAFT 2 NG H024197-2017/4/6

 KLW-M372J-00 COLLAR,LOWER 2

 KLW-M372K-00 COLLAR,UPPER 2

 KLW-M372L-01 SPRING 2

 KLW-M372M-01 FRAME,MAIN 1

 KLW-M372M-02 FRAME,MAIN 1 Width 2 mm UP NG MM20071-2015/2/26

KLW-M372N-00 GUIDE,SHAFT 4

 KLW-M372P-01 BLOCK,GUIDE 1 2

 KLW-M372R-00 BLOCK,GUIDE 2

 KLW-M372S-00 BRKT.,GUIDE 2

 91312-06010 BOLT HEX,SOCKET HEAD 4 SSF Type

 91312-06012 BOLT HEX,SOCKET HEAD 2

 91312-06020 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 4

 92B12-05012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 8 MM80089-2015/9/1

 90990-28J003 WASHER,PLAIN 1 H024197-2017/4/6

 90990-28J202 WASHER,PLAIN 1 H024197-2017/4/6

 90990-41J198 COLLAR 1 H024197-2017/4/6

 91312-06014 BOLT HEX,SOCKET HEAD 1 H024197-2017/4/6

 91312-08012 BOLT HEX,SOCKET HEAD 2 H024197-2017/4/6

 KLW-M372R-01 GUIDE,SHAFT 1 H024197-2017/4/6

KLW-M372U-00 COVER,FES FRAME 1 H022479-2016/2/10

FES32 Carriage (Cover)

90172-00J050 WASHER, EXTL, TOOTHED 2

 90990-01J074 BOLT HEX,SOCKET HEAD 2

 91317-04018 BOLT HEX,SOCKET HEAD 8 l=18mm

 91317-04016 BOLT HEX,SOCKET HEAD 8 l=16mm NG MM30118-2015/3/31

 91317-04014 BOLT HEX,SOCKET HEAD 8 l=14mm NG MM50239-2015/6/2

92B12-05012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 2

 98707-03006 SCREW,FLAT HEAD 8

 KLW-M373S-00 PLATE,WEIGHT 6 t=4.5mm

 KLW-M373S-01 PLATE,WEIGHT 4 t=6mm NG MM30118-2015/3/31

 KLW-M373T-01 COVER,SS R 1

 KLW-M373T-02 COVER,SS R 1 NG MN90083-2016/9/30

KLW-M373U-01 COVER,SS L 1

 KLW-M373U-02 COVER,SS L 1 NG MN90083-2016/9/30

 KLW-M373V-01 BRKT.,SS COVER R 1 M4 spacer Fig 1

 KLW-M373V-02 BRKT.,SS COVER R 1 M4 direct Fig 2 NG MM50239-2015/6/2

 KLW-M373V-03 BRKT.,SS COVER R 1 NG MN90083-2016/9/30

 KLW-M373W-01 BRKT.,SS COVER L 1 M4 spacer Fig 1

 KLW-M373W-02 BRKT.,SS COVER L 1 M4 direct Fig 2 NG MM50239-2015/6/2

 KLW-M373W-03 BRKT.,SS COVER L 1 NG MN90083-2016/9/30

 KLW-M37A2-00 FES32 COVER ASSY. 1

 90990-01J164 BOLT HEX,SOCKET HEAD 2

90990-41J205 COLLAR 2

FES32 Clamp Unit

90990-01J065 BOLT HEX,SOCKET HEAD 4

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-04005 BOLT HEX,SOCKET HEAD 6

 91312-04006 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05006 BOLT HEX,SOCKET HEAD 4

 91312-05012 BOLT HEX,SOCKET HEAD 4

 91312-06025 BOLT HEX,SOCKET HEAD 2

 91312-08020 BOLT HEX,SOCKET HEAD 4

 KLW-M3J0C-00 BLOCK,STOPPER L 1

 KLW-M3J0D-00 BLOCK,STOPPER R 1

 KLW-M3J0F-00 STOPPER 2

 KLW-M3J11-00 PLATE,GUIDE L 1

 KLW-M3J12-00 PLATE,GUIDE R 1

 KLW-M3J13-00 GUIDE,FES 2

 KLW-M3J14-00 COVER,CLAMP 1

 KLW-M3J1B-01 COVER,UPPER 1

 KLW-M3J1C-00 COVER,CONNECTOR L 1

KLW-M3J1D-00 COVER,CONNECTOR R 1

 KLW-M3J1G-00 COVER,CLAMP L 1 B,D

 KLW-M3J1H-00 COVER,CLAMP R 1 A,C

 KLW-M3J1J-00 COVER,CLAMP FRONT 2

 KLW-M3JA0-00 C/U MAIN ASSY. 1

 KLW-M653T-00 SEN.F1 CART FWD ASSY 1 A

 KLW-M653T-10 SEN.F2 CART FWD ASSY 1 B

 KLW-M653T-20 SEN.R1 CART FWD ASSY 1 C

 KLW-M653T-30 SEN.R2 CART FWD ASSY 1 D

 92012-04006 BOLT, BOTTON HEAD 12

 98902-03010 SCREW BINDING HEAD 4

 99480-06012 PIN,PARALLEL 2

 KLW-M3JA1-00 FES GUIDE ASSY. 1

 KLW-M3JA2-00 C/U COVER ASSY. 1

Feeder Floating Det

$NK-2N NYLON CLIP 2

 90112-02J006 BOLT HEX,SOCKET HEAD 3

 90990-11J003 SCREW, PAN HEAD W/W 2

 90K41-001320 LABEL,CAUTION 1

 90K41-001620 LABEL,CAUTION 3

 91312-03006 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 10

 91312-05014 BOLT HEX,SOCKET HEAD 4

 92012-04006 BOLT, BOTTON HEAD 1

 92902-03200 WASHER,PLAIN 3

 KLW-M653V-00 SENSOR,FDR.FLT.ASSY 2

 KLW-M653V-10 SENSOR,FDR.FLT.ASSY 1

 KGS-M3906-00 BRACKET 6 3

 KHY-M3901-00 BRACKET SENSOR 2 4

 KHY-M3910-00 BRACKET SENSOR 1 3

 KHY-M3951-00 PLATE SENSOR 3

 KHY-M3952-00 PLATE SENSOR 1

 KHY-M3953-00 BRACKET SENSOR 3 1

 KLW-M3902-00 BRKT.,SENSOR L 1

 KLW-M3904-00 BRKT.,SENSOR R 1

 KLW-M3905-00 PLATE,NUT 2

 KLW-M3907-00 BLOCK,SENSOR 1

 KLW-M3908-00 STAY,SENSOR 1

 KLW-M3909-00 COVER,SENSOR 1

 91312-03010 BOLT HEX,SOCKET HEAD 3

 92902-04200 WASHER,PLAIN 5

 92902-05200 WASHER,PLAIN 4

Fix70 Bank

$NK-3N NYLON CLIP 8

 90990-11J003 SCREW, PAN HEAD W/W 8

 91312-03004 BOLT HEX,SOCKET HEAD 6

 91312-03006 BOLT HEX,SOCKET HEAD 5

 91312-03016 BOLT HEX,SOCKET HEAD 8

 91312-03018 BOLT HEX,SOCKET HEAD 34

 91312-04008 BOLT HEX,SOCKET HEAD 9

 91312-06012 BOLT HEX,SOCKET HEAD 19

 91312-06014 BOLT HEX,SOCKET HEAD 2

 91312-06022 BOLT HEX,SOCKET HEAD 6

 92902-03200 WASHER,PLAIN 5

 KHY-M371A-02 PLATE,FRONT 3

 KHY-M371R-00 RAIL GUIDE 12P 5

 KHY-M372M-00 SCREW,STAD 140

 KHY-M379K-01 LABEL,LED POSI. 2

 KHY-M379L-00 LABEL,LED 2

 KHY-M37E1-00 LIGHT GUIDE 6

 KHY-M6177-00 FAN MOTOR 4

 KHY-M66TE-00 HNS,F.CTRL - FDR. 70

 KLF-M375H-00 RAIL,GUIDE 12P 1

 KLW-M3401-01 BASE,FDR.70 1

 KLW-M3402-00 COVER,BOARD 1

 KLW-M3403-00 COVER,BOTTOM 1

 KLW-M340F-00 BRACKET,BOARD 2

 KLW-M340H-00 PLATE,INDICATOR 1

 KLW-M340J-00 PLATE,CONNECTOR 1

 KLW-M3430-00 LABEL,FEEDER 70-12P 1

 KLW-M349J-01 LABEL,INDICATOR 70 2

 KLW-M34J1-00 PLATE,FEEDER PSI. 1

 KLW-M371B-00 SHAFT GUIDE 3

 KLW-M37E1-01 LIGHT GUIDE,11 2

 KLW-M4476-12 FDR.CTRL.BOARD ASSY 2

 92902-06600 WASHER,PLAIN 8

 98702-03006 SCREW,FLAT HEAD 60

 98902-03006 SCREW BINDING HEAD 16

 99480-04012 PIN,PARALLEL 3

 99480-06012 PIN,PARALLEL 6

KLW-M34A2-00 INDICATOR ASSY. 1

Fix70 Manifold

$UYD6-4 JOINT 1

 90990-12J004 SCREW, BIN. HEAD W/W 5

 90990-42J047 JOINT 2

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-06008 BOLT HEX,SOCKET HEAD 4

 98902-03004 SCREW BINDING HEAD 46

 KHJ-M668A-10 HNS,CN41-RS232C 8

 KHY-M372P-00 SUPPORT,LEVER 70

 KHY-M372R-00 GUIDE,FEEDER UNDER 5

 KHY-M372S-01 SPRING,SUPPORT 70

 KLF-M375N-00 GUIDE,FEEDER UNDER 1

 KLW-M340K-00 BRACKET,MANIFOLD 1

 KLW-M340P-00 COVER,BASE 1

KV8-M3758-00 SEAL DUMP 2

 KLW-M34B0-00 FIX70 MANIFOLD ASSY

ZSF Cover Assy

KKG-M373L-00 LABEL,FEEDER 32-12P 1

 KLF-M374S-00 GUIDE,FEEDER UPPER 1

 KLF-M374T-00 GUIDE,FEEDER UPPER 2

 KLW-M3730-00 TOP COVER ASSY. 1

 KLW-M3731-00 RIGHT ARM ASSY. 1

 KLW-M3732-00 LEFT ARM ASSY. 1

 KLW-M373A-00 COVER,TOP 1

 KLW-M373B-01 PLATE,UPPER 1

 KLW-M373C-00 PLATE,OBSTRUCTIVE 1

 KLW-M373E-01 STOPPER,TG 1

 KLW-M373G-00 ARM,UPPER GUIDE R 1

 KLW-M373H-00 ARM,UPPER GUIDE L 1

 KLW-M373L-01 BRACKET,ARM R 1

 KLW-M373M-01 BRACKET,ARM L 1

 KLW-M373N-01 COVER,HNS. R 1

 KLW-M373P-01 COVER,HNS. L 1

 KLW-M373R-00 BRKT.,GUARD 2

 $NK-3N NYLON CLIP 2

 90990-01J074 BOLT HEX,SOCKET HEAD 8

 90990-11J001 SCREW, PAN HEAD W/W 2

 90K41-001830 LABEL,CAUTION 1

 90K41-001840 LABEL,CAUTION 1

 91312-03004 BOLT HEX,SOCKET HEAD 4

 91312-05006 BOLT HEX,SOCKET HEAD 6

 92012-04006 BOLT, BOTTON HEAD 2

 92012-04010 BOLT, BOTTON HEAD 4

 92B12-05012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 2

 98702-03006 SCREW,FLAT HEAD 3

 98902-03004 SCREW BINDING HEAD 60

ZSF Side Cover

KHJ-MC10S-01 PIN,LOCATE 1 2

 KHJ-MC147-02 SPRING,TAPE GUIDE F 2

 KLF-M3741-00 PLATE,STOPPER 2

 KLF-M3742-00 WASHER 4

 KLF-M3747-00 PLUNGER 1

 KLF-M3749-00 WASHER 2

 90990-28J013 WASHER,PLAIN 2 OK MP30022-2017/3/15

KLF-M374D-00 BUSH,FLANGE 2

 KLF-M374F-00 STOPPER,ARM 2

 KLF-M374G-00 BOLT,SHOULDER 2

 KLW-M374D-00 BOLT,DAMPER 2 OK MP30022-2017/3/15

 KLF-M374J-00 GAS DAMPER 1

 KLF-M374K-00 PLUNGER 1

 KLF-M374L-00 BRKT.,SENSOR 2

 KLF-M374N-00 DOG,SENSOR R 1

 KLF-M374N-50 DOG,SENSOR L 1

 KLF-M374X-00 PIN,HINGE 2

 KLW-M373G-01 ARM,UPPER GUIDE R 1

 KLW-M373H-01 ARM,UPPER GUIDE L 1

 KLW-M373J-01 BASE,ARM R 1

 KLW-M373K-01 BASE,ARM L 1

 KLW-M374A-00 BASE,CLAMP 2

 KLW-M374B-00 PLATE,CLAMP 2

 KLW-M374C-00 LEVER,CLAMP 2

 KLW-M653Y-00 SEN.FES COVER ASSY. 2

 90990-01J071 BOLT HEX,SOCKET HEAD 4

 90990-01J074 BOLT HEX,SOCKET HEAD 4

 90990-28J193 WASHER,PLAIN 4

 91312-03004 BOLT HEX,SOCKET HEAD 4

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 4

 92902-03200 WASHER,PLAIN 4

 92902-03600 WASHER,PLAIN 4

 92902-05200 WASHER,PLAIN 8

 92A08-03305 SCREW SET 2

 95302-06600 NUT HEXAGON 2

 97602-03310 SCREW PAN HEAD W/WASHER 2

 99002-07600 CIRCLIP 2

 99480-04014 PIN,PARALLEL 2

X-axis Servo / I/O box

$NK-2N NYLON CLIP 1

 90990-46J011 BOLT, THIN HEAD 8

 91312-03005 BOLT HEX,SOCKET HEAD 20

 91312-03012 BOLT HEX,SOCKET HEAD 4

 91312-04005 BOLT HEX,SOCKET HEAD 10

 91312-04008 BOLT HEX,SOCKET HEAD 3

 91312-04010 BOLT HEX,SOCKET HEAD 4

 KHN-M22AD-00 GREASE NIPPLE 1

 KHY-M266D-00 JOINT 1

 KKE-M220F-02 CAMERA SELECTOR 1

 KLA-M4506-00 HEAD I/O UNIT ASSY 1

 KLF-M2256-00 GRIP 1

 KLF-M6185-C0 FAN MOTOR ASSY. 1

 KLF-M657H-00 ADJUSTABLE CLAMP 1

 KLW-M2231-00 FRME,HEAD SERVO 1

 KLW-M2235-00 BRACKET,I/O 2

 KLW-M2238-00 STAY,PCB 2

 KLW-M2239-00 COVER,TOP 1

 KLW-M223A-00 STAY,DUCT 1

 KLW-M223B-00 BRACKET,L 1

 KLW-M223C-00 COVER,MOUNT 1

 KLW-M223D-00 BRACKET,R 1

 KLW-M223E-00 STAY,HNS. 1

 KLW-M223F-00 COVER,HNS. 1

 KLW-M223J-00 STAY,SCR 1

 KLW-M223K-00 STAY,HNS. 3 1

 KLW-M223L-00 STAY,HNS. 4 1

 KLW-M223N-00 HOLDER,HANDLE 1

 KLW-M223R-00 GUIDE,HNS. 1

KLW-M223S-00 COVER,SCR 1

 KLW-M5802-46 HEAD SERVO UNIT ASSY 2

 91312-05010 BOLT HEX,SOCKET HEAD 6

 91312-05016 BOLT HEX,SOCKET HEAD 4

 97602-03306 SCREW PAN HEAD W/WASHER 22

 97602-04306 SCREW PAN HEAD W/WASHER 1

X-Axis Cable Duct / Cover

$US10 JOINT 2

 90990-01J032 BOLT HEX,SOCKET HEAD 8

 90990-46J015 BOLT, THIN HEAD 5

 90K41-001320 LABEL,CAUTION 2

 90K41-001430 LABEL,CAUTION 1

 90KA1-904503 AC SERVO MOTOR 1

 91312-04008 BOLT HEX,SOCKET HEAD 16

 91312-04010 BOLT HEX,SOCKET HEAD 19

 91312-06018 BOLT HEX,SOCKET HEAD 4

 97602-03308 SCREW PAN HEAD W/WASHER 6

 98902-03005 SCREW BINDING HEAD 4

 KGT-M2266-10 PLATE, NUT 1

 KGT-M71ST-50 STICKER,HEAD 1 A,B

 KHY-M221A-A0 COVER DUCT ASSY. 1

 KLF-M2243-A0 COVER DUCT ASSY. 1 OK MN60041-2016/6/29

 KHY-M2268-00 BRACKET 1, TAPE 1

KKE-M2269-00 BRACKET 2,TAPE 1

 KKE-M226D-00 PLATE,NUT 1

 KLW-M220A-00 TAPE 1,X DUCT 1

 KLW-M220B-00 TAPE 2,X DUCT 1

 KLW-M220C-00 TAPE 3,X DUCT 1

 KLW-M220D-00 TAPE,X AXIS 1

 KLW-M220D-00 TAPE,X AXIS 2 OK MM50058-2015/5/14

KLW-M2252-00 STOPPER 1

 KLW-M2267-A0 CABLE DUCT ASSY. 1

 KLW-M226A-01 BRACKET,CABLE DUCT 1

 KLW-M226B-01 COVER 1,BACK X AXIS 1

 KLW-M226C-01 COVER 2,BACK X AXIS 1

 KLW-M226C-02 COVER 2,BACK X AXIS 1 OK MM50058-2015/5/14

 KLW-M227G-00 COVER,B.S. 1

 KLW-M2282-00 DOG,ORIGIN 1

 KLW-M2284-00 BRACKET,SENSOR 3

 KLW-M2285-00 DOG,SECOND LIMIT 1

 KLW-M22C5-00 UNDER COVER,X AXIS 1

 KLW-M653B-00 SENSOR,X ORG ASSY 1

 KLW-M653F-00 SENSOR,X OT1 ASSY 1

 KLW-M653F-10 SENSOR,X OT2 ASSY 1

98902-04006 SCREW BINDING HEAD 4

X-Axis SUB Assy

90990-26J022 BEARING 1

 91312-04014 BOLT HEX,SOCKET HEAD 50

 91312-04025 BOLT HEX,SOCKET HEAD 4

 91312-05014 BOLT HEX,SOCKET HEAD 4

 91312-05018 BOLT HEX,SOCKET HEAD 4

 91312-06025 BOLT HEX,SOCKET HEAD 8

 KG2-M9173-00 LOCK NUT 1

 KGS-M2628-00 LOCK NUT 1

 KHN-M2221-00 SUPPORT UNIT 1

 KHN-M2248-00 SPACER 2

 KHN-M224D-00 SPACER 1

 KHN-M224J-00 COLLAR A 4

 KHN-M224K-00 COLLAR B 4

 KHN-M22F4-00 WASHER,SWR04 16

 KHN-M22F6-00 WASHER,SWR06 8

 KHN-M22F8-00 WASHER,SWR08 16

 KHY-M2240-00 SLEEVE,BRG. 1

 KJV-M3422-00 O-RING 2

 KKE-M2241-00 HOLDER,MOTOR X 1

 KLW-M2211-00 FRAME,X AXIS 1

 KLW-M2220-00 COUPLING,X AXIS 1

 KLW-M2242-00 HOLDER,BRG. 1

 KLW-M224H-00 DAMPER 2

 KLW-M2261-A0 HEAD HOLDER ASSY. 1

 KLW-M2261-A1 HEAD HOLDER ASSY. 1 NG H021736-2015/9/2

 KLW-M2271-00 BALL SCREW 1

 KLW-M2276-00 GUIDE SET,X AXIS 1

 KLW-M2613-00 PLATE A 1

 KLW-M2614-01 PLATE B 1

 KV7-M2231-00 SPACER R,NUT 4

 91312-08025 BOLT HEX,SOCKET HEAD 16

 92A08-04304 SCREW SET 2

 KLW-M0201-00 X AXIS SUB ASSY. 1

Y-Axis Frame / Duct

$CTAM2 ANCHOR MOUNT 20

 $NK-3N NYLON CLIP 40

 $US10 JOINT 4

 90990-01J032 BOLT HEX,SOCKET HEAD 16

 91312-04008 BOLT HEX,SOCKET HEAD 42

 91312-04035 BOLT HEX,SOCKET HEAD 16

 91312-05012 BOLT HEX,SOCKET HEAD 38

 97602-04306 SCREW PAN HEAD W/WASHER 20

 KHY-M2669-00 BRACKET,HARNESS 4

 KJ3-M4187-00 FAN GUARD 8

 KLW-M260B-00 TAPE 1,Y DUCT 2

 KLW-M260C-00 TAPE 2,Y DUCT 2

 KLW-M260D-00 TAPE 3,Y DUCT 2

 KLW-M2678-00 DUCT,CABLE 2

 KLW-M2695-03 BRACKET,Y AXIS DUCT 2

 KLW-M2698-01 BRIDGE,HNS. 2

 KLW-M26F1-01 FRAME 1 2

 KLW-M26F3-00 BRKT.,FRAME 4

 KLW-M26F4-01 STAY,CABLE 2

 KLW-M26F6-00 BRKT.,CABLE 1 2

 KLW-M26F7-00 BRKT.,FAN 1 2

 KLW-M26F8-01 BRKT.2,COVER 2 2

 KLW-M26F9-01 BRKT.1,COVER 1 2

 KLW-M26FB-01 BRKT.2,COVER 1 2

 KLW-M26FC-00 BRKT.3,COVER 1 2

 KLW-M26FE-01 AIR DUCT,FAN 2 4

 KLW-M26FF-01 BRKT.,LED 2 With illumination

 KLW-M26FF-11 BRACKET 2 No illumination

 KLW-M26FG-00 COVER,FAN 2

 KLW-M26FH-00 BRKT.,SW.HNS.1 2

 KLW-M26FJ-00 BRKT.,SW.HNS.2 2

 KLW-M6185-90 FAN MOTOR 4

 97602-04308 SCREW PAN HEAD W/WASHER 40

 98502-03005 SCREW PAN HEAD 8

 KLW-M2678-A0 CABLE DUCT ASSY. 2

 KV7-M2266-00 PLATE, NUT 4

Y-Axis Plate A/B / Damper

$NK-3N NYLON CLIP 8

 $NK-4N NYLON CLIP 8

 90990-30J090 SHIM(S) 4

 90990-30J091 SHIM(S) 1

 90990-01J110 BOLT,HEX.S/HEAD WW 12

 90990-46J011 BOLT, THIN HEAD 2

 90K41-001320 LABEL,CAUTION 8

 90K41-001400 LABEL,CAUTION 4

 90K41-001570 LABEL,CAUTION 4

 90990-41J180 COLLAR 20

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 24

 91312-04010 BOLT HEX,SOCKET HEAD 22

 91312-04025 BOLT HEX,SOCKET HEAD 16

 91312-04035 BOLT HEX,SOCKET HEAD 8

 91312-05010 BOLT HEX,SOCKET HEAD 8

 KH2-M1324-01 GRIP 4

 KHN-M22F6-00 WASHER,SWR06 48

 KHW-M2654-00 PLATE,DAMPER 4

 KKE-M2654-00 PLATE , DAMPER 2

 KKE-M2654-50 PLATE , DAMPER 2

 KLF-M4187-10 FAN GUARD 80MM 4

 KLW-M2613-S0 PLATE SET 2 OK ML60025-2014/6/9

 KLW-M2613-S1 PLATE SET 2 OK ML70138-2014/7/30

 KLW-M2613-S2 PLATE SET 2 OK MN00008-2016/10/17

 KLW-M2613-S3 PLATE SET 2 OK MP40091-2017/4/24

KLW-M2659-00 BRACKET,HANDLE 4

 KLW-M2696-00 DOG,COL. 1

 KLW-M269A-00 PLATE,HNS.A 2

 KLW-M269B-00 PLATE,HNS.B 2

 KLW-M26F5-00 BRACKET,DAMPER 4

 KLW-M26T3-00 COVER,LINEAR 2 2

 KLW-M26T4-00 COVER,LINEAR 1 2

 KLW-M26TF-00 PLATE,FAN 2

KLW-M6185-C0 FAN MOTOR ASSY 2

 KLW-M653G-00 SENSOR,Y SAFE ASSY 1

 KV7-M2651-00 DAMPER, STOPPER 12

 91312-05014 BOLT HEX,SOCKET HEAD 8

 91312-06016 BOLT HEX,SOCKET HEAD 48

 91312-06025 BOLT HEX,SOCKET HEAD 40

 92902-04200 WASHER,PLAIN 2

 92902-04600 WASHER,PLAIN 14

 92902-06600 WASHER,PLAIN 32

 97602-03308 SCREW PAN HEAD W/WASHER 2

 97602-04308 SCREW PAN HEAD W/WASHER 8

 97602-04310 SCREW PAN HEAD W/WASHER 8

 KLW-M26TF-A0 FAN ASSY. 2

Y-Axis Linear motor / Guide

90990-01J003 BOLT HEX,SOCKET HEAD 56

 90990-46J010 BOLT, THIN HEAD 12

 90990-46J011 BOLT, THIN HEAD 16

 91312-03008 BOLT HEX,SOCKET HEAD 8

 91312-04008 BOLT HEX,SOCKET HEAD 18

 91312-05008 BOLT HEX,SOCKET HEAD 20

 91312-06075 BOLT HEX,SOCKET HEAD 164

 97602-03308 SCREW PAN HEAD W/WASHER 8

 99480-06012 PIN,PARALLEL 4

 KKE-M26C8-00 PLATE 1 4

 KKE-M26CK-00 PLATE 2 4

 KLW-M2613-00 PLATE A 2

 KLW-M2614-01 PLATE B 2

 KLW-M2623-00 COVER,SCALE 4

 KLW-M2625-01 COVER 2,Y AXIS 2

 KLW-M2626-00 COVER 1,Y AXIS 2

 KLW-M2627-A1 HOLDER ASSY. 2

 KLW-M2627-B1 HOLDER ASSY. 2

 KLW-M2658-01 STOPPER 4

 JKLW-M2676-S0 GUIDE SET,Y AXIS 1

 KLW-M2682-00 DOG,ORIGIN 2

 KLW-M2683-00 DOG,SECOND LIMIT 2

 KLW-M2691-00 STAY,SENSOR 2

 KLW-M26CB-00 STATOR A ASSY. 16

 KLW-M26CJ-00 COIL,Y AXIS 4

 KLW-M26CN-00 STATOR B ASSY. 4

 KLW-M26T2-00 HEAD,LINEAR SCALE 4

 KLW-M26T5-00 COVER,LINEAR 3 2

 KLW-M26T9-00 COVER,LINEAR 4 2

 KLW-M26TA-00 TAPE,LINEAR SCALE 2

 KLW-M653A-00 SENSOR,Y ORG ASSY 2

 KLW-M653E-00 SENSOR,Y OT ASSY 2

 KLW-M26T1-A0 LINEAR SCALE ASSY. 2

Y-Axis 1-beam

90990-01J003 BOLT HEX,SOCKET HEAD 56

 90990-01J110 BOLT,HEX.S/HEAD WW 6

 90990-41J180 COLLAR 4

 90990-46J010 BOLT, THIN HEAD 11

 90990-46J011 BOLT, THIN HEAD 2

 91312-04005 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 8

 91312-04025 BOLT HEX,SOCKET HEAD 8

 91312-05008 BOLT HEX,SOCKET HEAD 8

 KHN-M22F6-00 WASHER,SWR06 24

 KHW-M2654-00 PLATE,DAMPER 2

 KKE-M26C8-00 PLATE 1 2

 KKE-M26CK-00 PLATE 2 2

 KLW-M260B-10 TAPE 1,Y DUCT 1 1-beam

 KLW-M260C-10 TAPE 2,Y DUCT 1 1-beam

 KLW-M260D-10 TAPE 3,Y DUCT 1 1-beam

 KLW-M2613-S0 PLATE SET 1 PLATE A+B OK ML60025-2014/6/9

 KLW-M2613-S1 PLATE SET 1 OK ML70138-2014/7/30

 KLW-M2613-S2 PLATE SET 1 OK MN00008-2016/10/17

 KLW-M2613-S3 PLATE SET 1 OK MP40083-2017/4/24

 KLW-M2676-10 GUIDE SET,Y AXIS 1 1-beam

 KLW-M2678-10 DUCT,CABLE 1 1-beam

 KLW-M2682-10 DOG,ORIGIN 1 1-beam

 KLW-M2684-00 STAY,DOG 1 1-beam

 KLW-M2685-00 DOG 2,SECOND LIMIT 1

 KLW-M2691-00 STAY,SENSOR 1

 KLW-M26CB-00 STATOR A ASSY. 16

 KLW-M26CJ-00 COIL,Y AXIS 2

 KLW-M26CP-00 STATOR C ASSY. 2 1-beam

 KLW-M26CR-00 STATOR D ASSY. 2 1-beam

 KLW-M26FA-01 BRACKET,DAMPER 2 2 1-beam

 KLW-M26FD-00 PLATE,DUCT Y 1 1-beam

 KLW-M26TD-00 COVER,LINEAR 3 1 1-beam

 KLW-M26TE-00 COVER,LINEAR 4 1 1-beam

 KLW-M26TG-00 COVER,LINEAR 2 1 1-beam

 KLW-M26TH-00 COVER,LINEAR 1 1 1-beam

 KLW-M653A-10 SENSOR,Y ORG ASSY 1 1-beam

 KLW-M653E-10 SENSOR,Y OT ASSY 2 1-beam

 KV7-M2651-00 DAMPER, STOPPER 2

 91312-06016 BOLT HEX,SOCKET HEAD 24

 91312-06025 BOLT HEX,SOCKET HEAD 20

 91312-06075 BOLT HEX,SOCKET HEAD 164

 92902-04600 WASHER,PLAIN 8

 92902-06600 WASHER,PLAIN 20

97602-03310 SCREW PAN HEAD W/WASHER 6

FID Camera / Stay (FM)

$NK-2N NYLON CLIP 4

 90563-04J100 SPACER 2

 90990-09J004 SCREW, FLAT HEAD 19

 90990-11J003 SCREW, PAN HEAD W/W 4

 90K41-001320 LABEL,CAUTION 2

 91312-03004 BOLT HEX,SOCKET HEAD 10

 91312-03005 BOLT HEX,SOCKET HEAD 10

 91312-03008 BOLT HEX,SOCKET HEAD 12

 91312-03012 BOLT HEX,SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 6

 91312-04008 BOLT HEX,SOCKET HEAD 8

 91312-04025 BOLT HEX,SOCKET HEAD 4

 KHT-M76B0-00 LENS FID. 2

 KJX-M7210-00 CCD CAMERA 2

 KLW-M71C1-00 BRACKET,RIGHT 1

 KLW-M71C2-00 BRACKET,LEFT 1

 KLW-M71C6-00 COVER,CAMERA R 1

 KLW-M71C8-00 COVER,CAMERA L 1

 KLW-M7401-00 BRKT.,COVER HEAD 2

 KLW-M7402-00 COVER,HEAD 1 1

 KLW-M7403-00 COVER,HEAD 2 1

 KLW-M7405-00 COVER,UNDER 1

 KLW-M7406-00 BRKT.,Z AXIS HNS. 1

 KLW-M7408-00 BRKT.,EARTH 1

 KLW-M740A-00 COVER,UNDER 1

 KLW-M740C-00 HOLDER,TUBE 10

 KLW-M7450-00 EJECTOR ASSY. 1

 KLW-M7451-00 BRKT.,EJECTOR 1

 KLW-M7452-00 BRKT.,HNS. 1

 KLW-M7453-00 COVER,BOARD 1

 KLW-M7601-00 HOLDER,CAMERA 2

 KLW-M7610-00 VISION ATTACHMENT L 1

 KLW-M7620-00 VISION ATTACHMENT R 1

 KLW-M76A0-00 FIDUCIAL LIGHT ASSY. 2

 KLW-M76L4-00 STAY,FID. LIGHT 2

 91312-04040 BOLT HEX,SOCKET HEAD 4

 91317-03005 BOLT HEX,SOCKET HEAD 6

 91317-04008 BOLT HEX,SOCKET HEAD 2

 92012-03005 BOLT BUTTON HEAD 8

99480-04010 PIN,PARALLEL 4

R Axis Assy (FM)

90112-2AJ010 BOLT, HEX.SOCKET HEAD 20

 90152-03J03 SCREW SET 10

 90990-28J140 WASHER,PLAIN 20

 90K2L-0G1111 AC SERVO MOTOR 1

 90K2L-0G1112 AC SERVO MOTOR 1

 90K2L-0G1113 AC SERVO MOTOR 1

 90K2L-0G1128 AC SERVO MOTOR 1

 90K2L-0G1129 AC SERVO MOTOR 1

 KJX-M7C4A-00 COLLAR,BEARING 5

 KLW-M7431-00 PLATE,MOTOR R 5

 KLW-M7432-00 PULLEY,MOTOR R 5

KLW-M7433-00 SHEET 5

 KLW-M7442-00 BLOCK,SHAFT 1

 KLW-M7445-00 PLATE,SPLINE 1

 KLW-M7449-00 PLATE,SPLINE 5

 KLW-M744B-00 PLATE,SPRING 1

 KLW-M74RA-00 BELT 5

 91312-03008 BOLT HEX,SOCKET HEAD 10

 91312-03010 BOLT HEX,SOCKET HEAD 12

 91317-03008 BOLT HEX,SOCKET HEAD 26

 92902-03200 WASHER,PLAIN 10

 99480-03010 PIN,PARALLEL 2

Shaft Head Assy (FM)

$PLH4-M5M JOINT 5

 $UEF JOINT 5

 90112-2AJ008 BOLT, HEX.SOCKET HEAD 10

 90112-2AJ012 BOLT, HEX.SOCKET HEAD 20

 90115-02J004 BOLT, HEX. SOCKET HEAD 10

 90152-03J03 SCREW SET 10

 90440-10J008 CIRCLIP 20

 90933-02J685 BEARING 5

 90990-01J057 BOLT HEX,SOCKET HEAD 10

 90990-16J002 NUT, U & NUT, SELF LOCKING 5

 90990-28J045 WASHER,PLAIN 10

 90990-28J046 WASHER,PLAIN 5

 90990-29J033 SHIM 5

 91609-16006 PIN, SPRING 10

 95602-05100 NUT, U 5

 KHN-M7145-00 NUT,SPLINE 5

 KJX-M7C37-00 COLLAR,PULLY 5

 KJX-M7C4A-00 COLLAR,BEARING 5

 KJX-M7C4E-00 O-RING 10

 KJX-M7C4N-00 WAVE WASHER 5

 KLW-M7441-00 SPLINE SHAFT 5

 KLW-M7443-00 PULLEY,R 5

 KLW-M7446-00 ARM 5

 KLW-M7447-00 BLOCK,SPLINE 5

 KLW-M744A-00 PLATE,BRG. 5

 KLW-M744C-00 STOPPER,JOINT 5

 KLW-M74D0-00 ROLLER LOCK ASSY. 5

 KV7-M8171-00 PLATE,SPRING 20

 KV7-M81D1-00 ARM,NOZZLE 10 No assy

 KV7-M81D3-01 PIN 20

 KV7-M81D4-00 ROLLER 10

 90990-22J009 PACKING 5

KLW-M741S-A0 SHAFT,SPARE 1 Spare

Z Axis Assy (FM)

90112-2AJ006 BOLT, HEX.SOCKET HEAD 20

 90933-02J605 BEARING 5

 90990-02J004 SCREW, SET 10

 90990-18J033 PIN,PARALLEL 10

 90990-41J148 COLLAR 20

 90K20-0F1503 MOTOR 1

 90K20-0F1504 MOTOR 1

 90K20-0F1505 MOTOR 1

 90K20-0F1506 MOTOR 1

 90K20-0F1507 MOTOR 1

 KHN-M712A-00 BEARING 5

 KHN-M712M-00 COUPLING 5

 KJX-M711P-00 CIRCLIP 5 5

 KLH-M7C2P-00 SPACER 10

 KLW-M7411-00 PLATE,HEAD 1

 KLW-M7412-00 PLATE L 1

 KLW-M7413-00 PLATE R 1

 KLW-M7414-00 HOLDER,MOTOR Z 5

 KLW-M7415-00 HOLDER,BRG. 5

 KLW-M7416-00 DAMPER Z 10

 KLW-M7417-00 PLATE,BRG. Z 5

 KLW-M7421-00 BALL SCREW 5

 KLW-M7422-00 LOCK NUT,SCREW 5

 KLW-M7424-00 HOLDER,NUT 5

 KLW-M7425-00 GUIDE,Z 5

 91312-03005 BOLT HEX,SOCKET HEAD 30

 91312-03008 BOLT HEX,SOCKET HEAD 40

 91312-03010 BOLT HEX,SOCKET HEAD 20

 91312-03012 BOLT HEX,SOCKET HEAD 10

 91312-03022 BOLT HEX,SOCKET HEAD 20

 91312-04030 BOLT HEX,SOCKET HEAD 4

 99480-03010 PIN,PARALLEL 5

 99480-05010 PIN,PARALLEL 6

 91312-06020 BOLT HEX,SOCKET HEAD 4

 KLW-M7404-00 COLLAR,SPRING 5

KLW-M7409-00 SPRING,RETURN 5

Side View Unit (FM)

90990-41J128 COLLAR 4

 91312-03005 BOLT HEX,SOCKET HEAD 8

 91312-03010 BOLT HEX,SOCKET HEAD 4

 91312-05030 BOLT HEX,SOCKET HEAD 2

 92012-03005 BOLT BUTTON HEAD 4

 KLW-M7921-00 BRKT.,LIGHT L 1

 KLW-M7922-00 BRKT.,LIGHT R 1

 KLW-M7923-00 COVER,LIGHT 1

 KLW-M7924-00 BRKT.,LIGHT 1

 KLW-M7925-00 SHEET 1

 KLW-M7926-00 DIFFUSER 1

 KLW-M7981-00 S.V.LIGHT BRD ASSY 1

 99480-06018 PIN,PARALLEL 2

 KLW-M79C0-00 S.V.CAM.ASSY. 1

 KLW-M79L0-00 S.V.LIGHT ASSY. 1

Ejector (FM)

KLW-M745A-02 EJECTOR 1 Cutting item

 KLW-M745A-03 EJECTOR 1 Molded item OK MM80079-2015/8/21

 KLW-M745A-04 EJECTOR 1 Molded item OK MMX0084-2015/11/16

 KLF-M7152-00 VALVE 1

 KLF-M7153-00 VALVE 1

 KLW-M7154-00 BIT 1

 KLW-M7156-00 BIT CAP 1

 KLW-M7157-00 EJECTOR 1 Cutting item

 KLW-M7157-10 EJECTOR 1 Molded item NG MMY0015-2015/12/8

KLW-M7158-00 VALVE 1

 KLW-M715A-00 MUFFLER 1

 KLW-M715B-00 GASKET 1

 KLW-M8527-00 FILTER 1

 KHY-M4592-10 VAC5 SENS BRD ASSY 1

 98502-03008 SCREW,PAN HEAD 4

 KLW-M74T1-00 TUBE 2 04-205mm H1,H5

 KLW-M74T2-00 TUBE 3 04-200mm H2,H3,H4

KLW-M7155-00 FILTER CAP 1

FID Camera / Stay (HM)

$NK-2N NYLON CLIP 4

 90563-04J100 SPACER 2

 90990-11J003 SCREW, PAN HEAD W/W 4

 90990-41J123 COLLAR 3

 90K41-001320 LABEL,CAUTION 2

 91312-03008 BOLT HEX,SOCKET HEAD 12

 91312-04006 BOLT HEX,SOCKET HEAD 14

 91312-04008 BOLT HEX,SOCKET HEAD 10

 KHT-M76B0-00 LENS FID. 2

 KJX-M7210-00 CCD CAMERA 2

 KLW-M7117-00 STOPPER 1

 KLW-M71C1-00 BRACKET,RIGHT 1

 KLW-M71C2-00 BRACKET,LEFT 1

 KLW-M71C3-00 STAY,EJECTOR 1

 KLW-M71C4-00 STAY,HOSE 1

 KLW-M71C5-00 BRACKET,CABLE 1

 KLW-M71C6-00 COVER,CAMERA R 1

 KLW-M71C7-00 BRACKET,CABLE 1

 KLW-M71C8-00 COVER,CAMERA L 1

 KLW-M71C9-00 PLATE 2,HARNESS 1

 KLW-M71CB-00 PLATE,HARNESS 1

 KLW-M71Y0-00 LABEL,HEAD SERIAL 1

 KLW-M740C-00 HOLDER,TUBE 2

 KLW-M7601-00 HOLDER,CAMERA 2

 KLW-M7610-00 VISION ATTACHMENT L 1

 KLW-M7620-00 VISION ATTACHMENT R 1

 KLW-M76A0-00 FIDUCIAL LIGHT ASSY. 2

 KLW-M76L4-00 STAY,FID. LIGHT 2

 91312-04012 BOLT HEX,SOCKET HEAD 3

 91312-04025 BOLT HEX,SOCKET HEAD 4

 91312-04040 BOLT HEX,SOCKET HEAD 4

99480-04010 PIN,PARALLEL 4

R Axis Assy (HM)

90990-01J040 BOLT,HEX.SOCKET HEAD 4

 90990-25J016 BEARING 16

 90KB0-112503 MOTOR 1

 90KB0-112504 MOTOR 1

 91312-03006 BOLT HEX,SOCKET HEAD 24

 91312-03008 BOLT HEX,SOCKET HEAD 4

 91312-03012 BOLT HEX,SOCKET HEAD 6

 91312-03030 BOLT HEX,SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05020 BOLT HEX,SOCKET HEAD 2

 91312-05035 BOLT HEX,SOCKET HEAD 4

 92902-03200 WASHER,PLAIN 8

 KHY-M7113-00 PLATE 2,BRG. 1

 KHY-M7114-00 PLATE 3,BRG. 10

 KHY-M7127-00 BLOCK 1,ADJUST 2

 KHY-M7131-00 BELT 1 2

 KHY-M7132-00 BELT 2 2

 KKE-M7126-00 SHAFT 2,TENSION 2

 KKE-M7128-00 SHAFT 3,TENSION 2

 KKE-M7134-00 PLATE,SCREEN 2

 KKE-M7135-00 PLATE,SCREEN 2

 KLW-M7101-00 HOUSING,HEAD 1

 KLW-M7102-00 PLATE,R MOTOR 1

 KLW-M7125-00 STOPPER,R AXIS 2

 KLW-M7129-00 BLOCK 2,ADJUST 2

 KLW-M7131-00 PULLEY,R MOTOR 2

 KLW-M7132-00 STOPPER 2,R AXIS 2

 KLW-M7133-00 SHEET,SCREEN 1

 KLW-M7138-00 PLATE 1

 KV8-M7115-00 SHAFT 1,TENSION 4

 92902-03600 WASHER,PLAIN 2

 92902-04200 WASHER,PLAIN 6

 92A08-04304 SCREW SET 4

 98702-03006 SCREW,FLAT HEAD 11

 99009-07800 CIRCLIP 2

 99480-03008 PIN,PARALLEL 4

 99480-04008 PIN,PARALLEL 2

 90990-01J020 BOLT HEX,SOCKET HEAD 4

 91317-03012 BOLT HEX,SOCKET HEAD 4

Shaft Head Assy (HM)

$PF-M3 PLUG 20

 90990-08J016 SCREW, PAN HEAD 40

 90990-17J053 O-RING 20

 91312-03006 BOLT HEX,SOCKET HEAD 20

 KG7-M7137-A0 LEAF SPRING 20

 KGS-M714W-03 PLATE,SPRING 20

 KHY-M7105-00 HOLDER,NOZZLE 8

 KKS-M7105-00 HOLDER,NOZZLE 2 With V slot Holder

 KLW-M7107-A0 HEAD SHAFT 1 ASSY. 4 Under a pulley

 KLW-M7107-B0 HEAD SHAFT 2 ASSY. 4 On a pulley

 KLW-M7107-C0 HEAD SHAFT 1B ASSY. 1 Under a pulley .With V slot Holder

 KLW-M7107-D0 HEAD SHAFT 2B ASSY. 1 On a pulley . With V slot Holder

 KLW-M711S-A0 SHAFT 1,SPARE 1 Spare for H1,2,4,5,6,7,9,10

 KLW-M711S-B0 SHAFT 2,SPARE 1 Spare for H3,8 _With V slot Holder

 KHY-M7108-00 COLLAR,BRG. 10

 90990-25J026 BEARING 20 MM60004-2015/6/17

Z Axis Assy (HM)

90990-28J078 WASHER,PLAIN 4

 90K41-001400 LABEL,CAUTION 2

 91312-05014 BOLT HEX,SOCKET HEAD 8

 91312-06022 BOLT HEX,SOCKET HEAD 4

 91312-06060 BOLT HEX,SOCKET HEAD 2

 99480-04008 PIN,PARALLEL 4

 99480-06014 PIN,PARALLEL 4

 KHY-M71G3-00 SHAFT 1 2

 KLW-M7103-00 PLATE,HEAD 1

 KLW-M71G1-00 SIDE PLATE,R 1

 KLW-M71G2-00 SIDE PLATE,L 1

KLW-M71G5-00 Z UNIT ASSY. 10

Ejector (HM)

KLW-M7151-02 EJECTOR,RESIN 1 Cutting item

 KLW-M7151-03 EJECTOR,RESIN 1 Molded item OK MM80079-2015/8/21

 KLW-M7151-04 EJECTOR,RESIN 1 Molded item OK MMX0084-2015/11/16

 KLF-M7152-00 VALVE 1

 KLF-M7153-00 VALVE 1

 KLW-M7154-00 BIT 1

 KLW-M7156-00 BIT CAP 1

 KLW-M7157-00 EJECTOR 1 Cutting item

 KLW-M7157-10 EJECTOR 1 Molded item NG MMY0015-2015/12/8

 KLW-M7158-00 VALVE 1

 KLW-M715A-00 MUFFLER 1

 KLW-M715B-00 GASKET 1

 KLW-M8527-00 FILTER 1

 KHY-M4592-01 VAC SENSOR BRD ASSY 1

 90563-23J060 SPACER 4

 KLW-M74T1-00 TUBE 1 04-205mm

 KLW-M7155-00 FILTER CAP 1

Scan Camera / Axis (HM)

$NK-3N NYLON CLIP 1

 90112-02J006 BOLT HEX,SOCKET HEAD 1

 90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

 90990-01J106 BOLT HEX,SOCKET HEAD 4

 90990-01J107 BOLT HEX,SOCKET HEAD 4

 90990-08J018 SCREW, PAN HEAD 3

 90990-08J020 SCREW, PAN HEAD 4

 90K41-001320 LABEL,CAUTION 1

 91312-03005 BOLT HEX,SOCKET HEAD 4

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03008 BOLT HEX,SOCKET HEAD 6

 KHY-M7554-12 OF.LIGHT BRD.ASSY. 1

 KHY-M7905-10 OF.SV.LIGHT BRD ASSY 1

 KHY-M7A13-02 DIFFUSER, MAIN 1

 KHY-M7A16-01 COVER,PRIZM 1

 KHY-M7A31-01 BLOCK,LIGHT SIDE 1

 KHY-M7A34-01 DIFFUSER, SIDE 1

 KLW-M66JA-00 HNS,SCAN FLEX 1

 KLW-M78H1-00 PLATE,CABLE 1

 KLW-M78H2-00 BRACKET,CABLE 1

 KLW-M78H3-00 TAPE,SCAN CABLE 1

 KLW-M78H5-00 BRACKET,CONNECTOR 1

 KLW-M78H6-00 PLATE,CLAMP 1

 KLW-M78H7-00 COVER,SENSOR 1

 KLW-M78H8-00 CLAMP,CABLE 1

 KLW-M78H9-00 BRKT.,FIX 1

 90990-08J026 SCREW, PAN HEAD 4

 90990-11J001 SCREW, PAN HEAD W/W 1

 90990-28J002 WASHER,PLAIN 3

 91312-04005 BOLT HEX,SOCKET HEAD 2

 91312-04025 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 2

 KLW-M7850-00 SC MOTOR ASSY. 1

 KLW-M78C0-00 SCAN CAM. ASSY.,CX. 1

KLW-M78H0-00 HNS.SCAN ASSY. 1

Nozzle

KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A

 KHN-M7711-05 BODY,NOZZLE 301 1

 KHN-M7713-00 SPRING 1 Black

 KHN-M7714-00 PIN 1

 KHN-M7715-00 CLIP 1

 KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A

 KHN-M7721-04 BODY, NOZZLE 302 1

 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A

 KHY-M7741-00 BODY, NOZZLE 303/314 1

 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A

 90990-17J013 O-RING 1

 90990-17J081 O-RING 1 OK MM30191-2015/4/27

 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A

 KHY-M7771-00 BODY, NOZZLE 306/317 1

 KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A (Narrow adjacent Type)

 KHY-M77A1-00 BODY, NOZZLE 310 1

 KHY-M7710-A4 NOZZLE 311A ASSY. 1 TYPE 311A (Narrow adjacent Type)

 KHY-M7711-03 BODY, NOZZLE 311 1

 KHN-M7713-10 SPRING 1

 KHY-M7720-A3 NOZZLE 312A ASSY. 1 TYPE 312A (Narrow adjacent Type)

 KHY-M7721-02 BODY,NOZZLE 312 1

 KHY-M7730-A2 NOZZLE 313A ASSY. 1 TYPE 313A (Narrow adjacent Type)

 KHY-M7731-02 BODY,NOZZLE 313 1

 KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A

 KHY-M7781-00 BODY, NOZZLE 307/318 1

 KGS-M7742-00 LABEL,NOZZLE 1

 90990-17J014 O-RING 1

 90990-17J082 O-RING 1 Ok MM30191-2015/4/27

 KHN-M7713-10 SPRING 1 White

 KHN-M7713-10 SPRING 1 White

Nozzle Changer (ANC Stand Assy)

$SC4-M5A SPEED CONTROLLER 2

 $US4 JOINT 2

 90112-2AJ006 BOLT, HEX.SOCKET HEAD 6

 90563-0AJ070 SPACER 6

 90933-02J063 BEARING 2

 90990-32J005 BOLT,FLANGE 2

 90990-41J185 COLLAR 4

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03010 BOLT HEX,SOCKET HEAD 2

 91312-03025 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 2

 91312-04016 BOLT HEX,SOCKET HEAD 1

 KHW-M916A-00 BUSH 2

 KHW-M916E-00 BUSH 1

 KHW-M916G-00 COLLAR, JOINT 1

 KHW-M916H-00 JOINT, CYL. 1

 KLW-M653S-00 CYL.ANC OP/CL ASSY 1

 KHY-M9614-00 STOPPER,CYLINDER 1

 KHY-M9627-00 BLOCK,LINK 1

 KHY-M9628-00 COLLAR,LINK 1

 KHY-M9631-00 COLLAR,FLOATING 1

 KHY-M9632-00 BLOCK,FLOATING 1

 KKS-M9615-00 PLATE,CYLINDER 1

 KKT-M9613-00 BLOCK,CYLINDER 1

 KLW-M45BA-00 ANC CTRL BOARD ASSY 1

 KLW-M96S1-A0 BOTTOM HOLDER ASSY. 1

 KLW-M96S2-00 PLATE,SIDE 2

 KLW-M96S3-00 SHAFT 4

 KLW-M96S4-00 PLATE,MIDDLE 1

 KLW-M96S5-00 PLATE,BASE 1

 KLW-M96S6-00 BOARD,CLEAR 1

 KLW-M96S7-00 PLATE,LED SHIELD 1

 KLW-M96S8-00 SUPPORT,STAND 1

 KLW-M96SV-00 ANC VALVE ASSY. 1

 91312-04022 BOLT HEX,SOCKET HEAD 1

 91312-05016 BOLT HEX,SOCKET HEAD 8

 91312-05020 BOLT HEX,SOCKET HEAD 1

 92902-04200 WASHER,PLAIN 3

 92902-05200 WASHER,PLAIN 1

 95702-06500 NUT FLANGE 8

Nozzle Changer (Clamp Hld. Assy.)

91312-03008 BOLT HEX,SOCKET HEAD 28

 91312-03030 BOLT HEX,SOCKET HEAD 12

 92012-04012 BOLT, BOTTON HEAD 4

 KHY-M9621-A0 BASE,NOZZLE D ASSY 10

 KHY-M9630-00 HOOK,BEARING 2

 KKE-M9608-00 PIN,SLIDE 8

 KKS-M9622-A1 SPACER3 ASSY. 14

 KLW-M96H1-A0 HM NOZZLE HLD. ASSY. 1 HM CLAMP HLD.

 KLW-M96H2-00 PLATE,CLAMP HM 1 HM CLAMP HLD.

 KLW-M96H4-A0 FM NOZZLE HLD. ASSY. 1 FM CLAMP HLD.

 KLW-M96H5-00 PLATE,CLAMP FM 1 FM CLAMP HLD.

 KLW-M96H7-00 MIRROR,CENTER 2

 KLW-M96H8-00 MIRROR,SIDE 4

 KLW-M96H9-00 SPACER 2

 KLW-M96HA-00 SHEET,CLAMP GUIDE 4

 98902-03008 SCREW BINDING HEAD 16

Push Up 1

91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 10

 91312-04010 BOLT HEX,SOCKET HEAD 6

 91312-04012 BOLT HEX,SOCKET HEAD 2

 KGA-M921T-00 BOLT 8

 KHY-M921G-01 BRKT.,DOG 1

 KHY-M921N-01 JOINT A 2

 KLW-M653D-00 SENSOR,PUA ORG ASSY 1 ASSY .A

 KLW-M653D-10 SENSOR,PUB ORG ASSY 1 ASSY .B

 KLW-M920A-00 PLATE 1(340x330) 2

 KLW-M920B-00 STAY 1

 KLW-M9217-00 BALL BUSH 2

 KLW-M9218-00 SHAFT 2

 KLW-M921H-02 PLATE,DOG 1

 KLW-M921K-00 BRKT.,SENSOR 1

 KLW-M9221-01 DAMPER 2

 KHY-M920D-00 PUSH UP PIN UNIT 1

 KLW-M9203-A0 STAY ASSY. 1

 90990-28J076 WASHER,PLAIN 2

 90K65-332G74 AC SERVO MOTOR 1 ASSY .B

 90K65-332P73 AC SERVO MOTOR 1 ASSY .A

 91312-05010 BOLT HEX,SOCKET HEAD 8

 91312-05012 BOLT HEX,SOCKET HEAD 8

 91312-05016 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 4

 92902-05200 WASHER,PLAIN 4

 95602-10100 NUT, U 8

 KKE-M9218-00 GROMMET 2

 KKE-M921D-00 BELT 291-3GT-15 1

 KLW-M921S-00 BRKT.,MOTOR 2

 KV7-M9205-01 PULLEY 1:P22-3GT 2

 KLW-M9206-A0 MOTOR ASSY. 1 ASSY .A

KLW-M9208-A0 MOTOR ASSY. 1 ASSY .B

Push Up 2

90440-01J090 CIRCLIP 2

 90933-01J001 BEARING 2

 90933-01J007 BEARING 4

 90933-01J300 BEARING 2

 90990-01J065 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 8

 91312-04020 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 1

 91312-05012 BOLT HEX,SOCKET HEAD 12

 91312-05020 BOLT HEX,SOCKET HEAD 1

 91312-06020 BOLT HEX,SOCKET HEAD 6

 KHW-M9215-00 PULLEY:P60-3GT 2

 KHW-M921A-00 BRKT.,TENSIONER 1

 KHW-M921B-00 STAY,ADJUST 1

 KHW-M921C-00 SHAFT 1 1

 KHW-M9222-00 POST 1

 KHW-M9223-00 PULLEY:P40-3GT 1

 KHY-M9211-00 HOLDER,BRG. 2

 KHY-M9212-00 HOUSING 2

 KHY-M921M-01 WASHER 2

 KLW-M9201-A0 DRIVE UNIT ASSY. 2

 KLW-M9204-A0 TENTIONER ASSY. 1

 KLW-M9205-A0 PULLEY ASSY. 1

 KLW-M920C-00 PLATE,PU BASE 1

 KLW-M9213-00 BALL SCREW PU 2

 KLW-M921E-00 BELT 852-3GT-15 1

 92902-05200 WASHER,PLAIN 10

 95302-04600 NUT HEXAGON 1

99009-12400 CIRCLIP 2

Main Stopper

$UEF4BU-M3 JOINT 6

 90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

 90112-2AJ006 BOLT, HEX.SOCKET HEAD 2

 91312-03005 BOLT HEX,SOCKET HEAD 6

 91312-03030 BOLT HEX,SOCKET HEAD 6

 91312-04006 BOLT HEX,SOCKET HEAD 6

 KHW-M916C-00 SPACER 6

 KHW-M916G-00 COLLAR, JOINT 3

 KHY-M926H-00 JOINT, CYL. 3

 KKE-M9163-01 BRKT.,STOPPER 1

 KKE-M9164-01 BRKT.,STOPPER 2

 KKE-M9164-10 BRKT.,STOPPER 2

 KKE-M9165-02 PLATE,STOPPER 3

 KKE-M9169-01 SHAFT,STOPPER 3

 KLT-M9168-00 PLATE,STOPPER 2

 KLW-M654C-11 CYL.RL CV2 ST1 ASSY 1

 KLW-M654C-21 CYL.RL CV3 ST1 ASSY 1

 KLW-M654C-31 CYL.RL CV3 ST2 ASSY 1

 KLW-M654C-61 CYL.LR CV3 ST1 ASSY 1

 KLW-M654C-41 CYL.LR CV2 ST1 ASSY 1

 KLW-M654C-51 CYL.LR CV2 ST2 ASSY 1

 KLW-M9161-00 BRKT.,CYLINDER 2

 KLW-M9162-00 BRKT.,CYLINDER 2

 KLW-M9167-00 PLATE,STOPPER 1

 KLW-M916D-00 BRKT.,CYLINDER 1

 KLW-M916E-00 BRKT.,CYLINDER 1

 KLW-M9261-00 GUIDE 3

 91312-04010 BOLT HEX,SOCKET HEAD 13

 91312-04012 BOLT HEX,SOCKET HEAD 1

 92012-04012 BOLT, BOTTON HEAD 2

 92902-04600 WASHER,PLAIN 6

 KLW-M9160-A0 STOPPER ASSY.1 1

 KLW-M9160-B0 STOPPER ASSY.2-1 1 Only different parts are published.

 KLW-M9160-C0 STOPPER ASSY.2-2 1

 KLW-M9160-D0 STOPPER ASSY.1 1 Only different parts are published.

 KLW-M9160-E0 STOPPER ASSY.2-1 1 Only different parts are published.

KLW-M9160-F0 STOPPER ASSY.2-2 1 Only different parts are published.

Sub / Exit Stopper ( 7-4, p60)

$UEF4BU-M3 JOINT 2

 90112-2AJ005 BOLT, HEX.SOCKET HEAD 2

 91312-03005 BOLT HEX,SOCKET HEAD 2

 91312-03030 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 KHW-M916C-00 SPACER 2

 KHW-M916G-00 COLLAR, JOINT 1

 KHW-M9272-00 STOPPER,EXIT 1

 KHW-M9274-A0 SPEED CONTROLLER 2

 KHY-M926H-00 JOINT, CYL. 1

 KHY-M9284-00 PLATE,STOPPER 1

 KKE-M9164-01 BRKT.,STOPPER 1

 KKE-M9164-10 BRKT.,STOPPER 1

 KKE-M9165-02 PLATE,STOPPER 1

 KKE-M9169-01 SHAFT,STOPPER 1

 KLT-M9168-00 PLATE,STOPPER 1

 KLW-M653N-00 CYL.RL CV4 ST ASSY 1

 KLW-M653N-10 CYL.LR CV1 ST ASSY 1

 KLW-M654C-00 CYL.RL CV1 ST ASSY 1

 KLW-M654C-70 CYL.LR CV4 ST ASSY 1

 KLW-M9161-00 BRKT.,CYLINDER 1

 KLW-M9162-00 BRKT.,CYLINDER 1

 KLW-M9261-00 GUIDE 1

 KLW-M9271-00 BRKT.,CYLINDER 2

 91312-05012 BOLT HEX,SOCKET HEAD 2

 91312-05016 BOLT HEX,SOCKET HEAD 2

 92012-04012 BOLT, BOTTON HEAD 1

 92902-04600 WASHER,PLAIN 2

 KLW-M9270-A0 EXIT STOPPER ASSY. 1

 KLW-M9270-B0 EXIT STOPPER ASSY. 1 Only different parts are published.

 KLW-M9280-A0 SUB STOPPER ASSY. 1

KLW-M9280-B0 SUB STOPPER ASSY. 1 Only different parts are published.

Clamp board

$SL4-M5 JOINT 4

 90169-02JB04 SCREW, BINDING HEAD 24

 90563-04J170 SPACER 4

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 12

 91312-04014 BOLT HEX,SOCKET HEAD 8

 KHW-M9167-00 BRKT.,CYL. 2

 KHW-M916E-00 BUSH 2

 KHW-M9261-01 PLATE1,LINK 4

 KHW-M9264-A0 LINK A ASSY. 2

 KHW-M9265-00 SPACER 8

 KHW-M926A-00 COLLAR 4

 KHW-M926B-00 COLLAR, JOINT 2

 KHW-M926E-00 NUT 2

 KHY-M926F-00 JOINT , CYL. BRKT 2

 KHY-M926H-00 JOINT, CYL. 2

 KHY-M926M-00 STOPPER, CYLINDER 2

 KKE-M9269-00 BRKT.,CYL. 2

 KKE-M926F-00 COLLAR,FLOATING 2

 KLT-M9263-00 CYLINDER 6

 KLW-M9262-00 PLATE,BASE S 2

 KLW-M926D-00 PLATE,BOARD CLAMP 2

 KLW-M926G-00 PLATE 2,LINK 2

 KLW-M926J-00 PLATE 1 2

 KV7-M9266-01 GUIDE 6

 91312-04016 BOLT HEX,SOCKET HEAD 2

 92902-04200 WASHER,PLAIN 2

 95302-06600 NUT HEXAGON 2

 98902-03005 SCREW BINDING HEAD 8

 KHW-M9264-B0 LINK B ASSY. 2

 KLW-M9260-A0 CP BOARD SUB ASSY. 1

KLW-M9260-B0 CP BOARD SUB ASSY. 1

Transport (UR)

KH2-M9121-00 BEARING 2

2 KKE-M918N-00 BRACKET 1,COLLAR 2

 KLW-M918N-00 BRACKET,COLLAR 2 NG MNX0123-2016/12/8

 KKE-M918Y-00 SHAFT 1

 KLF-M9135-01 PLATE,EDGE 2 8

 KLF-M9150-A0 PULLEY,CONV. ASSY 4

 KLW-M914A-A0 PULLEY,CONV. ASSY. 4 NG MNX0123-2016/12/8

 KLW-M9110-00 BELT,CONVEYOR 2

 KLW-M9110-01 BELT,CONVEYOR 2 OK MN60112-2016/6/23

 KLW-M911E-A0 SPLINE PULLEY ASSY. 2

 KLW-M911E-B0 SPLINE PULLEY ASSY. 2 NG MNX0123-2016/12/8

 KLW-M913A-A0 PULLEY ASSY. 4

 KLW-M913A-A2 PULLEY ASSY. 4 OK MN00081-2016/10/28

 KLW-M913K-00 BLOCK,TENSIONER 2 MNX0123-2016/12/8

 KLW-M914U-00 COVER,HNS. 1

KLW-M915J-00 STAY 2

 KLW-M913J-00 PLATE 2 NG MNX0123-2016/12/8

 KLW-M915K-00 PLATE 2

 KLW-M913L-00 PLATE 2 NG MNX0123-2016/12/8

 KLW-M915M-00 BELT 255-3GT-9 1

 KLW-M915N-00 PLATE 1

 KLW-M915R-00 PLATE 1

 KLW-M918R-01 STAY,SPLINE 1

 KLW-M918X-00 SPLINE 1 1

 KLW-M9196-00 BRKT.,CONV.MOTOR 1

 KLW-M91M5-A0 CV MOTOR SUB ASSY.1 1

 KLW-M91M7-A0 BRG.SUB ASSY.1 1

 KLW-M91P5-00 PULLEY:P50-3GT 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 KLW-M91P7-00 PLATE,CONV. MOTOR 1

 KV7-M9140-A0 PULLEY CONV. ASSY 2

 KLW-M9140-A0 PULLEY CONV. ASSY 2 NG MNX0123-2016/12/8

 90990-41J006 COLLAR 1

 90KC1-011203 AC SERVO MOTOR 1

 91312-04006 BOLT HEX,SOCKET HEAD 6

 91312-04008 BOLT HEX,SOCKET HEAD 10

 91312-04010 BOLT HEX,SOCKET HEAD 17

 91312-05008 BOLT HEX,SOCKET HEAD 2

 91312-05010 BOLT HEX,SOCKET HEAD 3

 91312-05012 BOLT HEX,SOCKET HEAD 2

 91312-05014 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 10

 92902-05200 WASHER,PLAIN 4

 92A08-04303 SCREW SET 2

 98702-03005 SCREW,FLAT HEAD 16

99480-03008 PIN,PARALLEL 4

Width Holder Sub (UR)

90990-25J024 BEARING 2

 KHY-M9152-00 SPACER 2

 KKE-M9143-A0 PULLEY ASSY. 1

 KKE-M9185-00 PLATE 1,GUIDE 2

 KKE-M9184-00 HOLDER A,BRG. 1

 KKE-M9184-10 HOLDER B,BRG. 1

 KKE-M9186-00 PLATE 2,GUIDE 2

 KKE-M9187-00 PLATE 3,GUIDE 2

 KKE-M9188-00 PLATE 4

 KKE-M9189-00 HOLDER 2,NUT 2

 KKE-M918B-00 HOLDER 1,NUT 2

 KKE-M918C-00 PLATE 1,BRG. 2

 KKE-M918E-00 PULLEY:P50-3GT 2

 KKE-M918F-00 SPACER 2

 KKE-M919C-00 COLLAR 2,BRG. 2

 KKE-M919V-00 DAMPER B 2

 KLW-M9141-00 PLATE,BASE 1

 KLW-M9143-00 PLATE,BASE 1

 KLW-M9145-00 PLATE 1

 KLW-M9146-00 PLATE 1

 KLW-M9147-00 PLATE 1

 KLW-M9180-00 LM GUIDE 2

 KLW-M918D-00 PLATE,PULLEY 1

 KLW-M919T-00 BELT 1851-3GT-9 1

 90933-01J807 BEARING 4

 90933-02J608 BEARING 2

 91312-04006 BOLT HEX,SOCKET HEAD 8

 91312-04012 BOLT HEX,SOCKET HEAD 16

 91312-04014 BOLT HEX,SOCKET HEAD 8

 91312-04016 BOLT HEX,SOCKET HEAD 26

 91312-04035 BOLT HEX,SOCKET HEAD 2

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-05012 BOLT HEX,SOCKET HEAD 12

 91312-05016 BOLT HEX,SOCKET HEAD 12

 91312-05030 BOLT HEX,SOCKET HEAD 1

 91312-06020 BOLT HEX,SOCKET HEAD 12

 91312-08025 BOLT HEX,SOCKET HEAD 8

 92012-05030 BOLT BUTTON HEAD 1

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 99480-06012 PIN,PARALLEL 4

 KLW-M91B1-A0 CV.BASE ASSY.1 1

 KLW-M91UA-A0 HOLDER SUB ASSY.UA 1

 KLW-M91U2-A0 HOLDER SUB ASSY.U2 1

 KLW-M91W1-A0 HOLDER SUB ASSY.W1 1

 KLW-M91W2-A0 HOLDER SUB ASSY.W2 1

KLW-M91W3-A0 BRG.SUB ASSY. 1

Width Screw (UR)

90933-01J000 BEARING 2

 90990-25J024 BEARING 4

 90990-28J018 WASHER,PLAIN 1

 90K65-312350 AC SERVO MOTOR 1

 91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 12

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 8

 91312-05008 BOLT HEX,SOCKET HEAD 8

 91312-05012 BOLT HEX,SOCKET HEAD 12

 91312-05030 BOLT HEX,SOCKET HEAD 10

 91312-06008 BOLT HEX,SOCKET HEAD 2

 KG2-M2604-00 SUPPORT UNIT 2

 KKE-M9181-00 HOLDER 1,BRG. 2

 KKE-M9182-00 HOLDER 2,BRG. 2

 KKE-M9183-00 STAY 1 2

 KKE-M918A-00 PLATE,NUT 4

 KKE-M918G-00 SLEEVE 2

 KKE-M918P-10 BRACKET,DOG 1

 KKE-M9197-A0 PULLEY ASSY. 2

 KKE-M9198-00 PULLEY:P30-3GT 1

 KKE-M919C-00 COLLAR 2,BRG. 2

 KKE-M919K-00 PLATE,DOG 1

 KLW-M653C-00 SENSOR,UA ORG ASSY 1

 KLW-M915L-00 COVER,PULLEY 1

 KLW-M918J-00 STAY,U MOTOR 1

 KLW-M918L-00 PLATE,TENSIONER 1

 KLW-M9199-00 BELT 783-3GT-9 1

 KLW-M919A-00 BALL SCREW 2

 KLW-M919J-00 PLATE,SENSOR 1

 KLW-M919W-00 DAMPER 2

 91312-06012 BOLT HEX,SOCKET HEAD 8

 91312-06100 BOLT HEX,SOCKET HEAD 4

 92012-04010 BOLT, BOTTON HEAD 1

 92902-04600 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 92A08-06306 SCREW SET 4

 99009-10400 CIRCLIP 2

 KLW-M91U3-A0 HOLDER SUB ASSY. 2

 KLW-M91U4-A0 HOLDER SUB ASSY. 2

 KLW-M91U6-A0 TENSIONER ASSY. 1

KLW-M91M1-A0 UA MOTOR SUB ASSY. 1

Width Frame (UR)

91312-03006 BOLT HEX,SOCKET HEAD 16

2 91312-03008 BOLT HEX,SOCKET HEAD 12

 91312-03012 BOLT HEX,SOCKET HEAD 12 NG MNX0123-2016/12/8

 91312-03010 BOLT HEX,SOCKET HEAD 26

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 8

 91312-05030 BOLT HEX,SOCKET HEAD 2

 KKE-M9143-A0 PULLEY ASSY. 2

 KLW-M914L-00 PLATE,PIN GUARD 1

 KLW-M914M-00 PLATE,PIN GUARD 1

 90990-01J064 BOLT HEX.SOCKET HEAD 4

 KKE-M919C-00 COLLAR 2,BRG. 2

 KLW-M653P-30 SENSOR DS CV4 ASSY(Fiber+Amp) 1 KLW-M653R-30(Amp)KLC-M9192-00(Fiber)

 KLW-M653P-60 SENSOR DS CV7 ASSY(Fiber+Amp) 1 KLW-M653R-60(Amp)KLC-M9192-00(Fiber)

 KLC-M9203-00 LINEAR BUSHING 4

 KLW-M653K-00 SEN.CV2 F PUSH1 ASSY 1

 KLW-M653K-10 SEN.CV2 F PUSH2 ASSY 1

 KLW-M653K-20 SEN.CV2 R PUSH1 ASSY 1

 KLW-M653K-30 SEN.CV2 R PUSH2 ASSY 1

 KLW-M9148-00 PLATE,GUIDE 1 L-R

 KLW-M9149-00 PLATE,GUIDE 1 R-L

 KLW-M914G-00 PIN 4

 KLW-M914K-00 SPRING 4

 90990-25J024 BEARING 4

 KLW-M914N-00 STAY,SENSOR 4

 KLW-M914R-00 COVER,CABLE 1

 KLW-M9151-00 PLATE,GUIDE 2

 KLW-M915E-00 GUIDE,HNS. 1

 KLW-M9191-00 FRAME,CONVEYOR 2

 KLW-M9192-00 PLATE,GUIDE 4

 KLW-M9192-10 BLOCK,GUIDE 4 NG MNX0123-2016/12/8

 KLW-M9193-00 PLATE,GUIDE 1

 KLW-M9194-00 PLATE,GUIDE 1

 KLW-M919B-00 GUIDE B 2

 KLW-M919H-00 GUIDE C 2

 KLW-M919L-00 STAY,PULLEY 4

 KLW-M919N-00 STAY,SENSOR 4

 91312-06025 BOLT HEX,SOCKET HEAD 8

 92012-04010 BOLT, BOTTON HEAD 20

 92902-04200 WASHER,PLAIN 1

 92902-05200 WASHER,PLAIN 2

 95302-03700 NUT HEXAGON 32

Width Duct (UR)

90990-25J024 BEARING 2

 90990-46J010 BOLT, THIN HEAD 3

 90KC1-011B07 AC SERVO MOTOR 1

 91312-04005 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 5

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-05030 BOLT HEX,SOCKET HEAD 1

 92012-04006 BOLT, BOTTON HEAD 2

 92012-05010 BOLT BUTTON HEAD 2

 92012-06012 BOLT BUTTON HEAD 4

 KKE-M918S-01 COVER,DUCT 1

 KKE-M919C-00 COLLAR 2,BRG. 1

 KKE-M919E-11 BRKT.1,DUCT 1

 KKE-M919G-11 BRKT.2,DUCT 1

 KLW-M914B-00 TAPE,U2 DUCT 1 1

 KLW-M914C-00 TAPE,U2 DUCT 2 1

 KLW-M914D-00 TAPE,W2 DUCT 1 1

 KLW-M914E-00 TAPE,W2 DUCT 1 1

 KLW-M914F-00 PLATE 1

 KLW-M914S-00 GUIDE,HNS. 1

 KLW-M914T-00 GUIDE,HNS. 1

 KLW-M918T-00 BRKT.,W MOTOR 1

 KLW-M918U-00 DUCT,CABLE 1

 KLW-M919F-00 DUCT,CABLE 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 92A08-04303 SCREW SET 1

 98702-03005 SCREW,FLAT HEAD 8

 KLW-M91U8-A0 DUCT SUB ASSY. 1

KLW-M91M3-A0 W MOTOR SUB ASSY.1 1

Trasport (R)

KH2-M9121-00 BEARING 2

 KHW-M9137-00 COLLAR,BRG. 1

 KKE-M918N-00 BRACKET 1,COLLAR 1

 KLW-M918N-00 BRACKET,COLLAR 1 NG MNX0123-2016/12/8

 KLF-M9150-A0 PULLEY,CONV. ASSY 2

 KLW-M914A-A0 PULLEY,CONV. ASSY. 2 NG MNX0123-2016/12/8

 KLV-M917S-00 GUIDE 1

 KLV-M917T-00 GUIDE 1

 KLW-M653P-20 SENSOR DS CV3 ASSY 1 KLW-M653R-20(Amp)KLC-M9192-00(Fiber)

 KLW-M911F-A0 SPLINE PULLEY ASSY. 1

 KLW-M911F-B0 SPLINE PULLEY ASSY. 1 NG MNX0123-2016/12/8

 KLW-M913A-A0 PULLEY ASSY. 4

 KLW-M913A-A2 PULLEY ASSY. 4 OK MN00081-2016/10/28

 KLW-M913R-00 BLOCK,TENSIONER 2

 KLW-M9149-00 PLATE,GUIDE 1 R-L

 KLW-M9151-00 PLATE,GUIDE 1 L-R

 KLW-M915U-00 BRKT.,TENSIONER 2

 KLW-M913L-00 PLATE 2 NG MNX0123-2016/12/8

 KLW-M915V-00 BRKT.,TENSIONER 1

 KLW-M9177-00 FRAME,CONVEYOR 2

 KLW-M9178-00 PLATE,GUIDE 2 Common

 KLW-M9179-00 PLATE,GUIDE 1

 KLW-M917B-00 PLATE,GUIDE 2

 KLW-M917B-10 BLOCK,GUIDE 2 NG MNX0123-2016/12/8

 KLW-M917E-00 STAY,PULLEY 2

 KLW-M917F-00 STAY,SENSOR 2

 KLW-M917H-00 BELT,CONVEYOR 2

 KLW-M917H-01 BELT,CONVEYOR 2 OK MN60112-2016/6/23

 KLW-M917K-00 SPLINE 1 1

 KLW-M917L-00 BELT 297-3GT-9 1

 KLW-M917U-00 PULLEY 1,MOTOR 1

 KLW-M913V-A0 PULLEY ASSY. 1 NG MNX0123-2016/12/8

 KLW-M919B-00 GUIDE B 1

 KLW-M919H-00 GUIDE C 1

 KLW-M91FE-A0 FRAME ASSY.E 1 R-L

 KLW-M91FF-A0 FRAME ASSY.F 1

 KLW-M91FL-A0 FRAME ASSY.L 1 L-R (Only different parts are published.)

 KLW-M91P5-00 PULLEY:P50-3GT 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 KV7-M9140-A0 PULLEY CONV. ASSY 2

 KLW-M9140-A0 PULLEY CONV. ASSY 2 NG MNX0123-2016/12/8

 90990-25J024 BEARING 2

 90990-28J070 WASHER,PLAIN 1

 90990-28J110 WASHER,PLAIN 1

 90KC1-011402 AC SERVO MOTOR 1

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03008 BOLT HEX,SOCKET HEAD 6

 91312-03012 BOLT HEX,SOCKET HEAD 6 NG MNX0123-2016/12/8

 91312-03010 BOLT HEX,SOCKET HEAD 16

 91312-03014 BOLT HEX,SOCKET HEAD 4

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 1

 91312-04010 BOLT HEX,SOCKET HEAD 15

 91312-04025 BOLT HEX,SOCKET HEAD 4

 91312-05008 BOLT HEX,SOCKET HEAD 2

 90990-46J010 BOLT,THIN HEAD 2 NG MNX0123-2016/12/8

 91312-05014 BOLT HEX,SOCKET HEAD 2

 91312-05020 BOLT HEX,SOCKET HEAD 1

 92012-04010 BOLT, BOTTON HEAD 4

 92902-04600 WASHER,PLAIN 4

 92902-04200 WASHER,PLAIN 4 NG MNX0123-2016/12/8

 92902-05200 WASHER,PLAIN 5

92A08-04303 SCREW SET 3

 95302-03700 NUT HEXAGON 8

Width Screw (R)

90990-25J024 BEARING 2

 90990-28J058 WASHER,PLAIN 2

 90990-28J070 WASHER,PLAIN 24 90KC1-011306 AC SERVO MOTOR 1

 91312-04005 BOLT HEX,SOCKET HEAD 8

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04014 BOLT HEX,SOCKET HEAD 8

 KG7-M9111-01 PULLEY 1 3

 KH2-M9121-00 BEARING 4

 KHW-M9137-00 COLLAR,BRG. 1

 KLW-M9155-00 PLATE 2

 KLW-M9157-00 BRKT.,SENSOR 1 L-R

 KLW-M915V-00 BRKT.,TENSIONER 1

 KLW-M9175-00 STAY,CONVEYOR 2

 KLW-M9176-00 STAY,CONVEYOR 1

 KLW-M917D-A0 BRG.ASSY. 1

 KLW-M917J-00 BELT 417-3GT-9 1

 KLW-M917V-00 BALL SCREW 2

 KLW-M917W-00 BRKT.,SENSOR 1 R-L

 KLW-M91M9-A0 CV MOTOR SUB ASSY.3 1

 KLW-M91MA-A0 W MOTOR SUB ASSY.3 1

 91312-05006 BOLT HEX,SOCKET HEAD 2

 91312-05008 BOLT HEX,SOCKET HEAD 2

 91312-05014 BOLT HEX,SOCKET HEAD 19

 91312-05020 BOLT HEX,SOCKET HEAD 1

 91312-06010 BOLT HEX,SOCKET HEAD 2

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 11

 92A08-04303 SCREW SET 5

Width Base (R)

$KM-11 MUFFLER 1

 $TSH6-01 JOINT 1

 90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 3

 91312-04025 BOLT HEX,SOCKET HEAD 3

 91312-05010 BOLT HEX,SOCKET HEAD 5

 KLC-M910N-00 SPACER 1

 KLF-M915B-00 SPACER 1

 KLW-M9156-00 PLATE,STOPPER 1

 KLW-M915G-00 DUCT,CABLE 1

 KLW-M9174-00 PLATE 2

 KLW-M917G-00 STAY,DUCT 1

 KLW-M917M-00 DAMPER 1

 KLW-M917N-00 DAMPER 1

 KLW-M917R-00 BRKT.,DUCT 1

 KLW-M917Y-00 PLATE,VALVE 1

 KLW-M91B3-A0 CONV.BASE SUB ASSY.3 1

 KLW-M91G1-A0 STOPPER SUB ASSY.1 1

 KLW-M91G2-A0 STOPPER SUB ASSY.2 1

 KLW-M91G6-A0 DUCT SUB ASSY.2 1

 KLW-M91VA-A0 VALVE DS RL-R ASSY 1 R-L

 KLW-M91VB-B0 VALVE DS LR-R ASSY 1 L-R

 91312-05040 BOLT HEX,SOCKET HEAD 8

 91312-06022 BOLT HEX,SOCKET HEAD 4

 92902-04600 WASHER,PLAIN 2

Trasport (UL)

90990-41J006 COLLAR W 1

 90KC1-011704 AC SERVO MOTOR 1

 91312-03006 BOLT HEX,SOCKET HEAD 8

 91312-04006 BOLT HEX,SOCKET HEAD 6

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 5

 91312-05006 BOLT HEX,SOCKET HEAD 2

 91312-05010 BOLT HEX,SOCKET HEAD 4

 91312-05014 BOLT HEX,SOCKET HEAD 4

 KH2-M9121-00 BEARING 2

 KKE-M918Y-00 SHAFT 1

 KLW-M653P-A0 SENSOR DS CV11 ASSY (Fiber+Amp) 1 KLW-M653R-A0(Amp)KLC-M9192-00(Fiber)

 KLF-M9135-01 PLATE,EDGE 2 8

 KLW-M9110-00 BELT,CONVEYOR 2

 KLW-M9110-01 BELT,CONVEYOR 2 OK MN60112-2016/6/23

 KLW-M911E-A0 SPLINE PULLEY ASSY. 2

 KLW-M911E-B0 SPLINE PULLEY ASSY. 2 NG MNX0123-2016/12/8

 KLW-M9155-00 PLATE 1

 KLW-M653P-70 SENSOR DS CV8 ASSY (Fiber+Amp) 1 KLW-M653R-70(Amp)KLW-M915B-00(Fiber)

 KLW-M915M-00 BELT 255-3GT-9 1

 KLW-M915N-00 PLATE 1

 KLW-M918W-00 STAY,MOTOR 1

 KLW-M918X-00 SPLINE 1 1

 KLW-M9197-01 STAY,SPLINE 1

 KLW-M919M-00 COVER,HNS. 1

 KLW-M919N-00 STAY,SENSOR 4

 KLW-M91M6-A0 CV MOTOR SUB ASSY.2 1

 KLW-M91P5-00 PULLEY:P50-3GT 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 KLW-M91P7-00 PLATE,CONV. MOTOR 1

 91312-05040 BOLT HEX,SOCKET HEAD 2

 92012-04010 BOLT, BOTTON HEAD 8

 92902-04200 WASHER,PLAIN 2

 92A08-04303 SCREW SET 2

 98702-03005 SCREW,FLAT HEAD 16

Width Holder Sub (UL)

90933-01J807 BEARING 4

 90933-02J608 BEARING 2

 91312-04006 BOLT HEX,SOCKET HEAD 8

 91312-04012 BOLT HEX,SOCKET HEAD 16

 91312-04014 BOLT HEX,SOCKET HEAD 8

 91312-04016 BOLT HEX,SOCKET HEAD 27

 91312-04035 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-05012 BOLT HEX,SOCKET HEAD 14

 KHY-M9152-00 SPACER 1

 KHY-M9154-00 SPACER 1

 KKE-M9143-A0 PULLEY ASSY. 1

 KKE-M9184-00 HOLDER A,BRG. 1

 KKE-M9184-10 HOLDER B,BRG. 1

 KKE-M9185-00 PLATE 1,GUIDE 2

 KKE-M9186-00 PLATE 2,GUIDE 2

 KKE-M9187-00 PLATE 3,GUIDE 2

 KKE-M9188-00 PLATE 4

 KKE-M9189-00 HOLDER 2,NUT 2

 KKE-M918B-00 HOLDER 1,NUT 2

 KKE-M918C-00 PLATE 1,BRG. 2

 KKE-M918E-00 PULLEY:P50-3GT 2

 KKE-M918F-00 SPACER 2

 KKE-M919C-00 COLLAR 2,BRG. 2

 KKE-M919U-00 DAMPER A 1

 KKE-M919V-00 DAMPER B 1

 KLW-M9142-00 PLATE,BASE 1

 KLW-M9144-00 PLATE,BASE 1

 KLW-M9145-00 PLATE 1

 KLW-M9146-00 PLATE 1

KLW-M9147-00 PLATE 1

 KLW-M9180-00 LM GUIDE 2

 KLW-M918D-00 PLATE,PULLEY 1

 KLW-M919T-00 BELT 1851-3GT-9 1

 KLW-M919Y-00 PLATE,AMP 1

 KLW-M91B2-A0 CV.BASE ASSY.2 1

 KLW-M91U1-A0 HOLDER SUB ASSY.U1 1

 KLW-M91U2-A0 HOLDER SUB ASSY.U2 1

 KLW-M91W1-A0 HOLDER SUB ASSY.W1 1

 KLW-M91W2-A0 HOLDER SUB ASSY.W2 1

 KLW-M91W4-A0 BRG.SUB ASSY. 1

 91312-05016 BOLT HEX,SOCKET HEAD 12

 91312-05030 BOLT HEX,SOCKET HEAD 1

 91312-06020 BOLT HEX,SOCKET HEAD 12

 91312-06025 BOLT HEX,SOCKET HEAD 8

 91312-08025 BOLT HEX,SOCKET HEAD 6

 92012-05030 BOLT BUTTON HEAD 1

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 99480-06012 PIN,PARALLEL 4

 90990-25J024 BEARING 2

Width Screw (UL)

90933-01J000 BEARING 2

 90990-25J024 BEARING 4

 90990-28J018 WASHER,PLAIN 1

 90K65-312851 AC SERVO MOTOR 1

 91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 12

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 8

 91312-05008 BOLT HEX,SOCKET HEAD 8

 91312-05012 BOLT HEX,SOCKET HEAD 12

 91312-05030 BOLT HEX,SOCKET HEAD 10

 91312-06008 BOLT HEX,SOCKET HEAD 2

 91312-06012 BOLT HEX,SOCKET HEAD 6

 KG2-M2604-00 SUPPORT UNIT 2

 KKE-M9181-00 HOLDER 1,BRG. 2

 KKE-M9182-00 HOLDER 2,BRG. 2

 KKE-M9183-00 STAY 1 2

 KKE-M918A-00 PLATE,NUT 4

 KKE-M918G-00 SLEEVE 2

 KKE-M918P-00 BRACKET,DOG 1

 KKE-M9197-A0 PULLEY ASSY. 2

 KKE-M9198-00 PULLEY:P30-3GT 1

 KKE-M919C-00 COLLAR 2,BRG. 2

 KKE-M919K-00 PLATE,DOG 1

 KLW-M653C-10 SENSOR,UB ORG ASSY 1

 KLW-M915L-00 COVER,PULLEY 1

 KLW-M915W-00 DAMPER 2

 KLW-M918J-00 STAY,U MOTOR 1

 KLW-M918L-00 PLATE,TENSIONER 1

 KLW-M9199-00 BELT 783-3GT-9 1

 KLW-M919A-00 BALL SCREW 2

 KLW-M919J-00 PLATE,SENSOR 1

 91312-06100 BOLT HEX,SOCKET HEAD 4

 92012-04010 BOLT, BOTTON HEAD 1

 92902-04600 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 92A08-06306 SCREW SET 4

 99009-10400 CIRCLIP 2

Width Frame (UL)

90990-01J064 BOLT HEX.SOCKET HEAD 4

 90990-25J024 BEARING 4

 91312-03006 BOLT HEX,SOCKET HEAD 8

 91312-03008 BOLT HEX,SOCKET HEAD 12

 91312-03012 BOLT HEX,SOCKET HEAD 12 NG MNX0123-2016/12/8

 91312-03010 BOLT HEX,SOCKET HEAD 26

 91312-04005 BOLT HEX,SOCKET HEAD 1

 91312-04008 BOLT HEX,SOCKET HEAD 13

 91312-04010 BOLT HEX,SOCKET HEAD 8

 KKE-M9143-A0 PULLEY ASSY. 2

 KKE-M918N-00 BRACKET 1,COLLAR 2

 KKE-M919C-00 COLLAR 2,BRG. 2

 KLC-M9203-00 LINEAR BUSHING 4

 KLF-M9150-A0 PULLEY,CONV. ASSY 4

 KLW-M914A-A0 PULLEY,CONV. ASSY. 4 NG MNX0123-2016/12/8

 KLW-M653K-40 SEN.CV3 F PUSH1 ASSY 1

 KLW-M653K-50 SEN.CV3 F PUSH2 ASSY 1

 KLW-M653K-60 SEN.CV3 R PUSH1 ASSY 1

 KLW-M653K-70 SEN.CV3 R PUSH2 ASSY 1

 KLW-M913A-A0 PULLEY ASSY. 4

 KLW-M913A-A2 PULLEY ASSY. 4 OK MN00081-2016/10/28

 KLW-M9148-00 PLATE,GUIDE 1 R-L

 KLW-M914G-00 PIN 4

 KLW-M914K-00 SPRING 4

 KLW-M914L-00 PLATE,PIN GUARD 1

 KLW-M914M-00 PLATE,PIN GUARD 1

 KLW-M914N-00 STAY,SENSOR 4

 KLW-M9150-00 PLATE,GUIDE 1 L-R

 KLW-M9151-00 PLATE,GUIDE 2

 KLW-M915D-00 GUIDE,HNS. 1

 KLW-M915J-00 STAY 2

 KLW-M915K-00 PLATE 2

 KLW-M918M-00 COVER,CABLE 1

 KLW-M9191-00 FRAME,CONVEYOR 2

 KLW-M9192-00 PLATE,GUIDE 4

 KLW-M9192-10 BLOCK,GUIDE 4 NG MNX0123-2016/12/8

 KLW-M9193-00 PLATE,GUIDE 1

 KLW-M9194-00 PLATE,GUIDE 2 Common

 KLW-M919B-00 GUIDE B 2

 KLW-M919H-00 GUIDE C 2

 KLW-M919L-00 STAY,PULLEY 4

 KLW-M91FC-A0 FRAME ASSY.C 1 R-L

 KLW-M91FD-A0 FRAME ASSY.D 1

 KV7-M9140-A0 PULLEY CONV. ASSY 2

 91312-05008 BOLT HEX,SOCKET HEAD 2

 91312-05030 BOLT HEX,SOCKET HEAD 2

 92012-04010 BOLT, BOTTON HEAD 12

 92902-04200 WASHER,PLAIN 5

 92902-05200 WASHER,PLAIN 6

 95302-03700 NUT HEXAGON 32

KLW-M91FK-A0 FRAME ASSY.K 1 L-R (Only different parts are published.)

Width Duct (UL)

90990-25J024 BEARING 2

 90990-46J010 BOLT, THIN HEAD 3

 90KC1-011B13 AC SERVO MOTOR 1

 91312-04005 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 5

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-05030 BOLT HEX,SOCKET HEAD 1

 92012-04006 BOLT, BOTTON HEAD 2

 92012-05010 BOLT BUTTON HEAD 2

 KKE-M918S-01 COVER,DUCT 1

 KKE-M919C-00 COLLAR 2,BRG. 1

 KKE-M919E-01 BRKT.1,DUCT 1

 KKE-M919G-01 BRKT.2,DUCT 1

 KLW-M914B-00 TAPE,U2 DUCT 1 1

 KLW-M914C-00 TAPE,U2 DUCT 2 1

 KLW-M914D-00 TAPE,W2 DUCT 1 1

 KLW-M914E-00 TAPE,W2 DUCT 1 1

 KLW-M914F-00 PLATE 1

 KLW-M918U-00 DUCT,CABLE 1

 KLW-M918V-00 BRKT.,W MOTOR 1

 KLW-M919D-00 GUIDE,HNS. 1

 KLW-M919F-00 DUCT,CABLE 1

 KLW-M919S-00 GUIDE,HNS. 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 92012-06012 BOLT BUTTON HEAD 4

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 92A08-04303 SCREW SET 1

 98702-03005 SCREW,FLAT HEAD 8

 KLW-M91U9-A0 DUCT SUB ASSY. 1

KLW-M91M4-A0 W MOTOR SUB ASSY.2 1

Trasport (L)

90990-25J016 BEARING 2

 90990-28J070 WASHER,PLAIN 1

 90990-28J110 WASHER,PLAIN 1

 90KC1-011305 AC SERVO MOTOR 1

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03008 BOLT HEX,SOCKET HEAD 6

 91312-03012 BOLT HEX,SOCKET HEAD 6 NG MNX0123-2016/12/8

 91312-03010 BOLT HEX,SOCKET HEAD 16

 91312-03014 BOLT HEX,SOCKET HEAD 4

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 1

 91312-04010 BOLT HEX,SOCKET HEAD 15

 KLW-M911F-A0 SPLINE PULLEY ASSY. 1

 KLW-M911F-B0 SPLINE PULLEY ASSY. 1 NG MNX0123-2016/12/8

 KH2-M9121-00 BEARING 2

 KHW-M9137-00 COLLAR,BRG. 1

 KKE-M918N-00 BRACKET 1,COLLAR 1

 KLW-M918N-00 BRACKET,COLLAR 1 NG MNX0123-2016/12/8

 KLW-M653P-B0 SENSOR DS CV12 ASSY (Fiber+Amp) 1 KLW-M653R-B0(Amp)KLC-M9192-00(Fiber)

 KLF-M9150-A0 PULLEY,CONV. ASSY 2

 KLW-M914A-A0 PULLEY,CONV. ASSY. 2 NG MNX0123-2016/12/8

 KLV-M917S-00 GUIDE 1

 KLV-M917T-00 GUIDE 1

 KLW-M913A-A0 PULLEY ASSY. 4

 KLW-M913A-A2 PULLEY ASSY. 4 OK MN00081-2016/10/28

 KLW-M9150-00 PLATE,GUIDE 1 L-R

 KLW-M9151-00 PLATE,GUIDE 1 R-L

 KLW-M915U-00 BRKT.,TENSIONER 2

 KLW-M913L-00 PLATE 2 NG MNX0123-2016/12/8

 KLW-M915V-00 BRKT.,TENSIONER 1

 KLW-M9177-00 FRAME,CONVEYOR 2

 KLW-M9178-00 PLATE,GUIDE 2 Common

 KLW-M917A-00 PLATE,GUIDE 1

 KLW-M917B-00 PLATE,GUIDE 2

 KLW-M917B-10 BLOCK,GUIDE 2 NG MNX0123-2016/12/8

 KLW-M917E-00 STAY,PULLEY 2

 KLW-M917F-00 STAY,SENSOR 2

 KLW-M917H-00 BELT,CONVEYOR 2

 KLW-M917H-01 BELT,CONVEYOR 2 OK MN60112-2016/6/23

 KLW-M917K-00 SPLINE 1 1

 KLW-M917L-00 BELT 297-3GT-9 1

 KLW-M917U-00 PULLEY 1,MOTOR 1

 KLW-M913V-A0 PULLEY ASSY. 1 NG MNX0123-2016/12/8

 KLW-M919B-00 GUIDE B 1

KLW-M919H-00 GUIDE C 1

 KLW-M91P5-00 PULLEY:P50-3GT 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 KV7-M9140-A0 PULLEY CONV. ASSY 2

 KLW-M9140-A0 PULLEY CONV. ASSY 2 NG MNX0123-2016/12/8

 91312-05008 BOLT HEX,SOCKET HEAD 2

 90990-46J010 BOLT,THIN HEAD 2 NG MNX0123-2016/12/8

 91312-05014 BOLT HEX,SOCKET HEAD 2

 91312-05020 BOLT HEX,SOCKET HEAD 1

 92012-04010 BOLT, BOTTON HEAD 4

 92902-04600 WASHER,PLAIN 4

 92902-04200 WASHER,PLAIN 4 NG MNX0123-2016/12/8

 92902-05200 WASHER,PLAIN 5

 92A08-04303 SCREW SET 3

 95302-03700 NUT HEXAGON 8

 KLW-M91FG-A0 FRAME ASSY.G 1 R-L

 KLW-M91FH-A0 FRAME ASSY.H 1

 KLW-M91FM-A0 FRAME ASSY.M 1 L-R (Only different parts are published.)

 KLW-M913R-00 BLOCK,TENSIONER 2 NG MNX0123-2016/12/8

 91312-04025 BOLT HEX,SOCKET HEAD 4

Width Screw (L)

90990-25J016 BEARING 2

 90990-28J058 WASHER,PLAIN 2

 90990-28J070 WASHER,PLAIN 2

 90KC1-011420 AC SERVO MOTOR 1

 91312-04005 BOLT HEX,SOCKET HEAD 8

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04014 BOLT HEX,SOCKET HEAD 8

 KG7-M9111-01 PULLEY 1 3

 KH2-M9121-00 BEARING 4

 KHW-M9137-00 COLLAR,BRG. 1

 KLW-M9155-00 PLATE 2

 KLW-M9157-00 BRKT.,SENSOR 1 L-R

 KLW-M915V-00 BRKT.,TENSIONER 1

 KLW-M9175-00 STAY,CONVEYOR 2

 KLW-M9176-00 STAY,CONVEYOR 1

 KLW-M917J-00 BELT 417-3GT-9 1

 KLW-M917V-00 BALL SCREW 2

 KLW-M917W-00 BRKT.,SENSOR 1 R-L

 91312-05006 BOLT HEX,SOCKET HEAD 2

 91312-05008 BOLT HEX,SOCKET HEAD 2

 91312-05014 BOLT HEX,SOCKET HEAD 19

 91312-05020 BOLT HEX,SOCKET HEAD 1

 91312-06010 BOLT HEX,SOCKET HEAD 2

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 11

 92A08-04303 SCREW SET 5

 KLW-M91MB-A0 CV MOTOR SUB ASSY.4 1

 KLW-M91MC-A0 W MOTOR SUB ASSY.4 1

KLW-M917D-A0 BRG.ASSY. 1

Width Base (L)

$KM-11 MUFFLER 1

 $TSH6-01 JOINT 1

 90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 3

 91312-04025 BOLT HEX,SOCKET HEAD 3

 91312-05010 BOLT HEX,SOCKET HEAD 5

 91312-05040 BOLT HEX,SOCKET HEAD 8

 91312-06022 BOLT HEX,SOCKET HEAD 4

 92902-04600 WASHER,PLAIN 2

 KLC-M910N-00 SPACER 1

 KLF-M915B-00 SPACER 1

 KLW-M9156-00 PLATE,STOPPER 1

 KLW-M915G-00 DUCT,CABLE 1

 KLW-M9174-00 PLATE 2

 KLW-M917G-00 STAY,DUCT 1

 KLW-M917M-00 DAMPER 1

 KLW-M917N-00 DAMPER 1

 KLW-M917P-00 BRKT.,DUCT 1

 KLW-M917Y-00 PLATE,VALVE 1

 KLW-M91B4-A0 CONV.BASE SUB ASSY.4 1

 KLW-M91G1-A0 STOPPER SUB ASSY.1 1

 KLW-M91VA-B0 VALVE DS LR-L ASSY 1 L-R

 KLW-M91VB-A0 VALVE DS RL-L ASSY 1 R-L

 KLW-M91G5-A0 DUCT SUB ASSY.1 1

Sensor-board detection

97602-03310 SCREW PAN HEAD W/WASHER 8

 98502-03005 SCREW PAN HEAD 24

 KLF-M9156-01 HOLDER, SENSOR 12

 KLW-M653H-00 SEN.L1 CV RIGHT ASSY 2

 KLW-M653H-00 SEN.L1 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653J-00 SEN.DS CV LEFT ASSY 2

 KLW-M653J-00 SEN.DS CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653P-00 SENSOR DS CV1 ASSY (Fiber+Amp) 1 KLW-M653R-00(Amp)KHM-M654B-01(Fiber)

 KLW-M653P-10 SENSOR DS CV2 ASSY (Fiber+Amp) 1 KLW-M653R-10(Amp)KHM-M654B-01(Fiber)

 KLW-M653P-40 SENSOR DS CV5 ASSY (Fiber+Amp) 2 KLW-M653R-40(Amp)KHM-M654B-01(Fiber)

 KLW-M653P-50 SENSOR DS CV6 ASSY (Fiber+Amp) 2 KLW-M653R-50(Amp)KHM-M654B-01(Fiber)

 KLW-M653P-80 SENSOR DS CV9 ASSY (Fiber+Amp) 2 KLW-M653R-80(Amp)KLW-M915A-00(Fiber)

 KLW-M653P-90 SENSOR DS CV10 ASSY (Fiber+Amp) 2 KLW-M653R-90(Amp)KHM-M654B-01(Fiber)

 KLW-M653P-C0 SENSOR DS CV13 ASSY (Fiber+Amp) 1 KLW-M653R-C0(Amp)KHM-M654B-01(Fiber)

 KLW-M653P-D0 SENSOR DS CV14 ASSY (Fiber+Amp) 1 KLW-M653R-D0(Amp)KHM-M654B-01(Fiber)

 KLW-M653U-401 SEN.L1 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653U-601 SEN.DS CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

Extension conveyer

1 91312-03008 BOLT HEX,SOCKET HEAD 12

 91312-03012 BOLT HEX,SOCKET HEAD 12 NG MNX0123-2016/12/8

 91312-03010 BOLT HEX,SOCKET HEAD 24

 91312-03014 BOLT HEX,SOCKET HEAD 8

 KLV-M917S-00 GUIDE 2

 KLV-M917T-00 GUIDE 2

 KLW-M913A-A0 PULLEY ASSY. 4

 KLW-M913A-A2 PULLEY ASSY. 4 OK MN00081-2016/10/28

 KLW-M9157-00 BRKT.,SENSOR 2 L-R

 KLW-M917W-00 BRKT.,SENSOR 2 R-L

 KLW-M9521-00 FRAME,CONVEYOR 4

 KLW-M9523-00 PLATE,GUIDE 4

 KLW-M9524-00 PLATE,GUIDE 4

 KLW-M9524-10 BLOCK,GUIDE 4 NG MNX0123-2016/12/8

 KLW-M9525-00 PLATE,JOINT 4

 KLW-M9527-00 PLATE,HNS. 2

 KLW-M957H-00 BELT,CONVEYOR 4

 KLW-M957H-01 BELT,CONVEYOR 4 OK MN60112-2016/6/23

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 8

Push Up

90440-01J090 CIRCLIP 2

 90933-01J001 BEARING 2

 90933-01J007 BEARING 4

 90933-01J300 BEARING 2

 90990-01J065 BOLT HEX,SOCKET HEAD 2

 90990-28J076 WASHER,PLAIN 1

 90K65-332G74 AC SERVO MOTOR 1

 91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 6

 91312-04012 BOLT HEX,SOCKET HEAD 9

 91312-04020 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 9

 91312-05012 BOLT HEX,SOCKET HEAD 20

 KGA-M921T-00 BOLT 8

 KHW-M9215-00 PULLEY:P60-3GT 2

 KHW-M921A-00 BRKT.,TENSIONER 1

 KHW-M921B-00 STAY,ADJUST 1

 KHW-M921C-00 SHAFT 1 1

 KHW-M9222-00 POST 1

 KHW-M9223-00 PULLEY:P40-3GT 1

 KHY-M9211-00 HOLDER,BRG. 2

 KHY-M9212-00 HOUSING 2

 KHY-M921D-00 BELT 315-3GT-15 1

 KHY-M921G-01 BRKT.,DOG 1

 KHY-M921M-01 WASHER 2

 KHY-M921N-01 JOINT A 2

 KKE-M9218-00 GROMMET 1

 KLW-M653D-20 SENSOR,PUB ORG ASSY 1

 KLW-M920D-00 PLATE,PU BASE 1

 KLW-M920G-01 STAY 1

 KLW-M920K-00 PLATE 1(400x425) 2

 KLW-M9213-00 BALL SCREW PU 2

 KLW-M9217-00 BALL BUSH 2

 KLW-M9218-00 SHAFT 2

 KLW-M921H-02 PLATE,DOG 1

 KLW-M921K-00 BRKT.,SENSOR 1

 KLW-M921N-00 BELT 1170-3GT-15 1

 KLW-M921S-00 BRKT.,MOTOR 1

 KLW-M9221-01 DAMPER 2

 KV7-M9205-01 PULLEY 1:P22-3GT 1

 91312-05016 BOLT HEX,SOCKET HEAD 16

 91312-05020 BOLT HEX,SOCKET HEAD 1

 91312-06020 BOLT HEX,SOCKET HEAD 8

 92902-04200 WASHER,PLAIN 4

 92902-05200 WASHER,PLAIN 14

 95302-04600 NUT HEXAGON 1

 95602-10100 NUT, U 8

 99009-10400 CIRCLIP 1

 99009-12400 CIRCLIP 1

 KLW-M9201-A0 DRIVE UNIT ASSY. 2

 KLW-M9203-D0 STAY ASSY. 1

 KLW-M9204-A0 TENTIONER ASSY. 1

 KLW-M9205-A0 PULLEY ASSY. 1

 KLW-M9208-A0 MOTOR ASSY. 1

 KLW-M9209-B0 SENSOR SUB ASSY. 1

 KHY-M920D-00 PUSH UP PIN UNIT 1

Main / Sub / Exit Stopper

91312-04006 BOLT HEX,SOCKET HEAD 12

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 16

 KHW-M9274-A0 SPEED CONTROLLER 16

 KHW-M9272-00 STOPPER,EXIT 2

 KHW-M9282-00 STOPPER,SUB 6

 KHY-M9284-00 PLATE,STOPPER 8

 KKT-M9161-00 BRKT.,CYLINDER 6

 KKT-M9271-00 PLATE,STOPPER 2

 KLW-M653M-00 CYL.RL L1CV ST1 ASSY 1

 KLW-M653M-10 CYL.RL L1CV ST2 ASSY 1

 KLW-M653M-20 CYL.RL L1CV ST3 ASSY 1

 KLW-M653M-40 CYL.RL L1CV ST5 ASSY 1

 KLW-M653M-A0 CYL.LR L1CV ST1 ASSY 1

 KLW-M653M-C0 CYL.LR L1CV ST3 ASSY 1

 KLW-M653M-D0 CYL.LR L1CV ST4 ASSY 1

 KLW-M653M-E0 CYL.LR L1CV ST5 ASSY 1

 91312-05014 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 4

 KLW-M9160-00 MAIN STP.ASSY.1-1 1

 KLW-M9160-20 MAIN STP.ASSY.1-1 1

 KLW-M9270-00 EXIT STOPPER ASSY.1 1

 KLW-M9270-10 EXIT STOPPER ASSY.1 1

 KLW-M9280-00 SUB STP.ASSY.1-1 1

 KLW-M9280-10 SUB STP.ASSY.1-2 1

 KLW-M9280-20 SUB STP.ASSY.1-1 1

KLW-M9280-30 SUB STP.ASSY.1-2 1

Clamp Board

90169-02JB04 SCREW, BINDING HEAD 48

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 20

 91312-04014 BOLT HEX,SOCKET HEAD 8

 91312-04016 BOLT HEX,SOCKET HEAD 4

 92012-04006 BOLT, BOTTON HEAD 8

 92012-04010 BOLT, BOTTON HEAD 8

 KHW-M9167-00 BRKT.,CYL. 4

 KHW-M916E-00 BUSH 4

 KHW-M9261-01 PLATE1,LINK 8

 KHW-M9264-A0 LINK A ASSY. 4

 KHW-M9264-B0 LINK B ASSY. 4

 KHW-M9265-00 SPACER 16

 KHW-M926A-00 COLLAR 8

 KHW-M926B-00 COLLAR, JOINT 4

 KHW-M926E-00 NUT 4

 KHY-M926F-00 JOINT , CYL. BRKT 4

 KHY-M926H-00 JOINT, CYL. 4

 KHY-M926M-00 STOPPER, CYLINDER 4

 KHY-M926S-A0 SPEED CONTROLLER 8

 KKE-M926F-00 COLLAR,FLOATING 4

 KKT-M9269-00 BRKT.,CYL. 4

 KLT-M9263-00 CYLINDER 4

 KLW-M9266-00 PLATE 1,LINK 2

 KLW-M9268-00 PLATE,BASE 2

 KLW-M926U-00 PLATE 2,LINK 2

 KLW-M926V-00 PLATE,BOARD CLAMP 2

KLW-M926W-00 PLATE,BOARD CLAMP 2

 KLW-M926X-00 PLATE,BASE S 2

 KLW-M926Y-00 PLATE 1 4

 KV7-M9266-01 GUIDE 12

 92012-04012 BOLT, BOTTON HEAD 4

 92902-04200 WASHER,PLAIN 4

 95302-06600 NUT HEXAGON 4

 98902-03005 SCREW BINDING HEAD 16

 KLW-M9260-00 CP BOARD A SUB ASSY. 1 Only different parts are published.

 KLW-M9260-10 CP BOARD C SUB ASSY. 1

 KLW-M9260-20 CP BOARD B SUB ASSY. 1 Only different parts are published.

KLW-M9260-30 CP BOARD D SUB ASSY. 1

Board Transport

$KM-11 MUFFLER 1

 $TSH6-01 JOINT 1

 90990-28J070 WASHER,PLAIN 1

 90990-41J006 COLLAR 1

 90KC1-011402 AC SERVO MOTOR 1

 91312-03010 BOLT HEX,SOCKET HEAD 8

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 11

 91312-04010 BOLT HEX,SOCKET HEAD 9

 91312-04025 BOLT HEX,SOCKET HEAD 2

 91312-05008 BOLT HEX,SOCKET HEAD 2

 91312-05010 BOLT HEX,SOCKET HEAD 2

 KG2-M9108-11 COLLAR CONVEYOR 2

 KGT-M9135-00 PULLEY 1, SPLINE 1

 KH2-M9121-00 BEARING 2

 KHY-M9157-00 SHAFT,MOTOR 1

 KKE-M9118-00 BRACKET,COLLAR 1

 KKE-M917J-00 PULLEY 1,MOTOR 1

 KKT-M9114-00 BRKT.1,SPLINE 1

 KLF-M9135-01 PLATE,EDGE 2 16

 KLF-M9150-A0 PULLEY,CONV. ASSY. 6 It's on both sides.

 KLW-M9113-01 BELT,CONVEYOR 2

 KLW-M912D-00 SPLINE 1 1

 KLW-M912E-00 BRKT.,MOTOR 1

 KLW-M912F-00 STAY,MOTOR 1

 KLW-M9132-00 PLATE 2

 KLW-M913A-A0 PULLEY ASSY. 4 It's on both sides.

 KLW-M915U-00 BRKT.,TENSIONER 2

 KLW-M917Y-10 PLATE,VALVE 1

 KLW-M91P5-00 PULLEY:P50-3GT 1

 KLW-M91P6-00 PULLEY:P25-3GT 1

 KLW-M91VC-A0 VALVE SL RL-R ASSY 1 R-L

 KV1-M910A-00 BELT(246-3GT-9) 1

 KV7-M9140-A0 PULLEY CONV. ASSY 2

 91312-05012 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 2

 92902-04600 WASHER,PLAIN 4

 92902-05200 WASHER,PLAIN 6 It's on both sides.

 92A08-04305 SCREW SET 2

 98702-03005 SCREW,FLAT HEAD 32

 KLW-M91MF-A0 MOTOR SUB ASSY. 1

KLW-M91VC-B0 VALVE SL LR-R ASSY 1 L-R

Board Width Adjust

90933-01J200 BEARING 2

 90990-25J024 BEARING 4

 90990-28J070 WASHER,PLAIN 2

 90990-28J110 WASHER,PLAIN 2

 90KC1-011306 AC SERVO MOTOR 1

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 6

 91312-04014 BOLT HEX,SOCKET HEAD 9

 91312-04016 BOLT HEX,SOCKET HEAD 18

 KG7-M9111-01 PULLEY 1 3

 KH2-M9121-00 BEARING 2

 KHW-M9139-00 PLATE,BRG. 2

 KHY-M9151-00 DAMPER A 1

 KHY-M9152-00 SPACER 1

 KHY-M9154-00 SPACER 1

 KKE-M919C-00 COLLAR 2,BRG. 2

 KKE-M919U-00 DAMPER A 1

 KKT-M9101-00 STAY 2

 KKT-M9102-00 PLATE 1 2

 KKT-M9103-00 PLATE A 2

 KKT-M9105-00 PLATE 1A 1

 KKT-M9105-10 PLATE 1A 1

 KKT-M9106-00 PLATE ,GUIDE 1

 KKT-M9106-10 PLATE ,GUIDE 1

 KKT-M9138-00 PLATE,GUIDE 2

 KLW-M9109-00 BRKT.,MOTOR 1

 KLW-M9116-00 LM GUIDE 2

 KLW-M911G-00 BRKT.,STOPPER 1

 KLW-M911R-00 PLATE,TENSIONER 1

 KLW-M912B-00 BELT 2025-3GT-9 1

 KLW-M9A00-00 BALL SCREW W 2

 91312-04020 BOLT HEX,SOCKET HEAD 8

 91312-04040 BOLT HEX,SOCKET HEAD 1

 91312-05008 BOLT HEX,SOCKET HEAD 6

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-05012 BOLT HEX,SOCKET HEAD 4

 91312-05030 BOLT HEX,SOCKET HEAD 2

 91312-06012 BOLT HEX,SOCKET HEAD 4

 91312-06014 BOLT HEX,SOCKET HEAD 8

 91312-06016 BOLT HEX,SOCKET HEAD 4

 91312-06020 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 3

 92A08-04303 SCREW SET 4

 92A08-04305 SCREW SET 1

 KLW-M91H3-A0 STAND SUB ASSY. 1

 KLW-M91H4-A0 STAND SUB ASSY. 1

 KLW-M91MD-A0 MOTOR SUB ASSY. 1

 KLW-M91G7-A0 TENSIONER ASSY. 1

Base / Guide / Brkt. Sensor

90990-01J064 BOLT HEX.SOCKET HEAD 4

 91312-03008 BOLT HEX,SOCKET HEAD 40

 91312-03010 BOLT HEX,SOCKET HEAD 52

 91312-03014 BOLT HEX,SOCKET HEAD 8

 91312-04008 BOLT HEX,SOCKET HEAD 10

 91312-04010 BOLT HEX,SOCKET HEAD 12

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-06010 BOLT HEX,SOCKET HEAD 2

 91312-06016 BOLT HEX,SOCKET HEAD 20

 91312-08025 BOLT HEX,SOCKET HEAD 8

 KKE-M9131-00 PLATE,HNS. 1

 KKT-M912A-00 BRKT.,SENSOR 1

 KKT-M9147-00 GUIDE.HNS. 1

 KKT-M9275-00 BRKT.,SENSOR 1

 KLC-M9203-00 LINEAR BUSHING 4

 KLV-M917S-00 GUIDE 2

 KLV-M917T-00 GUIDE 2

 KLW-M9112-00 BRKT.,STOPPER 1

 KLW-M911L-00 PLATE,PIN GUARD 1

 KLW-M911M-00 PLATE,PIN GUARD 1

 KLW-M911N-00 STAY,SENSOR 4

 KLW-M911P-00 GUIDE,HNS. 1

 KLW-M9121-00 FRAME,CONVEYOR 1

 KLW-M9122-00 PLATE,GUIDE 4

 KLW-M9123-00 PLATE,GUIDE 4

 KLW-M9126-00 FRAME,CONVEYOR 1

 KLW-M9127-00 PLATE,GUIDE 2 It's on both sides.

 KLW-M9128-00 PLATE,GUIDE 4 It's on both sides.

 KLW-M9129-00 PLATE,GUIDE 4 It's on both sides.

 KLW-M9133-00 BRKT.,STOPPER 1

 KLW-M9136-00 PLATE 1

 KLW-M9137-00 DAMPER 2

 KLW-M913B-00 PLATE 2

 KLW-M913C-00 PLATE 1

 KLW-M913D-00 PLATE 1

 KLW-M913E-00 PLATE 2

 KLW-M914G-00 PIN 4

 KLW-M914K-00 SPRING 4

 92902-04200 WASHER,PLAIN 4

 92902-04600 WASHER,PLAIN 8

 92902-06200 WASHER,PLAIN 2

 95302-03700 NUT HEXAGON 4

Sensor

91312-03006 BOLT HEX,SOCKET HEAD 16

 92A08-03304 SCREW SET 16

 97602-03310 SCREW PAN HEAD W/WASHER 8

 98502-03005 SCREW PAN HEAD 32

 KLF-M9156-01 HOLDER, SENSOR 16

 KLW-M653H-00 SEN.L1 CV RIGHT ASSY 2

 KLW-M653H-00 SEN.L1 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653J-10 SEN.L1 CV LEFT ASSY 2

 KLW-M653J-10 SEN.L1 CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

KLW-M653L-00 SENSOR PUSH1-1 ASSY 2

 KLW-M653L-10 SENSOR PUSH1-2 ASSY 2

 KLW-M653L-20 SENSOR PUSH2-1 ASSY 2

 KLW-M653L-30 SENSOR PUSH2-2 ASSY 2

 KLW-M654A-00 SENSOR SL CV1 ASSY (Fiber+Amp) 2 KLW-M654B-00 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-10 SENSOR SL CV2 ASSY (Fiber+Amp) 2 KLW-M654B-10 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-30 SENSOR SL CV4 ASSY (Fiber+Amp) 2 KLW-M654B-30 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-40 SENSOR SL CV5 ASSY (Fiber+Amp) 2 KLW-M654B-40 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-50 SENSOR SL CV6 ASSY (Fiber+Amp) 2 KLW-M654B-50 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-60 SENSOR SL CV7 ASSY (Fiber+Amp) 2 KLW-M654B-60 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-70 SENSOR SL CV8 ASSY (Fiber+Amp) 2 KLW-M654B-70 (Amp) KHM-M654B-01 (Fiber)

 KLW-M654A-80 SENSOR SL CV9 ASSY (Fiber+Amp) 2 KLW-M654B-80 (Amp) KHM-M654B-01 (Fiber)

 KLW-M653U-40 SEN.L1 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

KLW-M653U-70 SEN.L1 CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

Push Up (Wide)

90440-01J090 CIRCLIP 2

 90933-01J001 BEARING 2

 90933-01J007 BEARING 4

 90933-01J300 BEARING 2

 90990-01J065 BOLT HEX,SOCKET HEAD 2

 90990-28J076 WASHER,PLAIN 1

 90K65-332P73 AC SERVO MOTOR 1

 91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 12

 91312-04008 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 6

 91312-04012 BOLT HEX,SOCKET HEAD 9

 91312-04020 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 9

 91312-05012 BOLT HEX,SOCKET HEAD 20

 KGA-M921T-00 BOLT 8

 KHW-M9215-00 PULLEY:P60-3GT 2

 KHW-M921A-00 BRKT.,TENSIONER 1

 KHW-M921B-00 STAY,ADJUST 1

 KHW-M921C-00 SHAFT 1 1

 KHW-M9222-00 POST 1

 KHW-M9223-00 PULLEY:P40-3GT 1

 KHY-M9211-00 HOLDER,BRG. 2

 KHY-M9212-00 HOUSING 2

 KHY-M921D-00 BELT 315-3GT-15 1

 KHY-M921G-01 BRKT.,DOG 1

 KHY-M921M-01 WASHER 2

 KHY-M921N-01 JOINT A 2

 KKE-M9218-00 GROMMET 1

 KLW-M653D-00 SENSOR,PUA ORG ASSY 1

 KLW-M920E-00 PLATE,PU BASE 1

 KLW-M920H-00 STAY 1

 KLW-M920L-00 PLATE 1(400x305) 2

 KKE-M9B00-00 BALL SCREW PU 2

 KLW-M9217-00 BALL BUSH 2

 KLW-M9218-00 SHAFT 2

 KLW-M921F-00 GUIDE,PIN 1

 KLW-M921G-00 GUIDE,PIN 1

 KLW-M921H-02 PLATE,DOG 1

 KLW-M921K-00 BRKT.,SENSOR 1

 KLW-M921L-00 BELT 1188-3GT-15 1

 KLW-M921S-00 BRKT.,MOTOR 1

 KLW-M9221-01 DAMPER 2

 KV7-M9205-01 PULLEY 1:P22-3GT 1

 91312-05016 BOLT HEX,SOCKET HEAD 16

 91312-05020 BOLT HEX,SOCKET HEAD 1

 91312-06020 BOLT HEX,SOCKET HEAD 6

 92902-04200 WASHER,PLAIN 4

 92902-05200 WASHER,PLAIN 14

 95302-04600 NUT HEXAGON 1

 95602-10100 NUT, U 8

 99009-10400 CIRCLIP 1

 99009-12400 CIRCLIP 1

 KLW-M9201-A0 DRIVE UNIT ASSY. 2

 KLW-M9203-E0 STAY ASSY. 1

 KLW-M9204-A0 TENTIONER ASSY. 1

 KLW-M9205-A0 PULLEY ASSY. 1

 KLW-M9206-A0 MOTOR ASSY. 1

 KLW-M9207-A0 SENSOR SUB ASSY. 1

 KKV-M920D-00 PUSH UP PIN UNIT 1

Push Up (Narrow)

90440-01J090 CIRCLIP 2

 90933-01J001 BEARING 2

 90933-01J007 BEARING 4

 90933-01J300 BEARING 2

 90990-01J065 BOLT HEX,SOCKET HEAD 2

 90990-28J076 WASHER,PLAIN 1

 90K65-332K74 AC SERVO MOTOR 1

 91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 12

 91312-04008 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 6

 91312-04012 BOLT HEX,SOCKET HEAD 9

 91312-04020 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 9

 91312-05012 BOLT HEX,SOCKET HEAD 20

 KGA-M921T-00 BOLT 8

 KHW-M9215-00 PULLEY:P60-3GT 2

 KHW-M921A-00 BRKT.,TENSIONER 1

 KHW-M921B-00 STAY,ADJUST 1

 KHW-M921C-00 SHAFT 1 1

 KHW-M9222-00 POST 1

 KHW-M9223-00 PULLEY:P40-3GT 1

 KHY-M9211-00 HOLDER,BRG. 2

 KHY-M9212-00 HOUSING 2

 KHY-M921D-00 BELT 315-3GT-15 1

 KHY-M921G-01 BRKT.,DOG 1

 KHY-M921M-01 WASHER 2

 KHY-M921N-01 JOINT A 2

 KKE-M9218-00 GROMMET 1

 KLW-M653D-10 SENSOR,PUB ORG ASSY 1

 KLW-M920F-00 PLATE,PU BASE 1

 KLW-M920J-00 STAY 1

 KLW-M920M-00 PLATE 1(400x152) 2

 KKE-M9B00-00 BALL SCREW PU 2

 KLW-M9217-00 BALL BUSH 2

 KLW-M9218-00 SHAFT 2

 KLW-M921F-00 GUIDE,PIN 1

 KLW-M921G-00 GUIDE,PIN 1

 KLW-M921H-02 PLATE,DOG 1

 KLW-M921K-00 BRKT.,SENSOR 1

 KLW-M921M-00 BELT 936-3GT-15 1

 KLW-M921S-00 BRKT.,MOTOR 1

 KLW-M9221-01 DAMPER 2

 KV7-M9205-01 PULLEY 1:P22-3GT 1

 91312-05016 BOLT HEX,SOCKET HEAD 16

 91312-05020 BOLT HEX,SOCKET HEAD 1

 91312-06020 BOLT HEX,SOCKET HEAD 6

 92902-04200 WASHER,PLAIN 4

 92902-05200 WASHER,PLAIN 14

 95302-04600 NUT HEXAGON 1

 95602-10100 NUT, U 8

 99009-10400 CIRCLIP 1

 99009-12400 CIRCLIP 1

 KLW-M9201-A0 DRIVE UNIT ASSY. 2

 KLW-M9203-F0 STAY ASSY. 1

 KLW-M9204-A0 TENTIONER ASSY. 1

 KLW-M9205-A0 PULLEY ASSY. 1

 KLW-M9208-B0 MOTOR ASSY. 1

 KLW-M9209-A0 SENSOR SUB ASSY. 1

 KKV-M920D-00 PUSH UP PIN UNIT 1

Main / Sub / Exit Stopper (R-L)

91312-04006 BOLT HEX,SOCKET HEAD 12

2 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 16

 KHW-M9274-A0 SPEED CONTROLLER 16

 KHW-M9272-00 STOPPER,EXIT 2

 KHW-M9282-00 STOPPER,SUB 6

 KHY-M9284-00 PLATE,STOPPER 8

 KKT-M9161-00 BRKT.,CYLINDER 6

 KKT-M9271-00 PLATE,STOPPER 2

 KLW-M653M-00 CYL.RL L1CV ST1 ASSY 1

 KLW-M653M-10 CYL.RL L1CV ST2 ASSY 1

 KLW-M653M-20 CYL.RL L1CV ST3 ASSY 1

 KLW-M653M-40 CYL.RL L1CV ST5 ASSY 1

 KLW-M653M-50 CYL.RL L2CV ST1 ASSY 1

 KLW-M653M-60 CYL.RL L2CV ST2 ASSY 1

 KLW-M653M-70 CYL.RL L2CV ST3 ASSY 1

 KLW-M653M-90 CYL.RL L2CV ST5 ASSY 1

 91312-05014 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 4

 KLW-M9160-00 MAIN STP.ASSY.1-1 1

 KLW-M9160-40 MAIN STP.ASSY.2-1 1

 KLW-M9270-00 EXIT STOPPER ASSY.1 1

 KLW-M9270-20 EXIT STOPPER ASSY.2 1

 KLW-M9280-00 SUB STP.ASSY.1-1 1

 KLW-M9280-10 SUB STP.ASSY.1-2 1

 KLW-M9280-40 SUB STP.ASSY.2-1 1

 KLW-M9280-50 SUB STP.ASSY.2-2 1

Main / Sub / Exit Stopper (L-R)

91312-04006 BOLT HEX,SOCKET HEAD 12

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 16

 KHW-M9274-A0 SPEED CONTROLLER 16

 KHW-M9272-00 STOPPER,EXIT 2

 KHW-M9282-00 STOPPER,SUB 6

 KHY-M9284-00 PLATE,STOPPER 8

 KKT-M9161-00 BRKT.,CYLINDER 6

 KKT-M9271-00 PLATE,STOPPER 2

 KLW-M653M-A0 CYL.LR L1CV ST1 ASSY 1

 KLW-M653M-C0 CYL.LR L1CV ST3 ASSY 1

 KLW-M653M-D0 CYL.LR L1CV ST4 ASSY 1

 KLW-M653M-E0 CYL.LR L1CV ST5 ASSY 1

 KLW-M653M-F0 CYL.LR L2CV ST1 ASSY 1

 KLW-M653M-H0 CYL.LR L2CV ST3 ASSY 1

 KLW-M653M-J0 CYL.LR L2CV ST4 ASSY 1

 KLW-M653M-K0 CYL.LR L2CV ST5 ASSY 1

 91312-05014 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 4

 KLW-M9160-20 MAIN STP.ASSY.1-1 1

 KLW-M9160-60 MAIN STP.ASSY.2-1 1

 KLW-M9270-10 EXIT STOPPER ASSY.1 1

 KLW-M9270-30 EXIT STOPPER ASSY.2 1

 KLW-M9280-20 SUB STP.ASSY.1-1 1

 KLW-M9280-30 SUB STP.ASSY.1-2 1

 KLW-M9280-60 SUB STP.ASSY.2-1 1

KLW-M9280-70 SUB STP.ASSY.2-2 1

Clamp Board

90169-02JB04 SCREW, BINDING HEAD 48

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 20

 91312-04014 BOLT HEX,SOCKET HEAD 8

 91312-04016 BOLT HEX,SOCKET HEAD 4

 92012-04006 BOLT, BOTTON HEAD 8

 92012-04010 BOLT, BOTTON HEAD 8

 KHW-M9167-00 BRKT.,CYL. 4

 KHW-M916E-00 BUSH 4

 KHW-M9261-01 PLATE1,LINK 8

 KHW-M9264-A0 LINK A ASSY. 4

 KHW-M9264-B0 LINK B ASSY. 4

 KHW-M9265-00 SPACER 16

 KHW-M926A-00 COLLAR 8

 KHW-M926B-00 COLLAR, JOINT 4

 KHW-M926E-00 NUT 4

 KHY-M926F-00 JOINT , CYL. BRKT 4

 KHY-M926H-00 JOINT, CYL. 4

 KHY-M926M-00 STOPPER, CYLINDER 4

 KHY-M926S-A0 SPEED CONTROLLER 8

 KKE-M926F-00 COLLAR,FLOATING 4

 KKT-M9269-00 BRKT.,CYL. 4

 KLT-M9263-00 CYLINDER 4

 KLW-M9266-00 PLATE 1,LINK 2

 KLW-M9268-00 PLATE,BASE 2

 KLW-M926U-00 PLATE 2,LINK 2

 KLW-M926V-00 PLATE,BOARD CLAMP 2

 KLW-M926W-00 PLATE,BOARD CLAMP 2

 KLW-M926X-00 PLATE,BASE S 2

 KLW-M926Y-00 PLATE 1 4

 KV7-M9266-01 GUIDE 12

 92012-04012 BOLT, BOTTON HEAD 4

 92902-04200 WASHER,PLAIN 4

 95302-06600 NUT HEXAGON 4

 98902-03005 SCREW BINDING HEAD 16

 KLW-M9260-00 CP BOARD A SUB ASSY. 1 Only different parts are published.

 KLW-M9260-10 CP BOARD C SUB ASSY. 1

 KLW-M9260-20 CP BOARD B SUB ASSY. 1 Only different parts are published.

KLW-M9260-30 CP BOARD D SUB ASSY. 1

Board Transport

$KM-11 MUFFLER 2

 $TSH6-01 JOINT 2

 90990-28J070 WASHER,PLAIN 2

 90990-41J006 COLLAR 2

 91312-03010 BOLT HEX,SOCKET HEAD 16

 91312-04005 BOLT HEX,SOCKET HEAD 8

 91312-04008 BOLT HEX,SOCKET HEAD 22

 91312-04010 BOLT HEX,SOCKET HEAD 18

 91312-04025 BOLT HEX,SOCKET HEAD 4

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 4

 91312-05012 BOLT HEX,SOCKET HEAD 4

 KG2-M9108-11 COLLAR CONVEYOR 4

 KGT-M9135-00 PULLEY 1, SPLINE 2

 KGT-M915U-00 PULLEY DRIVE, F 1

 KH2-M9121-00 BEARING 4

 KHY-M9157-00 SHAFT,MOTOR 2

 KKE-M9118-00 BRACKET,COLLAR 2

 KKE-M917J-00 PULLEY 1,MOTOR 1

 KKT-M9114-00 BRKT.1,SPLINE 1

 KKV-M9115-00 BRKT.1,SPLINE 3

 KKV-M9119-00 SHAFT 1

 KLF-M9135-01 PLATE,EDGE 2 32

 KLF-M9150-A0 PULLEY,CONV. ASSY. 12 It's on both sides

 KLW-M9111-00 STAY,CV.MOTOR 2

 KLW-M9113-01 BELT,CONVEYOR 4

 KLW-M9117-00 SPLINE 1 2

 KLW-M9132-00 PLATE 4

 KLW-M913A-A0 PULLEY ASSY. 8 It's on both sides

 KLW-M915U-00 BRKT.,TENSIONER 4

 KLW-M917Y-10 PLATE,VALVE 2

 KLW-M91P5-00 PULLEY:P50-3GT 2

 KLW-M91P6-00 PULLEY:P25-3GT 2

 KLW-M91VC-A0 VALVE SL RL-R ASSY 1 R-L

 KLW-M91VC-C0 VALVE DL RL-L ASSY 1 R-L

 KV1-M910A-00 BELT(246-3GT-9) 2

 KV7-M9140-A0 PULLEY CONV. ASSY 4

 90KC1-011305 AC SERVO MOTOR 1

 90KC1-011402 AC SERVO MOTOR 1

 92902-04600 WASHER,PLAIN 8

 92902-05200 WASHER,PLAIN 16 It's on both sides

 92A08-04305 SCREW SET 8

 98702-03005 SCREW,FLAT HEAD 64

 KLW-M91VC-B0 VALVE SL LR-R ASSY 1 L-R

KLW-M91VC-D0 VALVE DL LR-L ASSY 1 L-R

Board Width Screw

90933-01J200 BEARING 4

 90990-25J024 BEARING 8

 90990-28J070 WASHER,PLAIN 4

 90990-28J110 WASHER,PLAIN 4

 90KC1-011306 AC SERVO MOTOR 1

 90KC1-011420 AC SERVO MOTOR 1

 91312-04005 BOLT HEX,SOCKET HEAD 8

 91312-04008 BOLT HEX,SOCKET HEAD 12

 91312-04010 BOLT HEX,SOCKET HEAD 12

 91312-04020 BOLT HEX,SOCKET HEAD 16

 KG7-M9111-01 PULLEY 1 6

 KH2-M9121-00 BEARING 4

 KHW-M9139-00 PLATE,BRG. 4

 KKE-M919C-00 COLLAR 2,BRG. 4

 KKT-M9101-00 STAY 2

 KKT-M9102-00 PLATE 1 2

 KKT-M9103-00 PLATE A 2

 KKV-M9152-00 PLATE 1 2

 KLW-M9109-00 BRKT.,MOTOR 1

 KLW-M9118-00 BRKT.,MOTOR 1

 KLW-M911G-00 BRKT.,STOPPER 1

 KLW-M911R-00 PLATE,TENSIONER 2

 KLW-M912B-00 BELT 2025-3GT-9 1

 KLW-M912C-00 BELT 2100-3GT-9 1

 KLW-M9A00-10 BALL SCREW W 2

 KLW-M9A00-20 BALL SCREW W 2

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05012 BOLT HEX,SOCKET HEAD 10

 91312-05030 BOLT HEX,SOCKET HEAD 4

 91312-06012 BOLT HEX,SOCKET HEAD 4

 91312-06014 BOLT HEX,SOCKET HEAD 4

 91312-06020 BOLT HEX,SOCKET HEAD 16

 92902-05200 WASHER,PLAIN 6

 92A08-04305 SCREW SET 10

 KLW-M91MD-A0 MOTOR SUB ASSY. 1

 KLW-M91ME-A0 MOTOR SUB ASSY. 1

 KLW-M91G7-A0 TENSIONER ASSY. 1

KLW-M91G8-A0 TENSIONER ASSY. 1

Board Width Guide

91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-04014 BOLT HEX,SOCKET HEAD 16

 91312-04016 BOLT HEX,SOCKET HEAD 18

 91312-04040 BOLT HEX,SOCKET HEAD 3

 91312-05008 BOLT HEX,SOCKET HEAD 8

 KHY-M9151-00 DAMPER A 2

 KHY-M9152-00 SPACER 3

 KKT-M9105-00 PLATE 1A 1

 KKT-M9105-10 PLATE 1A 1

 KKT-M9106-00 PLATE ,GUIDE 2

 KKT-M9106-10 PLATE ,GUIDE 2

 KKT-M9138-00 PLATE,GUIDE 2

 KKV-M9104-00 PLATE 1A 1

 KKV-M9104-10 PLATE 1A 1

 KKV-M9107-00 STAY 2

 KKV-M9108-00 PLATE 2 2

 KKV-M9151-00 DAMPER A 1

 KKV-M9153-00 PLATE 2 2

 KLW-M9112-00 BRKT.,STOPPER 2

 KLW-M9116-10 LM GUIDE 2

 KLW-M9139-00 PLATE,GUIDE 2

 KLW-M9154-00 ADJUST BOLT 2

 91312-05012 BOLT HEX,SOCKET HEAD 4

 91312-06014 BOLT HEX,SOCKET HEAD 16

 91312-06016 BOLT HEX,SOCKET HEAD 8

 91312-06020 BOLT HEX,SOCKET HEAD 16

 92902-04200 WASHER,PLAIN 3

92902-06600 WASHER,PLAIN 8

Base / Guide / Brkt. Sensor

91312-03008 BOLT HEX,SOCKET HEAD 80

 91312-03010 BOLT HEX,SOCKET HEAD 104

 91312-03014 BOLT HEX,SOCKET HEAD 16

 91312-04008 BOLT HEX,SOCKET HEAD 20

 91312-04010 BOLT HEX,SOCKET HEAD 24

 91312-06010 BOLT HEX,SOCKET HEAD 2

 91312-06016 BOLT HEX,SOCKET HEAD 20

 KKE-M9131-00 PLATE,HNS. 2

 KKT-M912A-00 BRKT.,SENSOR 2

 KKT-M912A-10 BRKT.,SENSOR 2

 KKT-M9147-00 GUIDE.HNS. 2

 KKT-M9275-00 BRKT.,SENSOR 2

 KKT-M9275-10 BRKT.,SENSOR 2

 KLC-M9203-00 LINEAR BUSHING 8

 KLV-M917S-00 GUIDE 4

 KLV-M917T-00 GUIDE 4

 KLW-M911L-00 PLATE,PIN GUARD 2

 KLW-M911M-00 PLATE,PIN GUARD 2

 KLW-M911N-00 STAY,SENSOR 8

 KLW-M911P-00 GUIDE,HNS. 2

 KLW-M9121-00 FRAME,CONVEYOR 2

 KLW-M9122-00 PLATE,GUIDE 8

 KLW-M9123-00 PLATE,GUIDE 8

 KLW-M9126-00 FRAME,CONVEYOR 2

 KLW-M9127-00 PLATE,GUIDE 4 It's on both conveyor.

 KLW-M9128-00 PLATE,GUIDE 8 It's on both conveyor.

 KLW-M9129-00 PLATE,GUIDE 8 It's on both conveyor.

 KLW-M9133-00 BRKT.,STOPPER 2

 KLW-M9136-00 PLATE 1

 KLW-M9137-00 DAMPER 2

 KLW-M913B-00 PLATE 2

 KLW-M913C-10 PLATE 1

 KLW-M913D-10 PLATE 1

 KLW-M913E-10 PLATE 2

 KLW-M914G-00 PIN 8

 KLW-M914K-00 SPRING 8

 91312-08025 BOLT HEX,SOCKET HEAD 8

 92902-04200 WASHER,PLAIN 8

 92902-04600 WASHER,PLAIN 16

 92902-06200 WASHER,PLAIN 2

 95302-03700 NUT HEXAGON 8

 90990-01J064 BOLT HEX.SOCKET HEAD 8

Sensor

91312-03006 BOLT HEX,SOCKET HEAD 32

92A08-03304 SCREW SET 32

 97602-03310 SCREW PAN HEAD W/WASHER 16

 98502-03005 SCREW PAN HEAD 64

 KLF-M9156-01 HOLDER, SENSOR 32

 KLW-M653H-00 SEN.L1 CV RIGHT ASSY 2

 KLW-M653H-00 SEN.L1 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653H-10 SEN.L2 CV RIGHT ASSY 2

 KLW-M653H-10 SEN.L2 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

KLW-M653J-10 SEN.L1 CV LEFT ASSY 2

 KLW-M653J-10 SEN.L1 CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

KLW-M653J-20 SEN.L2 CV LEFT ASSY 2

 KLW-M653J-20 SEN.L2 CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653L-00 SENSOR PUSH1-1 ASSY 4

 KLW-M653L-10 SENSOR PUSH1-2 ASSY 4

 KLW-M653L-20 SENSOR PUSH2-1 ASSY 4

 KLW-M653L-30 SENSOR PUSH2-2 ASSY 4

 KLW-M654A-J0 SENSOR DL CV1 ASSY (Fiber+Amp) 1 KLW-M654B-00 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-K0 SENSOR DL CV2 ASSY (Fiber+Amp) 1 KLW-M654B-10 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-M0 SENSOR DL CV4 ASSY (Fiber+Amp) 1 KLW-M654B-30 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-N0 SENSOR DL CV5 ASSY (Fiber+Amp) 1 KLW-M654B-40 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-P0 SENSOR DL CV6 ASSY (Fiber+Amp) 1 KLW-M654B-50 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-R0 SENSOR DL CV7 ASSY (Fiber+Amp) 1 KLW-M654B-60 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-S0 SENSOR DL CV8 ASSY (Fiber+Amp) 1 KLW-M654B-70 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-T0 SENSOR DL CV9 ASSY (Fiber+Amp) 1 KLW-M654B-80 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-90 SENSOR DL CV10 ASSY (Fiber+Amp) 1 KLW-M654B-90 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-A0 SENSOR DL CV11 ASSY (Fiber+Amp) 1 KLW-M654B-A0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-C0 SENSOR DL CV13 ASSY (Fiber+Amp) 1 KLW-M654B-C0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-D0 SENSOR DL CV14 ASSY (Fiber+Amp) 1 KLW-M654B-D0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-E0 SENSOR DL CV15 ASSY (Fiber+Amp) 1 KLW-M654B-E0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-F0 SENSOR DL CV16 ASSY (Fiber+Amp) 1 KLW-M654B-F0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-G0 SENSOR DL CV17 ASSY (Fiber+Amp) 1 KLW-M654B-G0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M654A-H0 SENSOR DL CV18 ASSY (Fiber+Amp) 1 KLW-M654B-H0 (Amp) KLW-M913S-00 (Fiber)

 KLW-M653U-40 SEN.L1 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653U-50 SEN.L2 CV RIGHT ASSY 1 After the Y34600 OK MM40199-2015/5/7

 KLW-M653U-70 SEN.L1 CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

KLW-M653U-80 SEN.L2 CV LEFT ASSY 1 After the Y34600 OK MM40199-2015/5/7

Camera

90166-02JA04 SCREW, PAN HEAD 32

 90990-32J006 BOLT,FLANGE 4

 91312-03006 BOLT HEX,SOCKET HEAD 8

 91312-06025 BOLT HEX,SOCKET HEAD 8

 $SC4-M3MA SPEED CONTROLLER 8

 KLW-M731D-00 COVER,MIRROR 2

 KLW-M7512-00 COVER,GLASS 4

 KLW-M7526-00 PLATE,GLASS 16

 KLW-M73C0-00 MULTI CAM.ASSY. 1 STD (HM Head)

 KLW-M73C0-10 MULTI+CO CAM.ASSY. 1 STD+CO (HM Head)

 KLW-M73F0-00 MULTI CAM.ASSY.FM 1 STD (FM Head)

 KLW-M73F0-10 MULTI+CO CAM.ASSY.FM 1 STD+CO (FM Head)

Blow Station / Dump Box

$NK-2N NYLON CLIP 1

 $PF PLUG 1

 $TL6-02 JOINT 1

 $TL6-01 JOINT 1 NG MM20217-2015/4/7

 $TS6-01M JOINT 1

 $US6 JOINT 1

 90169-02J206 SCREW, BINDING HEAD 4

 90990-41J066 COLLAR 4

 91312-03005 BOLT HEX,SOCKET HEAD 2

 91312-03020 BOLT HEX,SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 4

 97602-04308 SCREW PAN HEAD W/WASHER 1

 98902-03008 SCREW BINDING HEAD 1

 K40-M8598-10 PLUG 1 1

 KLW-M99B6-00 PLUG 1 NG MM20217-2015/4/7

 KGR-M9934-01 INLINE FILTER 1

 KLW-M99B5-00 INLINE FILTER 1 OK MM20217-2015/4/7

KLW-M653X-00 SENSOR,BLOW ST.ASSY 1

 KLF-M9906-A0 VALVE ASSY. 1

 KLW-M99V1-A0 BLOW VALVE ASSY. 1 NG MM20217-2015/4/7

 KHY-M99D2-00 DIFFUSE PLATE 1

 KKT-M9903-00 BLOCK,BLOW ST. 1

 KLW-M99B1-00 BASE,BLOW ST. 1

 KLW-M99B1-01 BASE,BLOW ST. 1 NG MM20217-2015/4/7

 KLW-M99B2-00 PLATE,BASE 1

 KLW-M99B3-00 BOX,EXHAUST 1

 KLW-M99D1-00 PLATE,DUMP 1

 KLW-M99D2-00 STAY,SENSOR 1

 KLW-M99D3-00 DUMP BOX 1

 KLW-M653W-00 SENSOR,DUMP BOX ASSY 1

 91312-06016 BOLT HEX,SOCKET HEAD 2

 92902-03200 WASHER,PLAIN 2

 92902-06200 WASHER,PLAIN 2

Main Cutter 32 (Old)

$KM-10 MUFFLER 2

 $TL4-01M JOINT 2

 $TL4-02 JOINT 2

 $TL6-01M JOINT 1

 91312-03020 BOLT HEX,SOCKET HEAD 2

 91312-04006 BOLT HEX,SOCKET HEAD 18

 91312-05010 BOLT HEX,SOCKET HEAD 6

 91312-05016 BOLT HEX,SOCKET HEAD 16

 91312-06012 BOLT HEX,SOCKET HEAD 6

 92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 1

 KHY-M3T0C-00 CUTTER VALVE 1

 KHY-M3T0L-01 CYL. COLLAR 3 1

 KHY-M3T13-00 CYL. COLLAR 1 1

 KHY-M3T14-02 CYL. COLLAR 2 1

 KHY-M3T24-10 DAMPER STOPPER 2

 KJJ-M3T05-10 CUTTER UPPER,384 1

 KJJ-M3T07-B0 CUTTER LOWER,384 1 Integrate 18 with 17

 KLC-M11FA-00 BOLT,BUTTON HEAD 2

 KLF-M3T34-00 PLATE,GUIDE 2

 KLW-M3T01-01 BASE,CUTTER 1

 KLW-M3T02-00 BASE,BLADE 1

 KLW-M3T03-00 PLATE,SIDE 2

 KLW-M3T04-00 STAY,DUCT 1

 KLW-M3T06-00 BLOCK,CYL. 1

 KLW-M3T08-00 COVER,CUTTER UPR. 1

 KLW-M3T0A-00 GUIDE,CUTTER 2

 KLW-M3T0B-00 STAY,CYL. 1

 KLW-M3T0C-00 BLOCK,ABSORBER 2

 KLW-M3T0D-00 SHOCK ABSORBER 2

 KLW-M3T0F-00 BRKT.,HOSE 1

 KLW-M3T0N-00 PLATE,CUTTER BASE 2 1

 KLW-M3T0N-A0 PLATE 32 ASSY. 1 OK MM70079-2015/7/15

 KLW-M3T0P-01 BRKT.,VALVE 1

 KLW-M654F-00 CYL.TAPE CUTTER ASSY 1

 91312-06014 BOLT HEX,SOCKET HEAD 4

 91312-06016 BOLT HEX,SOCKET HEAD 9

 91312-06020 BOLT HEX,SOCKET HEAD 4

 91312-06025 BOLT HEX,SOCKET HEAD 4

 91312-06090 BOLT HEX,SOCKET HEAD 4

 91312-08025 BOLT HEX,SOCKET HEAD 2

 KLW-M3T0B-10 STAY,CYL. 1 ATS Type

 KLW-M3T0G-00 BRKT.,COUPLER 1 ATS Type

 KLW-M3T0H-00 COUPLER,SOCKET 1 ATS Type

 KLW-M3T0J-00 COUPLER,PLUG 1 ATS Type

 KLW-M3T0L-00 PLATE,BAFFLE 2 ATS Type

 KLW-M654F-10 CYL.TAPE CUTTER ASSY 1 ATS Type

 KLW-M3T0K-00 CUTTER VALVE ASSY. 1

 91312-04012 BOLT HEX,SOCKET HEAD 8 MM70079-2015/7/15

 KLW-M3T0N-01 BLOCK 1 MM70079-2015/7/15

 KLW-M3T0S-00 PLATE,SUS 1 MM70079-2015/7/15

 KLW-M3T0T-00 BRKT.,CLAMP 1 MM70079-2015/7/15

Slope 32 (Old)

$UK6 JOINT 2

 91312-04006 BOLT HEX,SOCKET HEAD 38

 91312-04008 BOLT HEX,SOCKET HEAD 8

 91312-05008 BOLT HEX,SOCKET HEAD 8

 91312-06008 BOLT HEX,SOCKET HEAD 8

 KLW-M3T0H-00 COUPLER,SOCKET 2

 KLW-M3T0J-00 COUPLER,PLUG 2

 KLW-M3T20-00 COVER UPR. 32 ASSY. 2 with JOINT

 KLW-M3T20-10 COVER UPR. 32 ASSY. 2 with COUPLER

 KLW-M3T2B-00 DUCT,CUTTER L 2

 KLW-M3T2C-00 DUCT,CUTTER R 2

 KLW-M3T2D-00 STAY,DUCT 4

 KLW-M3T2E-00 COVER,BASE 32A 2

 KLW-M3T2F-00 COVER,BASE 32B 2

Safety Cover 32 (Old)

$NK-3N NYLON CLIP 2

 90990-12J001 SCREW, BIN. HEAD W/W 4

 90990-12J004 SCREW, BIN. HEAD W/W 9

 90K41-001260 LABEL,WARNING 2

 90K41-001410 LABEL,WARNING 2

 90990-12J006 SCREW, BIN. HEAD W/W 10

 91312-04025 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 4

 KGS-M1360-00 BOLT 4

 KHU-M1117-00 PULL 2

 KJJ-M11C2-22 DUCT 2 2

 KJJ-M5127-00 SAFETY SWITCH KEY 2

 KLW-M11C6-00 COVER,SAFETY L 1

 KLW-M11C7-00 COVER,SAFETY R 1

 KLW-M11C8-00 BRKT.,COVER SAFETY L 1

 KLW-M11C9-01 BRKT.,COVER SAFETY R 1

 KLW-M11CA-00 PLATE,COVER SAFETY 1

 KLW-M1324-00 COVER,FRONT 1

 KLW-M1325-00 BRKT.,SWITCH 1

 KLW-M5126-C0 SAFETY SW UNIT ASSY 2

 98902-04006 SCREW BINDING HEAD 4

Main Cutter 70 (Old)

$KM-11 MUFFLER 2

 $TL4-01M JOINT 3

 91312-03020 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 7

 91312-04010 BOLT HEX,SOCKET HEAD 13

 91312-04014 BOLT HEX,SOCKET HEAD 6

 91312-04016 BOLT HEX,SOCKET HEAD 8

 91312-04020 BOLT HEX,SOCKET HEAD 4

 91312-04030 BOLT HEX,SOCKET HEAD 2

 91312-05012 BOLT HEX,SOCKET HEAD 26

 91312-06016 BOLT HEX,SOCKET HEAD 4

 91312-06020 BOLT HEX,SOCKET HEAD 24

 91312-08070 BOLT HEX,SOCKET HEAD 4

 KHY-M3T0C-00 CUTTER VALVE 1

 KHY-M3T24-10 DAMPER STOPPER 2

 KLW-M3T55-A0 CUTTER,UPPER 70 1 Set

 KLW-M3T57-A0 CUTTER,LOWER 70 1 Set

 KLW-M3T59-01 BASE,BLADE 1

 KLW-M3T5A-00 BRACKET,STAND L 1

 KLW-M3T5B-00 BRACKET,STAND R 1

 KLW-M3T5C-00 COVER,CUTTER 2

 KLW-M3T5D-00 COVER,CUTTER L 1

 KLW-M3T5E-00 COVER,CUTTER R 1

 KLW-M3T5G-00 BLOCK,CYL. 1

 KLW-M3T5J-00 BRACKET,COVER 1

 KLW-M3T5K-00 PLATE,COVER 1

 KLW-M3T5M-00 BRACKET,COVER UPR. 1

 KLW-M3T5N-00 BRACKET,COVER LWR. 1

 KLW-M3T5P-00 PLATE,CUTTER COVER 1

 KLW-M3T5R-00 BRACKET,VALVE 1

 KLW-M3T0N-B0 PLATE 70 ASSY. 1

 KLW-M3T5V-00 BRACKET,AIR HOSE 1

 91312-04012 BOLT HEX,SOCKET HEAD 4

 92902-04600 WASHER,PLAIN 8

 99480-03012 PIN,PARALLEL 1

 99480-06014 PIN,PARALLEL 1

 KLF-M3T0V-00 CUTTER VALVE ASSY 1

KLW-M3TBB-00 CUTTER BASE ASSY. 1

Cutter Base 70 (Old)

$TL4-02 JOINT 2

 90990-28J119 WASHER,PLAIN 2

 91312-04010 BOLT HEX,SOCKET HEAD 12

 91312-05016 BOLT HEX,SOCKET HEAD 8

 91312-06016 BOLT HEX,SOCKET HEAD 8

 91312-06018 BOLT HEX,SOCKET HEAD 4

 91312-06025 BOLT HEX,SOCKET HEAD 4

 91312-06030 BOLT HEX,SOCKET HEAD 12

 91312-06090 BOLT HEX,SOCKET HEAD 4

 KHY-M3T0L-01 CYL. COLLAR 3 1

 KHY-M3T13-00 CYL. COLLAR 1 1

 KHY-M3T14-02 CYL. COLLAR 2 1

 KLW-M3T0A-00 GUIDE,CUTTER 4

 KLW-M3T0C-00 BLOCK,ABSORBER 2

 KLW-M3T0D-00 SHOCK ABSORBER 2

 KLW-M3T0M-00 BLOCK,BASE 4

 KLW-M654F-50 CYL.TAPE CUTTER ASSY 1

 KLW-M3T51-00 BASE PLATE 1

 KLW-M3T52-00 BASE PLATE,FRONT 1

 KLW-M3T53-00 SIDE BLOCK,L 1

 KLW-M3T54-00 SIDE BLOCK,R 1

 KLW-M3T5F-00 STAY,CYL. 1

 KLW-M3T5L-00 PLATE,GUIDE 2

 KLW-M3T5S-00 PLATE,GUIDE 4

 KLW-M3T5T-00 PLATE,SIDE COVER 2

 91312-08020 BOLT HEX,SOCKET HEAD 2

 92902-06200 WASHER,PLAIN 6

 92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 1

 98702-03006 SCREW,FLAT HEAD 4

 KLW-M3TBB-00 CUTTER BASE ASSY. 1 All parts

Slope 70 & Safety Cover (Old)

$UK6 JOINT 1

 90990-12J001 SCREW, BIN. HEAD W/W 4

 90990-12J004 SCREW, BIN. HEAD W/W 9

 90990-12J006 SCREW, BIN. HEAD W/W 6

 90K41-001260 LABEL,WARNING 1

 90K41-001410 LABEL,WARNING 2

 91312-04005 BOLT HEX,SOCKET HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 22

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04025 BOLT HEX,SOCKET HEAD 2

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-06008 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 8

 92902-04600 WASHER,PLAIN 2

 KGS-M1360-00 BOLT 2

 KHU-M1117-00 PULL 1

 KJJ-M13AB-A0 HOLDER ASSY 2

 KJJ-M5127-00 SAFETY SWITCH KEY 1

 KLW-M11C2-00 DUCT 70 1

 KLW-M11C6-50 COVER,SAFETY 70 1

 KLW-M11C8-00 BRKT.,COVER SAFETY L 1

 KLW-M11C9-01 BRKT.,COVER SAFETY R 1

 KLW-M1324-00 COVER,FRONT 1

 KLW-M1325-00 BRKT.,SWITCH 1

 KLW-M3T61-00 COVER UPR.70R ASSY. 1

 KLW-M3T65-00 COVER,UPR.70F 1

 KLW-M3T66-00 FIX,STAY L 1

 KLW-M3T67-00 FIX,STAY R 1

 KLW-M3T68-00 BRACKET,UPR. L 1

 KLW-M3T69-00 BRACKET,UPR. R 1

 KLW-M3T6A-00 COVER,UPPER 70 1

 KLW-M3T6B-00 DUCT,CUTTER 70 1

 KLW-M3T6C-00 STAY,DUCT 70F 2

 KLW-M3T6D-00 STAY,DUCT 70R 2

 KLW-M5126-C0 SAFETY SW UNIT ASSY 1

 98902-04006 SCREW BINDING HEAD 4

 98907-04008 SCREW BINDING HEAD 4

 KLW-M3TB2-00 SLOPE 70 ASSY. 1

KLW-M3TB3-00 SAFETY COVER ASSY. 1

Main Cutter 32 (New)

 90990-42J052 JOINT 1

 90990-42J053 JOINT 2

 90990-65J003 SILENCER 2

 90K81-200001 CAP C5 6

 KHY-M3T0L-01 CYL. COLLAR 3 1

 KHY-M3T13-00 CYL. COLLAR 1 1

 KHY-M3T14-02 CYL. COLLAR 2 1

 KJJ-M3T05-10 CUTTER UPPER,384 1

 KJJ-M3T07-B0 CUTTER LOWER,384 1

 KLC-M11FA-00 BOLT,BUTTON HEAD 4

 KLF-M3T34-00 PLATE,GUIDE 2

 KLW-M3T04-00 STAY,DUCT 1

 KLW-M3T0C-00 BLOCK,ABSORBER 2

 KLW-M3T0D-00 SHOCK ABSORBER 2

 KLW-M3T0F-00 BRKT.,HOSE 1

 KLW-M3T0G-00 BRKT.,COUPLER 1

 KLW-M3T0H-00 COUPLER,SOCKET 1

 KLW-M3T0J-00 COUPLER,PLUG 1

 KMC-M3T01-01 BASE,CUTTER 1

 KMC-M3T02-00 BASE,BLADE 1

 KMC-M3T02-A0 BASE BLADE ASSY. 1

 KMC-M3T03-00 PLATE,SIDE 2

 KMC-M3T06-00 BLOCK,CYL. 1

 KMC-M3T08-00 COVER,CUTTER UPR. 1

 KMC-M3T0A-00 LM GUIDE 2

 KMC-M3T0B-00 STAY,CYL. 1

 KMC-M3T0K-00 CUT VALVE SUB ASSY. 1

 KMC-M3T0N-00 BLOCK 1

 KMC-M3T0N-A0 PLATE 32 ASSY. 1

 KMC-M3T0P-00 BRKT.,VALVE 1

 KMC-M3T0S-00 PLATE,SUS 1

 KMC-M3T0T-00 BRKT.,CLAMP 1

 KMC-M3T0U-00 PLATE,BAFFLE 2

 KMC-M3T30-00 DAMPER STOPPER 2

 KMC-M3TAA-00 CUTTER BASE 32 ASSY. 1

 KMC-M3TV1-00 VALVE,CUTTER 1

 KMC-M654F-00 CYL.TAPE CUTTER ASSY 1

 KMC-M654F-10 CYL.TAPE CUTTER ASSY 1

 91312-03012 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 14

 91312-04010 BOLT HEX,SOCKET HEAD 5

 91312-05008 BOLT HEX,SOCKET HEAD 6

 91312-05012 BOLT HEX,SOCKET HEAD 4

 91312-05016 BOLT HEX,SOCKET HEAD 18

 91312-06012 BOLT HEX,SOCKET HEAD 6

 91312-06016 BOLT HEX,SOCKET HEAD 13

 91312-06020 BOLT HEX,SOCKET HEAD 4

 91312-06025 BOLT H

EX,SOCKET HEAD 4

 91312-08025 BOLT HEX,SOCKET HEAD 2

 91317-08095 BOLT HEX,SOCKET HEAD 4

 91317-08120 BOLT HEX,SOCKET HEAD 4

 92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 1

Slope 32 (New)

KMC-M3T20-00 COVER UPR.32 ASSY. 2

 KMC-M3T20-10 COVER UPR.32 ASSY. 2

 KMC-M3T2B-00 DUCT,CUTTER L 2

 KMC-M3T2C-00 DUCT,CUTTER R 2

 KMC-M3T2D-00 STAY,DUCT 4

 KMC-M3T2E-00 COVER,BASE 32A 2

 KMC-M3T2F-01 COVER,BASE 32B 2

 91312-04006 BOLT HEX,SOCKET HEAD 34

 91312-04008 BOLT HEX,SOCKET HEAD 8

 91312-05010 BOLT HEX,SOCKET HEAD 20

Safety Cover 32 (New)

$NK-3N NYLON CLIP 2

 90990-12J001 SCREW, BIN. HEAD W/W 4

 90990-12J004 SCREW, BIN. HEAD W/W 9

 90K41-001260 LABEL,WARNING 2

 90K41-001410 LABEL,WARNING 2

 90990-12J006 SCREW, BIN. HEAD W/W 10

 91312-04025 BOLT HEX,SOCKET HEAD 4

 92902-04200 WASHER,PLAIN 4

 KGS-M1360-00 BOLT 4

 KHU-M1117-00 PULL 2

 KMC-M11C2-00 DUCT 2 2

 KJJ-M5127-00 SAFETY SWITCH KEY 2

 KMC-M11C6-00 COVER,SAFETY L 1

 KMC-M11C7-00 COVER,SAFETY R 1

 KLW-M11C8-00 BRKT.,COVER SAFETY L 1

 KLW-M11C9-01 BRKT.,COVER SAFETY R 1

 KLW-M11CA-00 PLATE,COVER SAFETY 1

KLW-M1324-00 COVER,FRONT 1

 KLW-M1325-00 BRKT.,SWITCH 1

 KLW-M5126-C0 SAFETY SW UNIT ASSY 2

 98902-04006 SCREW BINDING HEAD 4

Main Cutter 70 (New)

KLW-M3T55-A0 CUTTER,UPPER 70 1

 KLW-M3T57-A0 CUTTER,LOWER 70 1

 KMC-M3T0N-10 BLOCK 1

 KMC-M3T0N-B0 PLATE 70 ASSY. 1

 KMC-M3T0S-11 PLATE,CUTTER BASE 2 1 NG MNY0135-2017/1/11

 KMC-M3T0S-10 PLATE,SUS 1

 KMC-M3T0T-10 BRKT.,CLAMP 1

KMC-M3T30-00 DAMPER STOPPER 2

 KMC-M3T59-00 BASE,BLADE 1

 KMC-M3T59-01 BASE,BLADE 1 NG MNY0135-2017/1/11

KMC-M3T5A-00 PLATE,SIDE 2

 KMC-M3T5D-00 STAY,DUCT 1

 KMC-M3T5P-00 COVER,CUTTER UPR. 1

 KMC-M3T5R-00 BRKT.,VALVE 1

 KMC-M3TV1-A0 CUTTER VALVE ASSY 1

 KMC-M3T0K-10 CUT VALVE SUB ASSY. 1

 90990-42J052 JOINT 1

 90990-65J003 SILENCER 2

 91312-03014 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 6

 91312-04010 BOLT HEX,SOCKET HEAD 8

 91312-05008 BOLT HEX,SOCKET HEAD 10

 91312-05016 BOLT HEX,SOCKET HEAD 14

 91312-06016 BOLT HEX,SOCKET HEAD 10

 91312-06020 BOLT HEX,SOCKET HEAD 4

 99480-06014 PIN,PARALLEL 1

 91312-04016 BOLT HEX,SOCKET HEAD 8

KMC-M3T0W-00 BLOCK 4 MNY0135-2017/1/11

Cutter Base 70 (New)

KHY-M3T0L-01 CYL. COLLAR 3 1

 KHY-M3T13-00 CYL. COLLAR 1 1

 KHY-M3T14-02 CYL. COLLAR 2 1

 KLC-M11FA-00 BOLT,BUTTON HEAD 2

 KLF-M3T34-00 PLATE,GUIDE 3

 KLW-M3T0C-00 BLOCK,ABSORBER 2

 KLW-M3T0D-00 SHOCK ABSORBER 2

 KLW-M654F-91 SEN.SPARE ASSY 2

 KMC-M3T06-00 BLOCK,CYL. 1

 KMC-M3T0A-00 LM GUIDE 4

 KMC-M3T0B-00 STAY,CYL. 1

 KMC-M3T10-00 CYL.,TAPE CUTTER 1

 KMC-M3T51-00 BASE,CUTTER 1

 KMC-M3T51-01 BASE,CUTTER 1 NG MNY0135-2017/1/11

 KMC-M3T5V-00 BRKT.,HOSE 1

 KMC-M3T5W-00 STAY,COVER UPR.70 2

 90990-42J053 JOINT 2

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05016 BOLT HEX,SOCKET HEAD 28

 91312-06008 BOLT HEX,SOCKET HEAD 6

 91312-06016 BOLT HEX,SOCKET HEAD 4

 91312-06020 BOLT HEX,SOCKET HEAD 6

 91312-06025 BOLT HEX,SOCKET HEAD 4

 91312-08025 BOLT HEX,SOCKET HEAD 2

 91312-08060 BOLT HEX,SOCKET HEAD 4

 91317-08095 BOLT HEX,SOCKET HEAD 4

 92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 1

 91312-04008 BOLT HEX,SOCKET HEAD 8 MNY0135-2017/1/11

KMC-M3TDA-10 PLATE,SUS 1 MNY0135-2017/1/11

Slope 70 & Safety Cover (New)

KGS-M1360-00 BOLT 2

 KHU-M1117-00 PULL 1

 KJJ-M13AB-A0 HOLDER ASSY 2

 KJJ-M5127-00 SAFETY SWITCH KEY 1

 KLW-M11C2-00 DUCT 70 1

 KLW-M11C6-50 COVER,SAFETY 70 1

 KLW-M11C8-00 BRKT.,COVER SAFETY L 1

 KLW-M11C9-01 BRKT.,COVER SAFETY R 1

 KLW-M1324-00 COVER,FRONT 1

 KLW-M1325-00 BRKT.,SWITCH 1

 KLW-M3T68-00 BRACKET,UPR. L 1

 KLW-M3T69-00 BRACKET,UPR. R 1

 KLW-M3T6A-00 COVER,UPPER 70 1

 KLW-M5126-C0 SAFETY SW UNIT ASSY 1

 KMC-M3T2D-00 STAY,DUCT 2

 KMC-M3T61-00 COVER,UPR.70R ASSY 1

 KMC-M3T64-01 COVER,UPR.70F ASSY 1

 KMC-M3T6B-00 DUCT,CUTTER 70 1

 $AUK6 JOINT 2

 90990-12J001 SCREW, BIN. HEAD W/W 4

90990-12J004 SCREW, BIN. HEAD W/W 9

 90990-12J006 SCREW, BIN. HEAD W/W 6

 90K41-001260 LABEL,WARNING 1

 90K41-001410 LABEL,WARNING 2

 91312-04006 BOLT HEX,SOCKET HEAD 22

 91312-04025 BOLT HEX,SOCKET HEAD 2

 91312-05006 BOLT HEX,SOCKET HEAD 2

 91312-05010 BOLT HEX,SOCKET HEAD 8

 92902-04600 WASHER,PLAIN 2

 98902-04006 SCREW BINDING HEAD 4

 98907-04008 SCREW BINDING HEAD 4

 KLW-M3TB3-00 SAFETY COVER ASSY. 1

KMC-M3TB2-00 SLOPE 70 ASSY. 1 NG MN40051-2016/4/25

Main Cutter 32 (New_2)

90990-42J052 JOINT 1

 90990-42J053 JOINT 2

 90990-65J003 SILENCER 2

 90K81-200001 CAP C5 6

 KHY-M3T0L-01 CYL. COLLAR 3 1

 KHY-M3T13-00 CYL. COLLAR 1 1

 KHY-M3T14-02 CYL. COLLAR 2 1

 KJJ-M3T05-10 CUTTER UPPER,384 1

 KJJ-M3T07-B0 CUTTER LOWER,384 1

 KLC-M11FA-00 BOLT,BUTTON HEAD 4

 KLF-M3T34-00 PLATE,GUIDE 2

 KLW-M3T04-00 STAY,DUCT 1

 KLW-M3T0C-00 BLOCK,ABSORBER 2

 KLW-M3T0D-00 SHOCK ABSORBER 2

 KLW-M3T0F-00 BRKT.,HOSE 1

 KLW-M3T0G-00 BRKT.,COUPLER 1

 KLW-M3T0H-00 COUPLER,SOCKET 1 ATS side

 KLW-M3T0J-00 COUPLER,PLUG 1 ATS side

 KMC-M3T01-02 BASE,CUTTER 1 NG MNY0134-2017/1/11

 KMC-M3T02-01 BASE,BLADE 1 NG MNY0134-2017/1/11

 KMC-M3T02-A1 BASE BLADE ASSY. 1

 KMC-M3T03-00 PLATE,SIDE 2

 KMC-M3T06-00 BLOCK,CYL. 1

 KMC-M3T08-00 COVER,CUTTER UPR. 1

 KMC-M3T0A-00 LM GUIDE 2

 KMC-M3T0B-00 STAY,CYL. 1

 KMC-M3T0K-00 CUT VALVE SUB ASSY. 1

 KMC-M3T0S-01 PLATE,CUTTER BASE 2 1 NG MNY0134-2017/1/11

 KMC-M3T0P-00 BRKT.,VALVE 1

 KMC-M3T0U-00 PLATE,BAFFLE 2 ATS side

 KMC-M3T0W-00 BLOCK 2 MNY0134-2017/1/11

 KMC-M3T30-00 DAMPER STOPPER 2

 KMC-M3TAA-02 CUTTER BASE 32 ASSY. 1

 KMC-M3TDA-00 PLATE,SUS 1 MNY0134-2017/1/11

 KMC-M3TV1-00 VALVE,CUTTER 1

 KMC-M654F-00 CYL.TAPE CUTTER ASSY 1 STD side

 KMC-M654F-10 CYL.TAPE CUTTER ASSY 1 ATS side

 91312-03012 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 18

 91312-04016 BOLT HEX,SOCKET HEAD 4 MNY0134-2017/1/11

 91312-05008 BOLT HEX,SOCKET HEAD 6

 91312-05016 BOLT HEX,SOCKET HEAD 18

 91312-06012 BOLT HEX,SOCKET HEAD 6

 91312-06016 BOLT HEX,SOCKET HEAD 13

 91312-06020 BOLT HEX,SOCKET HEAD 4

 91312-06025 BOLT HEX,SOCKET HEAD 4

 91312-08025 BOLT HEX,SOCKET HEAD 2

 91317-08095 BOLT HEX,SOCKET HEAD 4

 91317-08120 BOLT HEX,SOCKET HEAD 4

 92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 1

Nozzle / SEN. Laser

KHN-M77LE-40 SPRING,2 NOZZLE 30LE 2

 KHN-M7ALW-00 BODY 1,NOZZLE D.SPL 1

 KHN-M7ALW-10 PISTON 2

 KHN-M7ALW-20 ARM L 2

 KHN-M7ALW-40 NAIL 2

 KHN-M7ALW-A1 NOZZLE 30ALW ASSY. 1

 KLW-M654K-20 SEN.LASER ASSY 1 HM

 KLW-M654K-30 SEN.LASER ASSY 1 FM

 KLW-M713A-10 STAY,SENSOR 1 HM

 KLW-M743A-10 PLATE,SENSOR 1 FM

 90112-02J008 BOLT HEX,SOCKET HEAD 4

 90947-15JA00 BALL STEEL 2

 90990-02J006 SET, SCREW 2

 91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-03010 BOLT HEX,SOCKET HEAD 4

 91312-04010 BOLT HEX,SOCKET HEAD 2

ANC Holder

KHY-M9621-00 BASE,NOZZLE D 10

 KHY-M9621-A0 BASE,NOZZLE D ASSY 10

 KHY-M9630-00 HOOK,BEARING 2

 KKE-M9608-00 PIN,SLIDE 8

 KKS-M9622-01 SPACER HOLDER 3 14

 KKS-M9622-A1 SPACER3 ASSY. 14

 KKT-M9620-00 PIN,MARK 4

 KLW-M96H1-00 HOLDER,NOZZLE HM 1 HM

 KLW-M96H1-A0 HM NOZZLE HLD. ASSY. 1 HM

 KLW-M96H2-10 PLATE,CLAMP HM 1 HM

 KLW-M96H4-00 HOLDER,NOZZLE FM 1 FM

 KLW-M96H4-A0 FM NOZZLE HLD. ASSY. 1 FM

 KLW-M96H5-10 PLATE,CLAMP FM 1 FM

 KLW-M96H7-00 MIRROR,CENTER 2

 KLW-M96H8-00 MIRROR,SIDE 4

 KLW-M96H9-00 SPACER 2

 KLW-M96HA-00 SHEET,CLAMP GUIDE 4

 KLW-M96HB-00 HOLDER,NOZZLE 2

 90990-19J004 NEEDLE PIN 210

 90990-19J009 NEEDLE PIN 28

 90990-19J010 NEEDLE PIN 10

 90990-19J028 NEEDLE PIN 8

 91312-03006 BOLT HEX,SOCKET HEAD 14

 91312-03008 BOLT HEX,SOCKET HEAD 28

 91312-03020 BOLT HEX,SOCKET HEAD 4

 91312-03030 BOLT HEX,SOCKET HEAD 12

 92012-03006 BOLT BUTTON HEAD 10

 92012-04012 BOLT, BOTTON HEAD 4

 92A08-03303 SCREW SET 1

98902-03008 SCREW BINDING HEAD 16

ANC Stand

$SC4-M5A SPEED CONTROLLER 2

 $US4 JOINT 2

 KHN-M9623-50 PIN 2

 KHW-M916A-00 BUSH 2

 KHW-M916E-00 BUSH 1

 KHW-M916G-00 COLLAR, JOINT 1

 KHW-M916H-00 JOINT, CYL. 1

 KHY-M9614-00 STOPPER,CYLINDER 1

 KHY-M9627-00 BLOCK,LINK 1

 KHY-M9628-00 COLLAR,LINK 1

 KHY-M9631-00 COLLAR,FLOATING 1

 KHY-M9632-00 BLOCK,FLOATING 1

KKS-M9615-00 PLATE,CYLINDER 1

 KKT-M9613-00 BLOCK,CYLINDER 1

 KLW-M45BA-02 ANC CTRL BOARD ASSY 1

 KLW-M653S-00 CYL.ANC OP/CL ASSY 1

 KLW-M96H0-C0 HM CP.HLD. ASSY.MAT. 1 HM

 KLW-M96H0-D0 FM CP HLD. ASSY.MAT. 1 FM

 KLW-M96S0-00 STAND FRAME ASSY. 1 Common

 KLW-M96S0-A0 ANC STAND ASSY. 1 Common

 KLW-M96S1-00 HOLDER,BOTTOM 1

 KLW-M96S1-A0 BOTTOM HOLDER ASSY. 1

 KLW-M96S2-00 PLATE,SIDE 2

 KLW-M96S3-00 SHAFT 4

 KLW-M96S4-00 PLATE,MIDDLE 1

 KLW-M96S5-00 PLATE,BASE 1

 KLW-M96S6-00 BOARD,CLEAR 1

 KLW-M96S7-00 PLATE,LED SHIELD 1

 KLW-M96S8-00 SUPPORT,STAND 1

 KLW-M96SV-00 ANC VALVE ASSY. 1

 90112-2AJ006 BOLT, HEX.SOCKET HEAD 6

 90563-0AJ070 SPACER 6

 90933-02J063 BEARING 2

 90990-32J005 BOLT,FLANGE 2

 90990-41J185 COLLAR 4

 91312-03006 BOLT HEX,SOCKET HEAD 4

 91312-03010 BOLT HEX,SOCKET HEAD 2

 91312-03025 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 2

 91312-04016 BOLT HEX,SOCKET HEAD 1

 91312-04022 BOLT HEX,SOCKET HEAD 1

 91312-05016 BOLT HEX,SOCKET HEAD 8

 91312-05020 BOLT HEX,SOCKET HEAD 1

 92902-04200 WASHER,PLAIN 3

 92902-05200 WASHER,PLAIN 1

 95702-06500 NUT FLANGE 8

Pin Stand(DS)

$TL4-M5M JOINT 2

 KLW-M654J-00 CYL.F1 PIN ST.ASSY 1

 KLW-M654J-10 CYL.F2 PIN ST.ASSY 1

 KLW-M654J-20 CYL.R1 PIN ST.ASSY 1

 KLW-M654J-30 CYL.R2 PIN ST.ASSY 1

 KLW-M91V1-E0 F1 PIN ST.VALVE ASSY 1

 KLW-M91V1-F0 F2 PIN ST.VALVE ASSY 1

 KLW-M91V1-G0 R1 PIN ST.VALVE ASSY 1

 KLW-M91V1-H0 R2 PIN ST.VALVE ASSY 1

 KLW-M9840-A0 PIN ST.F1 ASSY. 1

 KLW-M9840-B0 PIN ST.F2 ASSY. 1

 KLW-M9840-C0 PIN ST.R1 ASSY. 1

 KLW-M9840-D0 PIN ST.R2 ASSY. 1

 KLW-M9841-00 PLATE,BASE 1

 KLW-M9842-00 PLATE 1

 KLW-M9843-00 PLATE,BUSH 1

 KLW-M9844-00 PLATE,PIN 1

 KLW-M9845-00 PLATE 1

 KLW-M9846-00 PLATE 1

 KLW-M9847-00 JOINT 1

 KLW-M9848-00 JOINT,CYL. 1

 KLW-M984A-00 LINEAR BUSH 2

 KLW-M984B-00 LINEAR SHAFT 2

 KLW-M984C-00 STOPPER 2

 KLW-M984D-00 STOPPER 2

KLW-M984E-00 STAY 1

 KLW-M984F-A0 SPEED CONTROLLER 2

 91312-03008 BOLT HEX,SOCKET HEAD 4

 91312-03010 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 8

 91312-05014 BOLT HEX,SOCKET HEAD 2

 91312-05020 BOLT HEX,SOCKET HEAD 2

 91312-05045 BOLT HEX,SOCKET HEAD 8

 91317-03008 BOLT HEX,SOCKET HEAD 2

 91317-04014 BOLT HEX,SOCKET HEAD 2

 92902-05200 WASHER,PLAIN 2

 95302-04600 NUT HEXAGON 4

Pin Stand(SL)

$KM-05 MUFFLER 1

 $TL4-M5M JOINT 2

 $TSH4-M5M JOINT 2

 $TSH6-M5M JOINT 1

 KLW-M654J-20 CYL.R1 PIN ST.ASSY 1

 KLW-M654J-30 CYL.R2 PIN ST.ASSY 1

 KLW-M911U-00 PLATE,VALVE 1

 KLW-M91V1-G0 R1 PIN ST.VALVE ASSY 1

 KLW-M91V1-J0 R2 PIN ST.VALVE ASSY 1

 KLW-M9840-C0 PIN ST.R1 ASSY. 1

 KLW-M9840-E0 PIN ST.R2 ASSY. 1

 KLW-M9841-00 PLATE,BASE 1

 KLW-M9842-00 PLATE 1

 KLW-M9843-00 PLATE,BUSH 1

 KLW-M9844-00 PLATE,PIN 1

 KLW-M9845-00 PLATE 1

 KLW-M9846-00 PLATE 1

 KLW-M9847-00 JOINT 1

 KLW-M9848-00 JOINT,CYL. 1

 KLW-M984A-00 LINEAR BUSH 2

 KLW-M984B-00 LINEAR SHAFT 2

 KLW-M984C-00 STOPPER 2

 KLW-M984D-00 STOPPER 2

 KLW-M984E-00 STAY 1

 KLW-M984F-A0 SPEED CONTROLLER 2

 91312-03008 BOLT HEX,SOCKET HEAD 4

 91312-03010 BOLT HEX,SOCKET HEAD 2

 91312-03014 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 8

 91312-05010 BOLT HEX,SOCKET HEAD 2

 91312-05014 BOLT HEX,SOCKET HEAD 2

 91312-05020 BOLT HEX,SOCKET HEAD 2

 91312-05045 BOLT HEX,SOCKET HEAD 4

 91317-03008 BOLT HEX,SOCKET HEAD 2

 91317-04014 BOLT HEX,SOCKET HEAD 2

 92902-05200 WASHER,PLAIN 2

 95302-04600 NUT HEXAGON 4

PU Assy A / B (DS)

KHY-M921G-01 BRKT.,DOG 1

 KHY-M921N-01 JOINT A 2

 KKE-M921D-00 BELT 291-3GT-15 1

 KLW-M9201-A0 DRIVE UNIT ASSY. 2

 KLW-M9203-G0 STAY ASSY. 1

 KLW-M9204-A0 TENTIONER ASSY. 1

 KLW-M9205-A0 PULLEY ASSY. 1

 KLW-M9206-A0 MOTOR ASSY. 1

 KLW-M9207-A0 SENSOR SUB ASSY. 1

 KLW-M9208-A0 MOTOR ASSY. 1

 KLW-M9209-A0 SENSOR SUB ASSY. 1

 KLW-M920B-00 STAY 1

 KLW-M920C-00 PLATE,PU BASE 1

 KLW-M920N-00 MATRIX PLATE 1

 KLW-M920P-00 MATRIX PLATE 1

KLW-M9210-C0 MATRIX PU ASSY.A 1

 KLW-M9210-D0 MATRIX PU ASSY.B 1

 KLW-M9217-00 BALL BUSH 2

 KLW-M9218-00 SHAFT 2

 KLW-M921E-00 BELT 852-3GT-15 1

 KLW-M921H-02 PLATE,DOG 1

 KLW-M921T-00 BOLT 8

 KLW-M9221-01 DAMPER 2

 KLW-M92U0-A0 MATRIX PIN ASSY. 2

 90990-28J113 WASHER,PLAIN 8

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 8

 91312-05012 BOLT HEX,SOCKET HEAD 24

 91312-05016 BOLT HEX,SOCKET HEAD 16

 91312-06020 BOLT HEX,SOCKET HEAD 6

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 16

 95602-10100 NUT,S/L 8

PU Drive (DS)

KHW-M9215-00 PULLEY:P60-3GT 1

 KHW-M921A-00 BRKT.,TENSIONER 1

 KHW-M921B-00 STAY,ADJUST 1

 KHW-M921C-00 SHAFT 1 1

 KHW-M9222-00 POST 1

 KHW-M9223-00 PULLEY:P40-3GT 1

 KHY-M9211-00 HOLDER,BRG. 1

 KHY-M9212-00 HOUSING 1

 KKE-M9218-00 GROMMET 1

 KLW-M653D-00 SENSOR,PUA ORG ASSY 1

 KLW-M653D-10 SENSOR,PUB ORG ASSY 1

 KLW-M9213-00 BALL SCREW 1

 KLW-M921K-00 BRKT.,SENSOR 1

 KLW-M921S-00 BRKT.,MOTOR 1

 KV7-M9205-01 PULLEY 1:P22-3GT 1

 90440-01J090 CIRCLIP 1

 90933-01J001 BEARING 2

 90933-01J007 BEARING 2

 90933-01J300 BEARING 2

 90990-01J065 BOLT HEX,SOCKET HEAD 1

 90990-28J076 WASHER,PLAIN 1

90990-28J170 WASHER,PLAIN 1

 90K65-332G74 AC SERVO MOTOR 1

 90K65-332P73 AC SERVO MOTOR 1

 91312-03008 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 8

 91312-04010 BOLT HEX,SOCKET HEAD 2

 91312-04012 BOLT HEX,SOCKET HEAD 5

 91312-04020 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 1

 91312-05020 BOLT HEX,SOCKET HEAD 1

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 2

 95302-04600 NUT HEXAGON 1

 99009-10400 CIRCLIP 1

99009-12400 CIRCLIP 1

PU Assy (SL)

KHY-M921D-00 BELT 315-3GT-15 1

 KHY-M921G-01 BRKT.,DOG 1

 KHY-M921N-01 JOINT A 2

 KLW-M9201-A0 DRIVE UNIT ASSY. 2

 KLW-M9203-H0 STAY ASSY. 1

 KLW-M9204-A0 TENTIONER ASSY. 1

 KLW-M9205-A0 PULLEY ASSY. 1

 KLW-M9208-A0 MOTOR ASSY. 1

 KLW-M9209-B0 SENSOR SUB ASSY. 1

 KLW-M920D-10 PLATE,PU BASE 1

 KLW-M920G-10 STAY 1

 KLW-M920R-00 MATRIX PLATE 1 1

 KLW-M920S-00 MATRIX PLATE 2 1

 KLW-M9210-30 MATRIX PU ASSY. 1

 KLW-M9217-00 BALL BUSH 2

 KLW-M9218-00 SHAFT 2

 KLW-M921H-02 PLATE,DOG 1

 KLW-M921N-00 BELT 1170-3GT-15 1

 KLW-M921T-00 BOLT 8

 KLW-M9221-01 DAMPER 2

 KLW-M92U0-A0 MATRIX PIN ASSY. 2

 90990-28J113 WASHER,PLAIN 8

 91312-04006 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 2

 91312-04010 BOLT HEX,SOCKET HEAD 4

 91312-05012 BOLT HEX,SOCKET HEAD 28

 91312-05016 BOLT HEX,SOCKET HEAD 16

 91312-06020 BOLT HEX,SOCKET HEAD 8

 92902-04200 WASHER,PLAIN 2

 92902-05200 WASHER,PLAIN 12

 95602-10100 NUT,S/L 8

PU Drive (SL)

KHW-M9215-00 PULLEY:P60-3GT 1

 KHW-M921A-00 BRKT.,TENSIONER 1

 KHW-M921B-00 STAY,ADJUST 1

 KHW-M921C-00 SHAFT 1 1

 KHW-M9222-00 POST 1

 KHW-M9223-00 PULLEY:P40-3GT 1

 KHY-M9211-00 HOLDER,BRG. 1

 KHY-M9212-00 HOUSING 1

 KKE-M9218-00 GROMMET 1

 KLW-M653D-20 SENSOR,PUB ORG ASSY 1

 KLW-M9213-00 BALL SCREW 1

 KLW-M921K-00 BRKT.,SENSOR 1

 KLW-M921S-00 BRKT.,MOTOR 1

 KV7-M9205-01 PULLEY 1:P22-3GT 1

 90440-01J090 CIRCLIP 1

 90933-01J001 BEARING 2

 90933-01J007 BEARING 2

 90933-01J300 BEARING 2

 90990-01J065 BOLT HEX,SOCKET HEAD 1

 90990-28J076 WASHER,PLAIN 1

 90990-28J170 WASHER,PLAIN 1

 90K65-332G74 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

 91312-04008 BOLT HEX,SOCKET HEAD 4

 91312-04012 BOLT HEX,SOCKET HEAD 5

 91312-04020 BOLT HEX,SOCKET HEAD 1

 91312-05010 BOLT HEX,SOCKET HEAD 1

 91312-05020 BOLT HEX,SOCKET HEAD 1

 92902-05200 WASHER,PLAIN 2

 95302-04600 NUT HEXAGON 1

 99009-10400 CIRCLIP 1

 99009-12400 CIRCLIP 1

Set Up ST on MC

90172-00J030 WASHER, EXTL, TOOTHED 2

 90172-00J040 WASHER, EXTL, TOOTHED 8

 90172-00J060 WASHER, EXTL, TOOTHED 4

 90990-12J001 SCREW, BIN. HEAD W/W 17

 90990-23J029 GROMMET 1

 91312-03006 BOLT HEX,SOCKET HEAD 2

 91312-03008 BOLT HEX,SOCKET HEAD 6

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 4

 92012-03005 BOLT BUTTON HEAD 4

 92012-06010 BOLT BUTTON HEAD 4

 KHJ-M4484-02 FDR.ST.BOARD ASSY 1

 KHJ-M4486-00 PITCH LED BOARD ASSY 1

 KHJ-M663B-10 HNS, PITCH LED 1

 KHJ-M663C-10 HNS,PITCH UP 1

 KHJ-MD110-00 LABEL, PITCH 1

 KHJ-MD115-00 PIN,HUNG R 2

 KHJ-MD210-00 FOOT 6

 KHY-M372M-00 SCREW,STAD 2

 KHY-M66RK-00 HNS,FDR.ST. 1

 KLF-M669B-10 HNS,PITCH DOWN 1

 KLF-M669B-20 HNS,PITCH SET 1

 KLF-M66TE-10 HNS,F.CTRL - FDR. 1

 KLF-MD101-00 FEEDER PLATE 1

 KLF-MD104-00 CLAMP PLATE 1

 KLF-MD105-00 FEEDER STOPPER 1

 KLF-MD111-00 RAIL GUIDE 16P 1

 KLF-MD112-00 PLATE, UNDER COVER 1

 KLF-MD121-00 REELHOLDER 1

 KLF-MD122-00 PLATE,REELHOLDER 2

 KLF-MD123-00 SHAFT 1

 KLF-MD124-00 SHAFT,REELHOLDER 1

 KLF-MD125-00 PLATE,REEL SET 1

 KLF-MD126-00 BRKT,SHAFT 1

 KLF-MD1C0-00 REELHOLDER EQUIP. 1

 KLW-MD102-00 COVER,HNS 1

 KLW-MD103-00 COVER,SIDE 1

 KLW-MD106-00 PLATE,CONNECTOR 1

 KLW-MD107-00 COVER,BACK 1

 KLW-MD108-00 COVER,HNS.2 1

 KLW-MD109-00 COVER,SWITCH 1

 KLW-MD113-00 HUNGER 1

 92902-03200 WASHER,PLAIN 2

 92902-04200 WASHER,PLAIN 4

98702-03005 SCREW,FLAT HEAD 2

 98702-03008 SCREW,FLAT HEAD 8

 98902-03004 SCREW BINDING HEAD 12

 98902-03008 SCREW BINDING HEAD 2

 98902-04006 SCREW BINDING HEAD 2

FDR Power ST

KHJ-MD201-00 FEEDER PLATE 1

 KHJ-MD202-00 SIDE PLATE, L 1

 KHJ-MD203-00 SIDE PLATE, R 1

 KHJ-MD204-00 CLAMP PLATE 1

 KHJ-MD205-00 FEEDER STOPPER 1

 KHJ-MD206-00 CONNECTOR PLATE 1

 KHJ-MD207-00 UNDER COVER 1

 KHJ-MD208-00 BACK COVER 1

 KHJ-MD209-00 BASE PLATE 1

 KHJ-MD210-00 FOOT 4

 KJJ-M371R-000 RAIL GUIDE 16P 1

 KHJ-MD212-00 BKT. SWITCH 1

 KHJ-MD213-00 REEL HOLDER, FIX. 1

 KHJ-MD214-00 REEL HOLDER, MOVE 1

 KHJ-MD110-00 LABEL, PITCH 1

 KHJ-M4484-02 FDR. ST. BOARD ASSY 1

 KHJ-M4486-00 PITCH LED BOARD ASSY 1

 KJ3-M6511-00 CIRCUIT PROTECTOR, 1 1

 KHJ-M537A-00 NOISE FILTER 1

 KHJ-M6561-10 POWER SUPPLY 1 1

 KHJ-M661B-01 HNS, AC IN 2 1

 KHJ-M662A-00 HNS, CP DC24V 1

 KHJ-M662B-00 HNS, LAMP 1

 KHJ-M662C-000 HNS, BRD.PWR 1

 KHJ-M663C-00 HNS, PITCH UP 1

 KHJ-M663D-00 HNS, PITCH DOWN 1

 KHJ-M663E-00 HNS, PITCH SET 1

 KHY-M66TE-00 HNS, F. CTRL-FDR. 1

KJ3-M662A-00 HNS, AC IN 1 1 Abroad parts

KJ3-M661A-00 HNS, AC IN 1 1 Domestis parts

 KHJ-MD215-001 LABEL, SERIAL 1

 KHA-M5184-11 SEAL, LABEL 1

 KHY-M6417-00 SEAL, CE 1

 KHY-M372M-00 SCREW, STAD 2

 90563-03J100 SPACER BOLT 4

 92902-03200 WASHER PLAIN 4

 98902-03004 SCREW BINDING HEAD 4

 98902-03005 SCREW BINDING HEAD 28

 98902-04006 SCREW BINDING HEAD 10

 98702-03006 SCREW FLAT HEAD 8

 91312-03006 BOLT HEX. SOCKET HEAD 3 M3X8

 91312-03008 BOLT HEX. SOCKET HEAD 4 M3X7

 90990-11J003 SCREW, PAN HEAD W/W 16

 $NK-3N NYLON CLIP 12

F.S.Type 100

90172-00J040 WASHER, EXTL, TOOTHED 1

 91312-04008 BOLT HEX,SOCKET HEAD 31

 91312-06008 BOLT HEX,SOCKET HEAD 36

 92902-04200 WASHER,PLAIN 2

 KHJ-MK002-20 FEEDER-50 PLATE 2

 KHJ-MK010-20 FRAME,REEL STAND 1 1

 KHJ-MK011-20 GUIDE,PARTITION 2 1

 KHJ-MK012-20 FRAME,REEL STAND 2 1

 KHJ-MK013-20 MAIN FRAME 1 1

 KHJ-MK014-20 MAIN FRAME 2 1

 KHJ-MK015-20 MAIN FRAME 3 1

 KHJ-MK016-20 MAIN FRAME 4 1

 KHJ-MK017-20 MAIN FRAME 5 1

 KHJ-MK018-20 MAIN FRAME 6 1

 KHJ-MK019-20 PULL 2

 KHJ-MK020-20 PARTITION 2 12

 KHY-M373C-10 CHAIN 1

 KHY-M374C-00 CASTER 2

 KHY-M3R16-00 PARTITION 12

KM0-M3741-00 CASTER 63 2

Dust Box

KLW-M3600-A0 DUST BOX ASSY. 4

Controller

90166-12JA10 SCREW, PAN HEAD 4

 91312-04006 BOLT HEX,SOCKET HEAD 8

 91312-04030 BOLT HEX,SOCKET HEAD 4

 91312-04040 BOLT HEX,SOCKET HEAD 8

 91312-05012 BOLT HEX,SOCKET HEAD 5

 KJJ-M412B-00 CLAMP 2 4

 KKE-M4141-00 DUMMY PANEL SYS 1 STD

 KLA-M4209-70 SYSTEM UNIT ASSY 1

 KLA-M441H-20 VISION BOARD ASSY 1

 KLA-M4530-10 REMOTE IF BOARD ASSY 1 -2016 August

 KLW-M4530-10 REMOTE IF BOARD ASSY 1 2016 September - NG MN50175-2016/6/2

 KLA-M5840-03 SERVO BOARD ASSY 2

 KLA-M5840-33 SERVO BOARD ASSY 1

 KLR-M4111-00 PANEL,DUMMY 1 STD

 KLV-M4131-00 BASE,C/R BOX 1

 KLV-M4132-00 BRKT.,FAN 1

 KLV-M4133-00 GUIDE,FLOW 2 1

 KLV-M4134-00 COVER,FILTER 1 1

 KLV-M4135-00 COVER,FILTER 2 1

 KLV-M4136-00 FILTER 1

 KLW-M53L6-00 FAN MOTOR ASSY. 1

 KLW-M53M4-00 FAN MOTOR ASSY. 2

 KLW-M5880-00 CONVERTER BOARD ASSY 1

 92902-05200 WASHER,PLAIN 5

 97602-04306 SCREW PAN HEAD W/WASHER 2

 97602-04308 SCREW PAN HEAD W/WASHER 12

 KLA-M4255-10 FLASH DISK 4G 1

Exterior,etc Old

KLF-M5119-01 TOUCH LCD ASSY 2

 KKE-M4899-00 LIGHT 1 ASSY 1 405MM RYG

 KKE-M4899-10 LIGHT 1 ASSY 1 455MM RYG

 KKE-M4899-20 LIGHT 1 ASSY 1 555MM RYG

 KKE-M4899-30 LIGHT 1 ASSY 1 655MM RYG

 KKE-M4899-40 LIGHT 1 ASSY 1 755MM RYG

 KKE-M4899-50 LIGHT 1 ASSY 1 855MM RYG

 KKE-M4899-60 LIGHT 1 ASSY 1 405MM WBG

 KKE-M4899-70 LIGHT 1 ASSY 1 455MM WBG

 KKE-M4899-80 LIGHT 1 ASSY 1 555MM WBG

 KKE-M4899-90 LIGHT 1 ASSY 1 655MM WBG

 KKE-M4899-A0 LIGHT 1 ASSY 1 755MM WBG

 KKE-M4899-B0 LIGHT 1 ASSY 1 855MM WBG

 KLW-M669V-00 HNS,SWITCH ACTIVE 1 ACTIVE

 KLW-M669V-10 HNS,SWITCH ACTIVE 1 READY

 KLW-M669V-20 HNS,SWITCH ACTIVE 1 START

 KLW-M669V-30 HNS,SWITCH ACTIVE 1 STOP

 KLW-M669V-40 HNS,SWITCH ACTIVE 1 ERROR CLEAR

 KLW-M669V-50 HNS,SWITCH ACTIVE 1 RESET

 KLW-M669V-60 HNS,SWITCH ACTIVE 1 STOP (CE)

 KLW-M669V-70 HNS,SWITCH ACTIVE 1 ERROR CLEAR (CE)

 KLW-M669V-80 HNS,SWITCH ACTIVE 1 ACTIVE_Chinese

 KLW-M669V-90 HNS,SWITCH ACTIVE 1 READY_Chinese

 KLW-M669V-A0 HNS,SWITCH ACTIVE 1 START_Chinese

 KLW-M669V-B0 HNS,SWITCH ACTIVE 1 STOP_Chinese

 KLW-M669V-C0 HNS,SWITCH ACTIVE 1 ERROR CLEAR_Chinese

 KLW-M669V-D0 HNS,SWITCH ACTIVE 1 RESET_Chinese

 KLW-M669V-E0 HNS,SWITCH ACTIVE 1 STOP_Chinese (CE)

 KLW-M669V-F0 HNS,SWITCH ACTIVE 1 ERROR CLEAR _Chinese (CE)

 KGS-M4897-01 LIGHT,ERROR 2 S.T.D

 KHG-M4896-01 LIGHT,ERROR 2 CE

 LC1-M13H2-00 SWITCH,EMG ASSY 1

 KGK-M5381-00 EMG PLATE 1

 KKE-M6554-00 MAIN SWITCH 1

 KKX-M8596-A0 PRESSURE GAUGE 1

 KLF-M4267-10 USB MEMORY 1 8GB

 KLF-M4580-00 I/O CONV.BOARD ASSY 1

 KLF-M3992-00 SWITCH,SELECT 2

 KLF-M138J-01 BALL CHAIN 1

 KLF-M138K-00 RING 1

 KLF-M516A-00 TOUCH PEN 1

 KLW-M5150-A0 KEYBOAD ASSY.E (O/P) 1 Keyboad only:KLF-M5150-20

Exterior,etc New

KLW-M5119-00 TOUCH LCD ASSY 2 OK MMY0171-2015/12/21

 KKE-M4899-00 LIGHT 1 ASSY 1 405MM RYG

 KKE-M4899-10 LIGHT 1 ASSY 1 455MM RYG

 KKE-M4899-20 LIGHT 1 ASSY 1 555MM RYG

 KKE-M4899-30 LIGHT 1 ASSY 1 655MM RYG

 KKE-M4899-40 LIGHT 1 ASSY 1 755MM RYG

 KKE-M4899-50 LIGHT 1 ASSY 1 855MM RYG

 KKE-M4899-60 LIGHT 1 ASSY 1 405MM WBG

 KKE-M4899-70 LIGHT 1 ASSY 1 455MM WBG

 KKE-M4899-80 LIGHT 1 ASSY 1 555MM WBG

 KKE-M4899-90 LIGHT 1 ASSY 1 655MM WBG

 KKE-M4899-A0 LIGHT 1 ASSY 1 755MM WBG

 KKE-M4899-B0 LIGHT 1 ASSY 1 855MM WBG

 KLW-M65M5-00 HNS,SWITCH ACTIVE 1 ACTIVE NG MN90072-2016/11/7

 KLW-M65M5-10 HNS,SWITCH ACTIVE 1 READY NG MN90072-2016/11/7

 KLW-M65M5-20 HNS,SWITCH ACTIVE 1 START NG MN90072-2016/11/7

 KLW-M65M5-30 HNS,SWITCH ACTIVE 1 STOP NG MN90072-2016/11/7

 KLW-M65M5-40 HNS,SWITCH ACTIVE 1 ERROR CLEAR NG MN90072-2016/11/7

 KLW-M65M5-50 HNS,SWITCH ACTIVE 1 RESET NG MN90072-2016/11/7

 KLW-M65M5-60 HNS,SWITCH ACTIVE 1 STOP_ (CE) NG MN90072-2016/11/7

 KLW-M65M5-70 HNS,SWITCH ACTIVE 1 ERROR CLEAR_ (CE) NG MN90072-2016/11/7

 KLW-M65M5-80 HNS,SWITCH ACTIVE 1 ACTIVE_ Chinese NG MN90072-2016/11/7

 KLW-M65M5-90 HNS,SWITCH ACTIVE 1 READY_ Chinese NG MN90072-2016/11/7

 KLW-M65M5-A0 HNS,SWITCH ACTIVE 1 START_ Chinese NG MN90072-2016/11/7

 KLW-M65M5-B0 HNS,SWITCH ACTIVE 1 STOP_ Chinese NG MN90072-2016/11/7

 KLW-M65M5-C0 HNS,SWITCH ACTIVE 1 ERROR CLEAR_ Chinese NG MN90072-2016/11/7

 KLW-M65M5-D0 HNS,SWITCH ACTIVE 1 RESET_ Chinese NG MN90072-2016/11/7

 KLW-M65M5-E0 HNS,SWITCH ACTIVE 1 STOP_ Chinese (CE) NG MN90072-2016/11/7

 KLW-M65M5-F0 HNS,SWITCH ACTIVE 1 ERROR CLEAR _Chinese (CE) NG MN90072-2016/11/7

 KLW-M4897-00 LIGHT,ERROR 2 S.T.D OK ML90064-2014/9/10

 KLW-M4897-10 LIGHT,ERROR 2 CE OK ML90064-2014/9/10

 LC1-M13H2-00 SWITCH,EMG ASSY 1

 KGK-M5381-00 EMG PLATE 1

 KKE-M6554-00 MAIN SWITCH 1

 KKX-M8596-A0 PRESSURE GAUGE 2

 KLF-M4268-10 USB MEMORY ASSY 1 8GB OK MN60094-2016/8/2

 KLF-M4580-00 I/O CONV.BOARD ASSY 1

 KLW-M65NA-A0 SELECT 1A ASSY 2 OK MP10133-2017/2/13

 KLF-M138J-01 BALL CHAIN 1

 KLF-M138K-00 RING 1

 KLW-M516A-00 PEN,TOUCH 1 OK MM00006-2015/12/8

KLW-M5150-A0 KEYBOAD ASSY.E (O/P) 1 Keyboad only:KLF-M5150-20

Exterior,E/L

90990-11J003 SCREW, PAN HEAD W/W 12

 91312-04045 BOLT HEX,SOCKET HEAD 24

 K44-M643E-00 PARTS, 3-2 2

 KG2-M643A-00 PARTS, 3-1 2

 KH1-M539M-41 PROTECTOR ACCES.1P 6

 KH1-M6515-01 CIRCUIT PROTECTOR, 2P 1

 KH1-M6516-01 CIRCUIT PROTECTOR, 1P 1

 KH4-M6514-01 CIRCUIT PROTECTOR,3P 1

 KH4-M6515-31 CIRCUIT PROTECTOR,2P 1

 KHN-M6175-10 FAN MOTOR 6

 KHN-M643A-00 TERMINAL,POWER 4

 KHN-M643A-10 TERMINAL, POWER 6

 KHN-M643E-00 END PLATE 2

 KHN-M643E-10 END PLATE 6

 KHN-M6513-11 CIRCUIT PROTECTOR,1P 4

 KHN-M6513-21 CIRCUIT PROTECTOR,1P 2

 KHN-M6561-00 POWER SUPPLY 1 1

 KKE-M6513-00 CIRCUIT PROTECTOR,1P 1

 KKE-M6561-10 POWER SUPPLY 1 1

 KKX-M6513-00 CIRCUIT PROTECTOR,1P 2

 KLF-M4187-20 FAN GUARD 120MM 6

 KLF-M537F-00 SAFETY RELAY 1

 KLF-M537G-00 CONTACTOR,1 2

 KLF-M537G-50 CONTACTOR,1 2

 KLF-M6511-10 MAIN BREAKER,1 1

 KLF-M6561-00 POWER SUPPLY 1 1

 KLA-M4506-00 HEAD I/O UNIT ASSY 1

 KLA-M459X-01 BATT UNIT ASSY 4

 KLA-M5802-48 HEAD SERVO UNIT ASSY 2

 98902-03006 SCREW BINDING HEAD 16
