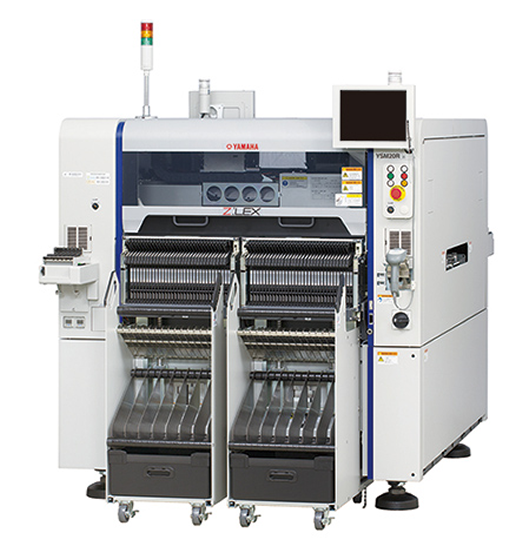

YAMAHA YSM20R Type PV/SV PARTS

YSM20R Type PV/SV Parts

Base

 $NK-3N NYLON CLIP 2

 90990-11J003 SCREW, PAN HEAD W/W 13

 90K41-001450 LABEL,CAUTION 1

 91312-04006 BOLT HEX,SOCKET HEAD 4

 91312-04008 BOLT HEX,SOCKET HEAD 12

 91312-05008 BOLT HEX,SOCKET HEAD 4

 91312-05010 BOLT HEX,SOCKET HEAD 22

 91312-06012 BOLT HEX,SOCKET HEAD 4

 KKE-M111M-00 PLATE,CLAMP 1

 KLW-M111L-01 BRKT.,POWER SUPPLY 1 1

 KMK-M1125-00 PLATE,25 1

 KMK-M1126-00 PLATE,26 1

 KLW-M1128-00 PLATE,CONV. 1

 KLW-M112A-00 BASE,BOARD 1

 KLW-M112B-00 COVER,BOARD 1

 KLW-M112C-00 PLATE,BAT. 1

 KLW-M112D-00 HOLDER,BOARD 2

 KLW-M112E-00 PLATE,BASE 1

 KLW-M1133-00 STAY, TRANSFORMER 1

 KLW-M1134-00 BRKT.,TRANS. 1 1

 KLW-M1136-00 PLATE,SIDE INNER 1 2

 KLW-M1137-00 PLATE,SIDE INNER 2 1

 KLW-M1138-00 BRKT.,FAN INSIDE 4

 KLW-M1139-00 BRKT.,SIDE PLATE 3

 KLW-M113D-00 PLATE,BASE 5 2

 KLW-M113F-00 BRKT.,CONNECTOR 2

 KLW-M113M-00 PLATE,FAN 1

 KLW-M113N-00 BRKT,DUCT 4

 KMK-M113R-00 BRKT.,FAN 1

 KMK-M1336-00 BRKT.,REAR LEFT 1

 KMK-M1337-00 BRKT.,REAR RIGHT 1

 KMK-M1338-00 BRKT.,MAIN SWITCH 1

 KMK-M1339-00 BRKT.,FL 1 YSM20R-2

 KMK-M1339-10 BRKT.,FL 1 YSM20R-1

 97602-05310 SCREW PAN HEAD W/WASHER 50

 98702-03006 SCREW,FLAT HEAD

Sub Assy

$AUY10 JOINT 2

$FVU8-8 JOINT 1

$KM-11 MUFFLER 1

$SL8-01 JOINT 1

$UC4 JOINT 2

$UC6 JOINT 2

$UEDW10-8 JOINT 1

$UP10 JOINT 1

$UP8 JOINT 2

$UY4 JOINT 2

$UY6 JOINT 2

$UY8 JOINT 1

$UYD10-8 JOINT 1

$UYD8-6 JOINT 6

$UB1065-BK URETHANE TUBE 2 L=250mm

91312-03020 BOLT HEX,SOCKET HEAD 2

91312-04014 BOLT HEX,SOCKET HEAD 2

91312-04025 BOLT HEX,SOCKET HEAD 2

91312-05008 BOLT HEX,SOCKET HEAD 2

91312-05012 BOLT HEX,SOCKET HEAD 2

91312-06010 BOLT HEX,SOCKET HEAD 2

92902-06200 WASHER,PLAIN 2

97602-05310 SCREW PAN HEAD W/WASHER 4

KLF-M8502-50 FILTER ELEMENT 1

KLF-M8502-70 MIST FILTER ELEMENT 1

KLW-M1124-00 PLATE,FILTER 1

KLW-M1127-00 PLATE,EXT.VALVE 1

KLW-M113P-00 CAP 2

KLW-M1180-00 LEVELING BOLT ASSY. 6

KLW-M8501-00 VALVE,EXHAUST 1

KLW-M8502-01 FILTER ASSY. 1

KLW-M8502-61 CASE,AIR FILTER 1 Nylon

KLW-M8502-81 CASE,MIST FILTER 1 Nylon

KLW-M8583-00 SOLENOID VALVE 1 Duble Solenoid

KMC-M1111-01 PLATE,REG. 1

KMC-M8504-00 REGULATOR 2

KMK-M654F-00 VALVE ASSY. 1

Top Cover FR

KH1-M1396-00 WASHER 4

KH1-M13A9-00 BUSH 1

KLF-M1318-00 COVER 18 1

KLF-M4187-10 FAN GUARD 80MM 1

KLF-M6680-00 HNS,ADAPTER USB 2

KLW-M130B-01 COVER,SW. 1

KLW-M130J-00 PLATE,USB 2

KLW-M131C-00 BRKT.1,CONNECTOR 1

KLW-M1341-00 RAIL R,COVER9 1

KLW-M1381-00 MOUNT,MONITOR 1

KLW-M1382-01 BRKT.,MOUNT 1

KLW-M13NC-03 COVER 1-2 1

KLW-M3T0H-00 COUPLER,SOCKET 1

KLW-M96H3-00 LABEL,ANC 2BEAM HM 1

KLW-M96HC-00 LABEL,MATRIX 1

KMC-M1384-00 BRACKET,LCD 1

KMG-M130G-00 BRKT.,USB 1

KMG-M130H-00 BOX,USB 1

KMG-M13N5-00 COVER,FAN Y 1

KMG-M13N6-00 BRKT.,FAN Y 1

KMG-M13NC-00 FILTER,FAN 1

KMK-M1301-00 COVER 1 1

KMK-M131G-00 COVER,PANEL R 1

KMK-M131J-00 COVER,PANEL UR 1

KMK-M131K-00 COVER,FAN TOP 1

KMK-M131K-A0 FAN COVER ASSY. 1

KMK-M131L-00 FRAME,FILTER 1

KMK-M131M-00 FILTER,FAN 1

KMK-M133N-00 STAY,LCD UNIT 1

KMK-M1385-00 STAY,PAT LIGHT 1

KMK-M13D6-00 SEAL 1(YSM20R) 1

KMK-M13N5-B0 F2 Y FAN ASSY. 1

KMK-M6185-A0 FAN MOTOR ASSY 1

KMM-M4897-A0 ERROR LIGHT ASSY 1

90K41-001290 LABEL,WARNING 1

90169-02J214 SCREW, BINDING HEAD 4

90172-00J050 WASHER, EXTL, TOOTHED 4

90990-12J001 SCREW, BIN. HEAD W/W 19

90990-12J007 SCREW, BIN. HEAD W/W 2

91312-03010 BOLT HEX,SOCKET HEAD 1

91312-04008 BOLT HEX,SOCKET HEAD 9

91312-04045 BOLT HEX,SOCKET HEAD 4

91312-05010 BOLT HEX,SOCKET HEAD 4

91312-08035 BOLT HEX,SOCKET HEAD 1

92012-04008 BOLT, BOTTON HEAD 4

92902-05200 WASHER,PLAIN 4

92902-08200 WASHER,PLAIN 2

95602-04100 NUT,S/L 8

95602-08100 NUT,S/L 1

KMC-M1390-00 LCD STAY ASSY. 1

Top Cover RR

KGB-M5184-01 SEAL,CLAMP ON/OFF 1

KGJ-M1350-00 SPACER,MINI LATCH 1

KGJ-M1351-01 PLATE,MINI LATCH 1

KH1-M1396-00 WASHER 4

KLF-M4187-10 FAN GUARD 80MM 1

KLW-M130E-00 DOOR,COVER 2 1

KLW-M130F-00 BRKT.,CONNECTOR 1

KLW-M131D-00 BRKT.2,CONNECTOR 1

KLW-M133B-00 SEAL,BLIND 1

KLW-M1342-00 RAIL L,COVER9 1

KLW-M3T0H-00 COUPLER,SOCKET 1

KLW-M65NA-A0 SELECT 1A ASSY 1

KMG-M13N5-00 COVER,FAN Y 1

KMG-M13N6-00 BRKT.,FAN Y 1

KMG-M13NC-00 FILTER,FAN 1

KMK-M1302-00 COVER 2 1

KMK-M1307-00 COVER 7 1

KMK-M131F-00 COVER,PANEL L 1

KMK-M131H-00 COVER,PANEL UL 1

KMK-M131K-00 COVER,FAN TOP 1

KMK-M131K-A0 FAN COVER ASSY. 1

KMK-M131L-00 FRAME,FILTER 1

KMK-M131M-00 FILTER,FAN 1

KMK-M1334-00 BRKT.,GATE COVER 1 1

KMK-M1335-00 BRKT.,GATE COVER 2 1

KMK-M1372-00 COVER 72 1

KMK-M13N5-C0 R1 Y FAN ASSY. 1

KMK-M6185-B0 FAN MOTOR ASSY 1

KW3-M1349-00 MINI LATCH 2

90990-11J003 SCREW, PAN HEAD W/W 4

90990-12J001 SCREW, BIN. HEAD W/W 21

90990-12J006 SCREW, BIN. HEAD W/W 2

90990-23J006 GROMMET 1

90K41-001250 LABEL,WARNING 1

90K41-001870 LABEL,CAUTION 1

91312-04008 BOLT HEX,SOCKET HEAD 1

91312-04045 BOLT HEX,SOCKET HEAD 4

92012-04008 BOLT, BOTTON HEAD 4

95602-04100 NUT,S/L 8

Top Cover FL

KGB-M5184-01 SEAL, CLAMP ON/OFF 1

KGJ-M1350-00 SPACER, MINI LATCH 1

KGJ-M1351-01 PLATE, MINI LATCH 1

KH1-M1396-00 WASHER 4

KLF-M4187-10 FAN GUARD 80MM 1

KLW-M130E-00 DOOR, COVER 2 1

KLW-M130F-00 BRKT., CONNECTOR 1

KLW-M131D-00 BRKT.2, CONNECTOR 1

KLW-M1342-00 RAIL L, COVER9 1

KLW-M3T0H-00 COUPLER, SOCKET 1

KLW-M65NA-A0 SELECT 1A ASSY 1

KMG-M13N5-00 COVER, FAN Y 1

KMG-M13N6-00 BRKT., FAN Y 1

KMG-M13NC-00 FILTER, FAN 1

KMK-M1302-00 COVER 2 1

KMK-M1308-00 COVER 8 1

KMK-M131F-00 COVER, PANEL L 1

KMK-M131H-00 COVER, PANEL UL 1

KMK-M131K-00 COVER, FAN TOP 1

KMK-M131K-A0 FAN COVER ASSY. 1

KMK-M131L-00 FRAME, FILTER 1

KMK-M131M-00 FILTER, FAN 1

KMK-M1334-00 BRKT., GATE COVER 1 1

KMK-M1372-00 COVER 72 1

KMK-M13N5-A0 F1 Y FAN ASSY. 1

KMK-M6185-B0 FAN MOTOR ASSY 1

KW3-M1349-00 MINI LATCH 1

90990-11J003 SCREW, PAN HEAD W/W 4

90990-12J001 SCREW, BIN. HEAD W/W 18

90990-12J006 SCREW, BIN. HEAD W/W 2

90990-23J006 GROMMET 1

90K41-001250 LABEL, WARNING 1

90K41-001870 LABEL, CAUTION 1

91312-04008 BOLT HEX, SOCKET HEAD 1

91312-04045 BOLT HEX, SOCKET HEAD 4

92012-04008 BOLT, BOTTON HEAD 4

95602-04100 NUT, S/L 8

Top Cover RL

KH1-M13A9-00 BUSH 1

KLF-M1318-00 COVER 18 1

KLW-M130B-01 COVER,SW. 1

KLW-M131C-00 BRKT.1,CONNECTOR 1

KLW-M1341-00 RAIL R,COVER9 1

KLW-M3T0H-00 COUPLER,SOCKET 1

KMK-M1306-00 COVER 6 1

KLW-M96H3-00 LABEL,ANC 2BEAM HM 1

KLW-M96HC-00 LABEL,MATRIX 1

KMC-M1390-00 LCD STAY ASSY. 1

KMK-M1304-00 COVER 4 1

KMK-M131G-00 COVER,PANEL R 1

KMK-M131J-00 COVER,PANEL UR 1

KMK-M131K-A0 FAN COVER ASSY. 1

KMK-M1329-00 COVER 29 2

KMK-M1335-00 BRKT.,GATE COVER 2 1

KMK-M133N-00 STAY,LCD UNIT 1

KMK-M135K-00 STAY,DAMPER 2

KMK-M1385-00 STAY,PAT LIGHT 1

KMK-M13N5-D0 R2 Y FAN ASSY. 1

KMM-M4897-A0 ERROR LIGHT ASSY 1

91312-04008 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 8

92012-04008 BOLT, BOTTON HEAD 4

98902-03008 SCREW BINDING HEAD 12

90990-12J001 SCREW, BIN. HEAD W/W 28

90990-12J007 SCREW, BIN. HEAD W/W 2

Acril Door 1

KKX-M13D7-00 SEAL 2(YAMAHA) 1

KLV-M1347-00 PULL 2

KLW-M134S-00 COVER 9-4 1

KLW-M13D9-00 STICKER 1 1-70

KLW-M13D9-10 STICKER 1 101-170

KMK-M1342-00 COVER 9-2 1

KMK-M1345-00 FRAME,L 1

KMK-M1346-00 FRAME,R 1

KMK-M134H-00 ROLLER 2

KLW-M13D8-00 LABEL (Z:LEX) 1

KMK-M1347-00 COVER LWR.F 1

KMK-M1348-00 FRAME,LWR. 1

KMK-M1349-00 COVER,LOWER ZSF 1 ZSF

KMK-M134A-00 COVER,LOWER SSF 1 SSF/FIX

KMK-M134C-00 BRKT.,KEY L 1

KMK-M134D-00 BRKT.,KEY R 1

KMK-M134E-00 PLATE,NUT 2

KMK-M134F-00 HOLDER,PVC PLATE 2

KMK-M134G-00 PLATE,CONNECTING 2

90990-01J065 BOLT HEX,SOCKET HEAD 9

90990-01J169 BOLT,HEX.SOCKET HEAD 2

90990-11J001 SCREW, PAN HEAD W/W 6

90990-12J001 SCREW, BIN. HEAD W/W 6

90K41-001250 LABEL,WARNING 1

90K41-001420 LABEL,WARNING 1

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-05008 BOLT HEX,SOCKET HEAD 12

Acril Door 2

K46-M1374-12 HINGE 2 3

KGS-M1348-00 GAS,SPRING 2 STD

KHN-M1348-00 GAS,SPRING 2 IONIZE

KL0-M1374-00 PLATE 1, SCHMEASAL 2

KLW-M135A-00 PLATE,STOPPER 2

KLW-M135F-00 STOPPER 2

KMK-M133H-00 BRKT.,STOPPER 1 1

KMK-M133J-00 BRKT.,STOPPER 2 1

KMK-M1341-00 COVER 9-1 1

KMK-M134B-00 BRKT.,KEY 2

KMK-M134J-00 HINGE 2

KMK-M134K-00 COVER,HINGE 6

KMK-M5126-A0 SAFETY SW UNIT ASSY 2

KV5-M1130-00 CATCH MG. 2

KW7-M5127-00 SAFETY SWITCH KEY 2

90990-06J002 BOLT,BUTTON HEAD 4

90990-06J014 BOLT,BUTTON HEAD 4

90990-12J001 SCREW, BIN. HEAD W/W 6

90990-12J003 SCREW, BIN. HEAD W/W 18

90990-31J006 BOLT, SHOULDER 4

90990-41J048 COLLAR 2

91312-04006 BOLT HEX,SOCKET HEAD 12

91312-04008 BOLT HEX,SOCKET HEAD 8

91312-04012 BOLT HEX,SOCKET HEAD 2

92902-04200 WASHER,PLAIN 2

95302-06600 NUT HEXAGON 2

98902-03006 SCREW BINDING HEAD 4

Base Cover

KGS-M6417-00 SEAL,PERIOD 1

KGS-M6427-00 SEAL.PRODUCTION 1

KH1-M1396-00 WASHER 12

KHU-M1117-00 PULL 4

KLF-M4187-20 FAN GUARD 120MM 2

KLS-M13B5-00 MAGNET CATCH 1

KLW-M13NB-00 FILTER,REAR FAN 1

KLW-M4187-00 GUIDE,FAN 1

KMK-M1310-A0 COVER 10 ASSY. 1

KMK-M1311-A0 COVER 11 ASSY. 1 With MAGNET CATCH

KMK-M1312-A0 COVER 12 ASSY. 2 With PULL

KMK-M1313-A0 COVER 13 ASSY. 1

KMK-M1314-A0 COVER 14 ASSY. 2 With PULL

KMK-M1315-A0 COVER 15 ASSY. 1

KMK-M132A-00 COVER 10-1 1

KMK-M132B-00 COVER 13-1 1

KMK-M132C-00 COVER 15-1 1

KMK-M132D-00 COVER 11-1 1

KMK-M1373-00 PLATE,SIDE LWR.1 2

KMK-M1374-00 PLATE,SIDE LWR.2 2

KMK-M13N2-00 BRKT.,REAR FAN 1 1

KMK-M13N2-A0 REAR FAN 1 ASSY. 1

KMK-M13N3-00 BRKT.,REAR FAN 2 1

KMK-M13N3-A0 REAR FAN 2 ASSY. 1

KMK-M6185-00 FAN MOTOR ASSY 1

KMK-M6185-30 FAN MOTOR ASSY 1

KMK-M6185-40 FAN MOTOR ASSY 1

KV1-M6418-01 LABEL,CAUTION 1

90990-12J001 SCREW, BIN. HEAD W/W 32

90990-12J004 SCREW, BIN. HEAD W/W 34

90K41-001270 LABEL,WARNING 7

91312-04045 BOLT HEX,SOCKET HEAD 8

91312-04060 BOLT HEX,SOCKET HEAD 2

98902-03006 SCREW BINDING HEAD 2

90990-01J074 BOLT HEX,SOCKET HEAD 4

90990-12J007 SCREW, BIN. HEAD W/W 8

KMK-M133A-00 BRKT.,SIDE COVER L1 4

KMK-M133B-00 BRKT.,SIDE COVER L2 2

UPS Side Cover

KHW-M1161-00 BRACKET 3,UPS 1

KLW-M1361-00 COVER,HARNESS 1

KMG-M1363-00 BRKT.,UPS UPPER 1

KMK-M1362-00 BRKT.,UPS LOWER 1

KMK-M1375-00 PLATE,SIDE LOWER UPS 1

KV7-M1515-00 PLATE, RUBBER 1

90990-12J001 SCREW, BIN. HEAD W/W 4

90990-12J004 SCREW, BIN. HEAD W/W 4

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-05014 BOLT HEX,SOCKET HEAD 3

92902-04200 WASHER,PLAIN 3

Extended conveyor

KMK-M137J-00 COVER,CONV. 2

KMK-M137K-00 COVER,CONV.UPPER 2

KMG-M137L-00 PLATE,CONV.COVER 2

KMK-M137M-00 BRKT.,CONV.COVER 4

KMK-M137N-00 STAY,CONV.COVER 2

90990-12J001 SCREW, BIN. HEAD W/W 30

90990-12J006 SCREW, BIN. HEAD W/W 12

90990-41J134 COLLAR 8

FES32 Bank ( Indicator / Base )

90990-01J065 BOLT HEX,SOCKET HEAD 4

90990-12J001 SCREW, BIN. HEAD W/W 18

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-03020 BOLT HEX,SOCKET HEAD 8

91312-04006 BOLT HEX,SOCKET HEAD 5

95302-08700 NUT HEXAGON 4

98902-03004 SCREW BINDING HEAD 22

99480-03008 PIN,PARALLEL 2

KHJ-M668A-00 HNS,RS232C 1 Not included in 28

KHY-M372M-00 SCREW,STAD 64

KHY-M372P-00 SUPPORT,LEVER 32

KHY-M372R-00 GUIDE,FEEDER UNDER 2

KHY-M372S-01 SPRING,SUPPORT 32

KHY-M66TE-00 HNS,F.CTRL - FDR. 32 Not included in 26

KKG-M372B-00 PLATE,CONNECTOR 1

KKG-M372R-00 GUIDE,FEEDER UNDER 1

KKG-M373L-00 LABEL,FEEDER 32-12P 1

KKU-M1138-00 CAM FOLLOWER 4

KLW-M3705-01 COVER,FR. 1

KLW-M3707-01 BRKT.,FAN 1

KLW-M3708-01 COVER,FOLLWER L 1

KLW-M3709-01 COVER,FOLLWER R 1

KLW-M370C-01 COVER,BOTTOM 1

KLW-M370D-00 COVER,BOTTOM 2 1

KLW-M370H-00 BRKT.,CONNECTOR 1

KLW-M37AC-00 CONNECTOR ASSY. 1

KLW-M37AD-00 FR.COVER ASSY. 1

KLW-M37AE-00 BOTTOM COVER ASSY. 1

KLW-M6178-00 FAN MOTOR ASSY 2 Not included in 28

KV8-M3758-00 SEAL DUMP 1

FES32 Bank ( ZSF Type )

90990-12J001 SCREW, BIN. HEAD W/W 18

91312-03020 BOLT HEX,SOCKET HEAD 8

91312-04005 BOLT HEX,SOCKET HEAD 3 ZSF Type

91312-04006 BOLT HEX,SOCKET HEAD 5

91312-05008 BOLT HEX,SOCKET HEAD 5 ZSF Type

95302-08700 NUT HEXAGON 4

98902-03004 SCREW BINDING HEAD 70

90990-23J031 GROMMET 1

KHJ-M668A-00 HNS,RS232C 1 Not included in Assy

KHY-M349J-40 LABEL,INDICATOR 1 ZSF Type

KHY-M372P-00 SUPPORT,LEVER 32

KHY-M372R-00 GUIDE,FEEDER UNDER 2

KHY-M372S-01 SPRING,SUPPORT 32

KKG-M372R-00 GUIDE,FEEDER UNDER 1

KKG-M373L-00 LABEL,FEEDER 32-12P 1 ZSF Type

KKU-M1138-00 CAM FOLLOWER 4

KLF-M375X-00 GUIDE,FEEDER UNDER 1 ZSF Type

KLF-M375X-60 GUIDE,FEEDER UNDER 2 ZSF Type

KLW-M3705-13 COVER,FR. 1

KLW-M3707-01 BRKT.,FAN 1

KLW-M3708-01 COVER,FOLLWER L 1

KLW-M3709-01 COVER,FOLLWER R 1

KLW-M370C-01 COVER,BOTTOM 1

KLW-M370D-10 COVER,BOTTOM 2 1 ZSF Type

KLW-M370E-00 COVER,BOTTOM 3 1 ZSF Type

KLW-M370H-00 BRKT.,CONNECTOR 1

KLW-M37AD-10 FR.COVER ASSY. 1

KLW-M37AE-10 BOTTOM COVER ASSY. 1

KLW-M6178-00 FAN MOTOR ASSY 2 Not included in Assy

KV8-M3758-00 SEAL DUMP 1

90990-01J065 BOLT HEX,SOCKET HEAD 4

FES32 Carriage (Base / Cover)

KHW-M1385-00 SPACER 22

KHY-M374C-00 CASTER 4

KHY-M3R15-00 ROLLER 67

KLF-M3R10-01 REEL HOLDER 16

KLW-M3722-00 BASE SUB ASSY. 1

KLW-M372A-20 COVER,SIDE R 1

KLW-M372B-20 COVER,SIDE L 1

KLW-M372C-01 BRKT.,ADJUST BOLT 1

KLW-M372D-01 FRAME,BASE 1

KLW-M372E-10 COVER,UNDER 1

KLW-M372F-00 PLATE,HANDLE 2

KLW-M372T-00 SHAFT,ROLLER 5

KLW-M372V-00 BRKT.,PARTITION 1

KLW-M375A-00 SMEMA BLOCK 1,FES 4 SMEMA Type

KLW-M375B-00 SMEMA BLOCK 2,FES 4 SMEMA Type

KLW-M375C-00 CHAIN 1 SMEMA Type

KLW-M375C-10 CHAIN 1

KM0-M3741-00 CASTER 63 4

KMK-M3720-00 SIDE COVER ASSY. 1

KV8-M3734-10 BOLT 1

KV8-M3735-01 BRACKET 1

90172-00J040 WASHER, EXTL, TOOTHED 1

90990-28J186 WASHER,PLAIN 8

90990-41J178 COLLAR 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-06012 BOLT HEX,SOCKET HEAD 20

91312-06016 BOLT HEX,SOCKET HEAD 16 SMEMA Type

91312-06030 BOLT HEX,SOCKET HEAD 32 SMEMA Type

92902-04200 WASHER,PLAIN 2

92902-04600 WASHER,PLAIN 4

92902-06200 WASHER,PLAIN 32

92B12-06012 SCREW, HEX. SOCKET HEAD CAP 18

98907-04006 SCREW BINDING HEAD 4

90990-01J153 BOLT,HEX.SOCKET HEAD 10

FES32 Carriage (Main Frame)

90990-28J142 WASHER,PLAIN 2 ZSF Type

90990-41J123 COLLAR 4

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-05008 BOLT HEX,SOCKET HEAD 4

91312-05016 BOLT HEX,SOCKET HEAD 16

KLW-M3723-01 PLATE,ARM R 1

KLW-M3724-01 PLATE,ARM L 1

KLW-M3725-01 BRKT.,FIX 1

KLW-M372G-01 BASE,ARM 1

KLW-M372H-01 SHAFT 2

KLW-M372J-00 COLLAR,LOWER 2

KLW-M372K-00 COLLAR,UPPER 2

KLW-M372L-01 SPRING 2

KLW-M372M-02 FRAME,MAIN 1

KLW-M372N-00 GUIDE,SHAFT 4

KLW-M372P-01 BLOCK,GUIDE 1 2

KLW-M372R-01 GUIDE,SHAFT 1

KLW-M372S-00 BRKT.,GUIDE 2

KLW-M372U-00 COVER,FES FRAME 1

90990-28J003 WASHER,PLAIN 1

90990-28J202 WASHER,PLAIN 1

90990-41J198 COLLAR 1

91312-06010 BOLT HEX,SOCKET HEAD 4

91312-06014 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 4

91312-08012 BOLT HEX,SOCKET HEAD 2

92902-04200 WASHER,PLAIN 4

92B12-05012 SCREW, HEX. SOCKET. HEAD CAP 8

FES32 Carriage (Cover)

90172-00J050 WASHER, EXTL, TOOTHED 2

90990-01J074 BOLT HEX,SOCKET HEAD 2

91317-04014 BOLT HEX,SOCKET HEAD 14

92B12-05012 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 2

98707-03006 SCREW,FLAT HEAD 14

KLW-M373S-01 PLATE,WEIGHT 4

KLW-M373T-02 COVER,SS R 1

KLW-M373U-02 COVER,SS L 1

KLW-M373V-03 BRKT.,SS COVER R 1

KLW-M373W-03 BRKT.,SS COVER L 1

KLW-M37A2-00 FES32 COVER ASSY. 1

90990-01J164 BOLT HEX,SOCKET HEAD 2

90990-41J205 COLLAR 2

FES32 Carriage (ZSF Cover)

KKG-M373L-00 LABEL,FEEDER 32-12P 1

KLF-M374S-00 GUIDE,FEEDER UPPER 2

KLF-M374T-50 GUIDE,FEEDER UPPER 1

KLW-M3730-01 TOP COVER ASSY. 1

KLW-M3731-00 RIGHT ARM ASSY. 1

KLW-M3732-00 LEFT ARM ASSY. 1

KLW-M373A-01 COVER,TOP 1

KLW-M373B-03 PLATE,UPPER 1

KLW-M373C-00 PLATE,OBSTRUCTIVE 1

KLW-M373D-00 PLATE,CONNECT 1

KLW-M373E-01 STOPPER,TG 1

KLW-M373L-01 BRACKET,ARM R 1

KLW-M373M-01 BRACKET,ARM L 1

KLW-M373N-01 COVER,HNS. R 1

KLW-M373P-01 COVER,HNS. L 1

KLW-M373R-01 BRKT.,GUARD 2

KLW-M373Y-00 SPACER 2

90990-01J065 BOLT HEX,SOCKET HEAD 6

90990-01J074 BOLT HEX,SOCKET HEAD 2

90990-11J001 SCREW, PAN HEAD W/W 1

91312-03004 BOLT HEX,SOCKET HEAD 4

91312-05006 BOLT HEX,SOCKET HEAD 6

92012-04006 BOLT, BOTTON HEAD 2

92012-04010 BOLT, BOTTON HEAD 4

92B12-05012 SCREW, HEX. SOCKET.HEAD CAP 2

90990-46J016 BOLT, THIN HEAD 4

98902-03004 SCREW BINDING HEAD 60

90K41-001830 LABEL,CAUTION 1

90K41-001840 LABEL,CAUTION 1

90990-01J131 BOLT HEX,SOCKET HEAD 6

$NK-3N NYLON CLIP 1

FES32 Carriage (ZSF cover ARM)

KHJ-MC10S-01 PIN,LOCATE 1 2

KHJ-MC147-02 SPRING,TAPE GUIDE F 2

KLF-M3741-00 PLATE,STOPPER 2

KLF-M3742-00 WASHER 4

KLF-M3747-00 PLUNGER 1

KLF-M374D-00 BUSH,FLANGE 2

KLF-M374F-00 STOPPER,ARM 2

KLF-M374J-00 GAS DAMPER 1

KLF-M374K-00 PLUNGER 1

KLF-M374L-00 BRKT.,SENSOR 2

KLF-M374N-00 DOG,SENSOR R 1

KLF-M374N-50 DOG,SENSOR L 1

KLF-M374X-00 PIN,HINGE 2

KLW-M373G-01 ARM,UPPER GUIDE R 1

KLW-M373H-01 ARM,UPPER GUIDE L 1

KLW-M373J-01 BASE,ARM R 1

KLW-M373K-01 BASE,ARM L 1

KLW-M374A-00 BASE,CLAMP 2

KLW-M374B-00 PLATE,CLAMP 2

KLW-M374C-00 LEVER,CLAMP 2

KLW-M374D-00 BOLT,DAMPER 2

KLW-M653Y-00 SEN.FES COVER ASSY. 2

90990-01J071 BOLT HEX,SOCKET HEAD 4

90990-01J074 BOLT HEX,SOCKET HEAD 4

90990-28J013 WASHER,PLAIN 2

90990-28J193 WASHER,PLAIN 4

91312-03004 BOLT HEX,SOCKET HEAD 4

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 4

92902-03200 WASHER,PLAIN 4

92902-03600 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 8

92A08-03305 SCREW SET 2

95302-06600 NUT HEXAGON 2

97602-03310 SCREW PAN HEAD W/WASHER 2

99002-07600 CIRCLIP 2

99480-04014 PIN,PARALLEL 2

FES32 Clamp Unit

_No. Parts_Name Q_ty Remarks Compati Revision_No._

KLW-M3J0C-01 BLOCK,STOPPER L 1

KLW-M3J0D-01 BLOCK,STOPPER R 1

KLW-M3J0F-00 STOPPER 2

KLW-M3J13-00 GUIDE,FES 2

KLW-M3J1C-00 COVER,CONNECTOR L 1

KLW-M3J1D-00 COVER,CONNECTOR R 1

KLW-M3J1H-00 COVER,CLAMP R 1 A

KLW-M653T-50 SEN.CART FWD.1 ASSY 1 A

KLW-M66R0-00 HNS,CLAMP MKY F1 R1 1 A

KMK-M3J1K-00 COVER R,CLAMP FRONT 1 A

KMK-M3J30-00 COVER,CLAMP 1

KMK-M3J60-00 STAY,HNS. 1

KMK-M3J65-00 STAY,GUIDE 2

KMK-M3J68-00 STAY,HOLE 2

KMK-M66R1-00 HNS,CLAMP PWR F1 R1 1 A

90112-2AJ008 BOLT, HEX.SOCKET HEAD 4

90990-01J065 BOLT HEX,SOCKET HEAD 4

90990-01J131 BOLT HEX,SOCKET HEAD 10

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 7

91312-04012 BOLT HEX,SOCKET HEAD 4

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-06016 BOLT HEX,SOCKET HEAD 2

91312-06040 BOLT HEX,SOCKET HEAD 2

92012-04006 BOLT, BOTTON HEAD 12

92902-04200 WASHER,PLAIN 4

98902-03010 SCREW BINDING HEAD 1

99480-06012 PIN,PARALLEL 2

KLW-M653T-60 SEN.CART FWD.2 ASSY 1 B

KMK-M66R0-10 HNS,CLAMP MKY F2 R2 1 B

KLW-M3J1G-00 COVER,CLAMP L 1 B

KMK-M3J1J-00 COVER L,CLAMP FRONT 1 B

KLW-M66R1-10 HNS,CLAMP MKY F2 R2 1 B

FES32 Clamp Unit Drive 1

KKU-M1138-00 CAM FOLLOWER 2

KLW-M3J06-00 PIN 1

KLW-M3J07-00 PIN 1

KLW-M3J08-00 RAIL 2

KLW-M3J09-00 BLOCK,GUIDE 2

KLW-M916A-00 SPEED CONTROLLER 4

KMK-M3J08-L0 PLATE L,LM GUIDE 1

KMK-M3J08-R0 PLATE R,LM GUIDE 1

KMK-M3J09-00 BLOCK L,RAIL 1

KMK-M3J10-00 BLOCK R,RAIL 1

KMK-M3J14-00 PIN,LOCATING 4

KMK-M3J1E-00 BRKT.,JOINT 1

KMK-M3J37-00 PILOT VALVE 1

KMK-M3J55-L0 PLATE,CLAMP L1 1

KMK-M3J55-R0 PLATE,CLAMP R1 1

KMK-M3J57-00 PLATE,CLAMP L2 1

KMK-M3J58-00 PLATE,CLAMP R2 1

KMK-M3J63-00 STAY,JOINT 2

KMK-M3T0P-00 BRKT.,VALVE 1

KMK-M3TV1-A0 VALVE CUTTER ASSY 1

LE6-M5J3H-00 JOINT 1

KYB-M702S-00 PIPE_FITTINGS 1

$AUKM4 JOINT NUT 1

$UY4 JOINT 3

90990-01J131 BOLT HEX,SOCKET HEAD 2

90990-42J052 JOINT 1

90990-65J003 SILENCER 2

91312-03008 BOLT HEX,SOCKET HEAD 8

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-03014 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-04018 BOLT HEX,SOCKET HEAD 16

91312-04025 BOLT HEX,SOCKET HEAD 2

91312-05010 BOLT HEX,SOCKET HEAD 6

91312-06012 BOLT HEX,SOCKET HEAD 10

91312-06020 BOLT HEX,SOCKET HEAD 8

95302-08600 NUT HEXAGON 2

99480-06012 PIN,PARALLEL 8

FES32 Clamp Unit Drive 2

KMK-M3J01-00 FRAME L,CLAMP 1

KMK-M3J02-00 FRAME R,CLAMP 1

KMK-M3J05-L0 BOTTOM L,CYLINDER 1

KMK-M3J05-R0 BOTTOM R,CYLINDER 1

KMK-M3J06-00 CYLINDER,C/U 2

KMK-M3J07-00 CYLINDER JOINT,A 2

KMK-M3J13-00 LM GUIDE 4

KMK-M3JL1-00 FRAME L,CLAMP ASSY. 1

KMK-M3JR1-00 FRAME R,CLAMP ASSY. 1

KMK-M3T01-00 BASE,CUTTER 1

LE6-M5J3H-00 JOINT 4

91312-04012 BOLT HEX,SOCKET HEAD 8

91312-05012 BOLT HEX,SOCKET HEAD 4 Not included in Assy

91312-05020 BOLT HEX,SOCKET HEAD 8

91312-05055 BOLT HEX,SOCKET HEAD 8

91312-08020 BOLT HEX,SOCKET HEAD 2 Not included in Assy

99480-06014 PIN,PARALLEL 1 Not included in Assy

KMK-M3J06-L0 CYL.,C/U L ASSY. 1

KMK-M3J06-R0 CYL.,C/U R ASSY. 1

Feeder Floating Det.

$NK-2N NYLON CLIP 2

90112-02J006 BOLT HEX,SOCKET HEAD 3

90990-11J003 SCREW, PAN HEAD W/W 2

90K41-001320 LABEL,CAUTION 1

90K41-001620 LABEL,CAUTION 3

91312-03006 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 10

91312-05014 BOLT HEX,SOCKET HEAD 4

91312-04006 BOLT HEX,SOCKET HEAD 2

92902-03200 WASHER,PLAIN 3

KMK-M653V-00 SENSOR,FDR.FLT.ASSY 2

KLW-M653V-10 SENSOR,FDR.FLT.ASSY 1

KGS-M3906-00 BRACKET 6 3

KHY-M3901-00 BRACKET SENSOR 2 4

KHY-M3910-00 BRACKET SENSOR 1 3

KHY-M3951-00 PLATE SENSOR 3

KHY-M3952-00 PLATE SENSOR 1

KHY-M3953-00 BRACKET SENSOR 3 1

KLW-M3902-00 BRKT.,SENSOR L 1

KLW-M3904-00 BRKT.,SENSOR R 1

KLW-M3905-00 PLATE,NUT 2

KLW-M3907-00 BLOCK,SENSOR 1

KMK-M3908-00 STAY,SENSOR 1

KLW-M3909-00 COVER,SENSOR 1

91312-03010 BOLT HEX,SOCKET HEAD 3

92902-04200 WASHER,PLAIN 5

92902-05200 WASHER,PLAIN 4

Fix70 Bank

$NK-3N NYLON CLIP 8

90990-11J003 SCREW, PAN HEAD W/W 8

91312-03004 BOLT HEX,SOCKET HEAD 6

91312-03006 BOLT HEX,SOCKET HEAD 5

91312-03016 BOLT HEX,SOCKET HEAD 8

91317-03018 BOLT HEX,SOCKET HEAD 34

91312-04008 BOLT HEX,SOCKET HEAD 9

91312-06012 BOLT HEX,SOCKET HEAD 19

91312-06014 BOLT HEX,SOCKET HEAD 2

91312-06022 BOLT HEX,SOCKET HEAD 6

92902-03200 WASHER,PLAIN 5

KHY-M371A-02 PLATE,FRONT 3

KHY-M371R-00 RAIL GUIDE 12P 5

KHY-M372M-00 SCREW,STAD 140

KHY-M379K-01 LABEL,LED POSI. 2

KHY-M379L-00 LABEL,LED 2

KHY-M37E1-00 LIGHT GUIDE 6

KLW-M6178-10 FAN MOTOR ASSY' 4

KHY-M66TE-00 HNS,F.CTRL - FDR. 70

KLF-M375H-00 RAIL,GUIDE 12P 1

KLW-M3401-01 BASE,FDR.70 1

KLW-M3402-00 COVER,BOARD 1

KLW-M3403-00 COVER,BOTTOM 1

KLW-M340F-00 BRACKET,BOARD 2

KLW-M340H-00 PLATE,INDICATOR 1

KLW-M340J-00 PLATE,CONNECTOR 1

KLW-M3430-00 LABEL,FEEDER 70-12P (1-70) 1 -10 (101-170)

KLW-M349J-01 LABEL,INDICATOR 70 2

KLW-M34J1-A0 PLATE PSI. ASSY. 1

KHY-M371B-01 SHAFT GUIDE 3

KLW-M37E1-01 LIGHT GUIDE,11 2

KLW-M4476-12 FDR.CTRL.BOARD ASSY 2

92902-06600 WASHER,PLAIN 8

98702-03006 SCREW,FLAT HEAD 60

98902-03006 SCREW BINDING HEAD 16

99480-04012 PIN,PARALLEL 3

99480-06012 PIN,PARALLEL 2

KLW-M34A2-00 INDICATOR ASSY. 1

Fix70 Manifold

KLW-M66RD-10 HNS, FDR PANEL FIX R 4

KHY-M372P-00 SUPPORT,LEVER 70

KHY-M372R-00 GUIDE,FEEDER UNDER 5

KHY-M372S-01 SPRING,SUPPORT 70

KLF-M375N-00 GUIDE,FEEDER UNDER 1

KMC-M340K-00 BRACKET,MANIFOLD 1

KMC-M34B0-00 FIX70 MANIFOLD ASSY. 1

KV8-M3758-00 SEAL DUMP 2

KLW-M66RD-00 HNS, FDR PANEL FIX L 4

90990-12J004 SCREW, BIN. HEAD W/W 4

91312-06012 BOLT HEX,SOCKET HEAD 2

98902-03004 SCREW BINDING HEAD 46

90990-42J047 JOINT 2

ALF

KLW-M370A-00 ROLLER FOLLWER 2

KMK-M37B1-00 BLOCK,CAM L 1

KMK-M37B3-00 BOLT,STRIPPER 2

KMK-M37C1-00 BLOCK,CAM R 1

KMK-M37D0-00 LABEL,ALF 3

KMK-M3J11-00 ARM,CLAMP 2

KMK-M3J14-00 PIN,LOCATING 2

KMK-M3J20-L0 SLOPE L 1

KMK-M3J20-R0 SLOPE R 1

KMK-M3J49-L0 PLATE2 L,ARM 1

KMK-M3J49-R0 PLATE2 R,ARM 1

90990-29J046 SHIM 2

90K41-001250 LABEL,WARNING 2

91312-05020 BOLT HEX,SOCKET HEAD 4

91312-06016 BOLT HEX,SOCKET HEAD 8

91312-06025 BOLT HEX,SOCKET HEAD 4

99480-06012 PIN,PARALLEL 10

KMK-M37B0-00 ROLLER L ASSY. 1

KMK-M37C0-00 ROLLER R ASSY. 1

KMK-M3J11-A0 CLAMP ARM ASSY. 2

NSF Bank (Base)

KHU-M1348-00 CAM FOLLOWER 7

KHY-M371R-00 RAIL GUIDE 12P 2

KLW-M66R4-00 HNS,FES.CUNET 1

KLW-M66R5-00 HNS,FES PWR 1

KKG-M371A-01 PLATE,FRONT 1

KKG-M371B-00 SHAFT GUIDE 1

KKG-M371R-00 RAIL GUIDE 12P 1

KLF-M3719-00 AIR JOINT 2

KMK-M3701-00 BASE,FES 32 1

KMK-M3702-00 LEVER,POS. Y 2

KMK-M3703-00 BLOCK,POS. X 1

KMK-M3704-00 PIN,LOCATE 4

KMK-M3705-00 BLOCK,AIR 1

KMK-M3706-00 PLATE,CONNECTOR L 1

KMK-M3707-00 PLATE,CONNECTOR R 1

KMK-M3708-00 PIN 1

KMK-M3709-00 PLATE,FOLLOWER 4

KMK-M370A-00 BRACKET,COVER L 1

KMK-M370B-00 BRACKET,COVER R 1

KMK-M370C-00 PIN,MARK 2

KMK-M370D-00 COVER,MARK 2

KMK-M370E-00 SHIM,X 0.01 1

KMK-M370E-10 SHIM,X 0.03 1

KMK-M370E-20 SHIM,X 0.05 1

KMK-M370E-30 SHIM,X 0.1 1

KMK-M370F-00 SHIM,FOLLOWER 0.01 1

KMK-M370F-10 SHIM,FOLLOWER 0.03 1

KMK-M370F-20 SHIM,FOLLOWER 0.05 1

KMK-M370F-30 SHIM,FOLLOWER 0.1 1

KMK-M370G-00 GUIDE,HNS. 1

KMK-M370H-00 POST 2

90112-2AJ006 BOLT, HEX.SOCKET HEAD 4

91312-03018 BOLT HEX,SOCKET HEAD 2

91312-03020 BOLT HEX,SOCKET HEAD 5

91312-04006 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 4

91312-04018 BOLT HEX,SOCKET HEAD 8

91312-04035 BOLT HEX,SOCKET HEAD 4

91312-06012 BOLT HEX,SOCKET HEAD 6

91312-06020 BOLT HEX,SOCKET HEAD 2

92A08-04303 SCREW SET 2

95302-06600 NUT HEXAGON 6

98702-03006 SCREW,FLAT HEAD 34

99480-04010 PIN,PARALLEL 5

99480-06012 PIN,PARALLEL 1

NSC Bank (Connector / Cover )

90990-42J047 JOINT 2

KHY-M349J-40 LABEL,INDICATOR 1

KHY-M372M-00 SCREW,STAD 64

KHY-M372P-00 SUPPORT,LEVER 32

KHY-M372R-00 GUIDE,FEEDER UNDER 2

KHY-M372S-01 SPRING,SUPPORT 32

KHY-M66TE-00 HNS,F.CTRL - FDR. 32

KKG-M372R-00 GUIDE,FEEDER UNDER 1

KKG-M373L-00 LABEL,FEEDER 32-12P 2

KLF-M375X-00 GUIDE,FEEDER UNDER 2

KLF-M375X-60 GUIDE,FEEDER UNDER 1

KLW-M372T-00 SHAFT,ROLLER 1

KLW-M4436-10 FDR. INDI. BOARD ASSY. 1

KLW-M66RA-30 HNS,FDR DI/D0 SSF 1

KMK-M370L-00 PLATE,CONNECTOR 1

KMK-M370M-00 COVER,FR. 1

KMK-M370N-00 BRKT.,ROLLER L 1

KMK-M370P-00 BRKT.,ROLLER R 1

KMK-M370R-00 ROLLER,TAPE 10

KMK-M37FC-00 CONNECTOR ASSY. 1

KMK-M37FD-00 FR.COVER ASSY. 1

KV8-M3758-00 SEAL DUMP 1

90990-12J001 SCREW, BIN. HEAD W/W 6

90990-28J205 WASHER,PLAIN 2

90990-46J006 BOLT, THIN HEAD 4

91312-03006 BOLT HEX,SOCKET HEAD 4

92012-06010 BOLT BUTTON HEAD 2

98902-03004 SCREW BINDING HEAD 80

99480-03008 PIN,PARALLEL 2

NSF Bank (Indicator / Cover )

KHJ-M668A-00 HNS,RS232C 1

KHY-M349J-40 LABEL,INDICATOR 1

KHY-M379L-00 LABEL,LED 1

KHY-M37E1-00 LIGHT GUIDE 4

KLW-M6178-00 FAN MOTOR ASSY 2

KKG-M373L-00 LABEL,FEEDER 32-12P 1

KLW-M3703-00 PLATE,IND 1 1

KLW-M3704-01 BRKT.,BOARD 1

KLW-M3741-00 LABEL,LED POSI. 1

KLW-M4476-02 FDR.CTRL.BOARD ASSY 1

KMK-M370T-00 COVER,BOTTOM 1 1

KMK-M370U-00 COVER,BOTTOM 2 1

KMK-M370V-00 PLATE,ARM 2

KMK-M370W-00 BRACKET,FAN 1

KMK-M370X-00 COVER,CLAMP L 1

KMK-M370Y-00 COVER,CLAMP R 1

KMK-M37FB-00 INDICATOR ASSY. 1

KMK-M37FE-00 BOTTOM COVER ASSY. 1

KMK-M37FF-00 FES FAN ASSY. 1

$NK-3N NYLON CLIP 3

90990-01J043 BOLT HEX,SOCKET HEAD 2

90990-11J003 SCREW, PAN HEAD W/W 3

90990-12J001 SCREW, BIN. HEAD W/W 6

90990-46J015 BOLT, THIN HEAD 10

91312-03018 BOLT HEX,SOCKET HEAD 8

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-05014 BOLT HEX,SOCKET HEAD 2

91312-05016 BOLT HEX,SOCKET HEAD 6

98902-03005 SCREW BINDING HEAD 12

NSF Carrige (Side Cover )

KHW-M1385-00 SPACER 25

KHY-M3R15-00 ROLLER 70

KHY-M3R16-00 PARTITION 8

KLF-M3R10-02 REEL HOLDER 16

KLW-M372A-20 COVER,SIDE R 1

KLW-M372B-20 COVER,SIDE L 1

KLW-M372C-01 BRKT.,ADJUST BOLT 1

KLW-M372E-10 COVER,UNDER 1

KLW-M372F-00 PLATE,HANDLE 2

KLW-M372T-00 SHAFT,ROLLER 5

KLW-M372V-00 BRKT.,PARTITION 1

KMK-M3720-00 SIDE COVER ASSY. 1

KMK-M37A3-50 LABEL,BARCODE 2

KMK-M37D0-00 LABEL,ALFDR 2

KMK-M37E0-00 LABEL,ALFDR P.H.SET 2

KV8-M3734-10 BOLT 1

KV8-M3735-01 BRACKET 1

90990-01J153 BOLT HEX,SOCKET HEAD 10

90990-28J186 WASHER,PLAIN 8

90990-41J178 COLLAR 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-06012 BOLT HEX,SOCKET HEAD 4

92902-04600 WASHER,PLAIN 4

92B12-06012 SCREW,CROS.COUN. 12

98907-04006 SCREW BINDING HEAD 4

NSF Carrige (Main Frame )

KLW-M372L-01 SPRING 2

KLW-M372P-01 BLOCK,GUIDE 1 2

KLW-M372R-01 GUIDE,SHAFT 1

KLW-M372S-00 BRKT.,GUIDE 2

KMK-M3721-00 MAIN FRAME ASSY. 1

KMK-M372G-00 BASE,ARM 1

KMK-M372H-00 SHAFT 2

KMK-M372J-00 COVER,BOTTOM 3 1

KMK-M372K-00 COLLER 16

KMK-M372M-00 FRAME,MAIN 1

KMK-M372N-00 GUIDE,SHAFT 4

KMK-M372T-00 HOLDER,SPRING 2

KMK-M372U-00 GUIDE,SPRING 2

KMK-M372V-00 SPRING 2

90990-28J142 WASHER,PLAIN 4

90990-41J123 COLLAR 4

91312-04010 BOLT HEX,SOCKET HEAD 9

91312-05008 BOLT HEX,SOCKET HEAD 4

91312-05016 BOLT HEX,SOCKET HEAD 16

91312-06025 BOLT HEX,SOCKET HEAD 2

91312-08012 BOLT HEX,SOCKET HEAD 2

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 16

95302-12600 NUT HEXAGON 2

NSF Carrige (Base / Smema )

KHY-M373C-10 CHAIN 1

KHY-M374C-00 CASTER 2

KKG-M373L-00 LABEL,FEEDER 32-12P 1

KLW-M3722-00 BASE SUB ASSY. 1

KLW-M372D-01 FRAME,BASE 1

KLW-M3750-00 SMEMA FES32 ASSY. 1

KLW-M375A-00 SMEMA BLOCK 1,FES 4

KLW-M375B-00 SMEMA BLOCK 2,FES 4

KLW-M375C-00 CHAIN 1

KM0-M3741-00 CASTER 63 2

KMK-M372D-00 GUIDE,REEL 1

KMK-M372X-00 BRKT.,FIX 1

90172-00J040 WASHER, EXTL, TOOTHED 2

90990-11J001 SCREW, PAN HEAD W/W 4

91312-04010 BOLT HEX,SOCKET HEAD 2

91312-06012 BOLT HEX,SOCKET HEAD 22

91312-06016 BOLT HEX,SOCKET HEAD 16

91312-06030 BOLT HEX,SOCKET HEAD 32

92902-04200 WASHER,PLAIN 4

92902-06200 WASHER,PLAIN 32

92B12-06012 SCREW,CROS.COUN. 6

NSF Clamp Unit (L1 )

_No. Parts_Name Q_

KLW-M653T-50 SEN.CART FWD.1 ASSY 1 A

KLW-M653T-60 SEN.CART FWD.2 ASSY 1 B

KLW-M66R0-00 HNS,CLAMP MKY F1 R1 1 A

KMK-M3JB7-L0 BLOCK L,PLUNGER 1

KMK-M3JB8-00 BALL PLUNGER 1

KMK-M3JB9-00 STOPPER L 1

KMK-M3JBC-00 BLOCK 2 2

KMK-M3JBD-L0 BRKT.,GUIDE L 1

KMK-M3JBE-00 GUIDE 3 1

KMK-M3JBL-00 STAY,SENSOR 1

KMK-M3JBM-00 STAY,COVER 1

KMK-M3JBN-00 PLATE,COVER 1

KMK-M3JBP-00 STAY,CLAMP 1

KMK-M3JBR-00 BLOCK,SHUTTER 1

KMK-M3JBS-00 COVER L,CLAMP 1 A

KMK-M3JBT-00 COVER1,CONNECTOR L 1

KMK-M3JBV-L0 COVER2,CONNECTOR L 1

KMK-M3JBY-00 COVER,CLAMP 1 B

KMK-M3JC3-00 SHIM,CLAMP(0.01) 2

KMK-M3JC3-10 SHIM,CLAMP(0.03) 2

KMK-M3JC3-20 SHIM,CLAMP(0.05) 2

KMK-M3JC3-30 SHIM,CLAMP(0.1) 2

KMK-M3JC4-00 SHIM,CLAMP 2(0.01) 1

KMK-M3JC4-10 SHIM,CLAMP 2(0.03) 1

KMK-M3JC4-20 SHIM,CLAMP 2(0.05) 1

KMK-M3JC4-30 SHIM,CLAMP 2(0.1) 1

KMK-M66R0-10 HNS,CLAMP MKY F2 R2 1 B

90112-2AJ008 BOLT, HEX.SOCKET HEAD 4

90990-06J005 BOLT, BUTTON HEAD 4

90990-11J009 SCREW, PAN HEAD W/W 1

91312-03004 BOLT HEX,SOCKET HEAD 2

91312-03005 BOLT HEX,SOCKET HEAD 2

91312-03006 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 4

91312-04020 BOLT HEX,SOCKET HEAD 2

91312-06025 BOLT HEX,SOCKET HEAD 2

92012-03006 BOLT BUTTON HEAD 4

92B12-05012 SCREW,CROS.COUN. 6

98702-03004 SCREW,FLAT HEAD 1

98702-03006 SCREW,FLAT HEAD 4

98902-03004 SCREW BINDING HEAD 4

98902-03008 SCREW BINDING HEAD 2

99480-06012 PIN,PARALLEL 2

NSF Ciamp Unit (L2 )

_No. Parts_Name Q_

KLH-M91F4-00 WASHER 2

KLW-M370A-00 ROLLER FOLLWER 1

KMK-M3J05-L0 BOTTOM L,CYLINDER 1

KMK-M3J06-00 CYLINDER,C/U 1

KMK-M3J06-L0 CYL.,C/U L ASSY. 1

KMK-M3J07-00 CYLINDER JOINT,A 1

KMK-M3J13-01 LM GUIDE 2

KMK-M3J63-00 STAY,JOINT 1

KMK-M3JB0-L0 FRAME L,CLAMP 1

KMK-M3JB1-L0 PLATE L,LM GUIDE 1

KMK-M3JB2-L0 PLATE,CLAMP L2 1

KMK-M3JB3-00 SHAFT,LEVER 1

KMK-M3JB4-L0 LEVER L,CLAMP 1

KMK-M3JB5-00 BLOCK L,FLOATING 1

KMK-M3JBB-L0 SLOPE FRAME L 1

KMK-M3JBG-L0 BRKT.,GUIDE L 1

KMK-M3JBH-L0 GUIDE 1 1

KMK-M3JBJ-00 GUIDE,FES 1

KMK-M3JBK-00 BOLT,SHOULDER 1

KMK-M3JBW-00 BLOCK,CLAMP ARM 1

KMK-M3JL1-50 FRAME L,CLAMP ASSY. 1

KMK-M3JL2-50 BLOCK L ASSY. 1

LE6-M5J3H-00 JOINT 2

90440-01J060 CIRCLIP 1

90990-06J005 BOLT, BUTTON HEAD 11

90990-29J046 SHIM 1

90990-41J134 COLLAR 2

91312-04012 BOLT HEX,SOCKET HEAD 2

91312-04016 BOLT HEX,SOCKET HEAD 12

91312-05016 BOLT HEX,SOCKET HEAD 4

91312-05020 BOLT HEX,SOCKET HEAD 7

91312-05055 BOLT HEX,SOCKET HEAD 4

91312-06012 BOLT HEX,SOCKET HEAD 2

91312-06025 BOLT HEX,SOCKET HEAD 3

92902-04200 WASHER,PLAIN 2

92B12-05012 SCREW,CROS.COUN. 3

99480-06012 PIN,PARALLEL 4

NSF Clamp Unit (R1 )

$TL4-M5M JOINT 2

KLW-M66R1-10 HNS,CLAMP PWR F2 R2 1 B

KMK-M3JB7-R0 BLOCK R,PLUNGER 1

KMK-M3JB8-00 BALL PLUNGER 1

KMK-M3JBA-00 STOPPER R 1

KMK-M3JBC-00 BLOCK 2 2

KMK-M3JBD-R0 BRKT.,GUIDE R 1

KMK-M3JBF-00 GUIDE 4 1

KMK-M3JBM-00 STAY,COVER 1

KMK-M3JBN-00 PLATE,COVER 1

KMK-M3JBP-00 STAY,CLAMP 1

KMK-M3JBR-00 BLOCK,SHUTTER 1

KMK-M3JBU-00 COVER1,CONNECTOR R 1

KMK-M3JBV-R0 COVER2,CONNECTOR R 1

KMK-M3JBX-00 BLOCK,AIR SOCKET 1

KMK-M3JBY-00 COVER,CLAMP 1 A

KMK-M3JC0-00 BRACKET,COVER 1 A

KMK-M3JC2-00 COVER R,CLAMP 1 B

KMK-M3JC3-00 SHIM,CLAMP(0.01) 2

KMK-M3JC3-10 SHIM,CLAMP(0.03) 2

KMK-M3JC3-20 SHIM,CLAMP(0.05) 2

KMK-M3JC3-30 SHIM,CLAMP(0.1) 2

KMK-M3JC4-00 SHIM,CLAMP 2(0.01) 1

KMK-M3JC4-10 SHIM,CLAMP 2(0.03) 1

KMK-M3JC4-20 SHIM,CLAMP 2(0.05) 1

KMK-M3JC4-30 SHIM,CLAMP 2(0.1) 1

KMK-M66R1-00 HNS,CLAMP PWR F1 R1 1 A

KV8-M37S2-00 AIR SOCKET,2 ASSY 2

$NK-4N NYLON CLIP 1

90112-2AJ008 BOLT, HEX.SOCKET HEAD 4

90990-06J005 BOLT, BUTTON HEAD 4

90990-11J010 SCREW, PAN HEAD W/W 1

91312-03004 BOLT HEX,SOCKET HEAD 2

91312-03005 BOLT HEX,SOCKET HEAD 2

91312-03010 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 4

91312-04020 BOLT HEX,SOCKET HEAD 2

91312-06025 BOLT HEX,SOCKET HEAD 2

92012-03006 BOLT BUTTON HEAD 4

92A08-04303 SCREW SET 2

92B12-05012 SCREW,CROS.COUN. 6

98702-03004 SCREW,FLAT HEAD 1

98702-03006 SCREW,FLAT HEAD 4

98902-03004 SCREW BINDING HEAD 4

99480-06012 PIN,PARALLEL 2

NSF Clamp Unit (R2 )

KLH-M91F4-00 WASHER 2

KLW-M370A-00 ROLLER FOLLWER 1

KMK-M3J05-R0 BOTTOM R,CYLINDER 1

KMK-M3J06-00 CYLINDER,C/U 1

KMK-M3J06-R0 CYL.,C/U R ASSY. 1

KMK-M3J07-00 CYLINDER JOINT,A 1

KMK-M3J13-01 LM GUIDE 2

KMK-M3J63-00 STAY,JOINT 1

KMK-M3JB0-R0 FRAME R,CLAMP 1

KMK-M3JB1-R0 PLATE R,LM GUIDE 1

KMK-M3JB2-R0 PLATE,CLAMP R2 1

KMK-M3JB3-00 SHAFT,LEVER 1

KMK-M3JB4-R0 LEVER R,CLAMP 1

KMK-M3JB6-00 BLOCK R,FLOATING 1

KMK-M3JBB-R0 SLOPE FRAME R 1

KMK-M3JBG-R0 BRKT.,GUIDE R 1

KMK-M3JBH-R0 GUIDE 2 1

KMK-M3JBJ-00 GUIDE,FES 1

KMK-M3JBK-00 BOLT,SHOULDER 1

KMK-M3JBW-00 BLOCK,CLAMP ARM 1

KMK-M3JR1-50 FRAME R,CLAMP ASSY. 1

KMK-M3JR2-50 BLOCK R ASSY. 1

LE6-M5J3H-00 JOINT 2

90440-01J060 CIRCLIP 1

90990-06J005 BOLT, BUTTON HEAD 11

90990-29J046 SHIM 1

90990-41J134 COLLAR 2

91312-04012 BOLT HEX,SOCKET HEAD 2

91312-04016 BOLT HEX,SOCKET HEAD 12

91312-05016 BOLT HEX,SOCKET HEAD 4

91312-05020 BOLT HEX,SOCKET HEAD 7

91312-05055 BOLT HEX,SOCKET HEAD 4

91312-06012 BOLT HEX,SOCKET HEAD 2

91312-06025 BOLT HEX,SOCKET HEAD 3

92902-04200 WASHER,PLAIN 2

92B12-05012 SCREW,CROS.COUN. 3

99480-06012 PIN,PARALLEL 4

NSF Clamp Unit (PILOT Valve )

$AUKM4-01 JOINT 1

$UY4 JOINT 3

$UY6 JOINT 1

$UYD6-4 JOINT 1

KLW-M916A-00 SPEED CONTROLLER 4

KMK-M37D0-00 LABEL,ALFDR 1

KMK-M3J0J-00 PILOT VALVE ASSY. 1

KMK-M3J1E-00 BRKT.,JOINT 1

KMK-M3J37-00 PILOT VALVE 1

KMK-M3J60-00 STAY,HNS. 1

KMK-M3JC1-00 COVER,CLAMP 1

KMK-M3JC5-00 SEAT 4

KMK-M3JL0-50 CLAMP FR1 L ASSY. 1

KMK-M3JL0-60 CLAMP FR2 L ASSY. 1 Different parts for A

KMK-M3JR0-50 CLAMP FR1 R ASSY. 1

KMK-M3JR0-60 CLAMP FR2 R ASSY. 1 Different parts for A

KYB-M702S-00 PIPE_FITTINGS 1

LE6-M5J3H-00 JOINT 1

$NK-4N NYLON CLIP 1

90990-01J058 BOLT HEX,SOCKET HEAD 1

90990-01J131 BOLT HEX,SOCKET HEAD 4

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-04008 BOLT HEX,SOCKET HEAD 6

91312-05012 BOLT HEX,SOCKET HEAD 4

91312-08020 BOLT HEX,SOCKET HEAD 2

99480-06012 PIN,PARALLEL 2

NSF Clamp Unit (Shutter Lever )

90990-06J002 BOLT,BUTTON HEAD 2

90K41-001840 LABEL,CAUTION 1

KHJ-MC147-02 SPRING,TAPE GUIDE F 2

KKG-M373L-00 LABEL,FEEDER 32-12P 1

KLF-M374S-00 GUIDE,FEEDER UPPER 2

KLF-M374T-50 GUIDE,FEEDER UPPER 1

KLF-M926E-00 SPRING PLUNGER 2

KLW-M374A-00 BASE,CLAMP 2

KLW-M374C-00 LEVER,CLAMP 2

KMK-M3JS3-L0 GUIDE L,FEEDER ASSY. 1

KMK-M3JS3-R0 GUIDE R,FEEDER ASSY. 1

KMK-M3JSH-00 PLATE,CLAMP 2

KMK-M3JSJ-00 PLATE,UPPER 1

KMK-M3JSK-L0 PLATE LL,LINK 1

KMK-M3JSK-R0 PLATE RR,LINK 1

KMK-M3JSL-L0 PLATE LR,LINK 1

KMK-M3JSL-R0 PLATE RL,LINK 1

KMK-M3JSM-L0 LEVER LL ASSY. 1

KMK-M3JSM-R0 LEVER RL ASSY. 1

KMK-M3JSN-L0 LEVER,LR ASSY. 1

KMK-M3JSN-R0 LEVER,RR ASSY. 1

KMK-M3JSP-L0 BRKT.,LL FRAME 1

KMK-M3JSP-R0 BRKT.,RR FRAME 1

KMK-M3JSR-L0 BRKT.,LR FRAME 1

KMK-M3JSR-R0 BRKT.,RL FRAME 1

KMK-M3JSU-00 PIN,COVER 1

KMK-M3JSV-00 COVER,TOP 1

KMK-M3JT3-L0 STOPPER,LL COVER 1

KMK-M3JT3-R0 STOPPER,RL COVER 1

KMK-M3JT4-L0 STOPPER,LR COVER 1

KMK-M3JT4-R0 STOPPER,RR COVER 1

KMK-M3JT9-00 PLATE,UPPER 1

KW7-M5127-00 SAFETY SWITCH KEY 1

90990-10J008 SCREW, BINDING HEAD 48

90990-46J016 BOLT, THIN HEAD 4

91312-04006 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 13

91312-04016 BOLT HEX,SOCKET HEAD 3

92902-04200 WASHER,PLAIN 6

92A08-03305 SCREW SET 2

95302-04600 NUT HEXAGON 1

95302-06600 NUT HEXAGON 2

98902-04006 SCREW BINDING HEAD 18

99480-04014 PIN,PARALLEL 2

NSF Clamp Unit (ShutterAxis 1)

$UT6 JOINT 1

90990-06J002 BOLT,BUTTON HEAD 2

90990-06J003 BOLT,BUTTON HEAD 2

90990-06J014 BOLT,BUTTON HEAD 2

KKG-M373L-00 LABEL,FEEDER 32-12P 1

KLW-M3T0H-00 COUPLER,SOCKET 1

KLW-M8803-00 COUPLER,PLUG D4 1

KMK-M3JS2-00 SHUTTER 1

KMK-M3JS5-00 FOOT 2

KMK-M3JSG-00 KEY,PLATE 1

KMK-M3JSW-L0 COVER,LL 1

KMK-M3JSX-L0 COVER,LR 1

KMK-M3JSY-00 TAPE,COVER 1

KMK-M5126-B0 SAFETY SW UNIT ASSY 1

KMK-M654D-00 VALVE SHUTTER ASSY 1

KMK-M654E-00 SAFETY SW ASSY 1

90990-01J052 BOLT HEX,SOCKET HEAD 2

90990-01J065 BOLT HEX,SOCKET HEAD 4

91312-03010 BOLT HEX,SOCKET HEAD 2

91312-04014 BOLT HEX,SOCKET HEAD 4

91312-05016 BOLT HEX,SOCKET HEAD 4

92902-04200 WASHER,PLAIN 8

98902-04006 SCREW BINDING HEAD 4

99480-06012 PIN,PARALLEL 2

NSF Clamp Unit (ShutterAxis 2)

KJX-M9152-00 STOPPER,REAR 1

KLH-M92B5-00 FLOATING JOINT 1

KLW-M7425-00 GUIDE,Z 2

KMK-M3JS1-00 FRAME 1

KMK-M3JS6-L0 AXIS,LL ASSY. 1

KMK-M3JS6-R0 AXIS,RL ASSY. 1

KMK-M3JS7-L0 AXIS,LR ASSY. 1

KMK-M3JS7-R0 AXIS,RR ASSY. 1

KMK-M3JS8-00 BASE 2

KMK-M3JS9-00 CYLINDER 1

KMK-M3JSA-L0 BLOCK L 2 1

KMK-M3JSA-R0 BLOCK R 2 1

KMK-M3JSB-00 BLOCK 1 2

KMK-M3JSC-00 PLATE 1,GUIDE 1

KMK-M3JSD-00 PLATE 2,GUIDE 1

KMK-M3JSE-00 COLLAR 1

KMK-M3JSF-00 STOPPER 1

KMK-M654B-00 SEN.SHUT.CLOSE ASSY 1

KMK-M654C-00 SEN.SHUT.OPEN ASSY 1

LC0-M91AL-10 CTRL.SPEED 2

91312-03006 BOLT HEX,SOCKET HEAD 22

91312-03008 BOLT HEX,SOCKET HEAD 6

91312-03014 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 10

92902-04200 WASHER,PLAIN 10

95302-04600 NUT HEXAGON 1

NSF Feeder Floating Det.

90K41-001320 LABEL,CAUTION 2

90K41-001620 LABEL,CAUTION 3

KGS-M3906-00 BRACKET 6 3

KHY-M3901-00 BRACKET SENSOR 2 3

KHY-M3910-00 BRACKET SENSOR 1 3

KHY-M3951-00 PLATE SENSOR 3

KLW-M3905-00 PLATE,NUT 3

KMK-M3910-00 BRKT.,SENSOR 3

KMK-M3911-00 BRACKET 2

KMK-M3912-00 BRACKET 2

KMK-M3913-00 COVER,SENSOR 1

KMK-M3913-10 COVER,SENSOR 1

KMK-M653V-00 SENSOR,FDR.FLT.ASSY 3

$NK-2N NYLON CLIP 3

90112-02J006 BOLT HEX,SOCKET HEAD 6

90990-11J003 SCREW, PAN HEAD W/W 3

91312-03006 BOLT HEX,SOCKET HEAD 6

91312-03010 BOLT HEX,SOCKET HEAD 6

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 20

91312-05014 BOLT HEX,SOCKET HEAD 6

92902-03200 WASHER,PLAIN 6

92902-04200 WASHER,PLAIN 6

92902-05200 WASHER,PLAIN 6

X-axis Servo / I/O box

KHN-M22AD-00 GREASE NIPPLE 3

KKE-M220F-02 CAMERA SELECTOR 1

KLF-M2256-00 GRIP 1

KLF-M6185-00 FAN MOTOR ASSY. 1

KLF-M657H-00 ADJUSTABLE CLAMP 1

KLW-M2231-00 FRAME,HEAD SERVO 1

KLW-M2238-00 STAY,PCB 2

KLW-M2239-00 COVER,TOP 1

KLW-M223B-01 BRACKET,L 1

KLW-M223C-00 COVER,MOUNT 1

KLW-M223D-00 BRACKET,R 1

KLW-M223E-00 STAY,HNS. 1

KLW-M223J-00 STAY,SCR 1

KLW-M223L-00 STAY,HNS. 4 1

KLW-M223N-00 HOLDER,HANDLE 1

KLW-M223R-00 GUIDE,HNS. 1

KLW-M223S-00 COVER,SCR 1

KLW-M223U-00 JOINT 3

KLW-M4506-00 HEAD I/O UNIT ASSY. 1

KMG-M5802-47 HEAD SERVO UNIT ASSY 2

KMK-M223A-00 STAY,DUCT 1

KMK-M223F-00 COVER,HNS. 1

KMK-M223K-00 STAY,HNS.3 1

91312-03005 BOLT HEX,SOCKET HEAD 16

91312-03010 BOLT HEX,SOCKET HEAD 4

91312-03012 BOLT HEX,SOCKET HEAD 4

91312-04005 BOLT HEX,SOCKET HEAD 10

91312-04008 BOLT HEX,SOCKET HEAD 3

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-05010 BOLT HEX,SOCKET HEAD 6

91312-05016 BOLT HEX,SOCKET HEAD 4

97602-03306 SCREW PAN HEAD W/WASHER 22

X-Axis Cable Duct / Cover

KGT-M71ST-50 STICKER,HEAD 1

KLW-M2252-01 STOPPER 1

KLW-M227G-00 COVER,B.S. 1

KLW-M2284-00 BRACKET,SENSOR 1

KLW-M22C5-00 UNDER COVER,X AXIS 1

KLW-M5184-10 SEAL,KLA BOARD SET 1

KMG-M221D-00 ANCHOR 20

KMG-M22M1-00 AC SERVO MOTOR 1

KMK-M220A-00 TAPE,X DUCT 1 1

KMK-M220B-00 TAPE,X DUCT 2 1

KMK-M220C-00 TAPE,X DUCT 3 1

KMK-M2243-A0 DUCT COVER ASSY. 1

KMK-M2264-00 PLATE,TAPE 1 2

KMK-M2265-00 PLATE,TAPE 2 2

KMK-M2266-00 STAY,HNS.1 2

KMK-M2267-00 DUCT,CABLE 1

KMK-M2268-00 STAY,HNS.2 2

KMK-M226A-A0 DUCT BRKT. ASSY. 1

KMK-M226B-00 COVER,BACK X AXIS 1 1

KMK-M226C-A0 X AXIS COVER 2 ASSY. 1

KMK-M653X-00 SENSOR,X ORG ASSY 1

$AUS10 JOINT 2

$CTAM1 ANCHOR MOUNT 6

90990-01J058 BOLT HEX,SOCKET HEAD 4

90990-46J011 BOLT, THIN HEAD 12

90K41-001430 LABEL,CAUTION 1

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 12

91312-04010 BOLT HEX,SOCKET HEAD 19

91312-06016 BOLT HEX,SOCKET HEAD 4

97602-03308 SCREW PAN HEAD W/WASHER 2

97602-04310 SCREW PAN HEAD W/WASHER 6

98902-04006 SCREW BINDING HEAD 4

X-Axis SUB Assy

KG2-M9173-00 LOCK NUT 1

KGS-M2628-00 LOCK NUT 1

KHN-M2221-00 SUPPORT UNIT 1

KHN-M2248-00 SPACER 2

KHN-M224D-00 SPACER 1

KHN-M224J-00 COLLAR A 4

KHN-M224K-00 COLLAR B 4

KHN-M22F4-00 WASHER,SWR04 16

KHN-M22F6-00 WASHER,SWR06 8

KHN-M22F8-00 WASHER,SWR08 16

KHY-M2240-00 SLEEVE,BRG. 1

KLW-M2242-01 HOLDER,BRG. 1

KLW-M224H-00 DAMPER 2

KLW-M2261-A1 HEAD HOLDER ASSY. 1

KLW-M2271-00 BALL SCREW 1

KLW-M2276-01 GUIDE SET,X AXIS 1

KLW-M227H-00 JOINT 2

KLW-M2282-00 DOG,ORIGIN 1

KMG-M2220-00 COUPLING 1

KMG-M2241-00 HOLDER,MOTOR X 1

KMG-M2670-00 BALL SCREW ASSY. 1

KMK-M2211-00 FRAME,X AXIS 1

KV7-M2231-00 SPACER R,NUT 4

90990-26J022 BEARING 1

91312-04010 BOLT HEX,SOCKET HEAD 2

91312-04014 BOLT HEX,SOCKET HEAD 50

91312-04025 BOLT HEX,SOCKET HEAD 4

91312-05014 BOLT HEX,SOCKET HEAD 4

91312-05018 BOLT HEX,SOCKET HEAD 4

91312-06025 BOLT HEX,SOCKET HEAD 8

91312-08025 BOLT HEX,SOCKET HEAD 16

92A08-04304 SCREW SET 2

Y-Axis Frame / Duct

KHY-M2669-00 BRACKET,HARNESS 4

KLF-M4187-20 FAN GUARD 120MM 4

KLW-M2695-03 BRACKET,Y AXIS DUCT 2

KMK-M0213-00 Y CABLE DUCT ASSY. 2

KMK-M260B-00 TAPE,Y DUCT 1 2

KMK-M260C-00 TAPE,Y DUCT 2 2

KMK-M260D-00 TAPE,Y DUCT 3 2

KMK-M2678-00 DUCT,CABLE 2

KMK-M2698-00 BRIDGE,HNS. 2

KMK-M26F1-00 FRAME,1 2

KMK-M26F2-00 BRACKET,DUCT 2

KMK-M26F3-00 FRAME,L 2

KMK-M26F4-00 FRAME,R 2

KMK-M26F5-00 STAY,HNS.L 2

KMK-M26F6-00 BRKT.,CABLE 1 2

KMK-M26F7-00 BRKT.,FAN C1 2

KMK-M26F7-A0 COVER1 UPR.FAN ASSY. 1

KMK-M26F7-B0 COVER4 UPR.FAN ASSY. 1

KMK-M26F8-00 BRKT.,FAN C2 2

KMK-M26F8-B0 COVER3 UPR.FAN ASSY. 1

KMK-M26F9-00 SPACER,FAN 2

KMK-M6185-D0 FAN MOTOR ASSY 1

KMK-M6185-E0 FAN MOTOR ASSY 1

KMK-M6185-F0 FAN MOTOR ASSY 1

KMK-M6185-G0 FAN MOTOR ASSY 1

KV7-M2266-00 PLATE, NUT 4

$AUS10 JOINT 4

$CTAM1 ANCHOR MOUNT 20

$NK-3N NYLON CLIP 32

90990-01J032 BOLT HEX,SOCKET HEAD 16

91312-04008 BOLT HEX,SOCKET HEAD 22

91312-04010 BOLT HEX,SOCKET HEAD 8

91312-04035 BOLT HEX,SOCKET HEAD 16

91312-05010 BOLT HEX,SOCKET HEAD 39

91312-05012 BOLT HEX,SOCKET HEAD 6

91312-06012 BOLT HEX,SOCKET HEAD 8

97602-04305 SCREW PAN HEAD W/WASHER 32

97602-04308 SCREW PAN HEAD W/WASHER 20

98502-03005 SCREW PAN HEAD 8

Y-Axis Plate A/B / Damper

KH2-M1324-01 GRIP 4

KHN-M22F6-00 WASHER,SWR06 48

KHW-M2654-00 PLATE,DAMPER 3

KKE-M2654-01 PLATE,DAMPER 2

KKE-M2654-50 PLATE , DAMPER 2

KLF-M4187-10 FAN GUARD 80MM 8

KLW-M2659-00 BRACKET,HANDLE 4

KLW-M2696-00 DOG,COL. 1

KLW-M26F5-00 BRACKET,DAMPER 3

KLW-M26T3-A0 LINEAR COVER 2 ASSY. 2

KLW-M26T4-A0 LINEAR COVER 1 ASSY. 2

KLW-M653G-00 SENSOR,Y SAFE ASSY 1

KMG-M6185-A0 FAN MOTOR ASSY 4

KMK-M2613-S0 PLATE SET 2 TypePV THK

KMK-M2618-00 PLATE,FAN 8

KMK-M2618-01 PLATE,FAN 2 OK MR50064-2018/5/25

KMK-M2682-00 DOG,ORIGIN 3 L=40mm

KMK-M269A-00 PLATE,HNS.1 2

KMK-M269B-00 PLATE,HNS.2 2

KV7-M2651-00 DAMPER, STOPPER 11

KLW-M26F5-A0 Y DAMPER ASSY. 4

KLW-M2659-A0 GRIP HANDLE ASSY. 4

KMK-M2618-A0 FAN ASSY. 2

KMK-M2618-A1 FAN ASSY. 2 OK MR50064-2018/5/25

90990-01J110 BOLT,HEX.S/HEAD WW 12

90990-30J090 SHIM(S) 3

90990-30J091 SHIM(S) 1

90990-46J011 BOLT, THIN HEAD 2

90990-41J180 COLLAR 18

91312-04008 BOLT HEX,SOCKET HEAD 12

91312-04010 BOLT HEX,SOCKET HEAD 36

91312-04025 BOLT HEX,SOCKET HEAD 8

91312-04035 BOLT HEX,SOCKET HEAD 16

91312-05010 BOLT HEX,SOCKET HEAD 8

91312-05014 BOLT HEX,SOCKET HEAD 8

91312-06016 BOLT HEX,SOCKET HEAD 48

91312-06025 BOLT HEX,SOCKET HEAD 40

92902-04200 WASHER,PLAIN 2

92902-04600 WASHER,PLAIN 8

92902-06600 WASHER,PLAIN 40

97602-03310 SCREW PAN HEAD W/WASHER 2

KLW-M2613-S4 PLATE SET 2 TypeSV

KMK-M2615-S0 PLATE SET 2 TypePV IKO H025936-2019/1/15

KMK-M2682-10 DOG,ORIGIN 2 TypePV IKO L=60mm H025936-2019/1/15

Y-Axis Linear motor / Guide

KKE-M26TC-00 PLATE,SCALE 2

KMK-M2623-00 COVER,SCALE 4

KLW-M26CB-00 STATOR A ASSY. 12

KLW-M26CJ-00 COIL,Y AXIS 4

KLW-M26CN-00 STATOR B ASSY. 4

KLW-M26T1-A0 LINEAR SCALE ASSY. 2

KLW-M26T2-00 HEAD,LINEAR SCALE 8

KLW-M26T5-00 COVER,LINEAR 3 2

KLW-M26T9-00 COVER,LINEAR 4 2

KLW-M26TA-00 TAPE,LINEAR SCALE 2

KLW-M26TB-00 HOLDER,SCALE 4

KLW-M653A-00 SENSOR,Y ORG ASSY 2

KMK-M2625-00 COVER,Y AXIS 2-2 2

KMK-M2625-01 COVER,Y AXIS 2-2 2 L=189mm OK MR50064-2018/5/25

KMK-M2626-00 COVER,Y AXIS 1-2 2

KMK-M2626-01 COVER,Y AXIS 1-2 2 L=189mm OK MR50064-2018/5/25

KMK-M2627-A0 SENSOR 1 ASSY. 2 With No.7

KMK-M2627-B0 SENSOR 2 ASSY. 2 With No.7

KMK-M2676-00 GUIDE SET,Y AXIS 1 TypePV THK

KMK-M2691-00 STAY,SENSOR 2

$NK-3N NYLON CLIP 2

90990-08J043 SCREW, PAN HEAD 12

90990-46J011 BOLT, THIN HEAD 16

91312-04008 BOLT HEX,SOCKET HEAD 12

91312-05008 BOLT HEX,SOCKET HEAD 4

91312-06025 BOLT HEX,SOCKET HEAD 56 TypePV

91312-06075 BOLT HEX,SOCKET HEAD 164

97602-03308 SCREW PAN HEAD W/WASHER 4

97602-04308 SCREW PAN HEAD W/WASHER 2

98702-03008 SCREW,FLAT HEAD 8

99480-06012 PIN,PARALLEL 4

91312-03008 BOLT HEX,SOCKET HEAD 16

KLW-M2676-00 GUIDE SET,Y AXIS 1 TypeSV

90990-01J003 BOLT HEX,SOCKET HEAD 56 TypeSV

KMK-M2625-10 COVER,Y AXIS 2-2 2 TypePV IKO L=214mm H025936-2019/1/15

KMK-M2626-10 COVER,Y AXIS 1-2 2 TypePV IKO L=214mm H025936-2019/1/15

KMK-M2627-C0 SENSOR 1 ASSY. 2 TypePV IKO With No.7 H025936-2019/1/15

KMK-M2627-D0 SENSOR 2 ASSY. 2 TypePV IKO With No.7 H025936-2019/1/15

KMK-M2676-20 GUIDE SET,Y AXIS 1 TypePV IKO Block end is blue H025936-2019/1/15

Y-Axis 1-beam

KHN-M22F6-00 WASHER,SWR06 24

KHW-M2654-00 PLATE,DAMPER 2

KLW-M260B-10 TAPE 1,Y DUCT 1 1-beam

KLW-M260C-10 TAPE 2,Y DUCT 1 1-beam

KLW-M260D-10 TAPE 3,Y DUCT 1 1-beam

KLW-M2657-00 STOPPER 1 1-beam

KLW-M2658-10 STOPPER 1 1-beam

KLW-M2678-10 DUCT,CABLE 1 1-beam

KLW-M2682-10 DOG,ORIGIN 1 1-beam

KLW-M2684-00 STAY,DOG 1 1-beam

KLW-M26CP-00 STATOR C ASSY. 2 1-beam

KLW-M26CR-00 STATOR D ASSY. 2 1-beam

KLW-M26FA-01 BRACKET,DAMPER 2 2 1-beam

KLW-M26FA-A0 Y DAMPER 2 ASSY. 2 1-beam

KLW-M26TD-00 COVER,LINEAR 3 1 1-beam

KLW-M26TE-00 COVER,LINEAR 4 1 1-beam

KLW-M26TG-A0 LINEAR COVER 2 ASSY. 1 1-beam

KLW-M26TH-A0 LINEAR COVER 1 ASSY. 1 1-beam

KLW-M653A-10 SENSOR,Y ORG ASSY 1 1-beam

KMK-M2613-S0 PLATE SET 1 TypePV THK

KMK-M2676-10 GUIDE SET,Y AXIS 1 1-beam TypePV THK

KV7-M2651-00 DAMPER, STOPPER 2

90990-08J043 SCREW, PAN HEAD 5

90990-30J090 SHIM(S) 2

90990-41J180 COLLAR 4

90990-01J110 BOLT,HEX.S/HEAD WW 6

91312-04008 BOLT HEX,SOCKET HEAD 11

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04025 BOLT HEX,SOCKET HEAD 4

91312-05008 BOLT HEX,SOCKET HEAD 8

91312-06016 BOLT HEX,SOCKET HEAD 24

91312-06025 BOLT HEX,SOCKET HEAD 76 TypePV

92902-04600 WASHER,PLAIN 4

92902-06600 WASHER,PLAIN 20

97602-03310 SCREW PAN HEAD W/WASHER 2

KLW-M2613-S4 PLATE SET 1 TypeSV

KLW-M2676-10 GUIDE SET,Y AXIS 1 1-beam TypeSV

90990-01J003 BOLT HEX,SOCKET HEAD 56 TypeSV

KMK-M2615-S0 PLATE SET 1 TypePV IKO H025936-2019/1/15

KMK-M2676-30 GUIDE SET,Y AXIS 1 1-beam TypePV IKO Block end is blue H025936-2019/1/15

FID Camera / Stay (FM)

90563-04J100 SPACER 2

90K41-001320 LABEL,CAUTION 2

KHT-M76B0-01 LENS FID. 2

KLW-M7210-00 CCD CAMERA 2

KLW-M76D0-00 CAMERA ASSY. 2

KLW-M71C1-00 BRACKET,RIGHT 1

KLW-M71C2-00 BRACKET,LEFT 1

KLW-M71C6-00 COVER,CAMERA R 1

KLW-M71C8-00 COVER,CAMERA L 1

KLW-M7401-00 BRKT.,COVER HEAD 2

KLW-M7402-00 COVER,HEAD 1 1

KLW-M7403-00 COVER,HEAD 2 1

KLW-M7404-00 COLLAR,SPRING 5

KLW-M7405-00 COVER,UNDER 1

KLW-M7406-00 BRKT.,Z AXIS HNS. 1

KLW-M7408-00 BRKT.,EARTH 1

KLW-M7409-00 SPRING,RETURN 5

KLW-M740A-00 COVER,UNDER 1

KLW-M740B-00 GUIDE,SPRING 5

KLW-M740C-00 HOLDER,TUBE 10

KLW-M7450-04 EJECTOR ASSY. 1

KLW-M7451-00 BRKT.,EJECTOR 1

KLW-M7452-00 BRKT.,HNS. 1

KLW-M7453-00 COVER,BOARD 1

KLW-M7601-00 HOLDER,CAMERA 2

KLW-M76A0-00 FIDUCIAL LIGHT ASSY. 2

KLW-M76L4-00 STAY,FID. LIGHT 2

KMC-M7610-00 VISION ATTACHMENT L 1

KMC-M7620-00 VISION ATTACHMENT R 1

91312-03004 BOLT HEX,SOCKET HEAD 10

91312-03005 BOLT HEX,SOCKET HEAD 10

91312-03008 BOLT HEX,SOCKET HEAD 12

91312-03012 BOLT HEX,SOCKET HEAD 4

91312-04006 BOLT HEX,SOCKET HEAD 6

91312-04008 BOLT HEX,SOCKET HEAD 8

91312-04025 BOLT HEX,SOCKET HEAD 4

91312-04040 BOLT HEX,SOCKET HEAD 4

91317-03005 BOLT HEX,SOCKET HEAD 6

91317-04008 BOLT HEX,SOCKET HEAD 2

92012-03005 BOLT BUTTON HEAD 8

99480-04010 PIN,PARALLEL 4

R Axis Assy (FM)

90112-2AJ010 BOLT, HEX.SOCKET HEAD 20

90152-03J03 SCREW SET 10

90990-28J140 WASHER,PLAIN 20

90K2L-0G1111 AC SERVO MOTOR 1

90K2L-0G1112 AC SERVO MOTOR 1

90K2L-0G1113 AC SERVO MOTOR 1

90K2L-0G1128 AC SERVO MOTOR 1

90K2L-0G1129 AC SERVO MOTOR 1

KJX-M7C4A-00 COLLAR,BEARING 5

KLW-M7431-00 PLATE,MOTOR R 5

KLW-M7432-00 PULLEY,MOTOR R 5

KLW-M7433-00 SHEET 5

KLW-M7442-00 BLOCK,SHAFT 1

KLW-M7445-00 PLATE,SPLINE 1

KLW-M7449-00 PLATE,SPLINE 5

KLW-M744B-00 PLATE,SPRING 1

KLW-M74RA-00 BELT 5

91312-03008 BOLT HEX,SOCKET HEAD 10

91312-03010 BOLT HEX,SOCKET HEAD 12

91317-03008 BOLT HEX,SOCKET HEAD 26

92902-03200 WASHER,PLAIN 10

99480-03010 PIN,PARALLEL 2

KLW-M7430-00 R1 MOTOR ASSY. 1 with 4

KLW-M7430-10 R2 MOTOR ASSY. 1 with 5

KLW-M7430-20 R3 MOTOR ASSY. 1 with 6

KLW-M7430-30 R4 MOTOR ASSY. 1 with 7

KLW-M7430-40 R5 MOTOR ASSY. 1 with 8

Shaft Head Assy (FM)

_No. Parts_Name Q_

$PLH4-M5M JOINT 5

$UEF JOINT 5

90112-2AJ008 BOLT, HEX.SOCKET HEAD 10

90112-2AJ012 BOLT, HEX.SOCKET HEAD 20

90115-02J004 BOLT, HEX. SOCKET HEAD 10

90152-03J03 SCREW SET 10

90440-10J008 CIRCLIP 20

90933-02J685 BEARING 5

90990-01J057 BOLT HEX,SOCKET HEAD 10

90990-16J002 NUT, U & NUT, SELF LOCKING 5

90990-28J045 WASHER,PLAIN 10

90990-28J046 WASHER,PLAIN 5

90990-29J033 SHIM 5

91609-16006 PIN, SPRING 10

95602-05100 NUT, U 5

KHN-M7145-00 NUT,SPLINE 5

KJX-M7C37-00 COLLAR,PULLY 5

KJX-M7C4A-00 COLLAR,BEARING 5

KJX-M7C4E-00 O-RING 10

KJX-M7C4N-00 WAVE WASHER 5

KLW-M7441-00 SPLINE SHAFT 5

KLW-M7443-00 PULLEY,R 5

KLW-M7446-00 ARM 5

KLW-M7447-00 BLOCK,SPLINE 5

KLW-M744A-00 PLATE,BRG. 5

KLW-M744C-00 STOPPER,JOINT 5

KLW-M74D0-00 ROLLER LOCK ASSY. 5

KV7-M8171-00 PLATE,SPRING 20

KV7-M81D1-00 ARM,NOZZLE 10 No assy

KV7-M81D3-01 PIN 20

KV7-M81D4-00 ROLLER 10

90990-22J009 PACKING 5

KLW-M741S-A0 SHAFT,SPARE 1 Spare

Z Axis Assy (FM)

90112-2AJ006 BOLT, HEX.SOCKET HEAD 20

90933-02J605 BEARING 5

90990-02J004 SCREW, SET 10

90990-18J033 PIN,PARALLEL 10

90990-41J148 COLLAR 20

90K2M-0F1503 MOTOR 1

90K2M-0F1504 MOTOR 1

90K2M-0F1505 MOTOR 1

90K2M-0F1506 MOTOR 1

90K2M-0F1507 MOTOR 1

KHN-M712A-00 BEARING 5

KHN-M712M-00 COUPLING 5

KJX-M711P-00 CIRCLIP 5 5

KLH-M7C2P-00 SPACER 10

KLW-M7411-01 PLATE,HEAD 1

KLW-M7412-00 PLATE L 1

KLW-M7413-00 PLATE R 1

KLW-M7414-00 HOLDER,MOTOR Z 5

KLW-M7415-00 HOLDER,BRG. 5

KLW-M7416-00 DAMPER Z 10

KLW-M7417-00 PLATE,BRG. Z 5

KLW-M7421-00 BALL SCREW 5

KLW-M7422-00 LOCK NUT,SCREW 5

KLW-M7424-00 HOLDER,NUT 5

KLW-M7425-00 GUIDE,Z 5

91312-03005 BOLT HEX,SOCKET HEAD 30

91312-03008 BOLT HEX,SOCKET HEAD 40

91312-03010 BOLT HEX,SOCKET HEAD 20

91312-03012 BOLT HEX,SOCKET HEAD 10

91312-03022 BOLT HEX,SOCKET HEAD 20

91312-04030 BOLT HEX,SOCKET HEAD 4

99480-03010 PIN,PARALLEL 5

99480-05010 PIN,PARALLEL 6

91312-06020 BOLT HEX,SOCKET HEAD 4

Side View Unit (FM)

90990-41J128 COLLAR 4

91312-03005 BOLT HEX,SOCKET HEAD 8

91312-03010 BOLT HEX,SOCKET HEAD 4

91312-05030 BOLT HEX,SOCKET HEAD 4

92012-03005 BOLT BUTTON HEAD 4

99480-06018 PIN,PARALLEL 4

KLW-M7921-00 BRKT.,LIGHT L 1

KLW-M7922-00 BRKT.,LIGHT R 1

KLW-M7923-01 COVER,LIGHT 1

KLW-M7924-01 BRKT.,LIGHT 1

KLW-M7925-00 SHEET 1

KLW-M7926-01 DIFFUSER 1

KLW-M7927-00 DIFFUSER,UPPER 1

KLW-M7928-00 PLATE,LIGHT 1

KLW-M7981-00 S.V.LIGHT BRD ASSY 1

KLW-M79C0-01 S.V.CAM.ASSY. 1

KLW-M79L0-00 S.V.LIGHT ASSY. 1

Ejector (FM)

KLW-M745A-02 EJECTOR 1

KLF-M7152-00 VALVE 1

KLF-M7153-00 VALVE 1

KLW-M7154-00 BIT 1

KLW-M7156-00 BIT CAP 1

KLW-M7157-10 EJECTOR 1

KLW-M7158-00 VALVE 1

KLW-M715A-00 MUFFLER 1

KLW-M715B-00 GASKET 1

KLW-M8527-00 FILTER 1

KHY-M4592-10 VAC5 SENS BRD ASSY 1

98502-03008 SCREW,PAN HEAD 4

KLW-M74T1-00 TUBE 2 04-205mm H1,H5

KLW-M74T2-00 TUBE 3 04-200mm H2,H3,H4

KLW-M7155-00 FILTER CAP 1

FID Camera / Stay (HM)

90K41-001320 LABEL,CAUTION 2

90563-04J100 SPACER 2

90990-41J123 COLLAR 3

KHT-M76B0-01 LENS FID. 1

KLW-M7210-00 CCD CAMERA 1

KLW-M76D0-00 CAMERA ASSY. 2

KLW-M7117-00 STOPPER 1

KLW-M71C1-00 BRACKET,RIGHT 1

KLW-M71C2-00 BRACKET,LEFT 1

KLW-M71C3-00 STAY,EJECTOR 1

KLW-M71C4-01 STAY,HOSE 1

KLW-M71C5-00 BRACKET,CABLE 1

KLW-M71C6-00 COVER,CAMERA R 1

KLW-M71C7-00 BRACKET,CABLE 1

KLW-M71C8-00 COVER,CAMERA L 1

KLW-M71C9-01 PLATE 2,HARNESS 1

KLW-M71CB-00 PLATE,HARNESS 1

KLW-M71Y0-00 LABEL,HEAD SERIAL 1

KLW-M740C-00 HOLDER,TUBE 2

KLW-M7601-00 HOLDER,CAMERA 2

KLW-M76A0-00 FIDUCIAL LIGHT ASSY. 2

KLW-M76L4-00 STAY,FID. LIGHT 2

KMC-M7610-00 VISION ATTACHMENT L 1

KMC-M7620-00 VISION ATTACHMENT R 1

91312-03008 BOLT HEX,SOCKET HEAD 12

91312-04006 BOLT HEX,SOCKET HEAD 14

91312-04008 BOLT HEX,SOCKET HEAD 10

91312-04012 BOLT HEX,SOCKET HEAD 3

91312-04025 BOLT HEX,SOCKET HEAD 4

91312-04040 BOLT HEX,SOCKET HEAD 4

99480-04010 PIN,PARALLEL 4

R Axis Assy (HM)

90990-01J040 BOLT,HEX.SOCKET HEAD 4

90990-25J016 BEARING 16

90KB0-112503 MOTOR 1

90KB0-112504 MOTOR 1

91312-03006 BOLT HEX,SOCKET HEAD 24

91312-03008 BOLT HEX,SOCKET HEAD 4

91312-03012 BOLT HEX,SOCKET HEAD 6

91312-03030 BOLT HEX,SOCKET HEAD 4

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-05020 BOLT HEX,SOCKET HEAD 2

91312-05035 BOLT HEX,SOCKET HEAD 4

92902-03200 WASHER,PLAIN 8

KHY-M7113-00 PLATE 2,BRG. 1

KLW-M7114-00 PLATE 3,BRG. 10

KHY-M7127-00 BLOCK 1,ADJUST 2

KHY-M7131-00 BELT 1 2

KHY-M7132-00 BELT 2 2

KKE-M7126-00 SHAFT 2,TENSION 2

KKE-M7128-00 SHAFT 3,TENSION 2

KKE-M7134-00 PLATE,SCREEN 2

KKE-M7135-00 PLATE,SCREEN 2

KLW-M7101-01 HOUSING,HEAD 1

KLW-M7102-00 PLATE,R MOTOR 1

KLW-M7125-00 STOPPER,R AXIS 2

KLW-M7129-00 BLOCK 2,ADJUST 2

KLW-M7131-00 PULLEY,R MOTOR 2

KLW-M7132-00 STOPPER 2,R AXIS 2

KLW-M7133-00 SHEET,SCREEN 1

KLW-M7138-00 PLATE 1

KV8-M7115-00 SHAFT 1,TENSION 4

92902-03600 WASHER,PLAIN 2

92902-04200 WASHER,PLAIN 6

92A08-04304 SCREW SET 4

98702-03006 SCREW,FLAT HEAD 11

99009-07800 CIRCLIP 2

99480-03008 PIN,PARALLEL 4

99480-04008 PIN,PARALLEL 2

90990-01J020 BOLT HEX,SOCKET HEAD 4

91317-03012 BOLT HEX,SOCKET HEAD 4

Shaft Head Assy (HM)

$PF-M3 PLUG 20

90990-08J016 SCREW, PAN HEAD 40

90990-17J053 O-RING 20

91312-03006 BOLT HEX,SOCKET HEAD 20

KG7-M7137-A0 LEAF SPRING 20

KLW-M714W-00 PLATE,SPRING 20

KHY-M7105-00 HOLDER,NOZZLE 8

KKS-M7105-00 HOLDER,NOZZLE 2

KLW-M7107-A1 HEAD SHAFT 1 ASSY. 4 Under a pulley

KLW-M7107-B0 HEAD SHAFT 2 ASSY. 4 On a pulley

KLW-M7107-C1 HEAD SHAFT 1B ASSY. 1 Under a pulley .With V slot Holder

KLW-M7107-D0 HEAD SHAFT 2B ASSY. 1 On a pulley . With V slot Holder

KLW-M711S-A0 SHAFT 1,SPARE 1 Spare

KLW-M711S-B0 SHAFT 2,SPARE 1 Spare With V slot Holder

KHY-M7108-00 COLLAR,BRG. 10

90990-25J026 BEARING 20

Z Axis Assy (HM)

90990-28J078 WASHER,PLAIN 4

90K41-001400 LABEL,CAUTION 2

91312-05014 BOLT HEX,SOCKET HEAD 8

91312-06022 BOLT HEX,SOCKET HEAD 4

91312-06060 BOLT HEX,SOCKET HEAD 2

99480-04008 PIN,PARALLEL 4

99480-06014 PIN,PARALLEL 4

KHY-M71G3-00 SHAFT 1 2

KLW-M7103-01 PLATE,HEAD 1

KLW-M71G1-01 SIDE PLATE,R 1

KLW-M71G2-01 SIDE PLATE,L 1

KLW-M71G5-00 Z UNIT ASSY. 10

Ejector (HM)

KLW-M7151-02 EJECTOR,RESIN 1

KLF-M7152-00 VALVE 1

KLF-M7153-00 VALVE 1

KLW-M7154-00 BIT 1

KLW-M7156-00 BIT CAP 1

KLW-M7157-10 EJECTOR 1

KLW-M7158-00 VALVE 1

KLW-M715A-00 MUFFLER 1

KLW-M715B-00 GASKET 1

KLW-M8527-00 FILTER 1

KHY-M4592-01 VAC SENSOR BRD ASSY 1

90563-23J060 SPACER 4

KLW-M74T1-00 TUBE 1 04-205mm

KLW-M7155-00 FILTER CAP 1

Scan Camera / Axis (HM)

90K41-001320 LABEL,CAUTION 1

KGS-M5184-00 SEAL,EARTH 1 1

KMG-M7554-01 SC.LIGHT BRD.ASSY. 1

KMG-M7905-00 SC.SV.LIGHT BRD ASSY 1

KHY-M7A34-01 DIFFUSER, SIDE 1

KLW-M66JA-00 HNS,SCAN FLEX 1

KMG-M7850-00 SC MOTOR ASSY. 1

KLW-M78H1-00 PLATE,CABLE 1

KLW-M78H2-00 BRACKET,CABLE 1

KLW-M78H3-00 TAPE,SCAN CABLE 1

KLW-M78H5-00 BRACKET,CONNECTOR 1

KLW-M78H6-00 PLATE,CLAMP 1

KLW-M78H7-00 COVER,SENSOR 1

KLW-M78H8-00 CLAMP,CABLE 1

KMG-M7A13-00 DIFFUSER, MAIN 1

KMG-M7A16-00 COVER,PRIZM 1

KMG-M7A31-00 BLOCK,LIGHT SIDE 1

$NK-3N NYLON CLIP 1

90112-02J008 BOLT HEX,SOCKET HEAD 2

90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

90990-01J106 BOLT HEX,SOCKET HEAD 4

90990-01J107 BOLT HEX,SOCKET HEAD 4

90990-08J018 SCREW, PAN HEAD 2

90990-08J020 SCREW, PAN HEAD 4

90990-08J026 SCREW, PAN HEAD 4

90990-11J001 SCREW, PAN HEAD W/W 1

90990-28J002 WASHER,PLAIN 3

91312-03005 BOLT HEX,SOCKET HEAD 2

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-03008 BOLT HEX,SOCKET HEAD 6

91312-04025 BOLT HEX,SOCKET HEAD 2

91312-04030 BOLT HEX,SOCKET HEAD 2

91312-05010 BOLT HEX,SOCKET HEAD 3

91312-05020 BOLT HEX,SOCKET HEAD 5

KMG-M78C0-00 SCAN CAM. ASSY.,CX. 1

KLW-M78H0-00 HNS.SCAN ASSY. 1

Nozzle

KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A

KHN-M7711-05 BODY,NOZZLE 301 1

KHN-M7713-00 SPRING 1 Black

KHN-M7714-00 PIN 1

KHN-M7715-00 CLIP 1

KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A

KHN-M7721-04 BODY, NOZZLE 302 1

KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A

KHY-M7741-00 BODY, NOZZLE 303/314 1

KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A

90990-17J081 O-RING 1

KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A

KHY-M7771-00 BODY, NOZZLE 306/317 1

KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A (Narrow adjacent Type)

KHY-M77A1-00 BODY, NOZZLE 310 1

KHY-M7710-A4 NOZZLE 311A ASSY. 1 TYPE 311A (Narrow adjacent Type)

KHY-M7711-03 BODY, NOZZLE 311 1

KHN-M7713-10 SPRING 1

KHY-M7720-A3 NOZZLE 312A ASSY. 1 TYPE 312A (Narrow adjacent Type)

KHY-M7721-02 BODY,NOZZLE 312 1

KHY-M7730-A2 NOZZLE 313A ASSY. 1 TYPE 313A (Narrow adjacent Type)

KHY-M7731-02 BODY,NOZZLE 313 1

KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A

KHY-M7781-00 BODY, NOZZLE 307/318 1

KGS-M7742-00 LABEL,NOZZLE 1

90990-17J082 O-RING 1

KHN-M7713-10 SPRING 1 White

KHN-M7713-10 SPRING 1 White

Nozzle Changer (ANC Stand Assy)

$SC4-M5A SPEED CONTROLLER 2

$US4 JOINT 2

90112-2AJ006 BOLT, HEX.SOCKET HEAD 6

90563-0AJ070 SPACER 6

90933-02J063 BEARING 2

90990-32J005 BOLT,FLANGE 2

90990-41J185 COLLAR 4

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-03010 BOLT HEX,SOCKET HEAD 2

91312-03025 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 2

91312-04016 BOLT HEX,SOCKET HEAD 1

KHW-M916A-00 BUSH 2

KHW-M916E-00 BUSH 1

KHW-M916G-00 COLLAR, JOINT 1

KHW-M916H-00 JOINT, CYL. 1

KLW-M653S-00 CYL.ANC OP/CL ASSY 1

KHY-M9614-00 STOPPER,CYLINDER 1

KHY-M9627-00 BLOCK,LINK 1

KHY-M9628-00 COLLAR,LINK 1

KHY-M9631-00 COLLAR,FLOATING 1

KHY-M9632-00 BLOCK,FLOATING 1

KKS-M9615-00 PLATE,CYLINDER 1

KKT-M9613-00 BLOCK,CYLINDER 1

KLW-M45BA-03 ANC CTRL BOARD ASSY 1

KLW-M96S1-A0 BOTTOM HOLDER ASSY. 1

KLW-M96S2-00 PLATE,SIDE 2

KLW-M96S3-00 SHAFT 4

KLW-M96S4-00 PLATE,MIDDLE 1

KLW-M96S5-00 PLATE,BASE 1

KLW-M96S6-00 BOARD,CLEAR 1

KLW-M96S7-00 PLATE,LED SHIELD 1

KLW-M96S8-00 SUPPORT,STAND 1

KLW-M96SV-00 ANC VALVE ASSY. 1

91312-04022 BOLT HEX,SOCKET HEAD 1

91312-05016 BOLT HEX,SOCKET HEAD 8

91312-05020 BOLT HEX,SOCKET HEAD 1

92902-04200 WASHER,PLAIN 3

92902-05200 WASHER,PLAIN 1

95702-06500 NUT FLANGE 8

Nozzle Changer (Clamp Hld. Assy.)

91312-03008 BOLT HEX,SOCKET HEAD 28

91312-03030 BOLT HEX,SOCKET HEAD 12

92012-04012 BOLT, BOTTON HEAD 4

KHY-M9621-A0 BASE,NOZZLE D ASSY 10

KHY-M9630-00 HOOK,BEARING 2

KKE-M9608-00 PIN,SLIDE 8

KLW-M96HD-A0 SPACER ASSY. 14

KLW-M96H1-A0 HM NOZZLE HLD. ASSY. 1 HM CLAMP HLD.

KLW-M96H2-00 PLATE,CLAMP HM 1 HM CLAMP HLD.

KLW-M96H4-A0 FM NOZZLE HLD. ASSY. 1 FM CLAMP HLD.

KLW-M96H5-00 PLATE,CLAMP FM 1 FM CLAMP HLD.

KLW-M96H7-00 MIRROR,CENTER 2

KLW-M96H8-00 MIRROR,SIDE 4

KLW-M96H9-00 SPACER 2

KLW-M96HA-00 SHEET,CLAMP GUIDE 4

98902-03008 SCREW BINDING HEAD 16

Push Up 1

_No. Parts_Name Q_

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 10

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 2

KGA-M921T-00 BOLT 8

KHY-M921G-01 BRKT.,DOG 1

KHY-M921N-01 JOINT A 2

KLW-M653D-00 SENSOR,PUA ORG ASSY 1 ASSY .A

KLW-M653D-10 SENSOR,PUB ORG ASSY 1 ASSY .B

KLW-M920A-00 PLATE 1(340x330) 2

KLW-M920B-00 STAY 1

KLW-M9217-00 BALL BUSH 2

KLW-M9218-00 SHAFT 2

KLW-M921H-02 PLATE,DOG 1

KLW-M921K-00 BRKT.,SENSOR 1

KLW-M9221-01 DAMPER 2

KHY-M920D-00 PUSH UP PIN UNIT 1

KLW-M9203-A0 STAY ASSY. 1

90990-28J076 WASHER,PLAIN 2

90K65-332G74 AC SERVO MOTOR 1 ASSY .B

90K65-332P73 AC SERVO MOTOR 1 ASSY .A

91312-05010 BOLT HEX,SOCKET HEAD 8

91312-05012 BOLT HEX,SOCKET HEAD 8

91312-05016 BOLT HEX,SOCKET HEAD 16

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 4

95602-10100 NUT, U 8

KKE-M9218-00 GROMMET 2

KKE-M921D-00 BELT 291-3GT-15 1

KLW-M921S-00 BRKT.,MOTOR 2

KV7-M9205-01 PULLEY 1:P22-3GT 2

KLW-M9206-A0 MOTOR ASSY. 1 ASSY .A

KLW-M9208-A0 MOTOR ASSY. 1 ASSY .B

Push Up 2

_No. Parts_Name Q_

90440-01J090 CIRCLIP 2

90933-01J001 BEARING 2

90933-01J007 BEARING 4

90933-01J300 BEARING 2

90990-01J065 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 8

91312-04020 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 1

91312-05012 BOLT HEX,SOCKET HEAD 12

91312-05020 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 6

KHW-M9215-00 PULLEY:P60-3GT 2

KHW-M921A-00 BRKT.,TENSIONER 1

KHW-M921B-00 STAY,ADJUST 1

KHW-M921C-00 SHAFT 1 1

KHW-M9222-00 POST 1

KHW-M9223-00 PULLEY:P40-3GT 1

KHY-M9211-00 HOLDER,BRG. 2

KHY-M9212-00 HOUSING 2

90990-28J170 WASHER,PLAIN 2

KLW-M9201-A0 DRIVE UNIT ASSY. 2

KLW-M9204-A0 TENTIONER ASSY. 1

KLW-M9205-A0 PULLEY ASSY. 1

KLW-M920C-00 PLATE,PU BASE 1

KLW-M9B00-00 BALL SCREW PU 2

KLW-M921E-00 BELT 852-3GT-15 1

92902-05200 WASHER,PLAIN 10

95302-04600 NUT HEXAGON 1

99009-12400 CIRCLIP 2

Main Stopper

KLC-M916D-00 JOINT 6

90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

90112-2AJ006 BOLT, HEX.SOCKET HEAD 2

91312-03005 BOLT HEX,SOCKET HEAD 6

91312-03030 BOLT HEX,SOCKET HEAD 6

91312-04006 BOLT HEX,SOCKET HEAD 6

KHW-M916C-00 SPACER 6

KHW-M916G-00 COLLAR, JOINT 3

KHY-M926H-00 JOINT, CYL. 3

KKE-M9163-01 BRKT.,STOPPER 1

KKE-M9164-01 BRKT.,STOPPER 2

KKE-M9164-10 BRKT.,STOPPER 2

KKE-M9165-02 PLATE,STOPPER 3

KKE-M9169-01 SHAFT,STOPPER 3

KLT-M9168-00 PLATE,STOPPER 2

KLW-M654C-11 CYL.RL CV2 ST1 ASSY 1

KLW-M654C-21 CYL.RL CV3 ST1 ASSY 1

KLW-M654C-31 CYL.RL CV3 ST2 ASSY 1

KLW-M654C-61 CYL.LR CV3 ST1 ASSY 1

KLW-M654C-41 CYL.LR CV2 ST1 ASSY 1

KLW-M654C-51 CYL.LR CV2 ST2 ASSY 1

KLW-M9161-00 BRKT.,CYLINDER 2

KLW-M9162-00 BRKT.,CYLINDER 2

KLW-M9167-00 PLATE,STOPPER 1

KLW-M916D-00 BRKT.,CYLINDER 1

KLW-M916E-00 BRKT.,CYLINDER 1

KLW-M9261-00 GUIDE 3

91312-04010 BOLT HEX,SOCKET HEAD 13

91312-04012 BOLT HEX,SOCKET HEAD 1

92012-04012 BOLT, BOTTON HEAD 2

92902-04600 WASHER,PLAIN 6

KLW-M9160-A1 STOPPER ASSY.1 1

KLW-M9160-B1 STOPPER ASSY.2-1 1 Only different parts are published.

KLW-M9160-C1 STOPPER ASSY.2-2 1

KLW-M9160-D1 STOPPER ASSY.1 1 Only different parts are published.

KLW-M9160-E1 STOPPER ASSY.2-1 1 Only different parts are published.

KLW-M9160-F1 STOPPER ASSY.2-2 1 Only different parts are published.

Sub / Exit Stopper

$UEF4BU-M3 JOINT 2

90112-2AJ005 BOLT, HEX.SOCKET HEAD 2

91312-03005 BOLT HEX,SOCKET HEAD 2

91312-03030 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 4

KHW-M916C-00 SPACER 2

KHW-M916G-00 COLLAR, JOINT 1

KHW-M9272-00 STOPPER,EXIT 1

KHW-M9274-A0 SPEED CONTROLLER 2

KHY-M926H-00 JOINT, CYL. 1

KMG-M9162-00 STOPPER,CYLINDER 1

KKE-M9164-01 BRKT.,STOPPER 1

KKE-M9164-10 BRKT.,STOPPER 1

KKE-M9165-02 PLATE,STOPPER 1

KKE-M9169-01 SHAFT,STOPPER 1

KLT-M9168-00 PLATE,STOPPER 1

KLW-M916A-A0 SPEED CONTROLLER 2

KMK-M9271-00 BRKT.,CYLINDER 1

KLW-M654C-00 CYL.RL CV1 ST ASSY 1

KLW-M654C-70 CYL.LR CV4 ST ASSY 1

KLW-M9161-00 BRKT.,CYLINDER 1

KLW-M9162-00 BRKT.,CYLINDER 1

KLW-M9261-00 GUIDE 1

92012-04012 BOLT, BOTTON HEAD 1

92902-04600 WASHER,PLAIN 2

KMK-M9270-A0 EXIT STOPPER ASSY. 1

KMK-M9270-B0 EXIT STOPPER ASSY. 1 Only different parts are published.

KLW-M9280-A0 SUB STOPPER ASSY. 1

KLW-M9280-B0 SUB STOPPER ASSY. 1 Only different parts are published.

KMK-M653K-00 CYL.RL EXIT ST ASSY 1

KMK-M653L-00 CYL.LR EXIT ST ASSY 1

Clamp Board

$SL4-M5 JOINT 2

90169-02JB04 SCREW, BINDING HEAD 24

90563-04J170 SPACER 4

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 12

91312-04014 BOLT HEX,SOCKET HEAD 8

KHW-M9167-00 BRKT.,CYL. 2

KHW-M916E-00 BUSH 2

KHW-M9261-01 PLATE1,LINK 4

KHW-M9264-A0 LINK A ASSY. 4

KHW-M9265-00 SPACER 8

KHW-M926A-00 COLLAR 4

KHW-M926B-00 COLLAR, JOINT 2

KHW-M926E-00 NUT 2

KHY-M926F-00 JOINT , CYL. BRKT 2

KHY-M926H-00 JOINT, CYL. 2

KHY-M926M-00 STOPPER, CYLINDER 2

KKE-M9269-00 BRKT.,CYL. 2

KKE-M926F-00 COLLAR,FLOATING 2

KLT-M9263-00 CYLINDER 12

KLW-M9262-00 PLATE,BASE S 2

KLW-M926D-00 PLATE,BOARD CLAMP 2

KLW-M926G-00 PLATE 2,LINK 2

KLW-M926J-00 PLATE 1 2

KV7-M9266-01 GUIDE 6

91312-04016 BOLT HEX,SOCKET HEAD 2

92902-04200 WASHER,PLAIN 2

95302-06600 NUT HEXAGON 2

98902-03005 SCREW BINDING HEAD 8

KHW-M9264-B0 LINK B ASSY. 4

KLW-M9260-A1 CP BOARD SUB ASSY. 1

KLW-M9260-B0 CP BOARD SUB ASSY. 1

KLW-M9260-C0 CP BOARD SUB ASSY. 1 Only different parts are published.

KLW-M9260-D0 CP BOARD SUB ASSY. 1 Only different parts are published.

KLW-M926S-A0 SPEED CONTROLLER 1

KLW-M926T-A0 SPEED CONTROLLER 1

KKE-M926S-A0 SPEED CONTROLLER 6

$UY4 JOINT 4

Trasport (UR)

KH2-M9121-00 BEARING 2

KLW-M918N-00 BRACKET,COLLAR 2

KKE-M918Y-00 SHAFT 1

KLF-M9135-01 PLATE,EDGE 2 8

KLW-M914A-A0 PULLEY,CONV. ASSY. 4

KMK-M9110-00 BELT,CONVEYOR 2

KMK-M911E-A0 SPLINE PULLEY ASSY. 2

KLW-M913A-A2 PULLEY ASSY. 4

KLW-M913K-00 BLOCK,TENSIONER 2

KLW-M914U-01 COVER,HNS. 1

KLW-M913J-00 PLATE 2

KLW-M913L-00 PLATE 2

KLW-M915M-00 BELT 255-3GT-9 1

KLW-M915N-00 PLATE 1

KLW-M915R-00 PLATE 1

KLW-M918R-01 STAY,SPLINE 1

KLW-M918X-00 SPLINE 1 1

KLW-M9196-00 BRKT.,CONV.MOTOR 1

KLW-M91M5-A0 CV MOTOR SUB ASSY.1 1

KLW-M91M7-A0 BRG.SUB ASSY.1 1

KLW-M91P5-00 PULLEY:P50-3GT 1

KLW-M91P6-00 PULLEY:P25-3GT 1

KLW-M91P7-00 PLATE,CONV. MOTOR 1

KLW-M9140-A0 PULLEY CONV. ASSY 2

90990-41J006 COLLAR 1

90KC1-011203 AC SERVO MOTOR 1

91312-04006 BOLT HEX,SOCKET HEAD 6

91312-04008 BOLT HEX,SOCKET HEAD 6

91312-04010 BOLT HEX,SOCKET HEAD 17

91312-05008 BOLT HEX,SOCKET HEAD 2

91312-05010 BOLT HEX,SOCKET HEAD 3

91312-05012 BOLT HEX,SOCKET HEAD 2

91312-05014 BOLT HEX,SOCKET HEAD 4

92012-04010 BOLT, BOTTON HEAD 4

92902-04200 WASHER,PLAIN 8

92902-05200 WASHER,PLAIN 4

92A08-04303 SCREW SET 2

98702-03005 SCREW,FLAT HEAD 16

99480-03008 PIN,PARALLEL 4

Width Holder Sub (UR)

90990-25J024 BEARING 2

KHY-M9152-00 SPACER 2

KKE-M9143-A0 PULLEY ASSY. 1

KKE-M9185-00 PLATE 1,GUIDE 2

KKE-M9184-00 HOLDER A,BRG. 1

KKE-M9184-10 HOLDER B,BRG. 1

KKE-M9186-00 PLATE 2,GUIDE 2

KKE-M9187-00 PLATE 3,GUIDE 2

KKE-M9188-00 PLATE 4

KKE-M9189-00 HOLDER 2,NUT 2

KKE-M918B-00 HOLDER 1,NUT 2

KKE-M918C-00 PLATE 1,BRG. 2

KKE-M918E-00 PULLEY:P50-3GT 2

KKE-M918F-00 SPACER 2

KKE-M919C-00 COLLAR 2,BRG. 2

KKE-M919V-00 DAMPER B 2

KLW-M9141-00 PLATE,BASE 1

KLW-M9143-00 PLATE,BASE 1

KLW-M9145-00 PLATE 1

KLW-M9146-01 PLATE 1

KLW-M9147-00 PLATE 1

KLW-M9180-00 LM GUIDE 2

KLW-M918D-00 PLATE,PULLEY 1

KLW-M919T-00 BELT 1851-3GT-9 1

90933-01J807 BEARING 4

90933-02J608 BEARING 2

91312-04006 BOLT HEX,SOCKET HEAD 8

91312-04012 BOLT HEX,SOCKET HEAD 16

91312-04014 BOLT HEX,SOCKET HEAD 8

91312-04016 BOLT HEX,SOCKET HEAD 26

91312-04035 BOLT HEX,SOCKET HEAD 2

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-05012 BOLT HEX,SOCKET HEAD 12

91312-05016 BOLT HEX,SOCKET HEAD 12

91312-05030 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 12

91312-08025 BOLT HEX,SOCKET HEAD 8

92012-05030 BOLT BUTTON HEAD 1

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

99480-06012 PIN,PARALLEL 4

KLW-M91B1-A0 CV.BASE ASSY.1 1

KLW-M91UA-A0 HOLDER SUB ASSY.UA 1

KLW-M91U2-A0 HOLDER SUB ASSY.U2 1

KLW-M91W1-A0 HOLDER SUB ASSY.W1 1

KLW-M91W2-A0 HOLDER SUB ASSY.W2 1

KLW-M91W3-A0 BRG.SUB ASSY. 1

Width Screw (UR)

90933-01J000 BEARING 2

90990-25J024 BEARING 4

90990-28J018 WASHER,PLAIN 1

90K65-312350 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 12

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 8

91312-05008 BOLT HEX,SOCKET HEAD 8

91312-05012 BOLT HEX,SOCKET HEAD 12

91312-05030 BOLT HEX,SOCKET HEAD 10

91312-06008 BOLT HEX,SOCKET HEAD 2

KG2-M2604-00 SUPPORT UNIT 2

KKE-M9181-00 HOLDER 1,BRG. 2

KKE-M9182-00 HOLDER 2,BRG. 2

KKE-M9183-00 STAY 1 2

KKE-M918A-00 PLATE,NUT 4

KKE-M918G-00 SLEEVE 2

KKE-M918P-10 BRACKET,DOG 1

KKE-M9197-A0 PULLEY ASSY. 2

KKE-M9198-00 PULLEY:P30-3GT 1

KKE-M919C-00 COLLAR 2,BRG. 2

KKE-M919K-00 PLATE,DOG 1

KLW-M653C-00 SENSOR,UA ORG ASSY 1

KLW-M915L-00 COVER,PULLEY 1

KLW-M918J-00 STAY,U MOTOR 1

KLW-M918L-00 PLATE,TENSIONER 1

KLW-M9199-00 BELT 783-3GT-9 1

KLW-M919C-00 BALL SCREW 2

KLW-M919J-00 PLATE,SENSOR 1

KLW-M919W-00 DAMPER 2

91312-06012 BOLT HEX,SOCKET HEAD 8

91312-06100 BOLT HEX,SOCKET HEAD 4

92012-04010 BOLT, BOTTON HEAD 1

92902-04600 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

99009-10400 CIRCLIP 2

KLW-M91U3-A0 HOLDER SUB ASSY. 2

KLW-M91U4-A0 HOLDER SUB ASSY. 2

KLW-M91U6-A0 TENSIONER ASSY. 1

KLW-M91M1-A0 UA MOTOR SUB ASSY. 1

Width Frame (UR)

91312-03006 BOLT HEX,SOCKET HEAD 16

91312-03012 BOLT HEX,SOCKET HEAD 12

91312-03008 BOLT HEX,SOCKET HEAD 26

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 6

91312-04010 BOLT HEX,SOCKET HEAD 8

91312-05030 BOLT HEX,SOCKET HEAD 2

KKE-M9143-A0 PULLEY ASSY. 2

KLW-M914L-00 PLATE,PIN GUARD 1

KLW-M914M-00 PLATE,PIN GUARD 1

90990-46J017 BOLT, THIN HEAD 4

KKE-M919C-00 COLLAR 2,BRG. 2

KMK-M653A-20 SENSOR DS CV3 SET(Fiber+Amp) 1 KMK-M653B-20(Amp)KLC-M9192-00(Fiber)

KMK-M653A-40 SENSOR DS CV5 SET(Fiber+Amp) 1 KMK-M653B-40(Amp)KLC-M9192-00(Fiber)

KLW-M914V-00 LINEAR BUSHING 4

KLW-M653K-00 SEN.CV2 F PUSH1 ASSY 1

KLW-M653K-10 SEN.CV2 F PUSH2 ASSY 1

KLW-M653K-20 SEN.CV2 R PUSH1 ASSY 1

KLW-M653K-30 SEN.CV2 R PUSH2 ASSY 1

KLW-M9148-00 PLATE,GUIDE 1 L-R

KLW-M9194-01 PLATE,GUIDE 1 L-R

KLW-M914G-00 PIN 4

KLW-M914K-00 SPRING 4

90990-25J024 BEARING 4

KLW-M914N-00 STAY,SENSOR 4

KLW-M914R-01 COVER,CABLE 1

KLW-M9149-01 PLATE,GUIDE 1 R-L

KLW-M915E-00 GUIDE,HNS. 1

KLW-M9191-00 FRAME,CONVEYOR 2

KLW-M9192-10 BLOCK,GUIDE 4

KLW-M9193-00 PLATE,GUIDE 1

KLW-M919B-01 GUIDE B 2

KLW-M919H-01 GUIDE C 2

KLW-M919L-00 STAY,PULLEY 4

KLW-M919N-00 STAY,SENSOR 4

91312-06025 BOLT HEX,SOCKET HEAD 8

92012-04010 BOLT, BOTTON HEAD 20

92902-04200 WASHER,PLAIN 1

92902-05200 WASHER,PLAIN 2

95302-03700 NUT HEXAGON 32

Width Duct (UR)

90990-25J024 BEARING 2

90990-46J010 BOLT, THIN HEAD 3

90KC1-011B07 AC SERVO MOTOR 1

91312-04005 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 5

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-05030 BOLT HEX,SOCKET HEAD 1

92012-04006 BOLT, BOTTON HEAD 2

92012-05010 BOLT BUTTON HEAD 2

92012-06012 BOLT BUTTON HEAD 4

KKE-M918S-A0 DUCT COVER ASSY. 1

KKE-M919C-00 COLLAR 2,BRG. 1

KKE-M919E-11 BRKT.1,DUCT 1

KKE-M919G-11 BRKT.2,DUCT 1

KLW-M914B-00 TAPE,U2 DUCT 1 1

KLW-M914C-00 TAPE,U2 DUCT 2 1

KLW-M914D-00 TAPE,W2 DUCT 1 1

KLW-M914E-00 TAPE,W2 DUCT 1 1

KLW-M914F-01 PLATE 1

KLW-M914S-00 GUIDE,HNS. 1

KLW-M914T-00 GUIDE,HNS. 1

KLW-M918T-00 BRKT.,W MOTOR 1

KLW-M918U-00 DUCT,CABLE 1

KLW-M919F-00 DUCT,CABLE 1

KLW-M91P6-00 PULLEY:P25-3GT 1

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

92A08-04303 SCREW SET 1

98702-03005 SCREW,FLAT HEAD 8

KLW-M91U8-A0 DUCT SUB ASSY. 1

KLW-M91M3-A0 W MOTOR SUB ASSY.1 1

Trasport (R)

90990-25J024 BEARING 2

KH2-M9121-00 BEARING 2

KHW-M9137-00 COLLAR,BRG. 1

KLV-M917S-01 GUIDE 1

KLV-M917T-01 GUIDE 1

KLW-M913A-A2 PULLEY ASSY. 4

KLW-M913L-00 PLATE 2

KLW-M913R-00 BLOCK,TENSIONER 2

KLW-M9140-A0 PULLEY CONV. ASSY 2

KLW-M914A-A0 PULLEY,CONV. ASSY. 2

KLW-M915V-00 BRKT.,TENSIONER 1

KLW-M9177-00 FRAME,CONVEYOR 2

KLW-M9178-01 PLATE,GUIDE 1 R-L

KLW-M9179-00 PLATE,GUIDE 1

KLW-M917A-00 PLATE,GUIDE 1 L-R

KLW-M917B-10 BLOCK,GUIDE 2

KLW-M917E-00 STAY,PULLEY 2

KLW-M917F-00 STAY,SENSOR 2

KLW-M917K-00 SPLINE 1 1

KLW-M917L-00 BELT 297-3GT-9 1

KLW-M918N-00 BRACKET,COLLAR 1

KLW-M919B-01 GUIDE B 1

KLW-M919H-01 GUIDE C 1

KLW-M91FE-A0 FRAME ASSY.E 1 R-L

KLW-M91FF-A0 FRAME ASSY.F 1

KLW-M91FL-A0 FRAME ASSY.L 1 L-R__Only different parts are published.

KLW-M91P5-00 PULLEY:P50-3GT 1

KLW-M91P6-00 PULLEY:P25-3GT 1

KMK-M653A-10 SENSOR DS CV2 SET (Fiber+Amp) 1 KMK-M653B-10(Amp)KLC-M9192-00(Fiber)

KMK-M911F-A0 SPLINE PULLEY ASSY. 1

KMK-M913V-A0 PULLEY ASSY. 1

KMK-M917H-00 BELT,CONVEYOR 2

90990-28J070 WASHER,PLAIN 1

90990-28J110 WASHER,PLAIN 1

90990-46J010 BOLT,THIN HEAD 2

90KC1-011402 AC SERVO MOTOR 1

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-03008 BOLT HEX,SOCKET HEAD 16

91312-03012 BOLT HEX,SOCKET HEAD 6

91312-03014 BOLT HEX,SOCKET HEAD 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 1

91312-04010 BOLT HEX,SOCKET HEAD 15

91312-04025 BOLT HEX,SOCKET HEAD 4

91312-05014 BOLT HEX,SOCKET HEAD 2

91312-05020 BOLT HEX,SOCKET HEAD 1

92012-04010 BOLT, BOTTON HEAD 4

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 5

92A08-04303 SCREW SET 3

95302-03700 NUT HEXAGON 8

Width Screw (R)

90990-25J024 BEARING 2

90990-28J058 WASHER,PLAIN 2

90990-28J070 WASHER,PLAIN 2

90KC1-011306 AC SERVO MOTOR 1

91312-04005 BOLT HEX,SOCKET HEAD 8

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04014 BOLT HEX,SOCKET HEAD 8

KG7-M9111-01 PULLEY 1 3

KH2-M9121-00 BEARING 4

KHW-M9137-00 COLLAR,BRG. 1

KLW-M9155-00 PLATE 2

KLW-M9157-00 BRKT.,SENSOR 1 L-R

KLW-M915V-00 BRKT.,TENSIONER 1

KLW-M9175-00 STAY,CONVEYOR 2

KLW-M9176-00 STAY,CONVEYOR 1

KLW-M917D-A0 BRG.ASSY. 1

KLW-M917J-00 BELT 417-3GT-9 1

KLW-M9A00-30 BALL SCREW W 2

KLW-M917W-00 BRKT.,SENSOR 1 R-L

KLW-M91MA-A0 W MOTOR SUB ASSY.3 1

91312-05006 BOLT HEX,SOCKET HEAD 2

91312-05008 BOLT HEX,SOCKET HEAD 2

91312-05014 BOLT HEX,SOCKET HEAD 19

91312-05020 BOLT HEX,SOCKET HEAD 1

91312-06010 BOLT HEX,SOCKET HEAD 2

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 11

92A08-04303 SCREW SET 5

Width Base (R)

$KM-11 MUFFLER 1

$ATSH6-01 JOINT 1

90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 3

91312-04025 BOLT HEX,SOCKET HEAD 3

91312-05010 BOLT HEX,SOCKET HEAD 5

KLC-M910N-00 SPACER 1

KLF-M915B-00 SPACER 1

KLW-M9156-00 PLATE,STOPPER 1

KLW-M915G-00 DUCT,CABLE 1

KLW-M9174-00 PLATE 2

KLW-M917G-00 STAY,DUCT 1

KLW-M917M-00 DAMPER 1

KLW-M917N-00 DAMPER 1

KLW-M917R-00 BRKT.,DUCT 1

KMK-M917Y-00 PLATE,VALVE 1

KMK-M91B3-A0 CONV.BASE SUB ASSY.3 1

KLW-M91G1-A0 STOPPER SUB ASSY.1 1

KLW-M91G2-A0 STOPPER SUB ASSY.2 1

KLW-M91G6-A0 DUCT SUB ASSY.2 1

KLW-M91VA-A0 VALVE DS RL-R ASSY 1 R-L

KLW-M91VB-B0 VALVE DS LR-R ASSY 1 L-R

91312-05040 BOLT HEX,SOCKET HEAD 8

91312-06022 BOLT HEX,SOCKET HEAD 4

92902-04600 WASHER,PLAIN 2

91312-03016 BOLT HEX,SOCKET HEAD 9

91312-04014 BOLT HEX,SOCKET HEAD 4

KKE-M9186-00 PLATE 2,GUIDE 1 Assembly accuracy Caution

KLW-M913X-00 LINEARWAY 1

Trasport (UL)

90990-41J006 COLLAR W 1

90KC1-011704 AC SERVO MOTOR 1

91312-03006 BOLT HEX,SOCKET HEAD 8

91312-04006 BOLT HEX,SOCKET HEAD 6

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 5

91312-05006 BOLT HEX,SOCKET HEAD 2

91312-05010 BOLT HEX,SOCKET HEAD 4

91312-05014 BOLT HEX,SOCKET HEAD 4

KH2-M9121-00 BEARING 2

KKE-M918Y-00 SHAFT 1

KMK-M653A-70 SENSOR DS CV8 SET (Fiber+Amp) 1 KMK-M653B-70(Amp)KLC-M9192-00(Fiber)

KLF-M9135-01 PLATE,EDGE 2 8

KMK-M9110-00 BELT,CONVEYOR 2

KMK-M911E-A0 SPLINE PULLEY ASSY. 2

KLW-M9155-00 PLATE 1

KMK-M653A-50 SENSOR DS CV6 SET(Fiber+Amp) 1 KMK-M653B-50(Amp)KLW-M915B-00(Fiber)

KLW-M915M-00 BELT 255-3GT-9 1

KLW-M915N-00 PLATE 1

KLW-M918W-00 STAY,MOTOR 1

KLW-M918X-00 SPLINE 1 1

KLW-M9197-01 STAY,SPLINE 1

KLW-M919M-01 COVER,HNS. 1

KLW-M919N-00 STAY,SENSOR 4

KLW-M91M6-A0 CV MOTOR SUB ASSY.2 1

KLW-M91P5-00 PULLEY:P50-3GT 1

KLW-M91P6-00 PULLEY:P25-3GT 1

KLW-M91P7-00 PLATE,CONV. MOTOR 1

91312-05040 BOLT HEX,SOCKET HEAD 2

92012-04010 BOLT, BOTTON HEAD 8

92902-04200 WASHER,PLAIN 2

92A08-04303 SCREW SET 2

98702-03005 SCREW,FLAT HEAD 16

Width Holder Sub (UL)

90933-01J807 BEARING 4

90933-02J608 BEARING 2

91312-04006 BOLT HEX,SOCKET HEAD 8

91312-04012 BOLT HEX,SOCKET HEAD 16

91312-04014 BOLT HEX,SOCKET HEAD 8

91312-04016 BOLT HEX,SOCKET HEAD 27

91312-04035 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-05012 BOLT HEX,SOCKET HEAD 14

KHY-M9152-00 SPACER 1

KHY-M9154-00 SPACER 1

KKE-M9143-A0 PULLEY ASSY. 1

KKE-M9184-00 HOLDER A,BRG. 1

KKE-M9184-10 HOLDER B,BRG. 1

KKE-M9185-00 PLATE 1,GUIDE 2

KKE-M9186-00 PLATE 2,GUIDE 2

KKE-M9187-00 PLATE 3,GUIDE 2

KKE-M9188-00 PLATE 4

KKE-M9189-00 HOLDER 2,NUT 2

KKE-M918B-00 HOLDER 1,NUT 2

KKE-M918C-00 PLATE 1,BRG. 2

KKE-M918E-00 PULLEY:P50-3GT 2

KKE-M918F-00 SPACER 2

KKE-M919C-00 COLLAR 2,BRG. 2

KKE-M919U-00 DAMPER A 1

KKE-M919V-00 DAMPER B 1

KLW-M9142-00 PLATE,BASE 1

KLW-M9144-00 PLATE,BASE 1

KLW-M9145-00 PLATE 1

KLW-M9146-01 PLATE 1

KLW-M9147-00 PLATE 1

KLW-M9180-00 LM GUIDE 2

KLW-M918D-00 PLATE,PULLEY 1

KLW-M919T-00 BELT 1851-3GT-9 1

KLW-M919Y-00 PLATE,AMP 1

KLW-M91B2-A0 CV.BASE ASSY.2 1

KLW-M91U1-A0 HOLDER SUB ASSY.U1 1

KLW-M91U2-A0 HOLDER SUB ASSY.U2 1

KLW-M91W1-A0 HOLDER SUB ASSY.W1 1

KLW-M91W2-A0 HOLDER SUB ASSY.W2 1

KLW-M91W4-A0 BRG.SUB ASSY. 1

91312-05016 BOLT HEX,SOCKET HEAD 12

91312-05030 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 12

91312-06025 BOLT HEX,SOCKET HEAD 8

91312-08025 BOLT HEX,SOCKET HEAD 6

92012-05030 BOLT BUTTON HEAD 1

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

99480-06012 PIN,PARALLEL 4

90990-25J024 BEARING 2

Width Screw (UL)

90933-01J000 BEARING 2

90990-25J024 BEARING 4

90990-28J018 WASHER,PLAIN 1

90K65-312851 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 12

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 8

91312-05008 BOLT HEX,SOCKET HEAD 8

91312-05012 BOLT HEX,SOCKET HEAD 12

91312-05030 BOLT HEX,SOCKET HEAD 10

91312-06008 BOLT HEX,SOCKET HEAD 2

91312-06012 BOLT HEX,SOCKET HEAD 6

KG2-M2604-00 SUPPORT UNIT 2

KKE-M9181-00 HOLDER 1,BRG. 2

KKE-M9182-00 HOLDER 2,BRG. 2

KKE-M9183-00 STAY 1 2

KKE-M918A-00 PLATE,NUT 4

KKE-M918G-00 SLEEVE 2

KKE-M918P-00 BRACKET,DOG 1

KKE-M9197-A0 PULLEY ASSY. 2

KKE-M9198-00 PULLEY:P30-3GT 1

KKE-M919C-00 COLLAR 2,BRG. 2

KKE-M919K-00 PLATE,DOG 1

KLW-M653C-10 SENSOR,UB ORG ASSY 1

KLW-M915L-00 COVER,PULLEY 1

KLW-M915W-00 DAMPER 2

KLW-M918J-00 STAY,U MOTOR 1

KLW-M918L-00 PLATE,TENSIONER 1

KLW-M9199-00 BELT 783-3GT-9 1

KLW-M919A-00 BALL SCREW 2

KLW-M919J-00 PLATE,SENSOR 1

91312-06100 BOLT HEX,SOCKET HEAD 4

92012-04010 BOLT, BOTTON HEAD 1

92902-04600 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

92A08-06306 SCREW SET 4

99009-10400 CIRCLIP 2

KLW-M91U3-A0 HOLDER SUB ASSY. 2

KLW-M91U4-A0 HOLDER SUB ASSY. 2

KLW-M91U6-A0 TENSIONER ASSY. 1

KLW-M91M2-A0 UB MOTOR SUB ASSY. 1

Width Frame (UL)

90990-46J017 BOLT,THIN HEAD 4

90990-25J024 BEARING 4

91312-03006 BOLT HEX,SOCKET HEAD 8

91312-03012 BOLT HEX,SOCKET HEAD 12

91312-03008 BOLT HEX,SOCKET HEAD 26

91312-04005 BOLT HEX,SOCKET HEAD 1

91312-04008 BOLT HEX,SOCKET HEAD 9

91312-04010 BOLT HEX,SOCKET HEAD 16

KKE-M9143-A0 PULLEY ASSY. 2

KLW-M918N-00 BRACKET,COLLAR 2

KKE-M919C-00 COLLAR 2,BRG. 2

KLW-M914V-00 LINEAR BUSHING 4

KLW-M914A-A0 PULLEY,CONV. ASSY. 4

KLW-M653K-40 SEN.CV3 F PUSH1 ASSY 1

KLW-M653K-50 SEN.CV3 F PUSH2 ASSY 1

KLW-M653K-60 SEN.CV3 R PUSH1 ASSY 1

KLW-M653K-70 SEN.CV3 R PUSH2 ASSY 1

KLW-M913A-A2 PULLEY ASSY. 4

KLW-M9148-00 PLATE,GUIDE 1 R-L

KLW-M914G-00 PIN 4

KLW-M914K-00 SPRING 4

KLW-M914L-00 PLATE,PIN GUARD 1

KLW-M914M-00 PLATE,PIN GUARD 1

KLW-M914N-00 STAY,SENSOR 4

KLW-M9150-01 PLATE,GUIDE 1 L-R

KLW-M9151-01 PLATE,GUIDE 1 R-L

KLW-M915D-00 GUIDE,HNS. 1

KLW-M913J-00 PLATE 2

KLW-M913L-00 PLATE 2

KLW-M918M-01 COVER,CABLE 1

KLW-M9191-00 FRAME,CONVEYOR 2

KLW-M9192-10 BLOCK,GUIDE 4

KLW-M9193-00 PLATE,GUIDE 1 Common

KLW-M919B-01 GUIDE B 2

KLW-M919H-01 GUIDE C 2

KLW-M919L-00 STAY,PULLEY 4

KLW-M91FC-A0 FRAME ASSY.C 1 R-L

KLW-M91FD-A0 FRAME ASSY.D 1 Common

KLW-M913K-00 BLOCK,TENSIONER 2

KLW-M9140-A0 PULLEY CONV. ASSY 2

91312-05008 BOLT HEX,SOCKET HEAD 2

91312-05030 BOLT HEX,SOCKET HEAD 2

92012-04010 BOLT, BOTTON HEAD 12

92902-04200 WASHER,PLAIN 5

92902-05200 WASHER,PLAIN 6

95302-03700 NUT HEXAGON 32

KLW-M91FK-A0 FRAME ASSY.K 1 L-R (Only different parts are published.)

90990-25J024 BEARING 2

Width Duct (UL)

90990-46J010 BOLT, THIN HEAD 3

90KC1-011B13 AC SERVO MOTOR 1

91312-04005 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 5

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-05030 BOLT HEX,SOCKET HEAD 1

92012-04006 BOLT, BOTTON HEAD 2

92012-05010 BOLT BUTTON HEAD 2

KKE-M918S-A0 DUCT COVER ASSY. 1

KKE-M919C-00 COLLAR 2,BRG. 1

KKE-M919E-01 BRKT.1,DUCT 1

KKE-M919G-01 BRKT.2,DUCT 1

KLW-M914B-00 TAPE,U2 DUCT 1 1

KLW-M914C-00 TAPE,U2 DUCT 2 1

KLW-M914D-00 TAPE,W2 DUCT 1 1

KLW-M914E-00 TAPE,W2 DUCT 1 1

KLW-M914F-01 PLATE 1

KLW-M918U-00 DUCT,CABLE 1

KLW-M918V-00 BRKT.,W MOTOR 1

KLW-M919D-00 GUIDE,HNS. 1

KLW-M919F-00 DUCT,CABLE 1

KLW-M919S-00 GUIDE,HNS. 1

KLW-M91P6-00 PULLEY:P25-3GT 1

92012-06012 BOLT BUTTON HEAD 4

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

92A08-04303 SCREW SET 1

98702-03005 SCREW,FLAT HEAD 8

KLW-M91U9-A0 DUCT SUB ASSY. 1

KLW-M91M4-A0 W MOTOR SUB ASSY.2 1

91312-05012 BOLT HEX,SOCKET HEAD 2

KLW-M915S-00 PLATE 1

KLW-M915T-00 STAY,HNS. 1

Trasport (L)

90990-25J024 BEARING 2

90990-28J070 WASHER,PLAIN 1

90990-28J110 WASHER,PLAIN 1

90KC1-011305 AC SERVO MOTOR 1

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-03012 BOLT HEX,SOCKET HEAD 6

91312-03008 BOLT HEX,SOCKET HEAD 16

91312-03014 BOLT HEX,SOCKET HEAD 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 1

91312-04010 BOLT HEX,SOCKET HEAD 15

KMK-M911F-A0 SPLINE PULLEY ASSY. 1

KH2-M9121-00 BEARING 2

KHW-M9137-00 COLLAR,BRG. 1

KLW-M914A-A0 PULLEY,CONV. ASSY. 2

KLW-M918N-00 BRACKET,COLLAR 1

KMK-M653A-80 SENSOR DS CV9 SET(Fiber+Amp) 1 KMK-M653B-80(Amp)KLC-M9192-00(Fiber)

KLV-M917S-01 GUIDE 1

KLV-M917T-01 GUIDE 1

KLW-M913A-A2 PULLEY ASSY. 4

KLW-M913L-00 PLATE 2

KLW-M917C-000 PLATE,GUIDE 1 L-R

KLW-M915V-00 BRKT.,TENSIONER 1

KLW-M9177-00 FRAME,CONVEYOR 2

KLW-M9179-00 PLATE,GUIDE 1 R-L

KLW-M917A-00 PLATE,GUIDE 1 Common

KLW-M917B-10 BLOCK,GUIDE 2

KLW-M917E-00 STAY,PULLEY 2

KLW-M917F-00 STAY,SENSOR 2

KMK-M917H-00 BELT,CONVEYOR 2

KLW-M917K-00 SPLINE 1 1

KLW-M917L-00 BELT 297-3GT-9 1

KMK-M913V-A0 PULLEY ASSY. 1

KLW-M919B-01 GUIDE B 1

KLW-M919H-01 GUIDE C 1

KLW-M91P5-00 PULLEY:P50-3GT 1

KLW-M91P6-00 PULLEY:P25-3GT 1

KLW-M9140-A0 PULLEY CONV. ASSY 2

KLW-M913R-00 BLOCK,TENSIONER 2

90990-46J010 BOLT,THIN HEAD 2

91312-05014 BOLT HEX,SOCKET HEAD 2

91312-05020 BOLT HEX,SOCKET HEAD 1

92012-04010 BOLT, BOTTON HEAD 4

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 5

92A08-04303 SCREW SET 3

95302-03700 NUT HEXAGON 8

KLW-M91FG-A0 FRAME ASSY.G 1 R-L

KLW-M91FH-A0 FRAME ASSY.H 1 Common

KLW-M91FM-A0 FRAME ASSY.M 1 L-R

91312-04025 BOLT HEX,SOCKET HEAD 4

Width Screw (L)

90990-25J024 BEARING 2

90990-28J058 WASHER,PLAIN 2

90990-28J070 WASHER,PLAIN 2

90KC1-011420 AC SERVO MOTOR 1

91312-04005 BOLT HEX,SOCKET HEAD 8

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04014 BOLT HEX,SOCKET HEAD 8

KG7-M9111-01 PULLEY 1 3

KH2-M9121-00 BEARING 4

KHW-M9137-00 COLLAR,BRG. 1

KLW-M9155-00 PLATE 2

KLW-M9157-00 BRKT.,SENSOR 1 L-R

KLW-M915V-00 BRKT.,TENSIONER 1

KLW-M9175-00 STAY,CONVEYOR 2

KLW-M9176-00 STAY,CONVEYOR 1

KLW-M917J-00 BELT 417-3GT-9 1

KLW-M9A00-30 BALL SCREW W 2

KLW-M917W-00 BRKT.,SENSOR 1 R-L

91312-05006 BOLT HEX,SOCKET HEAD 2

91312-05008 BOLT HEX,SOCKET HEAD 2

91312-05014 BOLT HEX,SOCKET HEAD 19

91312-05020 BOLT HEX,SOCKET HEAD 1

91312-06010 BOLT HEX,SOCKET HEAD 2

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 11

92A08-04303 SCREW SET 5

KLW-M91MC-A0 W MOTOR SUB ASSY.4 1

KLW-M917D-A0 BRG.ASSY. 1

Width Base (L)

$KM-11 MUFFLER 1

$ATSH6-01 JOINT 1

90112-2AJ005 BOLT, HEX.SOCKET HEAD 4

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 3

91312-04025 BOLT HEX,SOCKET HEAD 3

91312-05010 BOLT HEX,SOCKET HEAD 5

91312-05040 BOLT HEX,SOCKET HEAD 8

91312-06022 BOLT HEX,SOCKET HEAD 4

92902-04600 WASHER,PLAIN 2

KLC-M910N-00 SPACER 1

KLF-M915B-00 SPACER 1

KLW-M9156-00 PLATE,STOPPER 1

KLW-M915G-00 DUCT,CABLE 1

KLW-M9174-00 PLATE 2

KLW-M917G-00 STAY,DUCT 1

KLW-M917M-00 DAMPER 1

KLW-M917N-00 DAMPER 1

KLW-M917P-00 BRKT.,DUCT 1

KMK-M91B4-A0 CONV.BASE SUB ASSY.4 1

KLW-M91G1-A0 STOPPER SUB ASSY.1 1

KLW-M91G2-A0 STOPPER SUB ASSY.2 1

KLW-M91VA-B0 VALVE DS LR-L ASSY 1 L-R

KLW-M91VB-A0 VALVE DS RL-L ASSY 1 R-L

KLW-M91G5-A0 DUCT SUB ASSY.1 1

91312-03016 BOLT HEX,SOCKET HEAD 9

91312-04014 BOLT HEX,SOCKET HEAD 4

KKE-M9186-00 PLATE 2,GUIDE 1 Assembly accuracy Caution

KLW-M913X-00 LINEARWAY 1

Sensor-board detection

KMK-M653A-00 SENSOR DS CV1 SET (Fiber+Amp) 1 KMK-M653B-00(Amp)KHM-M654B-01(Fiber)

KMK-M653A-10 SENSOR DS CV2 SET (Fiber+Amp) 2

KMK-M653A-20 SENSOR DS CV3 SET (Fiber+Amp) 2

KMK-M653A-30 SENSOR DS CV4 SET (Fiber+Amp) 2 KMK-M653B-30(Amp)KHM-M654B-01(Fiber)

KMK-M653A-40 SENSOR DS CV5 SET (Fiber+Amp) 2

KMK-M653A-50 SENSOR DS CV6 SET (Fiber+Amp) 2

KMK-M653A-60 SENSOR DS CV7 SET (Fiber+Amp) 2 KMK-M653B-60(Amp)KLW-M915A-00(Fiber)

KMK-M653A-70 SENSOR DS CV8 SET (Fiber+Amp) 2

KMK-M653A-80 SENSOR DS CV9 SET (Fiber+Amp) 2

KMK-M653A-90 SENSOR DS CV10 SET (Fiber+Amp) 1 KMK-M653B-90(Amp)KHM-M654B-01(Fiber)

KMK-M653C-00 SENSOR,CV RIGHT ASSY 1

KMK-M653D-00 SEN.DS CV LEFT ASSY 1

KMK-M653E-00 SENSOR,CV RIGHT ASSY 1

KMK-M653F-00 SEN.DS CV LEFT ASSY 1

KLF-M9156-03 HOLDER, SENSOR 6

97602-03310 SCREW PAN HEAD W/WASHER 8

98502-03004 SCREW PAN HEAD 12

Extension conveyer

91312-03012 BOLT HEX,SOCKET HEAD 12

91312-03008 BOLT HEX,SOCKET HEAD 24

91312-03014 BOLT HEX,SOCKET HEAD 8

KLV-M917S-01 GUIDE 2

KLV-M917T-01 GUIDE 2

KLW-M913A-A2 PULLEY ASSY. 4

KLW-M9157-00 BRKT.,SENSOR 2 L-R

KLW-M917W-00 BRKT.,SENSOR 2 R-L

KLW-M9521-00 FRAME,CONVEYOR 4

KLW-M9523-00 PLATE,GUIDE 4

KLW-M9524-10 BLOCK,GUIDE 4

KLW-M9525-00 PLATE,JOINT 4

KLW-M9527-00 PLATE,HNS. 2

KMK-M957H-00 BELT,CONVEYOR 4

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 16

92902-04200 WASHER,PLAIN 8

Push Up (L510)

90440-01J090 CIRCLIP 2

90933-01J001 BEARING 2

90933-01J007 BEARING 4

90933-01J300 BEARING 2

90990-01J065 BOLT HEX,SOCKET HEAD 2

90990-28J076 WASHER,PLAIN 1

90K65-332G74 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 6

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 9

91312-04020 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 9

91312-05012 BOLT HEX,SOCKET HEAD 20

KGA-M921T-00 BOLT 8

KHW-M9215-00 PULLEY:P60-3GT 2

KHW-M921A-00 BRKT.,TENSIONER 1

KHW-M921B-00 STAY,ADJUST 1

KHW-M921C-00 SHAFT 1 1

KHW-M9222-00 POST 1

KHW-M9223-00 PULLEY:P40-3GT 1

KHY-M9211-00 HOLDER,BRG. 2

KHY-M9212-00 HOUSING 2

KHY-M921D-00 BELT 315-3GT-15 1

KHY-M921G-01 BRKT.,DOG 1

90990-28J170 WASHER,PLAIN 2

KHY-M921N-01 JOINT A 2

KKE-M9218-00 GROMMET 1

KLW-M653D-20 SENSOR,PUB ORG ASSY 1

KLW-M920D-00 PLATE,PU BASE 1

KLW-M920G-01 STAY 1

KLW-M920K-00 PLATE 1(400x425) 2

KLW-M9B00-00 BALL SCREW PU 2

KLW-M9217-00 BALL BUSH 2

KLW-M9218-00 SHAFT 2

KLW-M921H-02 PLATE,DOG 1

KLW-M921K-00 BRKT.,SENSOR 1

KLW-M921N-00 BELT 1170-3GT-15 1

KLW-M921S-00 BRKT.,MOTOR 1

KLW-M9221-01 DAMPER 2

KV7-M9205-01 PULLEY 1:P22-3GT 1

91312-05016 BOLT HEX,SOCKET HEAD 16

91312-05020 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 14

95302-04600 NUT HEXAGON 1

95602-10100 NUT, U 8

99009-10400 CIRCLIP 1

99009-12400 CIRCLIP 1

KLW-M9201-A0 DRIVE UNIT ASSY. 2

KLW-M9203-D0 STAY ASSY. 1

KLW-M9204-A0 TENTIONER ASSY. 1

KLW-M9205-A0 PULLEY ASSY. 1

KLW-M9208-A0 MOTOR ASSY. 1

KLW-M9209-B0 SENSOR SUB ASSY. 1

KHY-M920D-00 PUSH UP PIN UNIT 1

Main / Sub / Exit Stopper (L510)

KHW-M9272-00 STOPPER,EXIT 2

KHW-M9274-A0 SPEED CONTROLLER 16

KHW-M9282-00 STOPPER,SUB 6

KMG-M9162-00 STOPPER,CYLINDER 8

KMG-M9271-00 BRKT.,CYLINDER 2 H=30mm

KMG-M9271-01 BRKT.,CYLINDER 2 H=28mm OK MR20032-2018/2/14

KMK-M653M-00 CYL.RL SLCV ST1 ASSY 1

KMK-M653M-10 CYL.RL SLCV ST2 ASSY 1

KMK-M653M-20 CYL.RL SLCV ST3 ASSY 1

KMK-M653M-40 CYL.RL SLCV ST5 ASSY 1

KMK-M653N-00 CYL.LR SLCV ST1 ASSY 1

KMK-M653N-20 CYL.LR SLCV ST3 ASSY 1

KMK-M653N-30 CYL.LR SLCV ST4 ASSY 1

KMK-M653N-40 CYL.LR SLCV ST5 ASSY 1

KMK-M9160-00 MAIN STP.ASSY.1-1 1

KMK-M9160-20 MAIN STP.ASSY.1-1 1

KMK-M9161-000 BRKT.,CYLINDER 6

KMK-M9270-00 EXIT STOPPER ASSY. 1

KMK-M9270-10 EXIT STOPPER ASSY. 1

KMK-M9280-00 SUB STP.ASSY.1-1 1

KMK-M9280-10 SUB STP.ASSY.1-2 1

KMK-M9280-20 SUB STP.ASSY.1-1 1

KMK-M9280-30 SUB STP.ASSY.1-2 1

91312-04006 BOLT HEX,SOCKET HEAD 12

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 32

92902-04200 WASHER,PLAIN 4

Clamp Board (L510)

90169-02JB04 SCREW, BINDING HEAD 48

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 20

91312-04014 BOLT HEX,SOCKET HEAD 8

91312-04016 BOLT HEX,SOCKET HEAD 4

92012-04006 BOLT, BOTTON HEAD 8

92012-04010 BOLT, BOTTON HEAD 8

KHW-M9167-00 BRKT.,CYL. 4

KHW-M916E-00 BUSH 4

KHW-M9261-01 PLATE1,LINK 8

KHW-M9264-A0 LINK A ASSY. 4

KHW-M9264-B0 LINK B ASSY. 4

KHW-M9265-00 SPACER 16

KHW-M926A-00 COLLAR 8

KHW-M926B-00 COLLAR, JOINT 4

KHW-M926E-00 NUT 4

KHY-M926F-00 JOINT , CYL. BRKT 4

KHY-M926H-00 JOINT, CYL. 4

KHY-M926M-00 STOPPER, CYLINDER 4

KHY-M926S-A0 SPEED CONTROLLER 8

KKE-M926F-00 COLLAR,FLOATING 4

KKT-M9269-00 BRKT.,CYL. 4

KLT-M9263-00 CYLINDER 4

KLW-M9266-00 PLATE 1,LINK 2

KLW-M9268-00 PLATE,BASE 2

KLW-M926U-00 PLATE 2,LINK 2

KLW-M926V-00 PLATE,BOARD CLAMP 2

KLW-M926W-00 PLATE,BOARD CLAMP 2

KLW-M926X-00 PLATE,BASE S 2

KLW-M926Y-00 PLATE 1 4

KV7-M9266-01 GUIDE 12

92012-04012 BOLT, BOTTON HEAD 4

92902-04200 WASHER,PLAIN 4

95302-06600 NUT HEXAGON 4

98902-03005 SCREW BINDING HEAD 16

KLW-M9260-00 CP BOARD A SUB ASSY. 1 Only different parts are published.

KLW-M9260-10 CP BOARD C SUB ASSY. 1

KLW-M9260-20 CP BOARD B SUB ASSY. 1 Only different parts are published.

KLW-M9260-30 CP BOARD D SUB ASSY. 1

Board Transport (L510)

$KM-11 MUFFLER 1

$ATSH6-01 JOINT 1

90990-28J070 WASHER,PLAIN 1

90990-41J006 COLLAR 1

90KC1-011402 AC SERVO MOTOR 1

91312-03010 BOLT HEX,SOCKET HEAD 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 9

91312-04010 BOLT HEX,SOCKET HEAD 5

91312-04025 BOLT HEX,SOCKET HEAD 2

91312-05008 BOLT HEX,SOCKET HEAD 3

91312-05010 BOLT HEX,SOCKET HEAD 2

KG2-M9108-11 COLLAR CONVEYOR 1

KMK-M911F-A0 SPLINE PULLEY ASSY. 1

KH2-M9121-00 BEARING 2

KHY-M9157-00 SHAFT,MOTOR 1

KMK-M9118-00 BRACKET,COLLAR 1

KMK-M911A-A0 PULLEY ASSY. 1

KKT-M9114-00 BRKT.1,SPLINE 1

KLF-M9135-01 PLATE,EDGE 2 16

KGY-M9140-A0 PULLEY,CONV. ASSY. 8

KMK-M9113-00 BELT,CONVEYOR 2

KLW-M912D-00 SPLINE 1 1

KLW-M912E-00 BRKT.,MOTOR 1

KLW-M912F-00 STAY,MOTOR 1

KLW-M917Y-10 PLATE,VALVE 1

KLW-M91P5-00 PULLEY:P50-3GT 1

KLW-M91P6-00 PULLEY:P25-3GT 1

KLW-M91VC-A0 VALVE SL RL-R ASSY 1 R-L

KLW-M91VC-B0 VALVE SL LR-R ASSY 1 L-R

KLW-M91MF-A0 MOTOR SUB ASSY. 1

KMK-M917G-00 STAY,DUCT 1

KV1-M910A-00 BELT(246-3GT-9) 1

KV7-M9140-A0 PULLEY CONV. ASSY 1

91312-05012 BOLT HEX,SOCKET HEAD 4

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 9

92A08-04305 SCREW SET 2

98702-03005 SCREW,FLAT HEAD 34

KMG-M91AC-00 PLATE,EDGE 2

Board Width Adjust (L510)

_No. Parts_Name Q_

90933-01J200 BEARING 2

90990-25J024 BEARING 4

90990-28J070 WASHER,PLAIN 2

90990-28J110 WASHER,PLAIN 2

90KC1-011306 AC SERVO MOTOR 1

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04014 BOLT HEX,SOCKET HEAD 9

91312-04016 BOLT HEX,SOCKET HEAD 18

KG7-M9111-01 PULLEY 1 3

KH2-M9121-00 BEARING 2

KHW-M9139-00 PLATE,BRG. 2

KHY-M9151-00 DAMPER A 1

KHY-M9152-00 SPACER 1

KHY-M9154-00 SPACER 1

KKE-M919C-00 COLLAR 2,BRG. 2

KKE-M919U-00 DAMPER A 1

KKT-M9101-00 STAY 2

KKT-M9102-00 PLATE 1 2

KKT-M9103-00 PLATE A 2

KKT-M9105-00 PLATE 1A 1

KKT-M9105-10 PLATE 1A 1

KKT-M9106-00 PLATE ,GUIDE 1

KKT-M9106-10 PLATE ,GUIDE 1

KKT-M9138-00 PLATE,GUIDE 2

KLW-M9109-00 BRKT.,MOTOR 1

KLW-M9116-00 LM GUIDE 2

KLW-M911R-00 PLATE,TENSIONER 1

KLW-M912B-00 BELT 2025-3GT-9 1

KLW-M9A00-00 BALL SCREW W 2

91312-04020 BOLT HEX,SOCKET HEAD 8

91312-04040 BOLT HEX,SOCKET HEAD 1

91312-05008 BOLT HEX,SOCKET HEAD 6

91312-05012 BOLT HEX,SOCKET HEAD 4

91312-05030 BOLT HEX,SOCKET HEAD 2

91312-06012 BOLT HEX,SOCKET HEAD 4

91312-06014 BOLT HEX,SOCKET HEAD 8

91312-06016 BOLT HEX,SOCKET HEAD 4

91312-06020 BOLT HEX,SOCKET HEAD 16

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

92A08-04303 SCREW SET 4

92A08-04305 SCREW SET 1

KLW-M91H3-A0 STAND SUB ASSY. 1

KLW-M91H4-A0 STAND SUB ASSY. 1

KLW-M91MD-A0 MOTOR SUB ASSY. 1

KLW-M91G7-A0 TENSIONER ASSY. 1

Base / Guide / Brkt. Sensor (L510)

KKE-M9131-00 PLATE,HNS. 1

KLW-M9112-00 BRKT.,STOPPER 1

KLW-M911L-00 PLATE,PIN GUARD 1

KLW-M911M-00 PLATE,PIN GUARD 1

KLW-M911N-00 STAY,SENSOR 4

KLW-M9133-00 BRKT.,STOPPER 1

KLW-M9136-00 PLATE 1

KLW-M9137-00 DAMPER 2

KLW-M913C-00 PLATE 1

KLW-M913D-00 PLATE 1

KLW-M914G-00 PIN 4

KLW-M914K-00 SPRING 4

KLW-M914V-00 LINEAR BUSHING 4

KMG-M912B-00 STAY, HNS. 1

KMG-M912C-00 GUIDE 2,END 2

KMG-M912D-00 GUIDE 1,END 2

KMG-M912E-00 PLATE,TUBE 2

KMG-M916A-00 BRKT.,SENSOR 2

KMK-M9121-00 FRAME,CONV. 1

KMK-M9122-00 FRAME,CONV. 1

KMK-M9125-00 PLATE,GUIDE 2

KMK-M9126-00 PLATE,GUIDE 4

KMK-M912G-00 STAY, HNS. 2

KMK-M913B-00 PLATE 2

KMK-M913E-00 PLATE 2

90990-28J204 WASHER,PLAIN 8

90990-46J017 BOLT,THIN HEAD 4

91312-03008 BOLT HEX,SOCKET HEAD 36

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-04008 BOLT HEX,SOCKET HEAD 17

91312-04010 BOLT HEX,SOCKET HEAD 16

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-06010 BOLT HEX,SOCKET HEAD 2

91312-06016 BOLT HEX,SOCKET HEAD 20

91312-08025 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-04600 WASHER,PLAIN 8

92902-06200 WASHER,PLAIN 2

92A08-03304 SCREW SET 4

Sensor (L510)

KLF-M9156-03 HOLDER, SENSOR 10

KLW-M653L-00 SENSOR PUSH1-1 ASSY 2

KLW-M653L-10 SENSOR PUSH1-2 ASSY 2

KLW-M653L-20 SENSOR PUSH2-1 ASSY 2

KLW-M653L-30 SENSOR PUSH2-2 ASSY 2

KMK-M653C-00 SENSOR,CV RIGHT ASSY 1

KMK-M653D-10 SEN.SL CV LEFT ASSY 1

KMK-M653E-00 SENSOR,CV RIGHT ASSY 1

KMK-M653F-10 SEN.SL CV LEFT ASSY 1

KMK-M653R-00 SENSOR SL CV1 SET (Fiber+Amp) 2 KMK-M653T-00(Amp)KHM-M654B-01(Fiber)

KMK-M653R-10 SENSOR SL CV2 SET (Fiber+Amp) 2 KMK-M653T-10(Amp)KHM-M654B-01(Fiber)

KMK-M653R-20 SENSOR SL CV3 SET (Fiber+Amp) 2 KMK-M653T-20(Amp)KHM-M654B-01(Fiber)

KMK-M653R-30 SENSOR SL CV4 SET (Fiber+Amp) 2 KMK-M653T-30(Amp)KHM-M654B-01(Fiber)

KMK-M653R-40 SENSOR SL CV5 SET (Fiber+Amp) 2 KMK-M653T-40(Amp)KHM-M654B-01(Fiber)

91312-03006 BOLT HEX,SOCKET HEAD 16

97602-03310 SCREW PAN HEAD W/WASHER 8

98502-03004 SCREW PAN HEAD 20

Extension conveyer (L510)

KGY-M9140-A0 PULLEY,CONV. ASSY. 4

KMG-M9123-00 JOINT,FRAME 4

KMG-M912C-00 GUIDE 2,END 2

KMG-M912D-00 GUIDE 1,END 2

KMK-M9513-00 BELT,CONV.(3656) 2 Both extensions

KMK-M9513-10 BELT,CONV.(3286) 4 One extension

KMK-M9524-00 FRAME,CONV. EXT. 4

KMK-M9527-00 PLATE,HNS. 2

KMK-M9528-00 PLATE,GUIDE 4

90990-28J204 WASHER,PLAIN 8

91312-03008 BOLT HEX,SOCKET HEAD 24

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04016 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 4

Push Up (L360)

90440-01J090 CIRCLIP 2

90933-01J001 BEARING 2

90933-01J007 BEARING 4

90933-01J300 BEARING 2

90990-01J065 BOLT HEX,SOCKET HEAD 2

90990-28J076 WASHER,PLAIN 1

90K65-332G74 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 14

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 9

91312-04020 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 5

91312-05012 BOLT HEX,SOCKET HEAD 20

KGA-M921T-00 BOLT 4

KHW-M9215-00 PULLEY:P60-3GT 2

KHW-M921A-00 BRKT.,TENSIONER 1

KHW-M921B-00 STAY,ADJUST 1

KHW-M921C-00 SHAFT 1 1

KHW-M9222-00 POST 1

KHW-M9223-00 PULLEY:P40-3GT 1

KHY-M9211-00 HOLDER,BRG. 2

KHY-M9212-00 HOUSING 2

KHY-M921D-00 BELT 315-3GT-15 1

KHY-M921G-01 BRKT.,DOG 1

90990-28J170 WASHER,PLAIN 2

KHY-M921N-01 JOINT A 2

KKE-M9218-00 GROMMET 1

KLW-M653D-20 SENSOR,PUB ORG ASSY 1

KLW-M920D-00 PLATE,PU BASE 1

KMK-M920G-00 STAY 2

KLW-M920K-00 PLATE 1(400x425) 1

KLW-M9B00-00 BALL SCREW PU 2

KLW-M9217-00 BALL BUSH 2

KLW-M9218-00 SHAFT 2

KLW-M921H-02 PLATE,DOG 1

KLW-M921K-00 BRKT.,SENSOR 1

KLW-M921N-00 BELT 1170-3GT-15 1

KLW-M921S-00 BRKT.,MOTOR 1

KLW-M9221-01 DAMPER 2

KV7-M9205-01 PULLEY 1:P22-3GT 1

91312-05016 BOLT HEX,SOCKET HEAD 16

91312-05020 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 14

95302-04600 NUT HEXAGON 1

95602-10100 NUT, U 4

99009-10400 CIRCLIP 1

99009-12400 CIRCLIP 1

KLW-M9201-A0 DRIVE UNIT ASSY. 2

KMK-M9203-B0 STAY ASSY. 1 R-L

KLW-M9204-A0 TENTIONER ASSY. 1

KLW-M9205-A0 PULLEY ASSY. 1

KLW-M9208-A0 MOTOR ASSY. 1

KLW-M9209-B0 SENSOR SUB ASSY. 1

KHY-M920D-00 PUSH UP PIN UNIT 1

KMK-M921P-00 PLATE 2

KMK-M9203-C0 STAY ASSY. 1 L-R

Main / Sub / Exit Stopper (L360)

KHW-M9272-00 STOPPER,EXIT 2

KHW-M9274-A0 SPEED CONTROLLER 12

KHW-M9282-00 STOPPER,SUB 4

KMG-M9162-00 STOPPER,CYLINDER 6

KMG-M9271-00 BRKT.,CYLINDER 2 H=30mm

KMG-M9271-01 BRKT.,CYLINDER 2 H=28mm OK MR20032-2018/2/14

KMK-M653M-10 CYL.RL SLCV ST2 ASSY 1

KMK-M653M-20 CYL.RL SLCV ST3 ASSY 1

KMK-M653M-40 CYL.RL SLCV ST5 ASSY 1

KMK-M653N-00 CYL.LR SLCV ST1 ASSY 1

KMK-M653N-20 CYL.LR SLCV ST3 ASSY 1

KMK-M653N-30 CYL.LR SLCV ST4 ASSY 1

KMK-M9160-00 MAIN STP.ASSY.1-1 1

KMK-M9160-20 MAIN STP.ASSY.1-1 1

KMK-M9161-00 BRKT.,CYLINDER 4

KMK-M9270-00 EXIT STOPPER ASSY. 1

KMK-M9270-10 EXIT STOPPER ASSY. 1

KMK-M9280-10 SUB STP.ASSY.1-2 1

KMK-M9280-30 SUB STP.ASSY.1-2 1

91312-04006 BOLT HEX,SOCKET HEAD 8

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 24

92902-04200 WASHER,PLAIN 4

Clamp Board (L360)

90169-02JB04 SCREW, BINDING HEAD 24

91312-04010 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 10

91312-04014 BOLT HEX,SOCKET HEAD 4

91312-04016 BOLT HEX,SOCKET HEAD 2

92012-04006 BOLT, BOTTON HEAD 4

92012-04010 BOLT, BOTTON HEAD 4

KHW-M9167-00 BRKT.,CYL. 2

KHW-M916E-00 BUSH 2

KHW-M9261-01 PLATE1,LINK 4

KHW-M9264-A0 LINK A ASSY. 2

KHW-M9264-B0 LINK B ASSY. 2

KHW-M9265-00 SPACER 8

KHW-M926A-00 COLLAR 4

KHW-M926B-00 COLLAR, JOINT 2

KHW-M926E-00 NUT 2

KHY-M926F-00 JOINT , CYL. BRKT 2

KHY-M926H-00 JOINT, CYL. 2

KHY-M926M-00 STOPPER, CYLINDER 2

KHY-M926S-A0 SPEED CONTROLLER 4

KKE-M926F-00 COLLAR,FLOATING 2

KKT-M9269-00 BRKT.,CYL. 2

KLT-M9263-00 CYLINDER 2

KLW-M9266-00 PLATE 1,LINK 2

KLW-M9268-00 PLATE,BASE 2

KLW-M926V-00 PLATE,BOARD CLAMP 2

KLW-M926Y-00 PLATE 1 2

KV7-M9266-01 GUIDE 6

KLW-M9260-00 CP BOARD A SUB ASSY. 1 Only different parts are published.

KLW-M9260-10 CP BOARD C SUB ASSY. 1

92012-04012 BOLT, BOTTON HEAD 2

92902-04200 WASHER,PLAIN 2

95302-06600 NUT HEXAGON 2

98902-03005 SCREW BINDING HEAD 8

Board Transport (L360)

$KM-11 MUFFLER 1

$ATSH6-01 JOINT 1

90990-28J070 WASHER,PLAIN 1

90990-41J006 COLLAR 1

90KC1-011402 AC SERVO MOTOR 1

91312-03010 BOLT HEX,SOCKET HEAD 4

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 9

91312-04010 BOLT HEX,SOCKET HEAD 5

91312-04025 BOLT HEX,SOCKET HEAD 2

91312-05008 BOLT HEX,SOCKET HEAD 3

91312-05010 BOLT HEX,SOCKET HEAD 2

KG2-M9108-11 COLLAR CONVEYOR 1

KMK-M911F-A0 SPLINE PULLEY ASSY. 1

KH2-M9121-00 BEARING 2

KHY-M9157-00 SHAFT,MOTOR 1

KMK-M9118-00 BRACKET,COLLAR 1

KMK-M911A-A0 PULLEY ASSY. 1

KKT-M9114-00 BRKT.1,SPLINE 1

KLF-M9135-01 PLATE,EDGE 2 16

KGY-M9140-A0 PULLEY,CONV. ASSY. 8

KMK-M9113-00 BELT,CONVEYOR 2

KLW-M912D-00 SPLINE 1 1

KLW-M912E-00 BRKT.,MOTOR 1

KLW-M912F-00 STAY,MOTOR 1

KLW-M917Y-10 PLATE,VALVE 1

KLW-M91P5-00 PULLEY:P50-3GT 1

KLW-M91P6-00 PULLEY:P25-3GT 1

KMK-M91VB-A0 VALVE SL RL ASSY 1 R-L

KMK-M91VB-B0 VALVE SL LR ASSY 1 L-R

KLW-M91MF-A0 MOTOR SUB ASSY. 1

KMK-M917G-00 STAY,DUCT 1

KV1-M910A-00 BELT(246-3GT-9) 1

KV7-M9140-A0 PULLEY CONV. ASSY 1

91312-05012 BOLT HEX,SOCKET HEAD 4

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 9

92A08-04305 SCREW SET 2

98702-03005 SCREW,FLAT HEAD 34

KMG-M91AC-00 PLATE,EDGE 2

Board Width Adjust (L360)

90933-01J200 BEARING 2

90990-25J024 BEARING 4

90990-28J070 WASHER,PLAIN 2

90990-28J110 WASHER,PLAIN 2

90KC1-011306 AC SERVO MOTOR 1

91312-04005 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04014 BOLT HEX,SOCKET HEAD 9

91312-04016 BOLT HEX,SOCKET HEAD 18

KG7-M9111-01 PULLEY 1 3

KH2-M9121-00 BEARING 2

KHW-M9139-00 PLATE,BRG. 2

KHY-M9151-00 DAMPER A 1

KHY-M9152-00 SPACER 1

KHY-M9154-00 SPACER 1

KKE-M919C-00 COLLAR 2,BRG. 2

KKE-M919U-00 DAMPER A 1

KKT-M9101-00 STAY 2

KKT-M9102-00 PLATE 1 2

KKT-M9103-00 PLATE A 2

KKT-M9105-00 PLATE 1A 1

KKT-M9105-10 PLATE 1A 1

KKT-M9106-00 PLATE ,GUIDE 1

KKT-M9106-10 PLATE ,GUIDE 1

KKT-M9138-00 PLATE,GUIDE 2

KLW-M9109-00 BRKT.,MOTOR 1

KLW-M9116-00 LM GUIDE 2

KLW-M911R-00 PLATE,TENSIONER 1

KLW-M912B-00 BELT 2025-3GT-9 1

KLW-M9A00-00 BALL SCREW W 2

91312-04020 BOLT HEX,SOCKET HEAD 8

91312-04040 BOLT HEX,SOCKET HEAD 1

91312-05008 BOLT HEX,SOCKET HEAD 6

91312-05012 BOLT HEX,SOCKET HEAD 4

91312-05030 BOLT HEX,SOCKET HEAD 2

91312-06012 BOLT HEX,SOCKET HEAD 4

91312-06014 BOLT HEX,SOCKET HEAD 8

91312-06016 BOLT HEX,SOCKET HEAD 4

91312-06020 BOLT HEX,SOCKET HEAD 16

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 3

92A08-04303 SCREW SET 4

92A08-04305 SCREW SET 1

KLW-M91H3-A0 STAND SUB ASSY. 1

KLW-M91H4-A0 STAND SUB ASSY. 1

KLW-M91MD-A0 MOTOR SUB ASSY. 1

KLW-M91G7-A0 TENSIONER ASSY. 1

Base / Guide / Brkt. Sensor (L360)

KKE-M9131-00 PLATE,HNS. 1

KLW-M9112-00 BRKT.,STOPPER 1

KLW-M911L-00 PLATE,PIN GUARD 1

KLW-M911M-00 PLATE,PIN GUARD 1

KLW-M911N-00 STAY,SENSOR 4

KLW-M9133-00 BRKT.,STOPPER 1

KLW-M9136-00 PLATE 1

KLW-M9137-00 DAMPER 2

KLW-M913C-00 PLATE 1

KLW-M913D-00 PLATE 1

KLW-M914G-00 PIN 4

KLW-M914K-00 SPRING 4

KLW-M914V-00 LINEAR BUSHING 4

KMG-M912B-00 STAY, HNS. 1

KMG-M912C-00 GUIDE 2,END 2

KMG-M912D-00 GUIDE 1,END 2

KMG-M912E-00 PLATE,TUBE 2

KMG-M916A-00 BRKT.,SENSOR 2

KMK-M9121-00 FRAME,CONV. 1

KMK-M9122-00 FRAME,CONV. 1

KMK-M9125-00 PLATE,GUIDE 2

KMK-M9126-00 PLATE,GUIDE 4

KMK-M912G-00 STAY, HNS. 2

KMK-M913B-00 PLATE 2

KMK-M913E-00 PLATE 2

90990-28J204 WASHER,PLAIN 8

90990-46J017 BOLT,THIN HEAD 4

91312-03008 BOLT HEX,SOCKET HEAD 36

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-04008 BOLT HEX,SOCKET HEAD 17

91312-04010 BOLT HEX,SOCKET HEAD 16

91312-05010 BOLT HEX,SOCKET HEAD 2

91312-06010 BOLT HEX,SOCKET HEAD 2

91312-06016 BOLT HEX,SOCKET HEAD 20

91312-08025 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-04600 WASHER,PLAIN 8

92902-06200 WASHER,PLAIN 2

92A08-03304 SCREW SET 4

Sensor (L360)

KLF-M9156-03 HOLDER, SENSOR 6

KLW-M653L-00 SENSOR PUSH1-1 ASSY 2

KLW-M653L-10 SENSOR PUSH1-2 ASSY 2

KLW-M653L-20 SENSOR PUSH2-1 ASSY 2

KLW-M653L-30 SENSOR PUSH2-2 ASSY 2

KMK-M653C-00 SENSOR,CV RIGHT ASSY 1

KMK-M653D-10 SEN.SL CV LEFT ASSY 1

KMK-M653E-00 SENSOR,CV RIGHT ASSY 1

KMK-M653F-10 SEN.SL CV LEFT ASSY 1

KMK-M653R-10 SENSOR SL CV2 SET (Fiber+Amp) 2 KMK-M653T-10(Amp)KHM-M654B-01(Fiber)

KMK-M653R-20 SENSOR SL CV3 SET (Fiber+Amp) 2 KMK-M653T-20(Amp)KHM-M654B-01(Fiber)

KMK-M653R-30 SENSOR SL CV4 SET (Fiber+Amp) 2 KMK-M653T-30(Amp)KHM-M654B-01(Fiber)

91312-03006 BOLT HEX,SOCKET HEAD 16

97602-03310 SCREW PAN HEAD W/WASHER 8

98502-03004 SCREW PAN HEAD 16

Extension conveyer (L360)

KGY-M9140-A0 PULLEY,CONV. ASSY. 4

KMG-M9123-00 JOINT,FRAME 4

KMG-M912C-00 GUIDE 2,END 2

KMG-M912D-00 GUIDE 1,END 2

KMK-M9513-00 BELT,CONV.(3656) 2 Both extensions

KMK-M9513-10 BELT,CONV.(3286) 4 One extension

KMK-M9524-00 FRAME,CONV. EXT. 4

KMK-M9527-00 PLATE,HNS. 2

KMK-M9528-00 PLATE,GUIDE 4

90990-28J204 WASHER,PLAIN 8

91312-03008 BOLT HEX,SOCKET HEAD 24

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-04016 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 4

Camera

90166-02JA04 SCREW, PAN HEAD 32

90990-32J006 BOLT,FLANGE 4

91312-03006 BOLT HEX,SOCKET HEAD 8

91312-06025 BOLT HEX,SOCKET HEAD 8

$SC4-M3MA SPEED CONTROLLER 8

KLW-M731D-00 COVER,MIRROR 2

KLW-M7512-00 COVER,GLASS 4

KLW-M7526-00 PLATE,GLASS 16

KMK-M73C0-00 MULTI CAM.ASSY. 1 STD (HM Head)

KMK-M73C0-10 MULTI+CO CAM.ASSY. 1 STD+CO (HM Head)

KMK-M73F0-00 MULTI CAM.ASSY.FM 1 STD (FM Head)

KMK-M73F0-10 MULTI+CO CAM.ASSY.FM 1 STD+CO (FM Head)

Blow Station / Dump Box

$NK-2N NYLON CLIP 1

$PF PLUG 1

$PL6-01 JOINT 1

$TS6-01M JOINT 1

$US6 JOINT 1

90166-02J210 SCREW, PAN HEAD 4

90990-41J191 COLLAR 4

91312-03005 BOLT HEX,SOCKET HEAD 2

91312-03020 BOLT HEX,SOCKET HEAD 3

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 4

97602-04308 SCREW PAN HEAD W/WASHER 1

98902-03008 SCREW BINDING HEAD 1

KLW-M99B6-00 PLUG 1

KLW-M99B5-00 INLINE FILTER 1

KLW-M653X-01 SENSOR,BLOW ST. ASSY 2

KLW-M99V1-A0 BLOW VALVE ASSY. 1

KHY-M99D2-00 DIFFUSE PLATE 1

KMC-M99B4-00 BLOCK,BLOW ST. 1

KLW-M99B1-01 BASE,BLOW ST. 1

KLW-M99B2-00 PLATE,BASE 1

KMC-M99B3-A0 EXHAUST BOX ASSY. 1

KLW-M99D1-00 PLATE,DUMP 1

KLW-M99D2-00 STAY,SENSOR 1

KLW-M99D3-00 DUMP BOX 1

KLW-M653W-00 SENSOR,DUMP BOX ASSY 1

90990-32J008 BOLT, FLAGE 2

92902-03200 WASHER,PLAIN 2

KLW-M99D0-00 DUMP BOX ASSY. 1

KMC-M99BA-00 TUBE 5

KMC-M99B9-00 COLLAR 5

Main Cutter 32

KJJ-M3T05-10 CUTTER UPPER,384 2

KJJ-M3T07-B0 CUTTER LOWER,384 2

KLC-M11FA-00 BOLT,BUTTON HEAD 4

KLW-M3T04-00 STAY,DUCT 2

KLW-M3T0F-00 BRKT.,HOSE 1

KLW-M3T0G-00 BRKT.,COUPLER 1

KLW-M3T0H-00 COUPLER,SOCKET 1

KMK-M3T0K-00 CUT VALVE SUB ASSY. 2

KLW-M3T0J-00 COUPLER,PLUG 1

KLW-M916A-00 SPEED CONTROLLER 8

KMC-M3T03-00 PLATE,SIDE 4

KMC-M3T06-00 BLOCK,CYL. 2

KMC-M3T08-00 COVER,CUTTER UPR. 2

KMK-M3J0J-00 PILOT VALVE ASSY. 2

KMC-M3T0U-00 PLATE,BAFFLE 2

KMC-M3T30-00 DAMPER STOPPER 2

KMK-M3J1E-00 BRKT.,JOINT 2

KMK-M3J37-00 PILOT VALVE 2

KMK-M3T02-00 BASE,BLADE 2

KMK-M3T0P-00 BRKT.,VALVE 2

KMK-M3T30-00 DAMPER STOPPER 2

KMK-M3TV1-A0 VALVE CUTTER ASSY 2

KYB-M702S-00 PIPE_FITTINGS 2

LE6-M5J3H-00 JOINT 2

$AUKM4-01 JOINT 2

90990-42J052 JOINT 2

90990-65J003 SILENCER 4

91312-03012 BOLT HEX,SOCKET HEAD 8

91312-03014 BOLT HEX,SOCKET HEAD 12

91312-04008 BOLT HEX,SOCKET HEAD 24

91312-05008 BOLT HEX,SOCKET HEAD 12

91312-05012 BOLT HEX,SOCKET HEAD 16

91312-05016 BOLT HEX,SOCKET HEAD 8

91312-06012 BOLT HEX,SOCKET HEAD 4

91312-06016 BOLT HEX,SOCKET HEAD 10

91312-06020 BOLT HEX,SOCKET HEAD 12

Cutter Base 32

KHY-M3T0L-01 CYL. COLLAR 3 2

KHY-M3T13-00 CYL. COLLAR 1 2

KHY-M3T14-02 CYL. COLLAR 2 2

KLF-M3T34-00 PLATE,GUIDE 4

KLW-M3T0A-00 GUIDE,CUTTER 4

KLW-M3T0D-00 SHOCK ABSORBER 4

KMC-M3T0B-00 STAY,CYL. 2

KMK-M3T01-00 BASE,CUTTER 2

KMK-M3T0C-00 BLOCK,ABSORBER 4

KMK-M3T23-00 COVER L,CUTTER HNS. 2

KMK-M3T24-00 COVER R,CUTTER HNS. 2

KMK-M654K-00 CYL.TAPE CUTTER ASSY 1

KMK-M654K-10 CYL.TAPE CUTTER ASSY 1

90990-42J053 JOINT 4

90K81-200001 CAP C5 8

91312-04008 BOLT HEX,SOCKET HEAD 8

91312-05016 BOLT HEX,SOCKET HEAD 8

91312-06012 BOLT HEX,SOCKET HEAD 8

91312-06016 BOLT HEX,SOCKET HEAD 4

91312-06020 BOLT HEX,SOCKET HEAD 4

91312-06025 BOLT HEX,SOCKET HEAD 8

91312-06030 BOLT HEX,SOCKET HEAD 4

91312-08025 BOLT HEX,SOCKET HEAD 4

91317-08095 BOLT HEX,SOCKET HEAD 4

91317-08120 BOLT HEX,SOCKET HEAD 4

92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 2

KMK-M3TAA-00 CUTTER BASE 32 ASSY. 1

KMK-M3TAA-10 CUTTER BASE 32 ASSY. 1

Slope 32

KMC-M3T20-00 COVER UPR.32 ASSY. 2

KMC-M3T20-10 COVER UPR.32 ASSY. 2

KMC-M3T2B-00 DUCT,CUTTER L 2

KMC-M3T2C-00 DUCT,CUTTER R 2

KMC-M3T2D-00 STAY,DUCT 4

KMC-M3T2E-00 COVER,BASE 32A 2

KMC-M3T2F-01 COVER,BASE 32B 2

91312-04006 BOLT HEX,SOCKET HEAD 34

91312-04008 BOLT HEX,SOCKET HEAD 8

91312-05010 BOLT HEX,SOCKET HEAD 20

Safety Cover 32

90K41-001260 LABEL,WARNING 2

90K41-001410 LABEL,WARNING 2

KGS-M1360-00 BOLT 4

KHU-M1117-00 PULL 2

KJJ-M5127-00 SAFETY SWITCH KEY 2

KLW-M11C8-00 BRKT.,COVER SAFETY L 1

KLW-M11C9-01 BRKT.,COVER SAFETY R 1

KLW-M11CA-00 PLATE,COVER SAFETY 1

KLW-M5126-C0 SAFETY SW UNIT ASSY 2

KMC-M11C2-00 DUCT 2 2

KMC-M11C6-00 COVER,SAFETY L 1

KMC-M11C6-A0 SAFETY COVER L ASSY. 1

KMC-M11C7-00 COVER,SAFETY R 1

KMC-M11C7-A0 SAFETY COVER R ASSY. 1

KLW-M1324-00 COVER,FRONT 1

KLW-M1325-00 BRKT.,SWITCH 1

$NK-3N NYLON CLIP 2

90990-12J001 SCREW, BIN. HEAD W/W 4

90990-12J004 SCREW, BIN. HEAD W/W 9

90990-12J006 SCREW, BIN. HEAD W/W 10

91312-04025 BOLT HEX,SOCKET HEAD 4

92902-04200 WASHER,PLAIN 4

98902-04006 SCREW BINDING HEAD 4

Main Cutter 70

KLW-M3T55-A1 CUTTER,UPPER 70 1

KLW-M3T57-A1 CUTTER,LOWER 70 1

KMC-M3T0S-11 PLATE,CUTTER BASE 2 1

KMC-M3T0W-00 BLOCK 4

KMC-M3T30-00 DAMPER STOPPER 2

KMC-M3T59-01 BASE,BLADE 1

KMC-M3T5A-00 PLATE,SIDE 2

KMC-M3T5D-00 STAY,DUCT 1

KMC-M3T5P-00 COVER,CUTTER UPR. 1

KMC-M3T5R-00 BRKT.,VALVE 1

KMC-M3TV1-A0 CUTTER VALVE ASSY 1

KMC-M3T0K-10 CUT VALVE SUB ASSY. 1

90990-42J052 JOINT 1

90990-65J003 SILENCER 2

91312-03014 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 6

91312-04016 BOLT HEX,SOCKET HEAD 8

90990-01J074 BOLT HEX,SOCKET HEAD 10

91312-05016 BOLT HEX,SOCKET HEAD 13

91312-06012 BOLT HEX,SOCKET HEAD 10

91312-06020 BOLT HEX,SOCKET HEAD 4

99480-06014 PIN,PARALLEL 1

Cutter Base 70

KHY-M3T0L-01 CYL. COLLAR 3 1

KHY-M3T13-00 CYL. COLLAR 1 1

KHY-M3T14-02 CYL. COLLAR 2 1

KLC-M11FA-00 BOLT,BUTTON HEAD 2

KLF-M3T34-00 PLATE,GUIDE 3

KLW-M3T0C-00 BLOCK,ABSORBER 2

KLW-M3T0D-00 SHOCK ABSORBER 2

KLW-M654F-80 SEN.SPARE ASSY 2

KMC-M3T06-00 BLOCK,CYL. 1

KMC-M3T0A-00 LM GUIDE 4

KMC-M3T0B-00 STAY,CYL. 1

KMC-M3T10-00 CYL.,TAPE CUTTER 1

KMC-M3T51-01 BASE,CUTTER 1

KMC-M3T5V-00 BRKT.,HOSE 1

KMC-M3T5W-00 STAY,COVER UPR.70 2

KMC-M3TDA-11 PLATE,SUS 1

91312-05008 BOLT HEX,SOCKET HEAD 4

91312-05016 BOLT HEX,SOCKET HEAD 28

91312-06008 BOLT HEX,SOCKET HEAD 6

91312-06016 BOLT HEX,SOCKET HEAD 4

91312-06020 BOLT HEX,SOCKET HEAD 6

91312-06025 BOLT HEX,SOCKET HEAD 4

91312-08025 BOLT HEX,SOCKET HEAD 2

91312-08060 BOLT HEX,SOCKET HEAD 4

91317-08095 BOLT HEX,SOCKET HEAD 4

92B12-10035 SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP 1

91312-04008 BOLT HEX,SOCKET HEAD 8

90990-42J053 JOINT 2

Slope 70 & Safety Cover

KGS-M1360-00 BOLT 2

KHU-M1117-00 PULL 1

KJJ-M13AB-A0 HOLDER ASSY 2

KJJ-M5127-00 SAFETY SWITCH KEY 1

KLW-M11C2-00 DUCT 70 1

KLW-M11C6-50 COVER,SAFETY 70 1

KLW-M11C8-00 BRKT.,COVER SAFETY L 1

KLW-M11C9-01 BRKT.,COVER SAFETY R 1

KLW-M1324-10 COVER,FRONT 1

KLW-M1325-00 BRKT.,SWITCH 1

KLW-M3T68-00 BRACKET,UPR. L 1

KLW-M3T69-00 BRACKET,UPR. R 1

KLW-M3T6A-00 COVER,UPPER 70 1

KLW-M5126-C0 SAFETY SW UNIT ASSY 1

KMC-M3T2D-00 STAY,DUCT 2

KMC-M3T61-00 COVER,UPR.70R ASSY 1

KMC-M3T64-01 COVER,UPR.70F ASSY 1

KMC-M3T6B-00 DUCT,CUTTER 70 1

$AUK6 JOINT 2

90990-12J001 SCREW, BIN. HEAD W/W 4

90990-12J004 SCREW, BIN. HEAD W/W 9

90990-12J006 SCREW, BIN. HEAD W/W 6

90K41-001260 LABEL,WARNING 1

90K41-001410 LABEL,WARNING 2

91312-04006 BOLT HEX,SOCKET HEAD 22

91312-04025 BOLT HEX,SOCKET HEAD 2

91312-05006 BOLT HEX,SOCKET HEAD 2

91312-05010 BOLT HEX,SOCKET HEAD 8

92902-04600 WASHER,PLAIN 2

98902-04006 SCREW BINDING HEAD 4

98907-04006 SCREW BINDING HEAD 4

KLW-M3TB3-00 SAFETY COVER ASSY. 1

KMC-M3TB2-00 SLOPE 70 ASSY. 1

NSF Slope 32

KMK-M3T20-00 COVER UPR.32 ASSY. 2

KMK-M3T20-10 COVER UPR.32 ASSY. 2

KMC-M3T2B-00 DUCT,CUTTER L 2

KMC-M3T2C-00 DUCT,CUTTER R 2

KMC-M3T2D-00 STAY,DUCT 4

KMC-M3T2E-00 COVER,BASE 32A 2

KMC-M3T2F-01 COVER,BASE 32B 2

91312-04006 BOLT HEX,SOCKET HEAD 34

91312-04008 BOLT HEX,SOCKET HEAD 8

91312-05010 BOLT HEX,SOCKET HEAD 20

Nozzle / SEN. Laser

KHN-M77LE-40 SPRING,2 NOZZLE 30LE 2

KHN-M7ALW-00 BODY 1,NOZZLE D.SPL 1

KHN-M7ALW-10 PISTON 2

KHN-M7ALW-20 ARM L 2

KHN-M7ALW-40 NAIL 2

KHN-M7ALW-A1 NOZZLE 30ALW ASSY. 1

KLW-M654K-20 SEN.LASER ASSY 1 HM

KLW-M654K-30 SEN.LASER ASSY 1 FM

KLW-M713A-10 STAY,SENSOR 1 HM

KLW-M743A-10 PLATE,SENSOR 1 FM

90112-02J008 BOLT HEX,SOCKET HEAD 4

90947-15JA00 BALL STEEL 2

90990-02J006 SET, SCREW 2

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-03010 BOLT HEX,SOCKET HEAD 4

91312-04010 BOLT HEX,SOCKET HEAD 2

ANC Holder

KHY-M9621-B0 BASE,NOZZLE D 10

KHY-M9621-A0 BASE,NOZZLE D ASSY 10

KHY-M9630-00 HOOK,BEARING 2

KKE-M9608-00 PIN,SLIDE 8

KLW-M96HD-00 SPACER 14

KLW-M96HD-A0 SPACER ASSY. 14

KKT-M9620-00 PIN,MARK 4

KLW-M96H1-00 HOLDER,NOZZLE HM 1 HM

KLW-M96H1-A0 HM NOZZLE HLD. ASSY. 1 HM

KLW-M96H2-10 PLATE,CLAMP HM 1 HM

KLW-M96H4-00 HOLDER,NOZZLE FM 1 FM

KLW-M96H4-A0 FM NOZZLE HLD. ASSY. 1 FM

KLW-M96H5-10 PLATE,CLAMP FM 1 FM

KLW-M96H7-00 MIRROR,CENTER 2

KLW-M96H8-00 MIRROR,SIDE 4

KLW-M96H9-00 SPACER 2

KLW-M96HA-00 SHEET,CLAMP GUIDE 4

KLW-M96HB-00 HOLDER,NOZZLE 2

90990-19J004 NEEDLE PIN 210

90990-19J009 NEEDLE PIN 28

90990-19J028 NEEDLE PIN 8

91312-03006 BOLT HEX,SOCKET HEAD 14

91312-03008 BOLT HEX,SOCKET HEAD 28

91312-03020 BOLT HEX,SOCKET HEAD 4

91312-03030 BOLT HEX,SOCKET HEAD 12

92012-03006 BOLT BUTTON HEAD 10

92012-04012 BOLT, BOTTON HEAD 4

92A08-03303 SCREW SET 1

98902-03008 SCREW BINDING HEAD 16

ANC Stand

$SC4-M5A SPEED CONTROLLER 2

$US4 JOINT 2

99480-04010 PIN, PARALLEL 2

KHW-M916A-00 BUSH 2

KHW-M916E-00 BUSH 1

KHW-M916G-00 COLLAR, JOINT 1

KHW-M916H-00 JOINT, CYL. 1

KHY-M9614-00 STOPPER,CYLINDER 1

KHY-M9627-00 BLOCK,LINK 1

KHY-M9628-00 COLLAR,LINK 1

KHY-M9631-00 COLLAR,FLOATING 1

KHY-M9632-00 BLOCK,FLOATING 1

KKS-M9615-00 PLATE,CYLINDER 1

KKT-M9613-00 BLOCK,CYLINDER 1

KLW-M45BA-03 ANC CTRL BOARD ASSY 1

KLW-M653S-00 CYL.ANC OP/CL ASSY 1

KLW-M96H0-C0 HM CP.HLD. ASSY.MAT. 1 HM

KLW-M96H0-D0 FM CP HLD. ASSY.MAT. 1 FM

KLW-M96S0-00 STAND FRAME ASSY. 1 Common

KLW-M96S0-A0 ANC STAND ASSY. 1 Common

KLW-M96S1-01 HOLDER,BOTTOM 1

KLW-M96S1-A0 BOTTOM HOLDER ASSY. 1

KLW-M96S2-00 PLATE,SIDE 2

KLW-M96S3-00 SHAFT 4

KLW-M96S4-00 PLATE,MIDDLE 1

KLW-M96S5-00 PLATE,BASE 1

KLW-M96S6-00 BOARD,CLEAR 1

KLW-M96S7-00 PLATE,LED SHIELD 1

KLW-M96S8-00 SUPPORT,STAND 1

KLW-M96SV-00 ANC VALVE ASSY. 1

90112-2AJ006 BOLT, HEX.SOCKET HEAD 6

90563-0AJ070 SPACER 6

90933-02J063 BEARING 2

90990-32J005 BOLT,FLANGE 2

90990-41J185 COLLAR 4

91312-03006 BOLT HEX,SOCKET HEAD 4

91312-03010 BOLT HEX,SOCKET HEAD 2

91312-03025 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 2

91312-04016 BOLT HEX,SOCKET HEAD 1

91312-04022 BOLT HEX,SOCKET HEAD 1

91312-05016 BOLT HEX,SOCKET HEAD 8

91312-05020 BOLT HEX,SOCKET HEAD 1

92902-04200 WASHER,PLAIN 3

92902-05200 WASHER,PLAIN 1

95702-06500 NUT FLANGE 8

Pin Stand (DS)

KLW-M91V1-E0 F1 PIN ST.VALVE ASSY 1

KLW-M91V1-F0 F2 PIN ST.VALVE ASSY 1

KLW-M91V1-G0 R1 PIN ST.VALVE ASSY 1

KLW-M91V1-H0 R2 PIN ST.VALVE ASSY 1

KLW-M9841-00 PLATE,BASE 2

KLW-M9842-00 PLATE 4

KLW-M9843-00 PLATE,BUSH 4

KLW-M9844-00 PLATE,PIN 4

KLW-M9845-00 PLATE 4

KLW-M9847-00 JOINT 4

KLW-M984A-00 LINEAR BUSH 8

KLW-M984B-00 LINEAR SHAFT 8

KLW-M984C-00 STOPPER 8

KLW-M984D-00 STOPPER 8

KMK-M654A-00 CYL.F1 PIN ST.ASSY 1

KMK-M654A-10 CYL.F2 PIN ST.ASSY 1

KMK-M654A-20 CYL.R1 PIN ST.ASSY 1

KMK-M654A-30 CYL.R2 PIN ST.ASSY 1

KMK-M9840-A0 PIN ST.F1 ASSY. 1

KMK-M9840-B0 PIN ST.F2 ASSY. 1

KMK-M9840-C0 PIN ST.R1 ASSY. 1

KMK-M9840-D0 PIN ST.R2 ASSY. 1

KMK-M9841-00 PLATE,BASE 2

KMK-M9846-00 PLATE 4

KMK-M9848-00 JOINT,CYL. 4

KMK-M984E-00 STAY 4

KMK-M984F-A0 SPEED CONTROLLER 8

91312-03008 BOLT HEX,SOCKET HEAD 16

91312-03010 BOLT HEX,SOCKET HEAD 8

91312-04012 BOLT HEX,SOCKET HEAD 32

91312-05014 BOLT HEX,SOCKET HEAD 8

91312-05020 BOLT HEX,SOCKET HEAD 12

91317-03008 BOLT HEX,SOCKET HEAD 8

91317-04014 BOLT HEX,SOCKET HEAD 8

92902-05200 WASHER,PLAIN 8

95302-04600 NUT HEXAGON 16

Pin Stand (SL)

KLW-M911U-00 PLATE,VALVE 1

KLW-M91V1-G0 R1 PIN ST.VALVE ASSY 1

KLW-M91V1-J0 R2 PIN ST.VALVE ASSY 1

KLW-M9841-00 PLATE,BASE 2

KLW-M9842-00 PLATE 2

KLW-M9843-00 PLATE,BUSH 2

KLW-M9844-00 PLATE,PIN 2

KLW-M9845-00 PLATE 2

KLW-M9847-00 JOINT 2

KLW-M984A-00 LINEAR BUSH 4

KLW-M984B-00 LINEAR SHAFT 4

KLW-M984C-00 STOPPER 4

KLW-M984D-00 STOPPER 4

KMK-M654A-20 CYL.R1 PIN ST.ASSY 1

KMK-M654A-30 CYL.R2 PIN ST.ASSY 1

KMK-M9840-C0 PIN ST.R1 ASSY. 1

KMK-M9840-E0 PIN ST.R2 ASSY. 1

KMK-M9846-00 PLATE 2

KMK-M9848-00 JOINT,CYL. 2

KMK-M984E-00 STAY 2

KMK-M984F-A0 SPEED CONTROLLER 4

$KM-05 MUFFLER 1

$TSH4-M5M JOINT 2

$TSH6-M5M JOINT 1

91312-03008 BOLT HEX,SOCKET HEAD 8

91312-03010 BOLT HEX,SOCKET HEAD 4

91312-03014 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 16

91312-05008 BOLT HEX,SOCKET HEAD 2

91312-05014 BOLT HEX,SOCKET HEAD 4

91312-05020 BOLT HEX,SOCKET HEAD 4

91317-03008 BOLT HEX,SOCKET HEAD 4

91317-04014 BOLT HEX,SOCKET HEAD 4

92902-05200 WASHER,PLAIN 4

95302-04600 NUT HEXAGON 8

PU Assy A / B (DS)

KHY-M921G-01 BRKT.,DOG 1

KHY-M921N-01 JOINT A 2

KKE-M921D-00 BELT 291-3GT-15 1

KLW-M9201-A0 DRIVE UNIT ASSY. 2

KLW-M9203-G0 STAY ASSY. 1

KLW-M9204-A0 TENTIONER ASSY. 1

KLW-M9205-A0 PULLEY ASSY. 1

KLW-M9206-A0 MOTOR ASSY. 1

KLW-M9207-A0 SENSOR SUB ASSY. 1

KLW-M9208-A0 MOTOR ASSY. 1

KLW-M9209-A0 SENSOR SUB ASSY. 1

KLW-M920B-00 STAY 1

KLW-M920C-00 PLATE,PU BASE 1

KLW-M920N-00 MATRIX PLATE 1

KLW-M920P-00 MATRIX PLATE 1

KLW-M9210-C0 MATRIX PU ASSY.A 1

KLW-M9210-D0 MATRIX PU ASSY.B 1

KLW-M9217-00 BALL BUSH 2

KLW-M9218-00 SHAFT 2

KLW-M921E-00 BELT 852-3GT-15 1

KLW-M921H-02 PLATE,DOG 1

KLW-M921T-00 BOLT 8

KLW-M9221-01 DAMPER 2

KLW-M92U0-A0 MATRIX PIN ASSY. 2

90990-28J113 WASHER,PLAIN 8

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-05010 BOLT HEX,SOCKET HEAD 8

91312-05012 BOLT HEX,SOCKET HEAD 24

91312-05016 BOLT HEX,SOCKET HEAD 16

91312-06020 BOLT HEX,SOCKET HEAD 6

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 16

95602-10100 NUT,S/L 8

PU Drive (DS)

KHW-M9215-00 PULLEY:P60-3GT 1

KHW-M921A-00 BRKT.,TENSIONER 1

KHW-M921B-00 STAY,ADJUST 1

KHW-M921C-00 SHAFT 1 1

KHW-M9222-00 POST 1

KHW-M9223-00 PULLEY:P40-3GT 1

KHY-M9211-00 HOLDER,BRG. 1

KHY-M9212-00 HOUSING 1

KKE-M9218-00 GROMMET 1

KLW-M653D-00 SENSOR,PUA ORG ASSY 1

KLW-M653D-10 SENSOR,PUB ORG ASSY 1

KLW-M9B00-00 BALL SCREW PU 1

KLW-M921K-00 BRKT.,SENSOR 1

KLW-M921S-00 BRKT.,MOTOR 1

KV7-M9205-01 PULLEY 1:P22-3GT 1

90440-01J090 CIRCLIP 1

90933-01J001 BEARING 2

90933-01J007 BEARING 2

90933-01J300 BEARING 2

90990-01J065 BOLT HEX,SOCKET HEAD 1

90990-28J076 WASHER,PLAIN 1

90990-28J170 WASHER,PLAIN 1

90K65-332G74 AC SERVO MOTOR 1 B

90K65-332P73 AC SERVO MOTOR 1 A

91312-03008 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 8

91312-04010 BOLT HEX,SOCKET HEAD 2

91312-04012 BOLT HEX,SOCKET HEAD 5

91312-04020 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 1

91312-05020 BOLT HEX,SOCKET HEAD 1

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 2

95302-04600 NUT HEXAGON 1

99009-10400 CIRCLIP 1

99009-12400 CIRCLIP 1

PU Assy (SL-L510)

KHY-M921D-00 BELT 315-3GT-15 1

KHY-M921G-01 BRKT.,DOG 1

KHY-M921N-01 JOINT A 2

KLW-M9201-A0 DRIVE UNIT ASSY. 2

KLW-M9203-H0 STAY ASSY. 1

KLW-M9204-A0 TENTIONER ASSY. 1

KLW-M9205-A0 PULLEY ASSY. 1

KLW-M9208-A0 MOTOR ASSY. 1

KLW-M9209-B0 SENSOR SUB ASSY. 1

KLW-M920D-10 PLATE,PU BASE 1

KLW-M920G-10 STAY 1

KLW-M920R-00 MATRIX PLATE 1 1

KLW-M920S-00 MATRIX PLATE 2 1

KLW-M9210-30 MATRIX PU ASSY. 1

KLW-M9217-00 BALL BUSH 2

KLW-M9218-00 SHAFT 2

KLW-M921H-02 PLATE,DOG 1

KLW-M921N-00 BELT 1170-3GT-15 1

KLW-M921T-00 BOLT 8

KLW-M9221-01 DAMPER 2

KLW-M92U0-A0 MATRIX PIN ASSY. 2

90990-28J113 WASHER,PLAIN 8

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 2

91312-04010 BOLT HEX,SOCKET HEAD 4

91312-05012 BOLT HEX,SOCKET HEAD 28

91312-05016 BOLT HEX,SOCKET HEAD 16

91312-06020 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 2

92902-05200 WASHER,PLAIN 12

95602-10100 NUT,S/L 8

PU Drive (SL-L510)

KHW-M9215-00 PULLEY:P60-3GT 1

KHW-M921A-00 BRKT.,TENSIONER 1

KHW-M921B-00 STAY,ADJUST 1

KHW-M921C-00 SHAFT 1 1

KHW-M9222-00 POST 1

KHW-M9223-00 PULLEY:P40-3GT 1

KHY-M9211-00 HOLDER,BRG. 1

KHY-M9212-00 HOUSING 1

KKE-M9218-00 GROMMET 1

KLW-M653D-20 SENSOR,PUB ORG ASSY 1

KLW-M9B00-00 BALL SCREW PU 1

KLW-M921K-00 BRKT.,SENSOR 1

KLW-M921S-00 BRKT.,MOTOR 1

KV7-M9205-01 PULLEY 1:P22-3GT 1

90440-01J090 CIRCLIP 1

90933-01J001 BEARING 2

90933-01J007 BEARING 2

90933-01J300 BEARING 2

90990-01J065 BOLT HEX,SOCKET HEAD 1

90990-28J076 WASHER,PLAIN 1

90990-28J170 WASHER,PLAIN 1

90K65-332G74 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 4

91312-04012 BOLT HEX,SOCKET HEAD 5

91312-04020 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 1

91312-05020 BOLT HEX,SOCKET HEAD 1

92902-05200 WASHER,PLAIN 2

95302-04600 NUT HEXAGON 1

99009-10400 CIRCLIP 1

99009-12400 CIRCLIP 1

Push Up (SL-L360)

90440-01J090 CIRCLIP 2

90933-01J001 BEARING 2

90933-01J007 BEARING 4

90933-01J300 BEARING 2

90990-01J065 BOLT HEX,SOCKET HEAD 2

90990-28J076 WASHER,PLAIN 1

90K65-332G74 AC SERVO MOTOR 1

91312-03008 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 2

91312-04008 BOLT HEX,SOCKET HEAD 14

91312-04010 BOLT HEX,SOCKET HEAD 6

91312-04012 BOLT HEX,SOCKET HEAD 9

91312-04020 BOLT HEX,SOCKET HEAD 1

91312-05010 BOLT HEX,SOCKET HEAD 5

91312-05012 BOLT HEX,SOCKET HEAD 20

KLW-M921T-00 BOLT 4

KHW-M9215-00 PULLEY:P60-3GT 2

KHW-M921A-00 BRKT.,TENSIONER 1

KHW-M921B-00 STAY,ADJUST 1

KHW-M921C-00 SHAFT 1 1

KHW-M9222-00 POST 1

KHW-M9223-00 PULLEY:P40-3GT 1

KHY-M9211-00 HOLDER,BRG. 2

KHY-M9212-00 HOUSING 2

KHY-M921D-00 BELT 315-3GT-15 1

KHY-M921G-01 BRKT.,DOG 1

90990-28J170 WASHER,PLAIN 2

KHY-M921N-01 JOINT A 2

KKE-M9218-00 GROMMET 1

KLW-M653D-20 SENSOR,PUB ORG ASSY 1

KLW-M920D-10 PLATE,PU BASE 1

KMK-M920G-10 STAY 1

KMK-M920R-00 MATRIX PLATE 1 1 R-L

KLW-M9B00-00 BALL SCREW PU 2

KLW-M9217-00 BALL BUSH 2

KLW-M9218-00 SHAFT 2

KLW-M921H-02 PLATE,DOG 1

KLW-M921K-00 BRKT.,SENSOR 1

KLW-M921N-00 BELT 1170-3GT-15 1

KLW-M921S-00 BRKT.,MOTOR 1

KLW-M9221-01 DAMPER 2

KV7-M9205-01 PULLEY 1:P22-3GT 1

91312-05016 BOLT HEX,SOCKET HEAD 16

91312-05020 BOLT HEX,SOCKET HEAD 1

91312-06020 BOLT HEX,SOCKET HEAD 8

92902-04200 WASHER,PLAIN 4

92902-05200 WASHER,PLAIN 14

95302-04600 NUT HEXAGON 1

95602-10100 NUT, U 4

99009-10400 CIRCLIP 1

99009-12400 CIRCLIP 1

KLW-M9201-A0 DRIVE UNIT ASSY. 2

KMK-M9203-H0 STAY ASSY. 1 R-L

KLW-M9204-A0 TENTIONER ASSY. 1

KLW-M9205-A0 PULLEY ASSY. 1

KLW-M9208-A0 MOTOR ASSY. 1

KLW-M9209-B0 SENSOR SUB ASSY. 1

KLW-M92U0-A0 MATRIX PIN ASSY. 2

KMK-M921P-00 PLATE 2

KMK-M9203-J0 STAY ASSY. 1 L-R

90990-28J113 WASHER,PLAIN 4

KMK-M920S-00 MATRIX PLATE 2 1 L-R

Set Up ST on MC

90990-23J029 GROMMET 1

KHJ-M4484-02 FDR.ST.BOARD ASSY 1

KHJ-M4486-00 PITCH LED BOARD ASSY 1

KHJ-M663B-10 HNS, PITCH LED 1

KHJ-M663C-10 HNS,PITCH UP 1

KHJ-MD110-00 LABEL, PITCH 1

KHJ-MD115-00 PIN,HUNG R 2

KHJ-MD210-00 FOOT 2

KHY-M372M-00 SCREW,STAD 2

KHY-M66RK-00 HNS,FDR.ST. 1

KLF-M669B-10 HNS,PITCH DOWN 1

KLF-M669B-20 HNS,PITCH SET 1

KLF-M66TE-10 HNS,F.CTRL - FDR. 1

KLF-MD101-00 FEEDER PLATE 1

KLF-MD104-00 CLAMP PLATE 1

KLF-MD105-00 FEEDER STOPPER 1

KLF-MD111-00 RAIL GUIDE 16P 1

KLF-MD112-00 PLATE, UNDER COVER 1

KLW-MD102-00 COVER,HNS 1

KLW-MD103-00 COVER,SIDE 1

KLW-MD106-00 PLATE,CONNECTOR 1

KLW-MD107-00 COVER,BACK 1

KLW-MD108-00 COVER,HNS.2 1

KLW-MD109-00 COVER,SWITCH 1

KLW-MD113-00 HUNGER 1

KLW-MD121-00 SIDE PLATE,L 1

KLW-MD122-00 SIDE PLATE,R 1

KLW-MD123-00 PLATE,REELHOLDER 1

KLW-MD124-00 PLATE,REEL SET LOWER 1

KLW-MD125-00 PLATE,REEL SET UPPER 1

KLW-MD126-00 SHAFT 1

KLW-MD127-00 TUBE 1

KLW-MD1C0-00 REELHOLDER EQUIP. 1

90172-00J040 WASHER, EXTL, TOOTHED 8

90172-00J060 WASHER, EXTL, TOOTHED 4

90990-12J001 SCREW, BIN. HEAD W/W 27

91312-03006 BOLT HEX,SOCKET HEAD 2

91312-04006 BOLT HEX,SOCKET HEAD 4

91312-04008 BOLT HEX,SOCKET HEAD 4

92012-06010 BOLT BUTTON HEAD 4

92902-04200 WASHER,PLAIN 4

98702-03008 SCREW,FLAT HEAD 8

98780-03006 SCREW,FLAT HEAD 2

98902-03004 SCREW BINDING HEAD 10

98902-03008 SCREW BINDING HEAD 4

98902-04006 SCREW BINDING HEAD 2

FDR Power ST

KHJ-MD201-00 FEEDER PLATE 1

KHJ-MD202-00 SIDE PLATE, L 1

KHJ-MD203-00 SIDE PLATE, R 1

KHJ-MD204-00 CLAMP PLATE 1

KHJ-MD205-00 FEEDER STOPPER 1

KHJ-MD206-00 CONNECTOR PLATE 1

KHJ-MD207-01 UNDER COVER 1

KHJ-MD208-00 BACK COVER 1

KHJ-MD209-00 BASE PLATE 1

KHJ-MD210-00 FOOT 4

KJJ-M371R-000 RAIL GUIDE 16P 1

KHJ-MD212-00 BKT. SWITCH 1

KHJ-MD213-00 REEL HOLDER, FIX. 1

KHJ-MD214-00 REEL HOLDER, MOVE 1

KHJ-MD110-00 LABEL, PITCH 1

KHJ-M4484-02 FDR. ST. BOARD ASSY 1

KHJ-M4486-00 PITCH LED BOARD ASSY 1

KJ3-M6511-00 CIRCUIT PROTECTOR, 1 1

KHJ-M537A-00 NOISE FILTER 1

KHJ-M6561-10 POWER SUPPLY 1 1

KHJ-M661B-02 HNS, AC IN 2 1

KHJ-M662A-00 HNS, CP DC24V 1

KHJ-M662B-00 HNS, LAMP 1

KHJ-M662C-000 HNS, BRD.PWR 1

KHJ-M663C-00 HNS, PITCH UP 1

KHJ-M663D-00 HNS, PITCH DOWN 1

KHJ-M663E-00 HNS, PITCH SET 1

KHY-M66TE-00 HNS, F. CTRL-FDR. 1

KJ3-M662A-00 HNS, AC IN 1 1 Abroad parts

KJ3-M661A-00 HNS, AC IN 1 1 Domestis parts

KHJ-MD215-001 LABEL, SERIAL 1

KHA-M5184-11 SEAL, LABEL 1

KHY-M6417-00 SEAL, CE 1

KHY-M372M-00 SCREW, STAD 2

90563-03J100 SPACER BOLT 4

92902-03200 WASHER PLAIN 4

98902-03004 SCREW BINDING HEAD 4

98902-03005 SCREW BINDING HEAD 28

98902-04006 SCREW BINDING HEAD 10

98702-03006 SCREW FLAT HEAD 8

91312-03006 BOLT HEX. SOCKET HEAD 3 M3X8

91312-03008 BOLT HEX. SOCKET HEAD 4 M3X7

90990-11J003 SCREW, PAN HEAD W/W 16

$NK-3N NYLON CLIP 12

F.S.Type 100

90172-00J040 WASHER, EXTL, TOOTHED 1

91312-04008 BOLT HEX,SOCKET HEAD 31

91312-06008 BOLT HEX,SOCKET HEAD 36

92902-04200 WASHER,PLAIN 2

KHJ-MK002-20 FEEDER-50 PLATE 2

KHJ-MK010-20 FRAME,REEL STAND 1 1

KHJ-MK011-20 GUIDE,PARTITION 2 1

KHJ-MK012-20 FRAME,REEL STAND 2 1

KHJ-MK013-20 MAIN FRAME 1 1

KHJ-MK014-20 MAIN FRAME 2 1

KHJ-MK015-20 MAIN FRAME 3 1

KHJ-MK016-20 MAIN FRAME 4 1

KHJ-MK017-20 MAIN FRAME 5 1

KHJ-MK018-20 MAIN FRAME 6 1

KHJ-MK019-20 PULL 2

KHJ-MK020-20 PARTITION 2 12

KHY-M373C-10 CHAIN 1

KHY-M374C-00 CASTER 2

KHY-M3R16-00 PARTITION 12

KM0-M3741-00 CASTER 63 2

Dust Box 32 / 70

KLW-M3600-A0 DUST BOX ASSY. 4 32

KLW-M3600-20 DUST BOX 70 1 70

KLW-M3621-00 BOX,DUST 70 A 1 70

KLW-M3622-00 BOX,DUST 70 B 1 70

KLW-M3620-00 DUST BOX 70 ASSY. 1 70

Controller

KJJ-M412B-00 CLAMP 2 4

KKE-M4141-00 DUMMY PANEL SYS 1

KLA-M4250-01 BACKPLANE BOARD ASSY 1

KLA-M441H-20 VISION BOARD ASSY 1 VISION1

KLW-M4530-10 REMOTE IF BOARD ASSY 1

KLA-M5303-01 SW POWER DC12 1 VISION2

KLA-M5303-10 SW POWER DC5 1

KLA-M5840-04 SERVO BOARD ASSY 2

KLR-M4111-00 PANEL,DUMMY 1

KLA-M5840-16 SERVO BOARD ASSY 1 sATS

KLA-M5840-36 SERVO BOARD ASSY 1

KLV-M4131-00 BASE,C/R BOX 1

KLV-M4132-00 BRKT.,FAN 1

KLV-M4133-01 GUIDE,FLOW 2 1

KLV-M4134-00 COVER,FILTER 1 1

KLV-M4135-00 COVER,FILTER 2 1

KLV-M4136-00 FILTER 1

KLW-M4186-00 FAN MOTOR ASSY 1 FAN3

KLW-M4186-10 FAN MOTOR ASSY 1 FAN4

KLW-M4186-20 FAN MOTOR ASSY 1 FAN5

KLW-M53L6-00 FAN MOTOR ASSY. 1 FAN2

KLW-M53M4-00 FAN MOTOR ASSY. 1 FAN6,7

KLW-M5880-00 CONVERTER BOARD ASSY 1

KMG-M4209-20 SYSTEM UNIT ASSY 1

90166-12JA10 SCREW, PAN HEAD 4

91312-04006 BOLT,HEX.SOCKET HEAD 6

91312-04030 BOLT,HEX.SOCKET HEAD 4

91312-04040 BOLT,HEX.SOCKET HEAD 4

91312-05012 BOLT,HEX.SOCKET HEAD 5

92902-05200 WASHER, PLAIN 5

97602-04306 SCREW,PAN HEAD W/W 2

97602-04308 SCREW,PAN HEAD W/W 12

KMK-M445E-00 CAP1,25000uF 1

KLA-M4255-10 FLASH DISK 4G 1

KLA-M441H-20 VISION BOARD ASSY 1 COPLA

KLW-M4510-00 MOTHER BOARD ASSY 1

Exterior,etc

KLF-M5119-01 TOUCH LCD ASSY 2

KMM-M4899-00 SIG.TOWER ASSY 1 1850mm RYG

KMM-M4899-10 SIG.TOWER ASSY 1 1900mm RYG

KMM-M4899-20 SIG.TOWER ASSY 1 2000mm RYG

KMM-M4899-30 SIG.TOWER ASSY 1 2100mm RYG

KMM-M4899-40 SIG.TOWER ASSY 1 2200mm RYG

KMM-M4899-50 SIG.TOWER ASSY 1 2300mm RYG

KMM-M4899-60 SIG.TOWER ASSY 1 1850mm CBG

KMM-M4899-70 SIG.TOWER ASSY 1 1900mm CBG

KMM-M4899-80 SIG.TOWER ASSY 1 2000mm CBG

KMM-M4899-90 SIG.TOWER ASSY 1 2100mm CBG

KMM-M4899-A0 SIG.TOWER ASSY 1 2200mm CBG

KMM-M4899-B0 SIG.TOWER ASSY 1 2300mm CBG

KLW-M65N5-00 HNS,ENG.ACTIVE 1

KLW-M65N5-10 HNS,ENG.READY 1

KLW-M65N5-20 HNS,ENG.START 1

KLW-M65N5-30 HNS,ENG.STOP 1

KLW-M65N5-40 HNS,ENG.ERR.CLR. 1

KLW-M65N5-50 HNS,ENG.RESET 1

KLW-M65N5-60 HNS,ENG.STOP CE 1 CE

KLW-M65N5-70 HNS,ENG.ERR.CLR.CE 1 CE

KLW-M65N5-00 HNS,CHN.ACTIVE 1 Chinese

KLW-M65N5-90 HNS,CHN.READY 1 Chinese

KLW-M65N5-A0 HNS,CHN.START 1 Chinese

KLW-M65N5-B0 HNS,CHN.STOP YM 1 Chinese

KLW-M65N5-C0 HNS,CHN.ERR.CLR.YM 1 Chinese

KLW-M65N5-D0 HNS,CHN.RESET 1 Chinese

KLW-M65N5-E0 HNS,CHN.STOP CE 1 Chinese_CE

KLW-M65N5-F0 HNS,CHN.ERR.CLR.CE 1 Chinese_CE

KMM-M4897-A0 ERROR LIGHT ASSY 2 S.T.D

KMM-M4897-B0 ERROR LIGHT ASSY 2 CE

KLF-M5138-00 SWITCH EMG SET 1

KGK-M5381-00 EMG PLATE 1

KKE-M6554-00 MAIN SWITCH 1

KKX-M8596-A0 PRESSURE GAUGE 2

KLF-M4268-10 USB MEMORY ASSY 1 8GB

KLF-M4580-00 I/O CONV.BOARD ASSY 1

KLW-M65NA-A0 SELECT 1A ASSY 2

KLF-M138J-01 BALL CHAIN 1

KLF-M138K-00 RING 1

KLW-M516A-00 TOUCH PEN 1

KLW-M5150-A0 KEYBOAD ASSY.E (O/P) 1 Keyboad only_KLF-M5150-20

Exterior,E/L

90990-11J003 SCREW, PAN HEAD W/W 12

91312-04035 BOLT HEX,SOCKET HEAD 4

91312-04045 BOLT HEX,SOCKET HEAD 24

98902-03006 SCREW BINDING HEAD 16

KH1-M6516-01 CIRCUIT PROTECTOR, 1P 1

KH4-M6514-01 CIRCUIT PROTECTOR,3P 1

KH4-M6515-31 CIRCUIT PROTECTOR,2P 1

KHN-M643A-10 TERMINAL, POWER 6

KHN-M643E-10 END PLATE 6

KHN-M6513-11 CIRCUIT PROTECTOR,1P 3

KJX-M6561-00 POWER SUPPLY1 1

KKE-M6561-10 POWER SUPPLY 1 1

KKX-M6513-00 CIRCUIT PROTECTOR,1P 2

KLA-M4506-01 HEAD I/O UNIT ASSY 1

KLA-M459X-01 BATT UNIT ASSY 4

KLF-M4187-10 FAN GUARD 80MM 2

KLF-M4187-20 FAN GUARD 120MM 6

KLF-M537F-00 SAFETY RELAY 1

KLF-M537G-00 CONTACTOR,1 2

KLF-M537G-50 CONTACTOR,1 2

KLF-M6511-00 MAIN BREAKER,1 1

KLV-M6561-00 POWER SUPPLY 1 1

KLW-M643A-00 TERMINAL,POWER 4

KLW-M643E-00 END PLATE 2

KMK-M5802-49 HEAD SERVO UNIT ASSY 2

KMK-M6185-10 FAN MOTOR ASSY 1

KMK-M6185-20 FAN MOTOR ASSY 1

KMK-M6185-50 FAN MOTOR ASSY 1

KMK-M6185-60 FAN MOTOR ASSY 1

KMK-M6185-70 FAN MOTOR ASSY 1

KMK-M6185-80 FAN MOTOR ASSY 1

KMK-M6185-J0 FAN MOTOR ASSY 1
